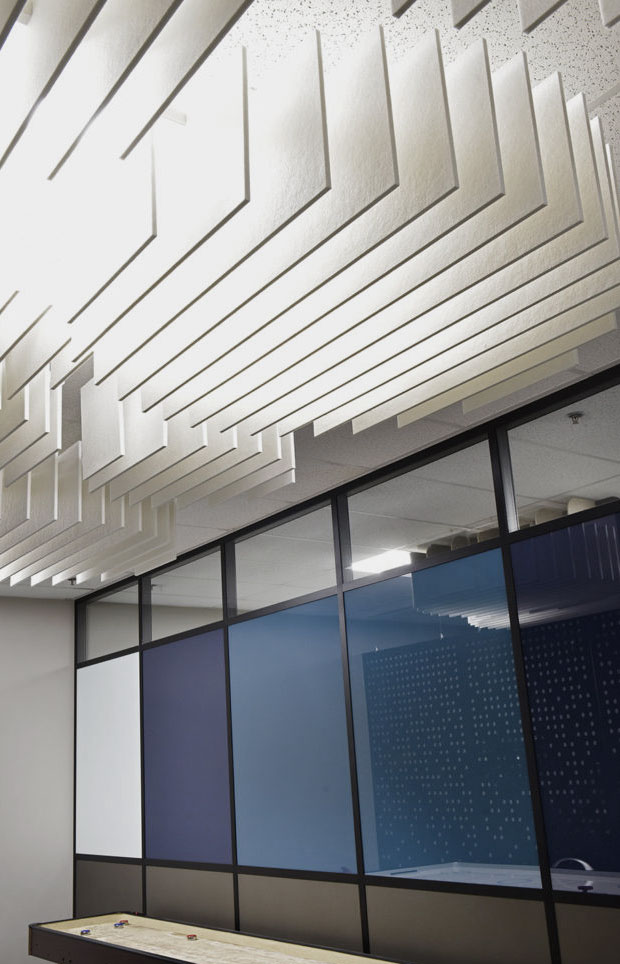

Providing a 3-dimensional vibrant ceiling and absorbing unwanted noise, Baffle Cloud is an easy to install acoustical solution available in various styles and forms.
Baffle Cloud ensures absorption control while adding rhythmically consistent visual variations to monotone spaces.
Key Features
Baffle Cloud is comprised of EzoBord slab arrays which follow standard or customizable forms. Simple assembly flow and installation steps makes Baffle Cloud a convenient and effective solution for both localized (partial) and full ceiling applications.
BAFFLE SYSTEMS
Aalto
Aalto
Luna Round
Luna Round
Luna Square
Luna Square
Vesi
Vesi
Veldi
Veldi

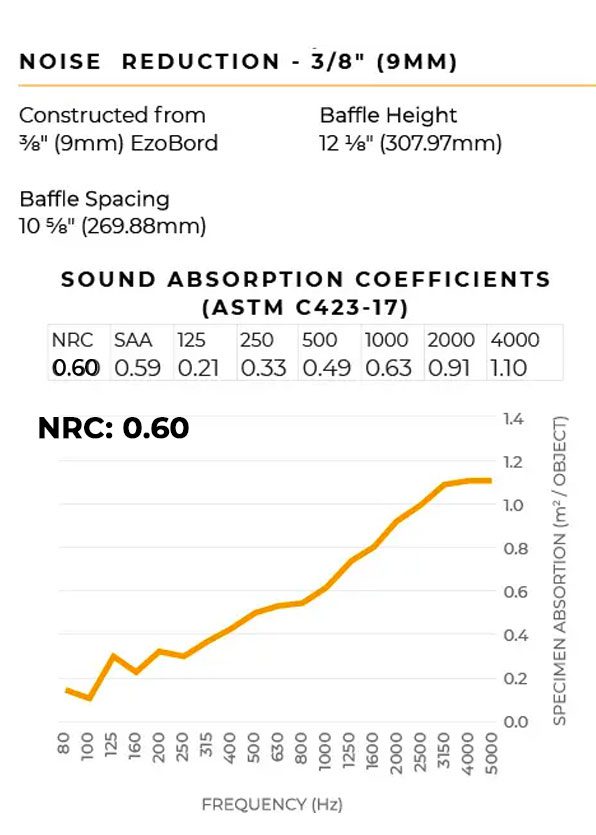

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Features
T-Bar Compatibility allows fast and easy installation
Allows lighting, airflow and sprinkler distribution
Composition
100% pet (min. 50% recycled content).
Acoustics

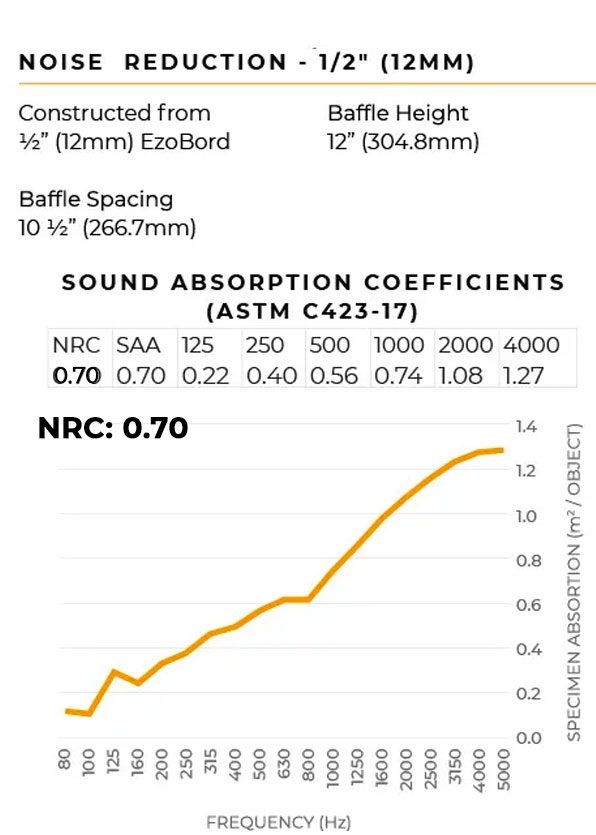

Superior sound absorption characteristics (NRC: 0.70, SAA: 0.70, ASTM C423, 12mm material thickness)
Fire Testing
North America:
- ASTM E-84 Class A*
- CAN ULC S102-10
Europe and UK:
- EN13501-1: 2007
| AALTO | LUNA (ROUND & SQUARE) | VESI | VELDI | |||
| LENGTH | WIDTH | HEIGHT | THICKNESS |
| 47″ (1192mm) | 47″ (1192mm) | 7 ¾” (197mm) | 3/8″ (9mm) |
| 47″ (1192mm) | 47″ (1192mm) | 11½” (292mm) | 3/8″ (9mm) |
| 47″ (1192mm) | 47″ (1192mm) | 7 ¾” (197mm) | 1/2″ (12mm) |
| 47″ (1192mm) | 47″ (1192mm) | 11½” (292mm) | 1/2″ (12mm) |
| 95″ (2413mm) | 95″ (2413mm) | 7 ¾” (197mm) | 3/8″ (9mm) |
| 95″ (2413mm) | 95″ (2413mm) | 11½” (292mm) | 3/8″ (9mm) |
| 95″ (2413mm) | 95″ (2413mm) | 7 ¾” (197mm) | 1/2″ (12mm) |
| 95″ (2413mm) | 95″ (2413mm) | 11½” (292mm) | 1/2″ (12mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Baffle Clouds Brochure.
To get the complete set of dimensions please download Baffle Clouds Brochure.
Specific product files
Specific product design files
Installation Instructions
Customizable Parameters
- Geometric Properties:Length, width and layer quantity
- Material Thickness:3/8″ (9mm) or 1/2″ (12mm) sheets can be layered to form a specific thickness
- Color: Each layer can be manufactured with different color. Available options below
- Pattern and Cut: Custom patterns and cut shapes are available
- Digital Print: Custom graphics and textures can be printed
Contact our design team for custom applications.
AVAILABLE COLORS
Light Beige
LB01
Desert Sand
DS10
Sunny Days
SD18
Tiger Orange
TO24
Ruby Red
RR28
Deep Purple
DP30
Polar Ice
PI14
Midnight Navy
MN12
Green Apple
GA41
Classic White
CW04
Silver Gray
2-400ML
Dark Gray
DG34
Ebony Slate
ES07
Charcoal Gray
CG06
Pure Black
PB09
Tree Bark
TB35
Brick Red
BR34
Grape Vine
GV36
Ocean Blue
OB14
Royal Blue
RB08
Moss Green
MG10
Elephant Gray
EG11
Bold Gray
BG07
