Ceiling Baffles are an acoustic high efficiency solution that delivers comfort in spaces. With endless potential for customization, our Ceiling Baffles add design and function to architectural work requiring high acoustical performance.

Our Ceiling Baffles are totally customizable and provide you with choices in selection of color, shape, thickness, size, and patterns to meet your design and style preferences. The system also offers several cost-effective installation options.

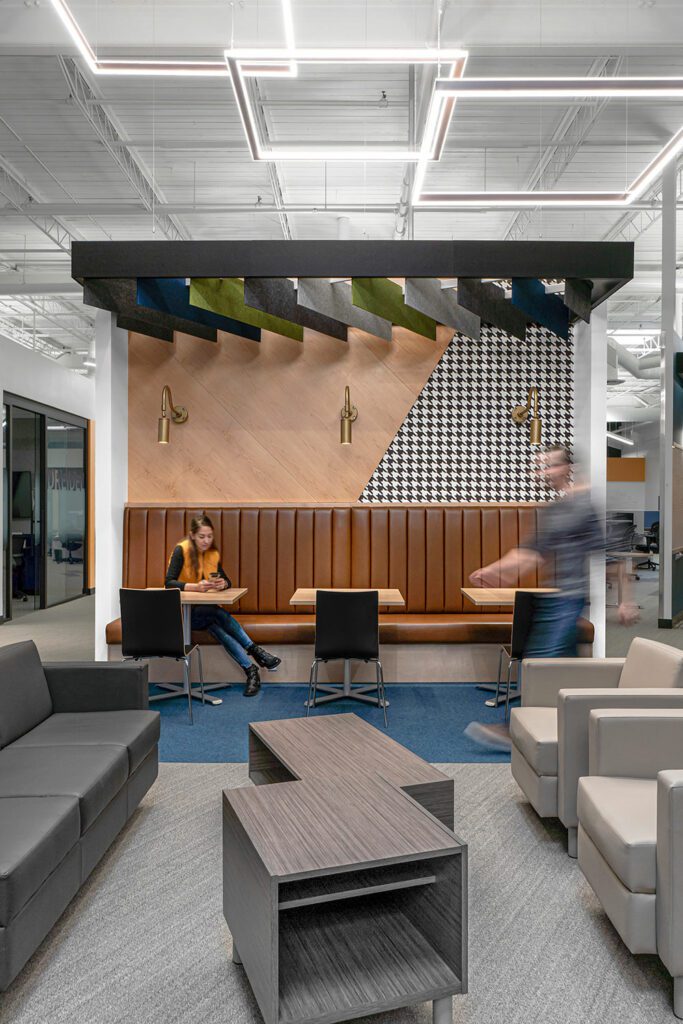

Key Features

Ceiling Baffles can be easily applied to offices, public spaces, atrium and indoor pools.​

BAFFLE SYSTEMS

FILETED

FILETED

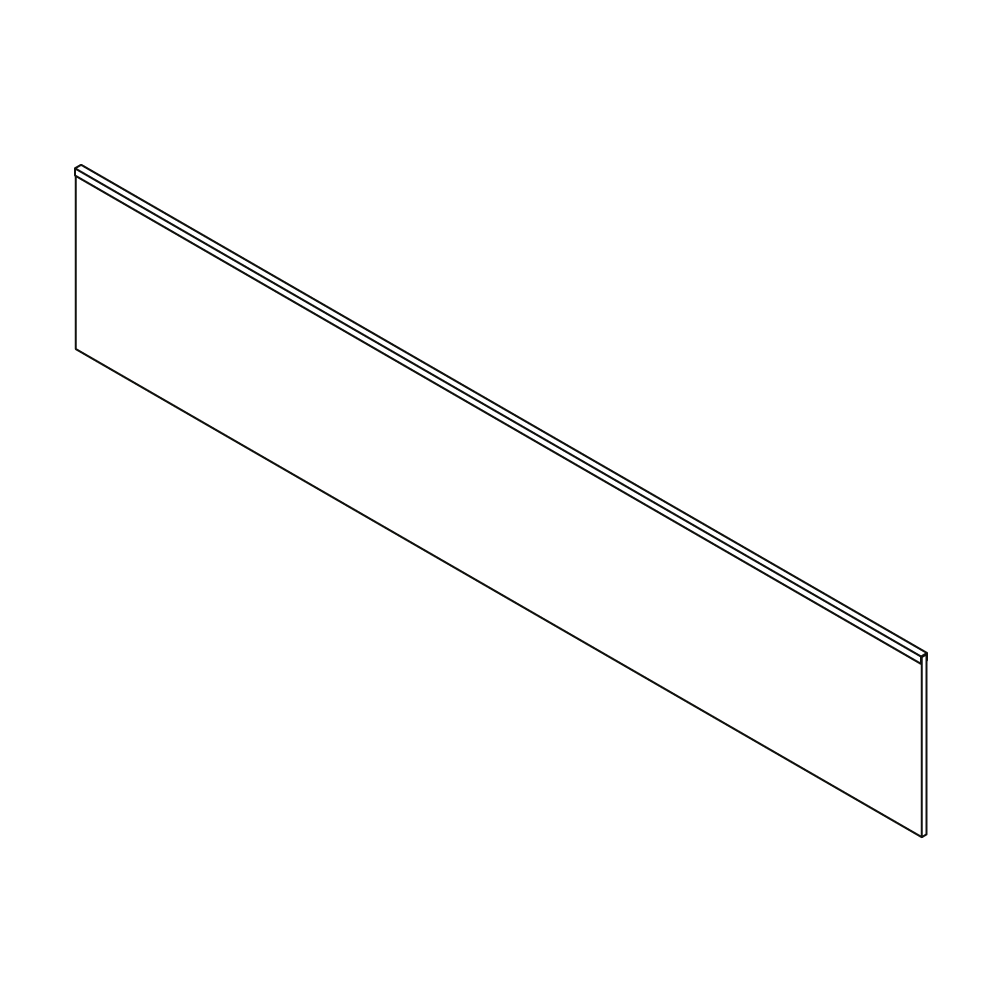

RECTANGLE

RECTANGLE



Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

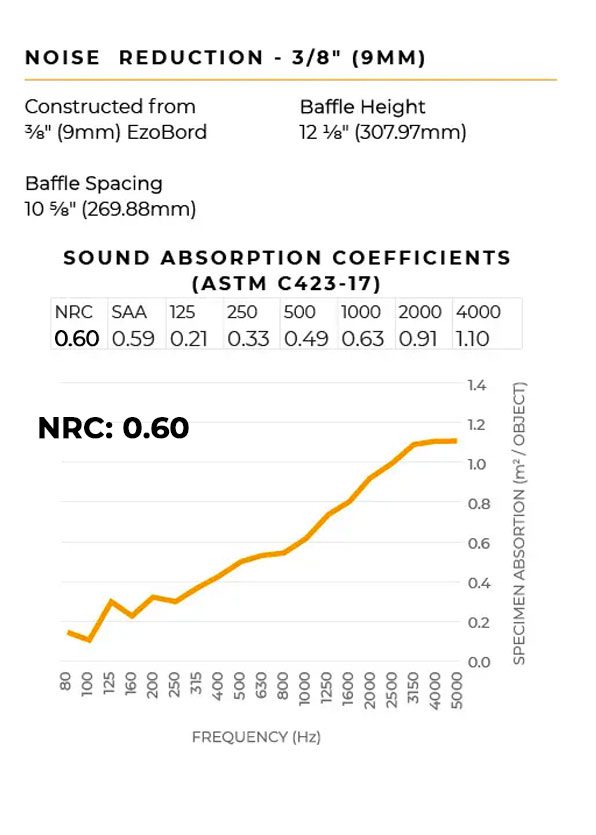

3/8” (9mm)

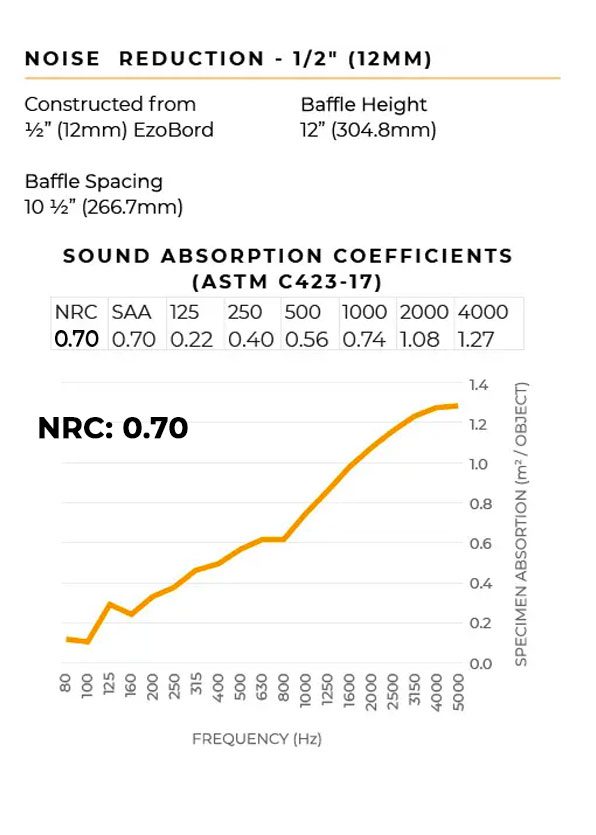

1/2” (12mm)

documentation

f
Specifications
1
Dimensions
Downloads
Customizable parameters

The system also offers several cost-effective installation options. Baffles can be easily applied to offices, public spaces, atrium and indoor pools.​Ceiling baffles can be manufactured in a variety of combinations:

  • Two panels with up to 2 colors
  • Three panels with up to 3 colors

COMPOSITION
100% pet (min. %50 recycled content)

FEATURES

  • 30 standard colors
  • 3/4″ (18mm) or 1-1/8″ (27mm) thick
  • Compatible with EzoLayers
  • Stiffening trim that ensures proper installation
  • T-Bar Compatibility allows fast and easy installation

ACOUSTICS
NRC: 0.60 (18mm)

FIRE TESTING
North America:

  • ASTM E-84 Class A
  • CAN ULC S102-10

Europe and UK:

  • EN13501-1: 2007
CEILING BAFFLES
LENGTH HEIGHT THICKNESS LAYERS
72″ (1829mm) 12″ (305mm) 1/2″ (12mm) 1
72″ (1829mm) 12″ (305mm) 3/4″ (18mm) 2
72″ (1829mm) 12″ (305mm) 1 1/8″ (27mm) 3
72″ (1829mm) 16″ (406mm) 1/2″ (12mm) 1
72″ (1829mm) 16″ (406mm) 3/4″ (18mm) 2
72″ (1829mm) 16″ (406mm) 1 1/8″ (27mm) 3
84″ (2134mm) 12″ (305mm) 1/2″ (12mm) 1
84″ (2134mm) 12″ (305mm) 3/4″ (18mm) 2
84″ (2134mm) 12″ (305mm) 1 1/8″ (27mm) 3
84″ (2134mm) 16″ (406mm) 1/2″ (12mm) 1

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Ceiling Baffles Brochure.

Icon

Curv Ceiling Baffles Brochure 1.44 MB 668 downloads

...

To get the complete set of dimensions please download Ceiling Baffles Brochure.

Icon

Curv Ceiling Baffles Brochure 1.44 MB 668 downloads

...



Specific product files

Icon

Curv Ceiling Baffles Brochure 1.44 MB 668 downloads

...



Specific product design files

Icon

Ceiling Baffles – Wave – CAD 1.31 MB 38 downloads

...
Icon

Ceiling Baffles – Wave – Revit 16.02 MB 34 downloads

...



Installation Instructions

Icon

Curv Ceiling Baffle Installation 1.97 MB 219 downloads

...

Customizable Parameters



  • Geometric Properties: Length, width and layer quantity
  • Material Thickness: Sheets can be layered to form a specific thickness
  • Color: Each layer can be manufactured with different color. Available options below
  • Pattern and Cut: Custom patterns and cut shapes are available
  • Digital Print: Custom graphics and textures can be printed

Contact our design team for custom applications.



AVAILABLE COLORS
