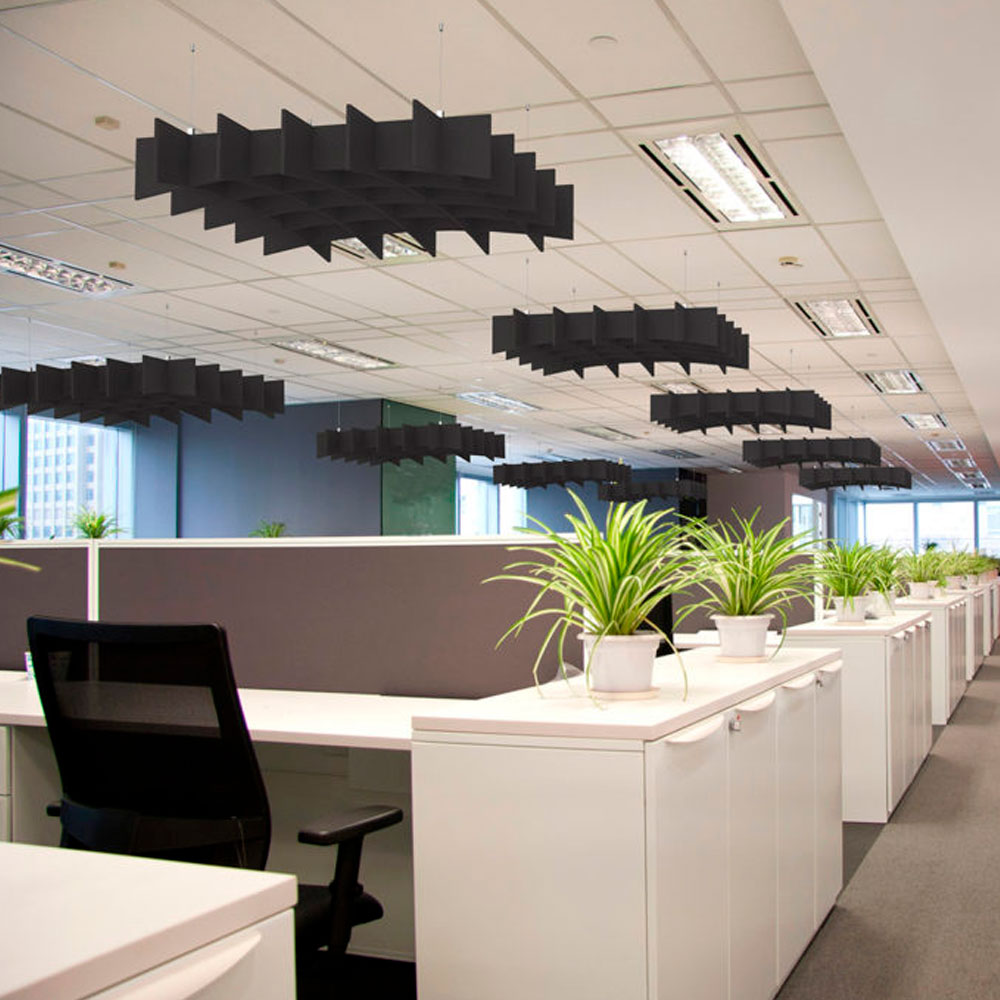

Grid Canopy brings an entirely new level of aesthetics to room acoustics. Hang a Grid Canopy in any space to control excess reverberation.

Grid Canopy decreases reverberation, increase speech intelligibility and contribute to visual aspects of architectural spaces

Summit three sister

Summit Assinboine

Summit Sulphur

Summit Sulphur

Summit Sulphur

Key Features

Formed by machined slabs, Grid Canopy is shipped flat and can be easily assembled on site.

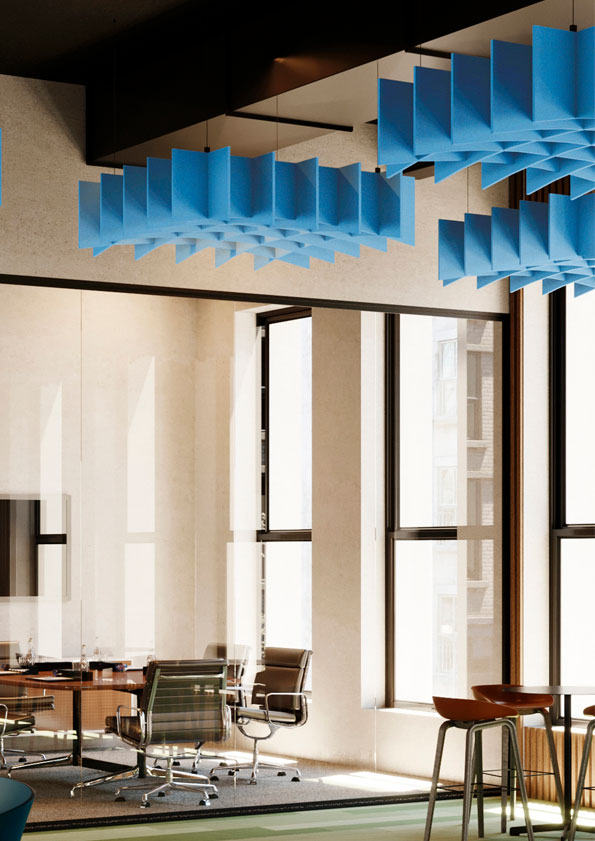

Open cell structure of Grid Canopy allows sprinkler placement, airflow, natural light penetration and artificial lighting integration.

GRID CANOPY MODELS

Tapered

Tapered



Cite

Kupi

Rectangular

Rectangular



waffle

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

3/8” (9mm)
1/2” (12mm)

documentation

f
Specifications
1
Dimensions
Downloads
Customizable parameters

FEATURES

  • Available in 30 standard colors
  • 8″ (203mm) and 12″ (305mm) grid density
  • T-Bar Compatibility allows fast and easy installation
  • 70% open cell structure, allows lighting, airflow and sprinkler distribution
  • Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant

ACOUSTICS

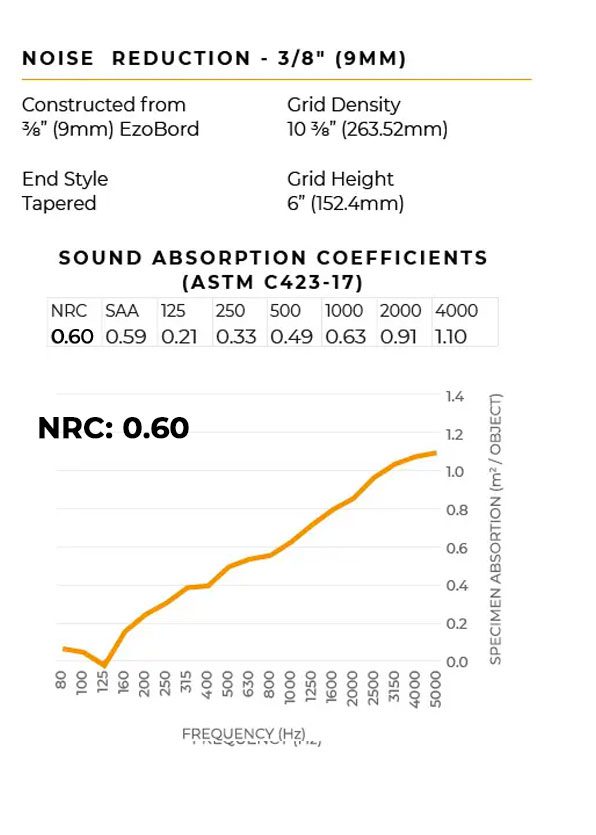

Grid Canopy 3/8″ (9mm)

Tapered | Grid Density: 10 3/8″ (263.52mm) | Grid Height: 6″ | NRC: 0.55 | SAA: 0.57

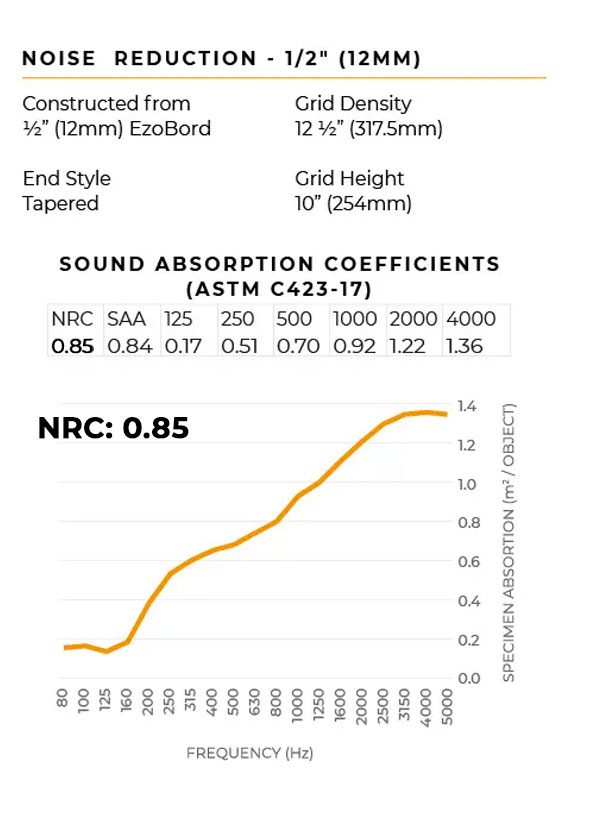

Grid Canopy 1/2″ (12mm)
Tapered | Grid Density: 12 1/2″ (317.5mm) | Grid Height: 10″ | NRC: 0.85 | SAA: 0.84



Grid Canopy – CITE | OVAL | TAPERED

LENGTH    WIDTH HEIGHT THICKNESS
48″ (1219mm) 48″ (1219mm) 6″ (152mm) 3/8″ (9mm)*
48″ (1219mm) 48″ (1219mm) 6″ (152mm) 1/2″ (12mm)*
48″ (1219mm) 48″ (1219mm) 10″ (254mm) 3/8″ (9mm)*
48″ (1219mm) 48″ (1219mm) 10″ (254mm) 1/2″ (12mm)*
48″ (1219mm) 60″ (1524mm) 6″ (152mm) 3/8″ (9mm)*
48″ (1219mm) 60″ (1524mm) 6″ (152mm) 1/2″ (12mm)*
48″ (1219mm) 60″ (1524mm) 10″ (254mm) 3/8″ (9mm)*
48″ (1219mm) 60″ (1524mm) 10″ (254mm) 1/2″ (12mm)*
48″ (1219mm) 72″ (1829mm) 6″ (152mm) 3/8″ (9mm)*

* 4 Suspension Points
** 6 Suspension Points
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Grid Canopy  Brochure.

Icon

Grid Canopy Brochure 1.33 MB 293 downloads

...

To get the complete set of dimensions please download Grid Canopy Brochure.

Icon

Grid Canopy Brochure 1.33 MB 293 downloads

...

Specific product files

Icon

Grid Canopy Brochure 1.33 MB 293 downloads

...



Specific product design files

Icon

Grid-Canopy-Cite-CAD 467.16 KB 43 downloads

...

Icon

Grid-Canopy-Kupi-CAD 442.00 KB 50 downloads

...

Icon

Grid-Canopy-Straight-CAD 867.11 KB 39 downloads

...
Icon

Grid-Canopy-Tapered-CAD 800.33 KB 53 downloads

...



Installation Instructions

Customizable Parameters



  • Geometric Properties: Length, width, grid density and blade depth
  • Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
  • Color: Each slab can be manufactured with different color. Available options below
  • Scalability: Larger spans can be achieved with invisible joints

AVAILABLE COLORS
