V-NOTCH PATTERNS CAN BE CUSTOMIZED AND MANUFACTURED TO MEET A VARIETY OF SIZE OPTIONS

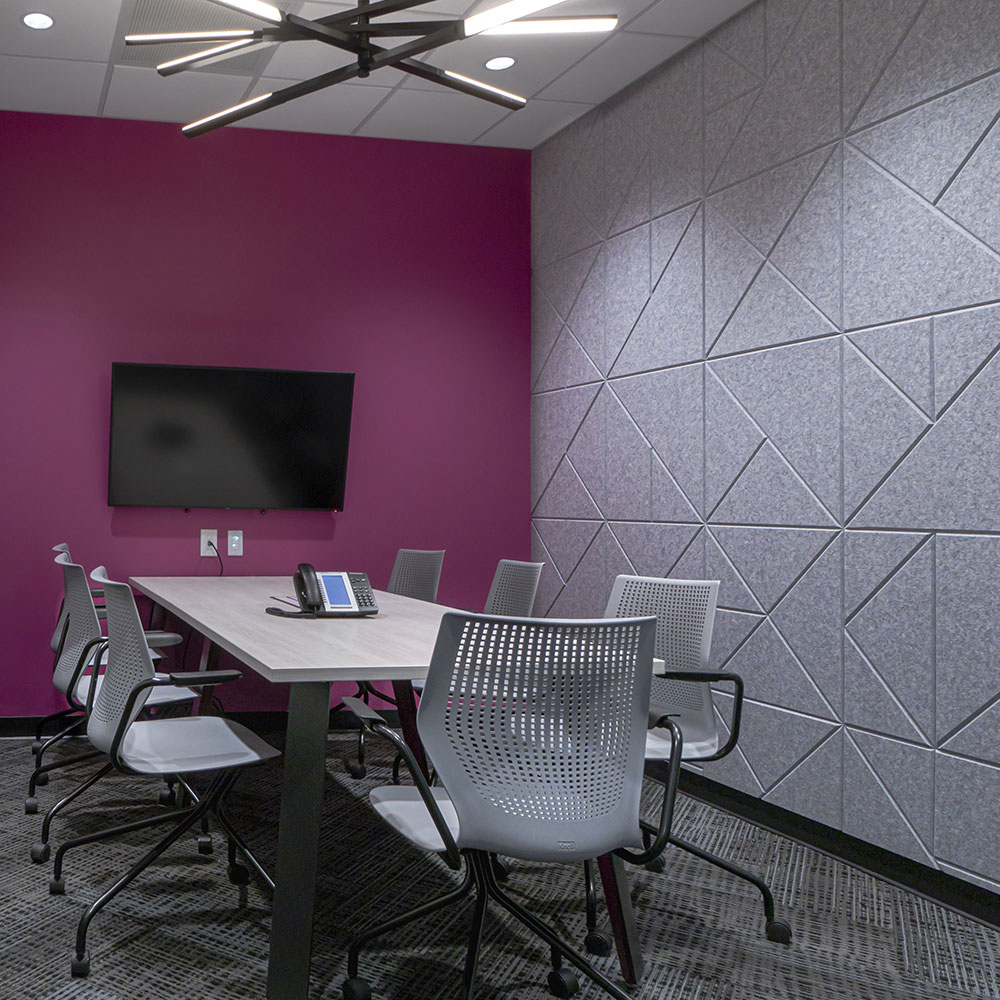

Ease of installation and pattern continuity supports full surface applications

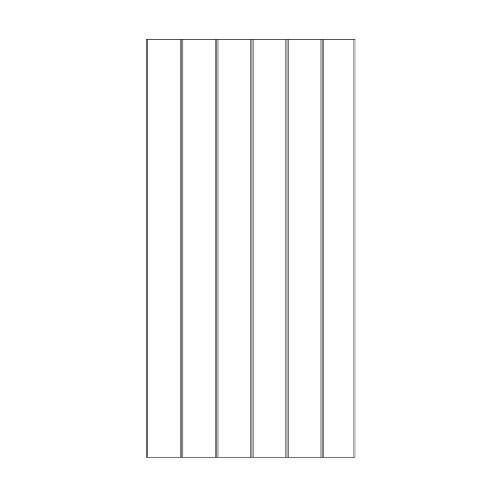

Standard Shapes – Tier A
Standard Shapes – Tier B
Standard Shapes – Tier C
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
100% pet (min. 50% recycled content)
- Available in 30 standard color combinations.
- Easy and unobtrusive mounting
- Fully tackable surface
Superior sound absorption characteristics

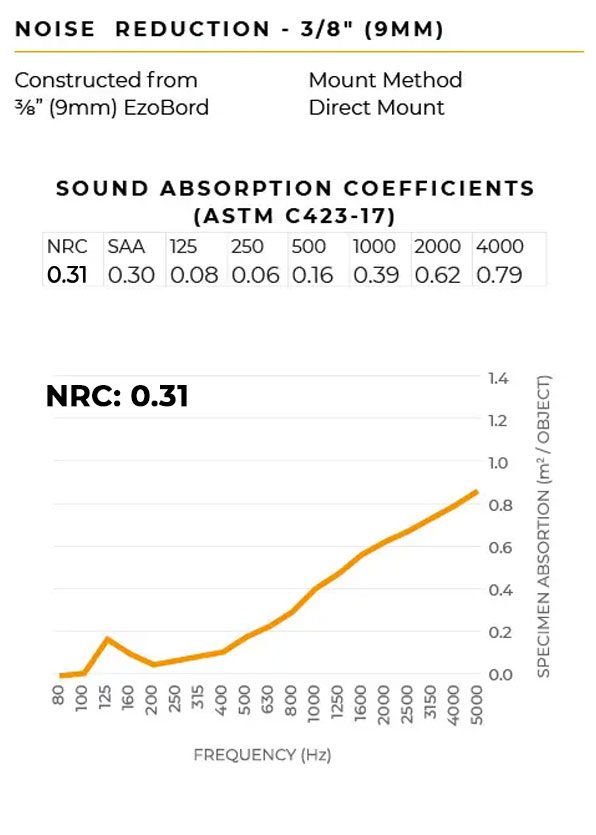

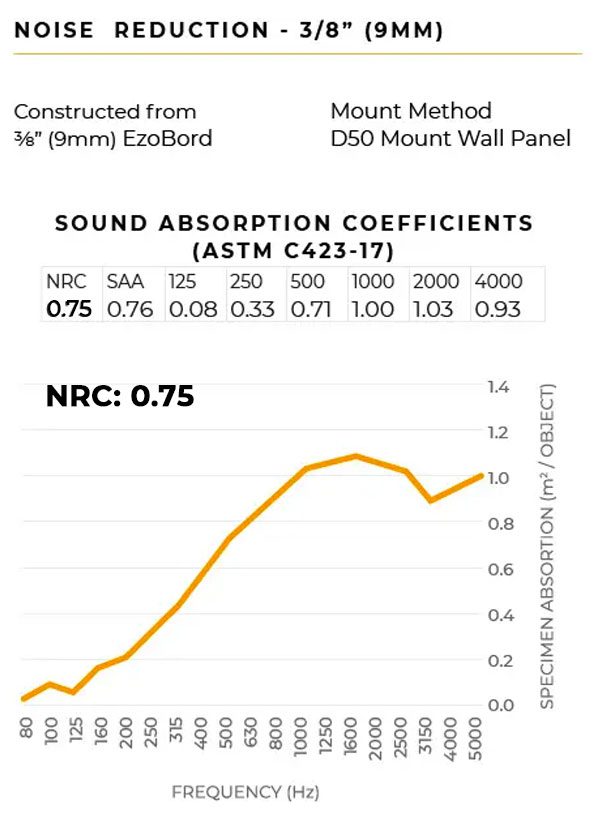

(NRC: 0.75, SAA: 0.58, ASTM C423, 9mm)

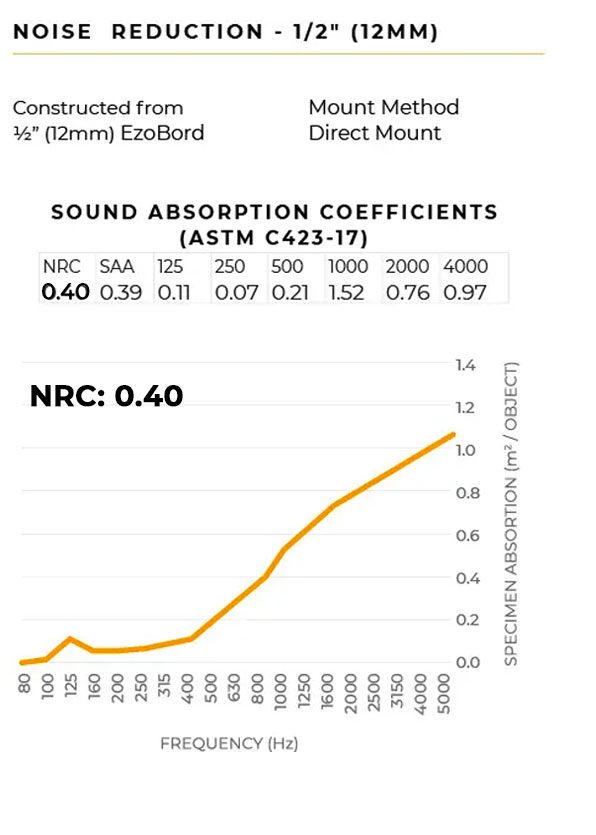

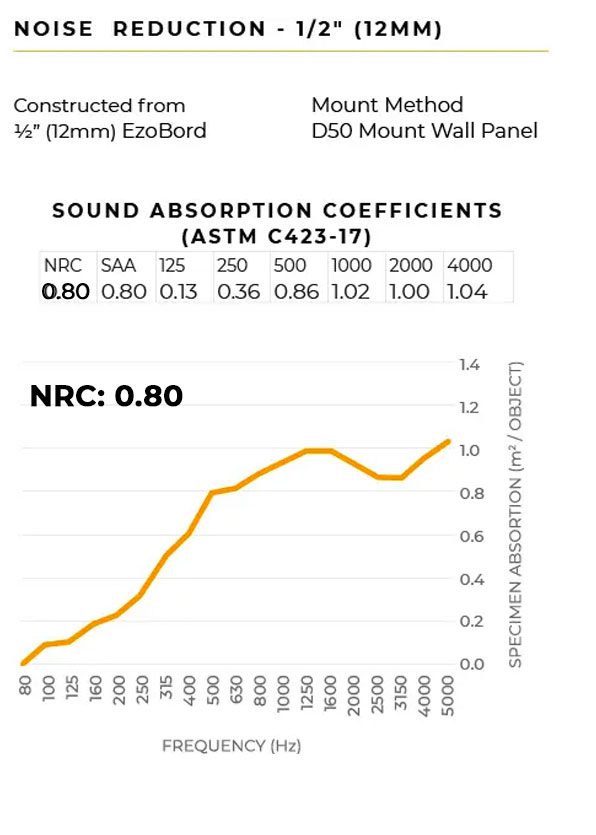

(NRC: 0.80, SAA: 0.80, ASTM C423, 12mm)
- ASTM E-84 Class A
- CAN/ULC S102-10
Europe and UK:
|47.5″ (1207mm)||95″ (2413mm)||3/8″ (9mm)|
|47.5″ (1207mm)||95″ (2413mm)||1/2″ (12mm)|
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Pattern V Notch Brochure.
To get the complete set of dimensions please download Pattern V Notch Brochure.
- Geometric Properties: Width and length
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Available options below
- Pattern: Custom patterns available
