V Notch Acoustic Panel Pattern

V-Notch Acoustic Panel Patterns

EzoBord’s V-Notch acoustic panel patterns adds visual depth to EzoBord sheets and brings harmony and control to acoustically demanding spaces.

Easy to install in such a way that patterns are continued, V-Notch supports full surface applications

Sound absorption performance

Sound absorption performance depends on mounting/installation conditions, material thickness, patterns & style.

patterned acoustic panels
patterned acoustic panels ezobord
3/8” (9MM)
No Air Gap
1/2” (12MM)
No Air Gap

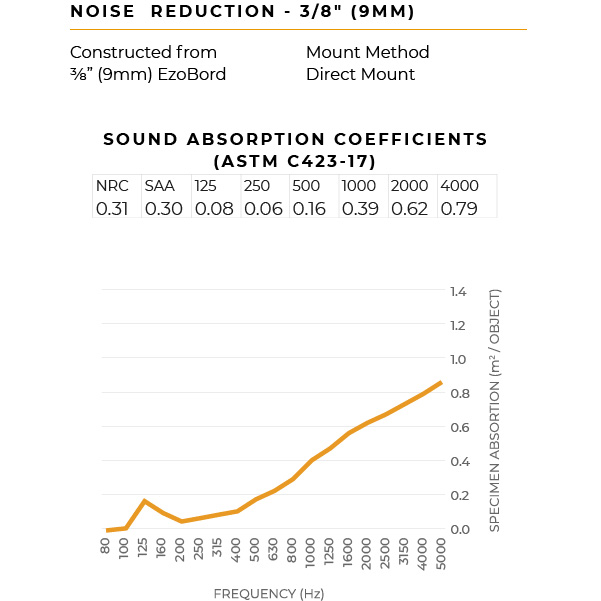

Sound Absorption Coefficient Chart
Sound Absorption Coefficient Chart

 V-Notch Acoustic Panel PAtterns MODELS

standard shapes – tier a

basket wave

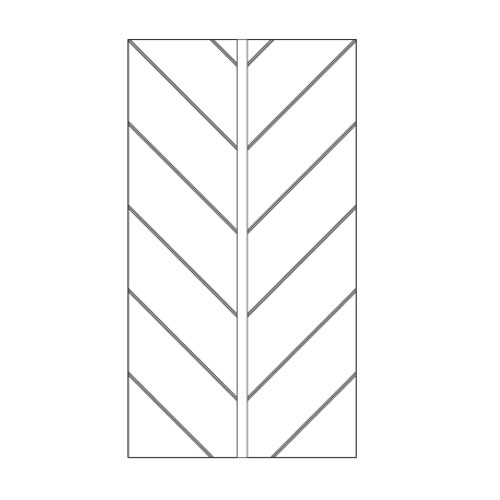

herringbone

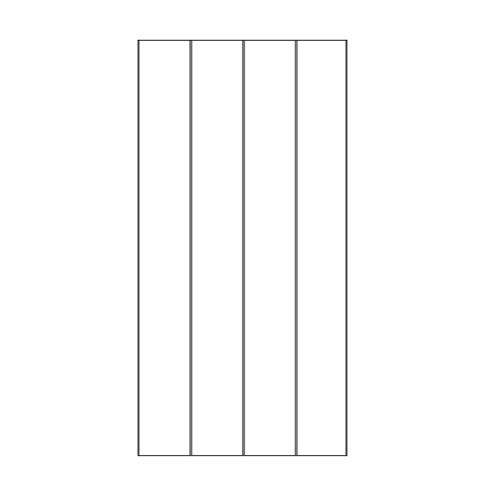

picket wide

picket

plank

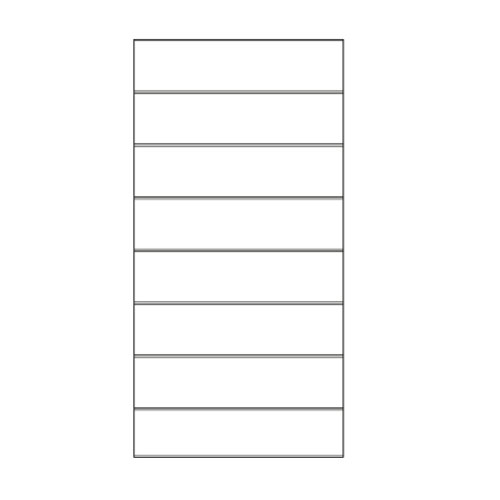

plank wide

standard shapes – tier b

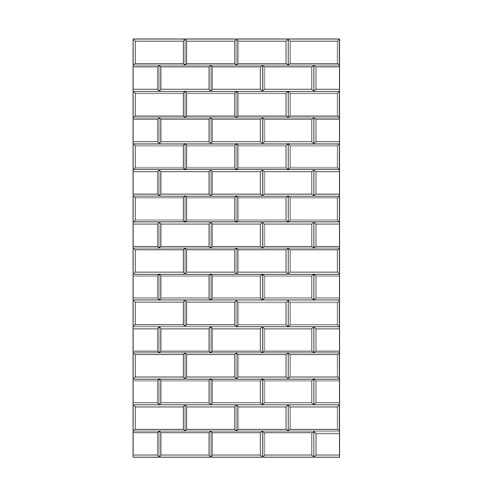

brick large

diamond large

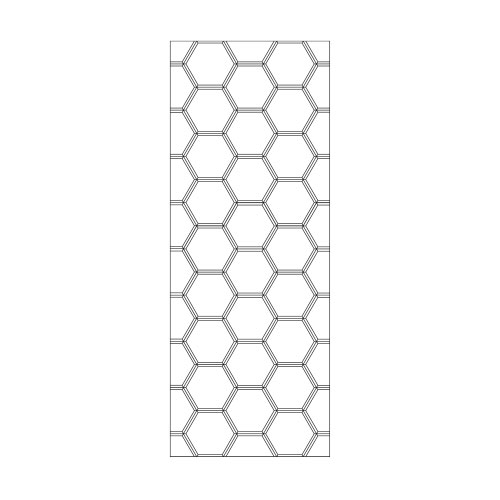

hexagon large

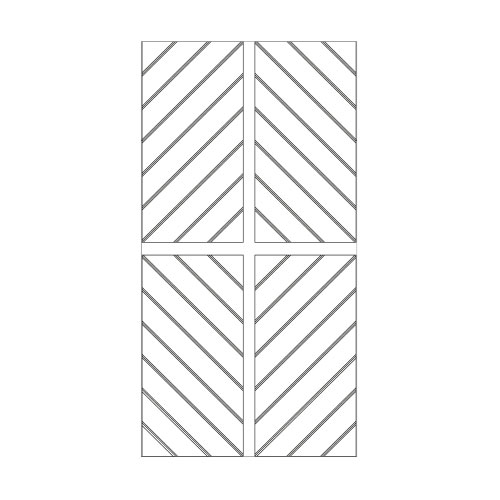

oblique

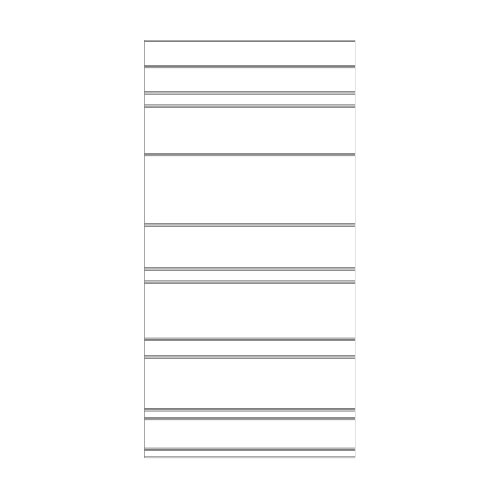

ribbon

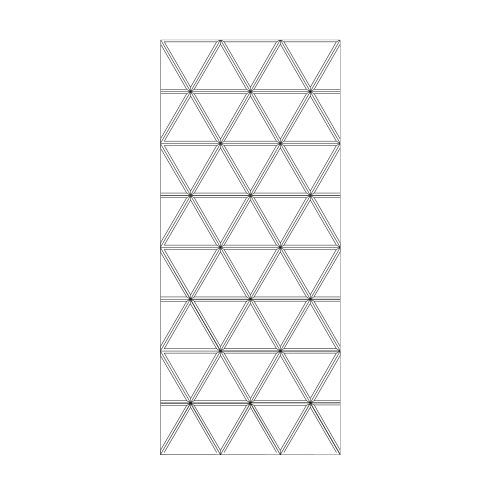

triangle large

standard shapes – tier c

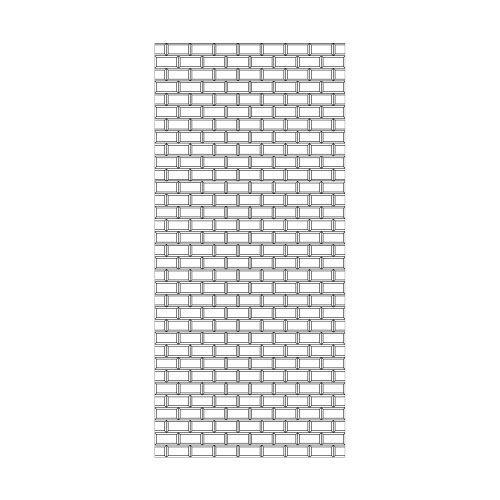

brick

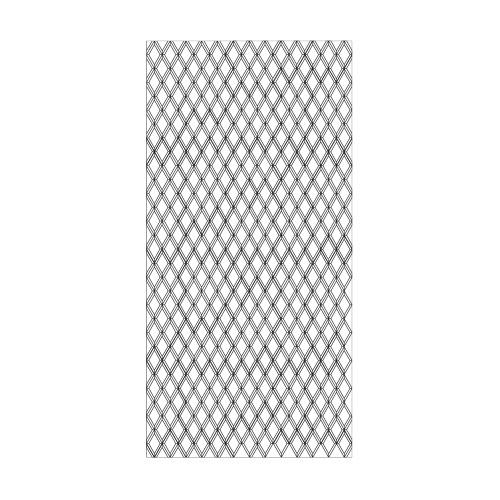

diamond

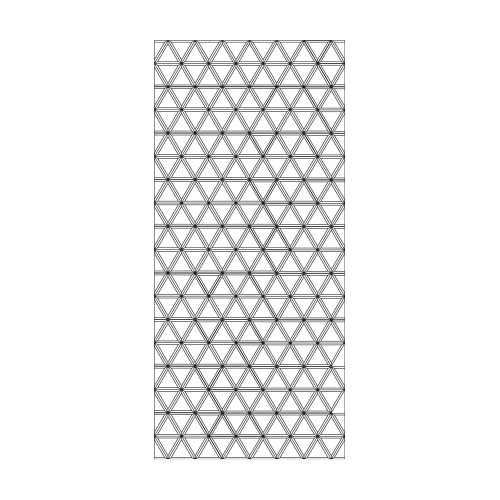

triangle

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Installation Instructions

Acoustics

Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – No Air Gap
Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – No Air Gap

Fire Test Data

Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (CAN-ULC S102.2) – EzoBord 3/8″ (9mm)
Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S10.2) – EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.

Available Colors

EzoBord 3/8" (9mm)

EzoBord 1/2" (12mm)
