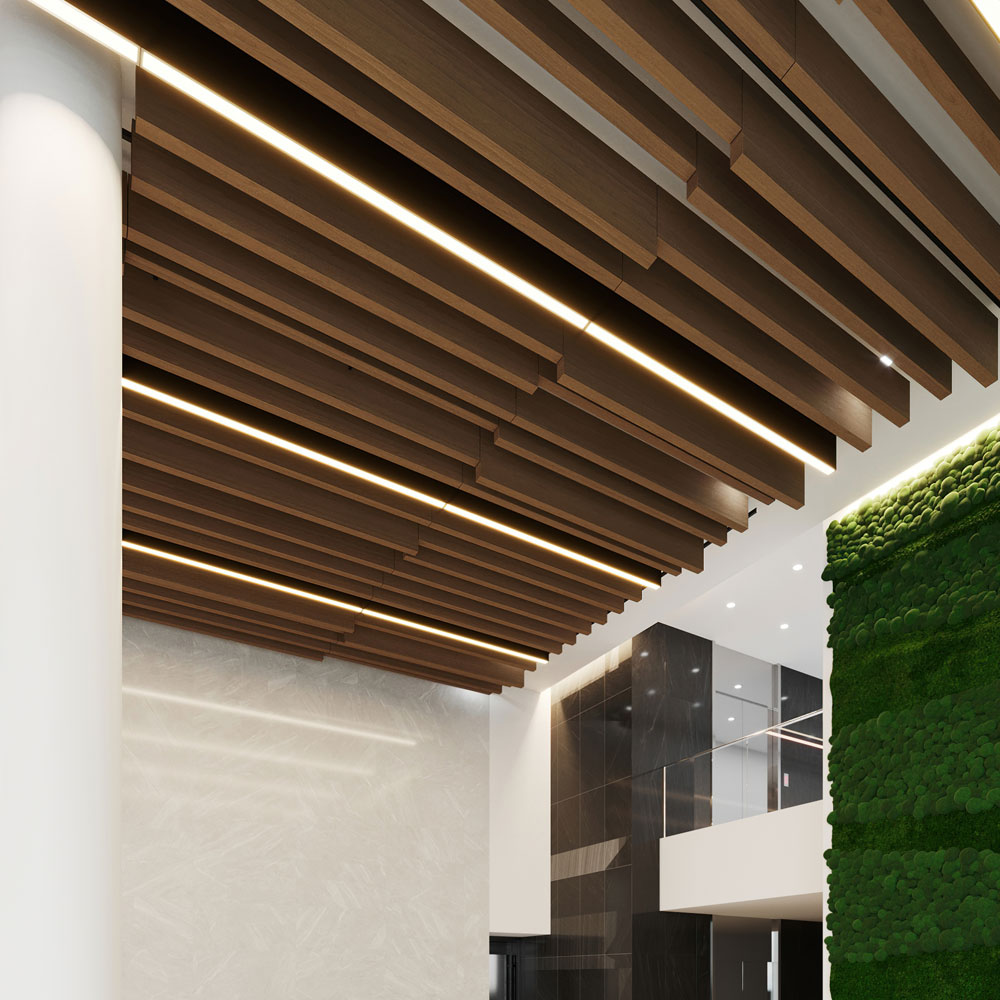

Rail Unlit is a great solution to control spaces with high indexes of reverberation. Rail Unlit shape optimizes the NRC performance of every room. This product can be used in hospitality and office spaces.
RAIL UNLIT CAN BE SPECIFIED IN VARIOUS LENGTHS
Ranging from 2′ (609.6mm) to 8′ (2438.4mm) Three heights 8″ (203.2mm),12″ (304.8mm) and 16″ (406.4mm) giving you the possibility to create unique baffle arrays.
Key Features
Rail comes with a variety of woodgrain colors and can be mixed with our classic Baffle Systems ( “Vesi” and “Veldi”).
RAIL UNLIT INSTALLATION IDEAS

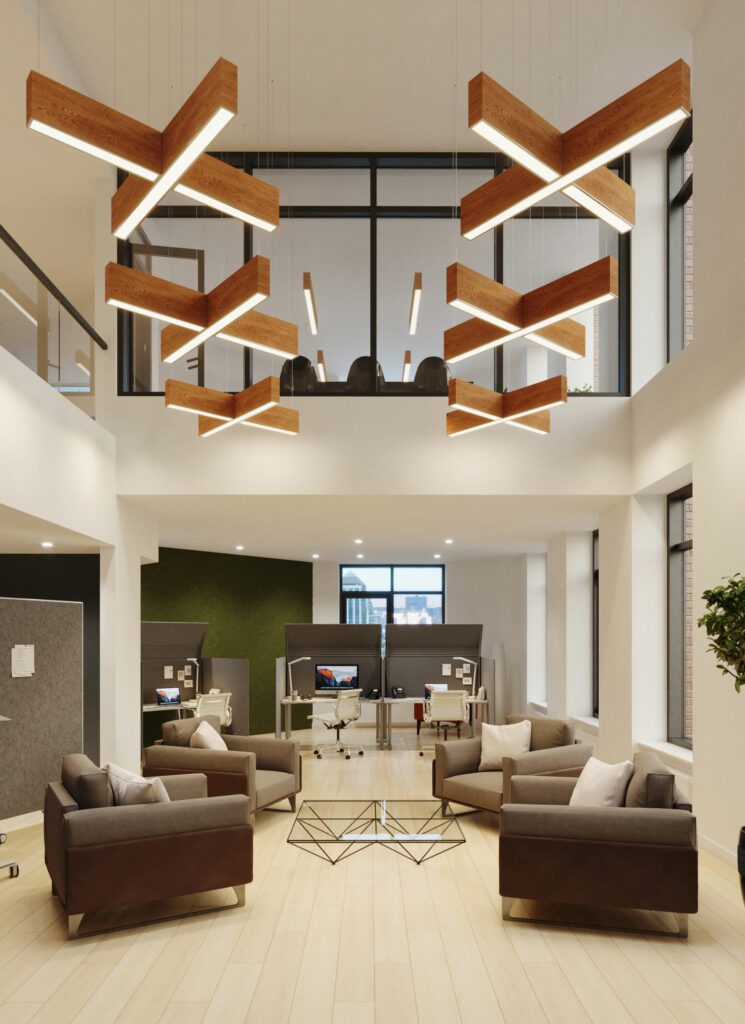

Cross
Cross
t-shape
t-shape
Aligned
Aligned
Corner
Corner
Square
Square
Rectangular
Rectangular
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Material:
3/8” (9mm ) | ±0.5mm
COMPOSITIONS
100% pet (min. 50% recycled content)

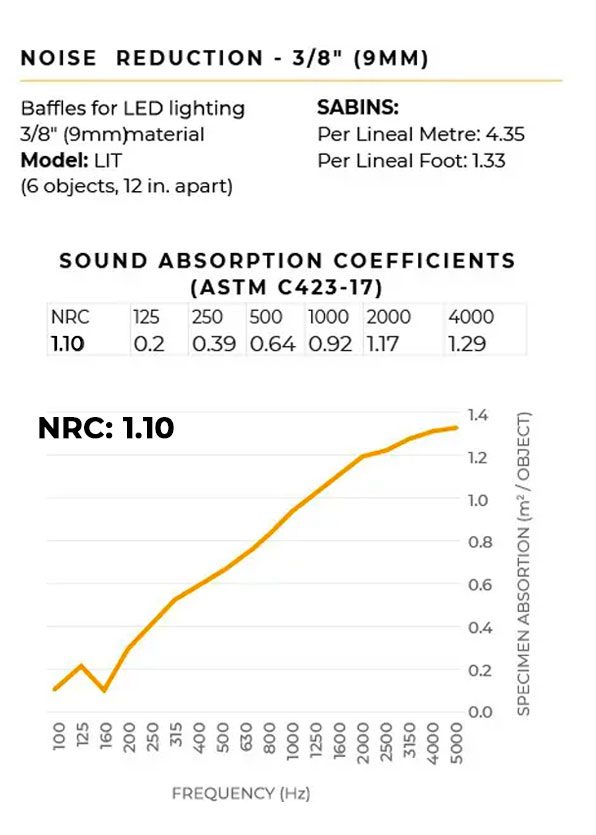

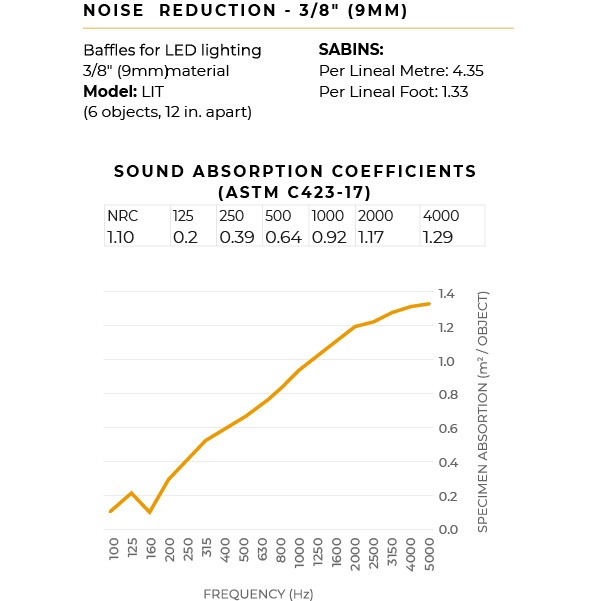

ACOUSTICS
Rail Thickness: 3.125″ (79.4 mm)
Height: 11.5″ (292 mm)
NRC: 1.10
SABINS: Per Lineal Metre: 4.35 | Per Lineal Foot: 1.33
FIRE TESTING
North America:
- ASTM E-84 Class A
- CAN/ULC S102-10
Europe and UK:
- EN13501-1: 2007
| RAIL UNLIT | |||
| LENGTH | HEIGHT | ||
| 2′ (609.6 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 3′ (914.4 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 4′ (1219.2 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 5′ (1524 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 6′ (1828.8 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 7′ (2133.6 mm | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 8′ (2438.4 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Rail Unlit Brochure.
To get the complete set of dimensions please download Rail Unlit Brochure.
Specific product files
Installation Instructions
Customizable Parameters
- Geometric Properties: Length, width and layer quantity
- Material Thickness: 3/8″ (9mm)
- Digital Print: Custom graphics and textures can be printed
Contact our design team for custom applications.
AVAILABLE COLORS
Pure Black
PBO9
Charcoal Gray
CG06
Ebony Slate
ES07
Dark Gray
DG34
Silver Gray
SG04
Classic White
CW04
Light Beige
LB01
Desert Sand
DS10
Sunny Days
SD18
Tiger Orange
TO24
Ruby Red
RR28
Deep Purple
DP30
Midnight Navy
MN12
Polar Ice
PI14
Green Apple
GA41
Apple
W-AP-05
Ash
W-AS-06
Birch Sand
W-BS-10
Cherry Mate
W-CM-03
Dark Oak
W-DO-07
Gray Oak
W-GO-08
Marmar Maple
W-MM-04
Walnut
W-WA-01
Wengue
W-WE-02
Yellow Oak
W-YO-09
