One Rail, TWO options
Rail Box Baffle

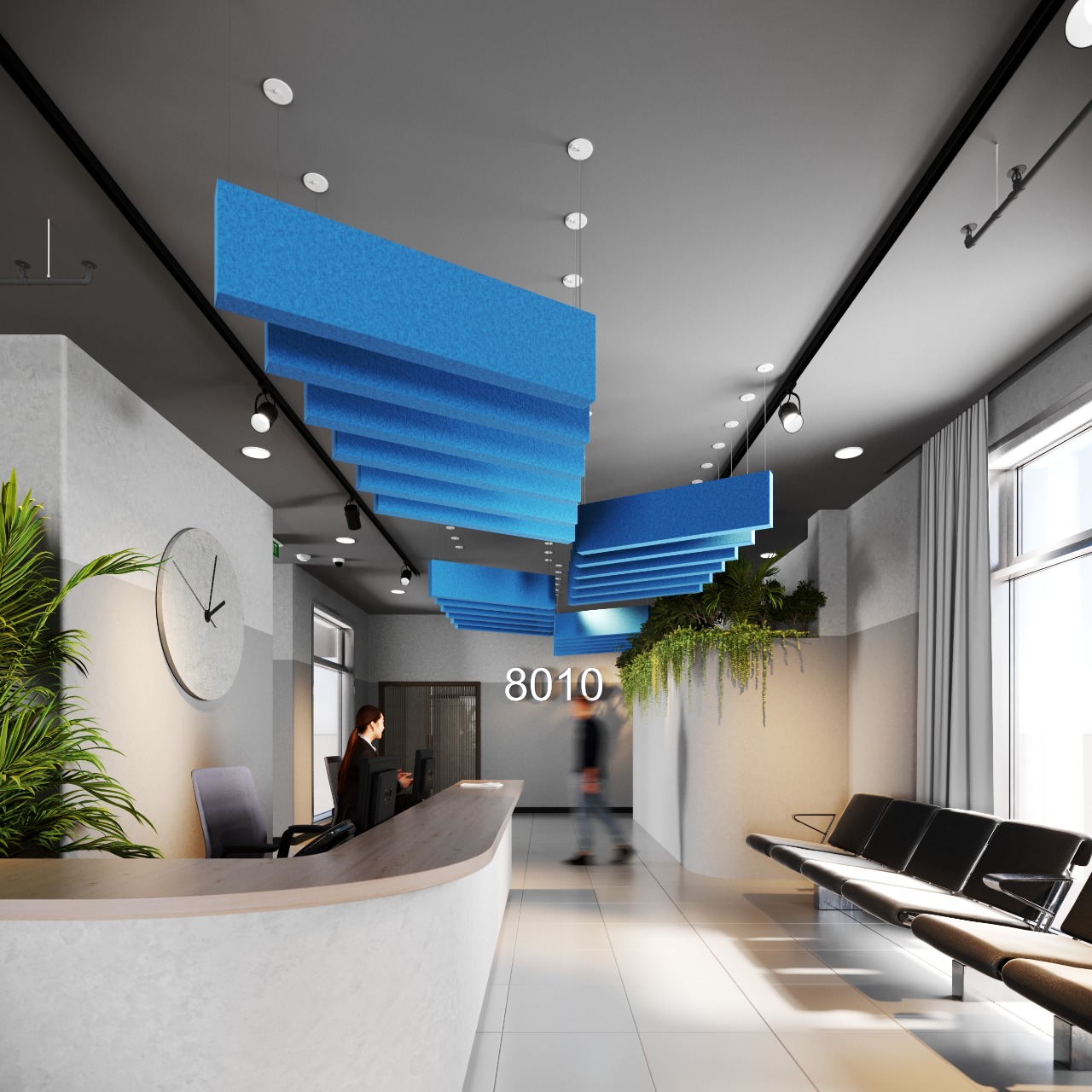

Box Baffle is a great solution to control spaces with high indexes of reverberation. Rail Box Baffle shape optimizes the NRC performance of very room. This product can be used in hospitality and office spaces.
Rail Direct
With Rail we are going beyond illumination for interior spaces. True to our acoustic roots, we incorporate the performance of EzoBord material to LED technology providing a synergistic relation between acoustics and lighting as a solution to high-end noise levels, reverberation, and poor lighting issues common to open spaces.
RAIL DIMENSIONS
Rail Unlit can be specified in various lengths ranging from 2 feet to 8 feet, and three heights (8,12,16) inches, giving you the possibility to create unique baffle arrays.
Rail Installation Ideas
Cross
Cross
t-shape
t-shape
Aligned
Aligned
Corner
Corner
Square
Square
Rectangular
Rectangular
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Specifications
Drivers
Our partner, Metalumen offers 0-10V dimming as a standard on our entire LED product offering. Dimming range is 1%-100%. Power factor is > 90%. Class 2 rating. Drivers are integral.
Housing
Rigid extruded aluminum body, 2.0mm (0.08″) nominal wall thickness. Aluminum end caps.
Optical System
Metalumen luminaries are designed to utilize leading edge LED technology combined with luminary optimized reflectors and our custom diffusers, resulting in industry leading optical performance.
CRI
83+ for 3500K, 80 minimum for all CCTs in standard configurations.
Lumen Maintenance
Minimum 50,000h with TM-21 lumen maintenance of 85% @ 25°C ambient temperature (calculated based on IESNA LM-80-08 LED test data). L70: ≥60,000hrs.
Electrical
Factory pre-wired with easy wire quick connect sections.
Finish
Satin aluminum, white and black are standard finishes. For custom finish, contact factory.
Weight
0.95 kg/300mm [ 2.1 lb/ft ]
Mounting
Aircraft cable yoke complete with a Quick-Grip field adjustable suspension system. Threaded rod for t-bar and Unistrut metal framing system.
| RAIL LIT | |||
| LENGTH | HEIGHT | ||
| 2′ (609.6 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 3′ (914.4 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 4′ (1219.2 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 5′ (1524 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 6′ (1828.8 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 7′ (2133.6 mm | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 8′ (2438.4 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Rail Lit Brochure.
To get the complete set of dimensions please download Rail Lit Brochure.
Specific product files
Installation Instructions
Customizable Parameters
- Geometric Properties: Length, width and layer quantity
- Material Thickness: 3/8″ (9mm)
- Digital Print: Custom graphics and textures can be printed
Contact our design team for custom applications.
