SUSPENDED OFFICE
Privacy encompasses many different needs and behaviors; each form of privacy – acoustical, informational or visual, helps people to focus, free from distractions. Suspended Office was designed in collaboration with B2Lab as an ecosystem of spaces that re-defines the privacy of the work area and shapes collaborative work.
Suspended Office offers the ability to "get away" without leaving.
Supporting mindfulness and authenticity for any individual, Suspended Office provides shielding by three walls, allowing users to rejuvenate, relax, and focus on their work.
Key Features
Suspended Office features EzoBord acoustical surface materials in a variety of visually interesting patterns, colors, and configurations that perfectly balance design and functionality.
Suspended OFFICE CONFIGURATIONS
Single Module
Single Module
Height: 94" (2387mm)
Length: 96 ½" (2451mm)
Width: 46" (1168mm)
Double Module
Double Module
Height: 94" (2387mm)
Length: 96 ½" (2451mm)
Width: 92" (2336mm)
L SHAPE MODULE
L SHAPE MODULE
Height: 94" (2387mm)
Length: 141 ¼" (3587mm)
Width: 46" (1168mm)
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
COMPOSITION
100% pet (min 50% recycled content)
FEATURES
- Available in 30 standard color combinations.
- 3 layers of 3/8″ (9mm) or 1/2″ (12mm) thickness

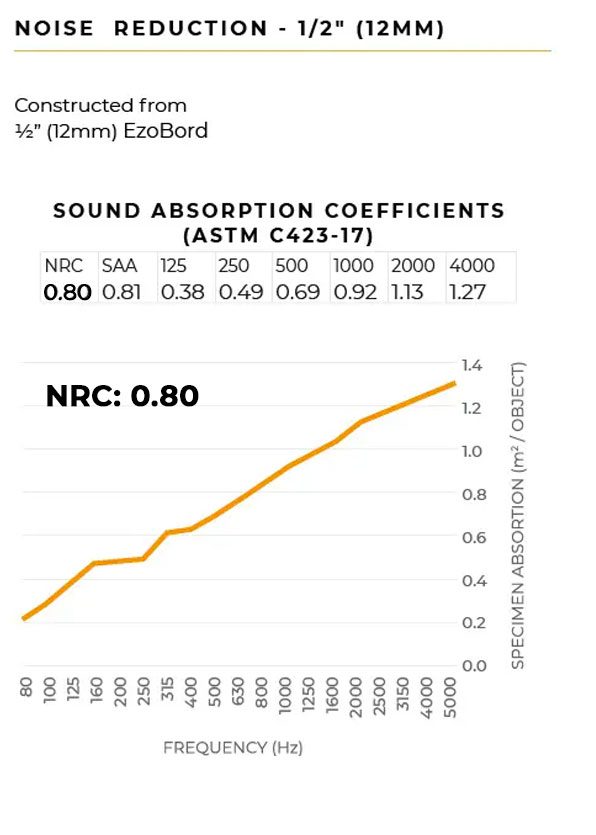

ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.80, SAA: 0.80, ASTM C423, 12mm)
FIRE TESTING
North America:
- ASTM E-84 Class A
- CAN/ULC S102-10
Europe and UK:
EN13501-1: 2007
| SUSPENDED OFFICE | |||
| CONFIGURATION | WIDTH | LENGTH | HEIGHT |
| Single Module | 46″ (1168mm) | 96 ½” (2451mm) | 94″ (2388mm) |
| Double Module | 92″ (2337mm) | 96 ½” (2451mm) | 94″ (2388mm) |
| L Module | 141 ¼ ” (3588mm) | 96 ½” (2451mm) | 94″ (2388mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Suspended Office Brochure.
To get the complete set of dimensions please download Suspended Office Brochure.
Specific product files
Installation Instructions
Available Colors
EzoBord 1/2" (12mm)
Desert Sand
Sunny Days
Tree Bark
Brick Red
Grape Vine
Polar Ice
Ocean Blue
Royal Blue
Moss Green
Classic White
Silver Gray
Elephant Gray
Bold Gray
Charcoal Gray
Pure Black
