Amplitude

amplitude

Amplitude Goes Above and Beyond

Amplitude is an expansive 3-dimensional modular, acoustic ceiling baffle system that exudes personality. It can extend linearly in two directions with various finish options within recessed or flush ceiling applications. Patterned to create that grand entrance, Amplitude is designed to adorn large areas including theatres, banquet halls, corporate lobbies, and educational centers.

Amplitude comes in two patterns. Weave embraces ceiling structures with an oscillating pattern that generates an intersecting ripple effect that can be repeated to generously extend its coverage over an entire ceiling. Wave arches and rises and then descends uniformly to deliver a streamlined pattern effect. Both can be outfitted inside of bulkheads or applied to open ceiling applications, in modular applications, or wall to wall spans. Made with lightweight and sustainable EzoBord material that is acoustically optimized to support voice clarity, Amplitude provides textured relief by bridging the gap between thin profile baffle systems and large flat panel products.

Installation of the Amplitude system is fast and easy, as it is designed to mount directly onto any conventional T bar ceiling grid system. Its lightweight design means that it can be installed with minimal disruption to the space and can be easily reconfigured if needed. With its superior acoustics, fire-resistant properties, and versatility, the Amplitude 3-dimensional acoustical ceiling system is a must-have for anyone looking to create a functional and visually stunning environment.

view in showroom

Sound absorption performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

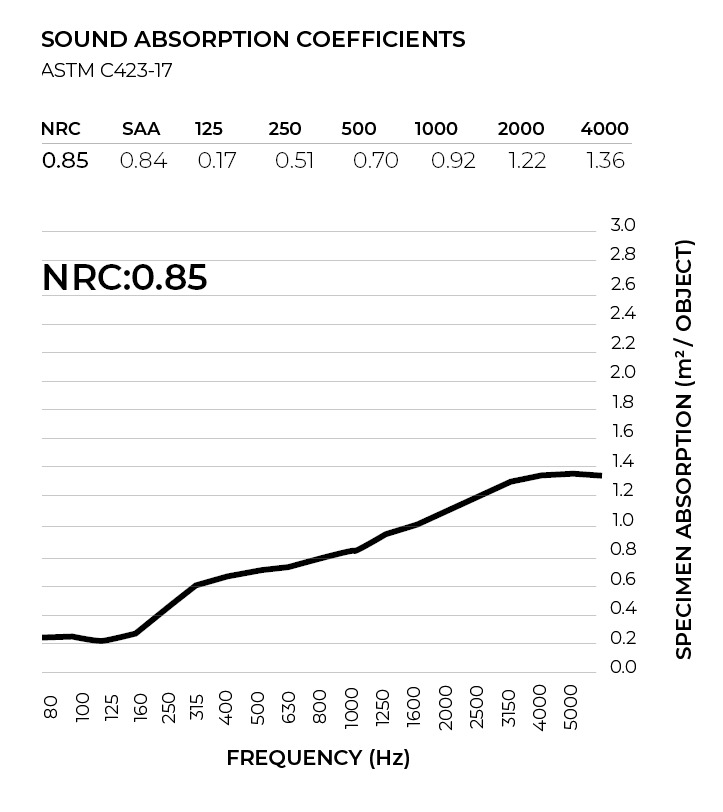

Sound Absorption Coefficient Chart

wave pattern

weave pattern

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Brochure
Installation Instructions

Acoustics

Sound Absorption Test Data (ASTM C423-17) – Amplitude Ceiling System 1/2” (12mm) – On T-bar

Fire Test Data

Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet
Declare Label
VOC Testing

Drawing Files

DWG 2D
DWG 3D
IFC
SKP
HARDWARE

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING
North America:

ASTM E-84 Class A
CAN ULC S102-10

Europe and UK:
EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation-friendly.

Recommended Hardware

Available colors

EzoBord 1/2″ (12mm)

Vanilla Cream (VC97)
Sunset Pink (SP99)
Vintage Claret VC29
Soft Lavander SL30
Grape Vine GV36
Midnight Navy MN12
Royal Blue B08
Evening Blue (EB50)
Aegean Blue (AB32)
Highland Green HG31
Moss Green MG10
Sunny Days SD18
Brick Red BR34
Tree Bark TB35
Bold Gray BG07
Classic White CW04
Polar Ice PI14
Light Beige LB01
Urban Sage US27
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Charcoal Gray CG06
Pure Black PB09

< Scroll to select more colors >

Virtual Sample Library

(Click on the box to enter fullscreen mode)

Looking for Expert Advice?
