EzoBord is the robust, highly versatile, recycled base material for EzoBord acoustic ceiling products, acoustic lighting products, acoustic wall panels and acoustic room dividers.
EzoBord allows for endless possibilities of custom made design driven acoustical solutions and we manufacture EzoBord products to any design concept.
EzoBord is available in 15 colors in 3/8″ (9mm) thickness and 15 colors in standard 1/2″ (12mm) thickness.
3/4″ (18mm) and 1″ (25mm) thicknesses are also available in all standard colors upon request.
SPECIFICATIONS
| 3/8″(9 mm) | 1/2″(12 mm) | |
| Composition | 100% Polyester | 100% Polyester |
| Weight | 8.5 lbs (3.85 kg) (+/-5%) | 16 lbs (7.25 kg) (+/-5%) |
| Dimensions | 48” (1219mm) x 96” (2439mm) x .375”(9mm) (+/- 1mm) |
48” (1219mm) x 108” (2743mm) x .5”(12mm) (+/- 1mm) |
| Fire Testing | ASTM E-84 Class A CAN/ULC-S102 EN 13501-1: 2007 |
ASTM E-84 Class A CAN/ULC-S102 EN 13501-1: 2007 |
| Environment | Min 50% +/- recycled PET, 100% recyclable, formaldehyde free |
Min 50% +/- recycled PET, 100% recyclable, formaldehyde free |
| Acoustics | NRC 0.30-0.75 (subject to mounting conditions) | NRC 0.40-0.80 (subject to mounting conditions) |
Documentation
Downloads
Acoustics EzoBord 3/8″ (9mm)
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – No Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – With 50mm Air Gap |
|
Acoustics EzoBord 1/2″ (12mm)
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – No Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – With 50mm Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord ½” (12mm) – J Mount |
Fire Test Data EzoBord 3/8″ (9mm)
| Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm) | |
| Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm) |
Fire Test Data EzoBord 1/2″ (12mm)
| Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm) | |
| Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label |
Specifications
70% open cell structure, allows lighting, airflow, and sprinkler distribution
Custom geometries can be manufactured
T-Bar Compatibility allows fast and easy installation
Each slab can be manufactured with different color. Available options below
Larger spans can be achieved with invisible joints. Contact our design team for custom applications
COMPOSITION
100% pet (min. %50 recycled content)
PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
FIRE TESTING
North America:ASTM E-84 Class ACAN ULC S102-10
Europe and UK:EN13501-1: 2007
ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.
GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
available colors
EzoBord 3/8″ (9mm)
Light Beige
Desert Sand
Sunny Days
Tiger Orange
Ruby Red
Deep Purple
Polar Ice
Midnight Navy
Green Apple
Classic White
Silver Gray
Dark Gray
Ebony Slate
Charcoal Gray
Pure Black
Vanilla Cream
Sunset Pink
Aegean Blue
Evening Blue
EzoBord 1/2″ (12mm)
Desert Sand
Sunny Days

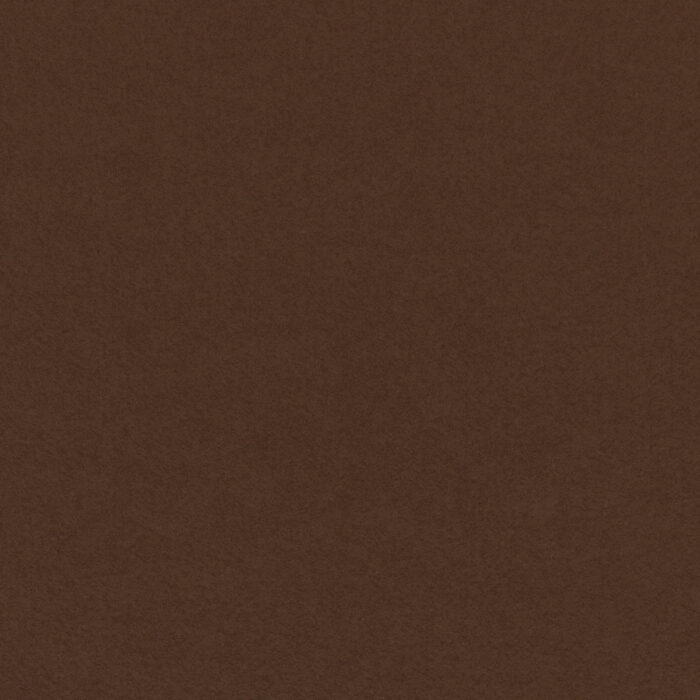

Tree Bark

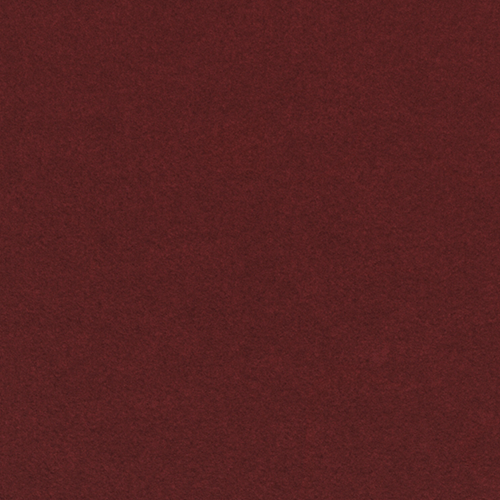

Brick Red

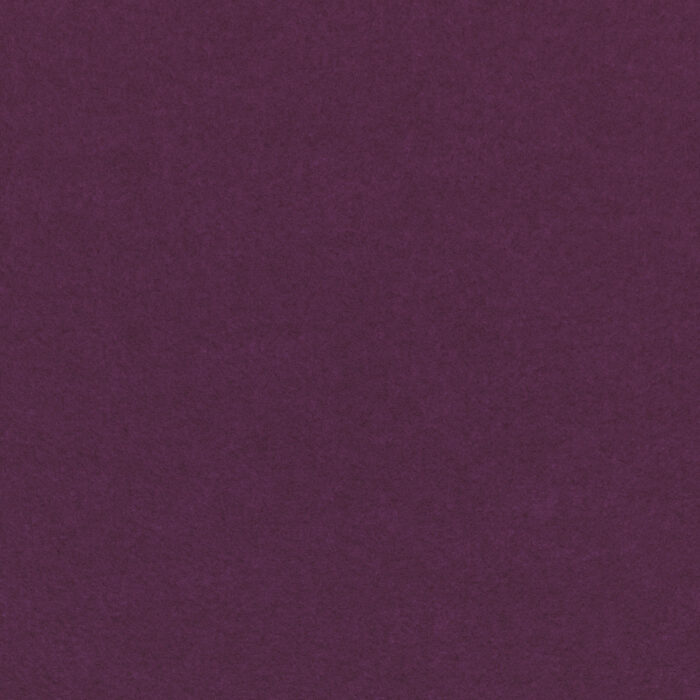

Grape Vine
Polar Ice
Royal Blue

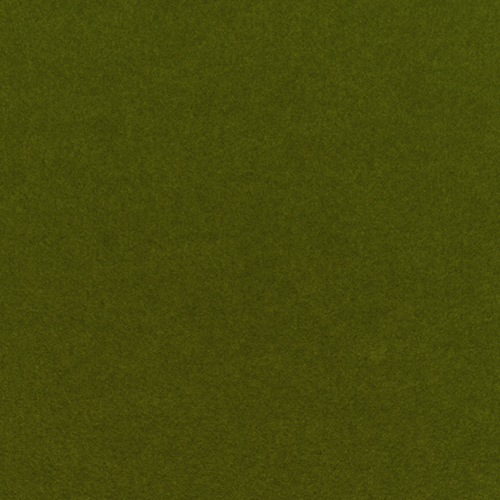

Moss Green
Classic White
Silver Gray
Elephant Gray
Bold Gray

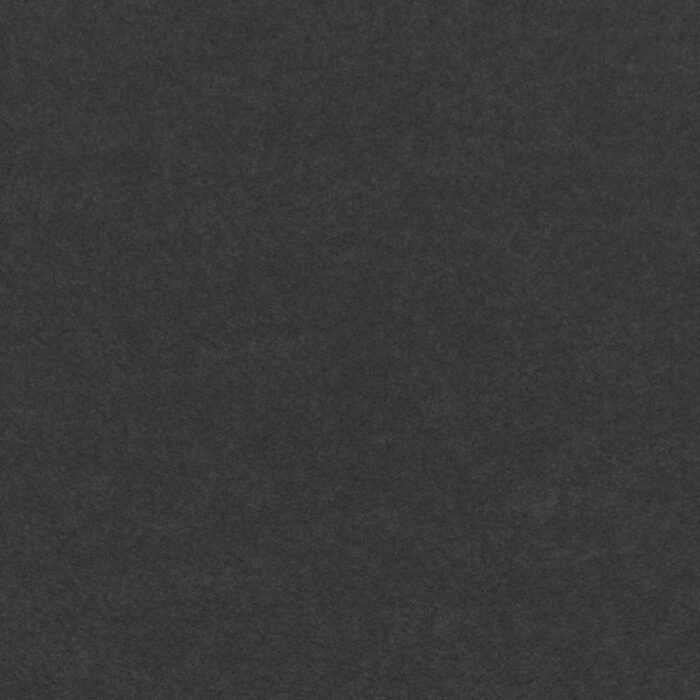

Charcoal Gray

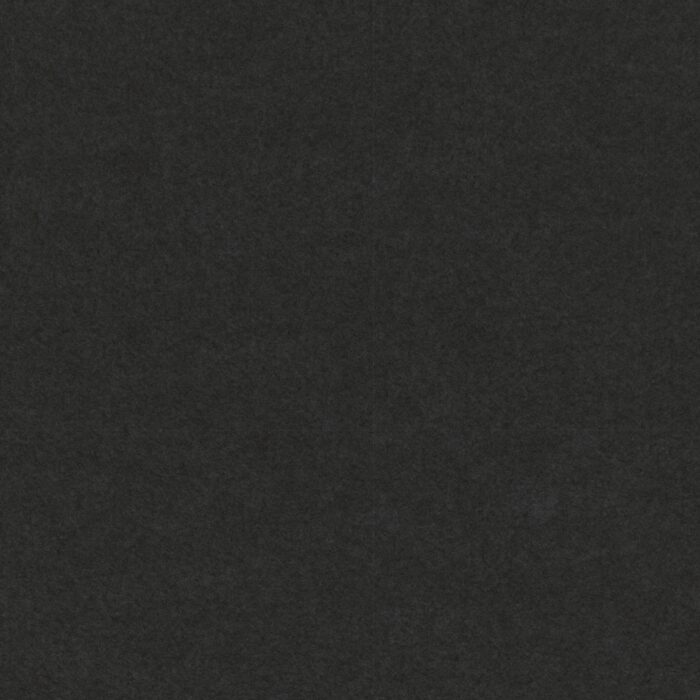

Pure Black
Vanilla Cream
Sunset Pink
Aegean Blue
Evening Blue
