Privacy encompasses many different needs and behaviors; each form of privacy – acoustical, informational or visual, helps people to focus, free from distractions. Suspended Office was designed in collaboration with B2Lab as an ecosystem of spaces that re-defines the privacy of the work area and shapes collaborative work.

Suspended Office offers the ability to "get away" without leaving.

Supporting mindfulness and authenticity for any⁠ individual, Suspended Office provides shielding by three walls, allowing users to rejuvenate, relax, and focus on their work.

Connecting Hub

Private Enclave

Lounge

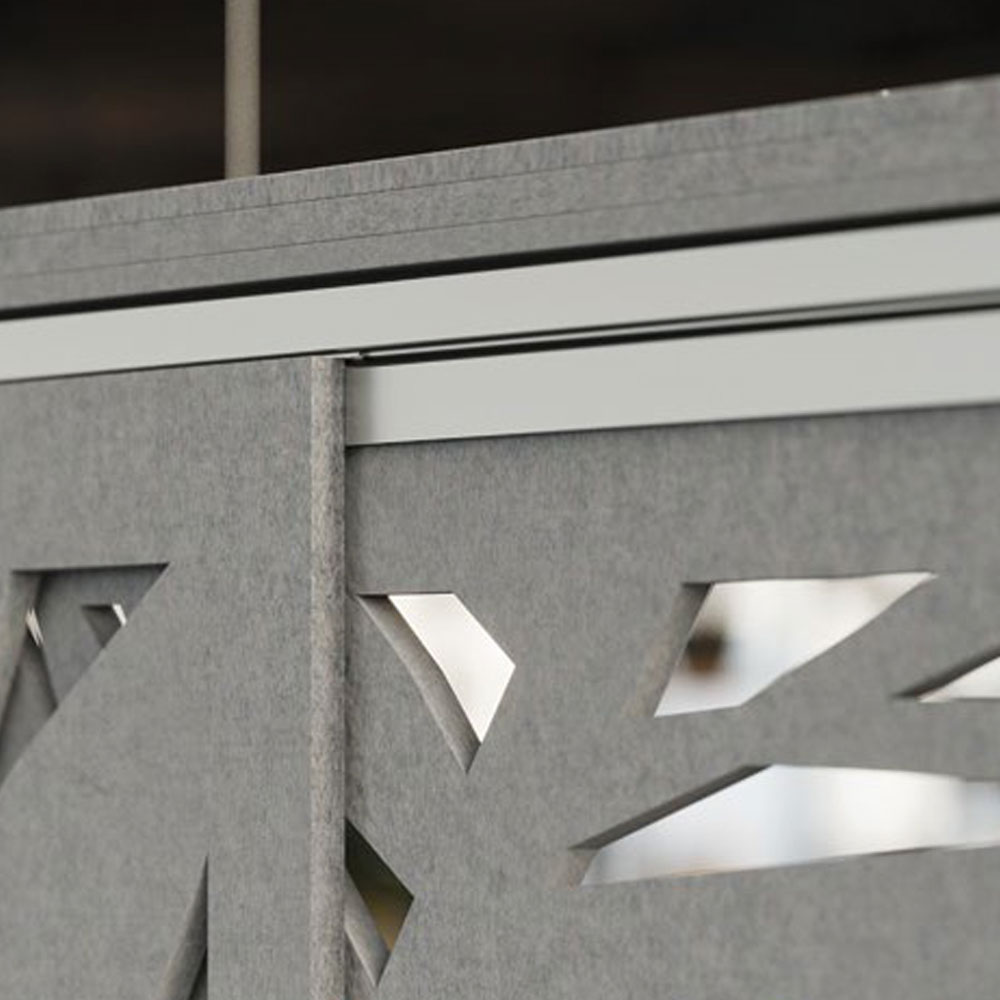

Slider Detail

Office Set Up

Key Features

Suspended Office features EzoBord acoustical surface materials in a variety of visually interesting patterns, colors, and configurations that perfectly balance design and functionality.



Suspended OFFICE CONFIGURATIONS

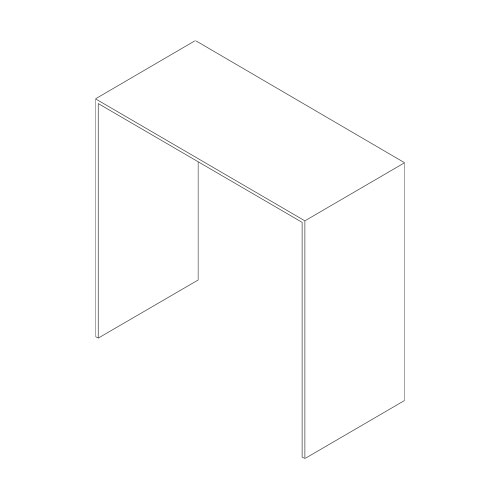

Single Module

Single Module

Height: 94" (2387mm)

Length: 96 ½" (2451mm)

Width: 46" (1168mm)

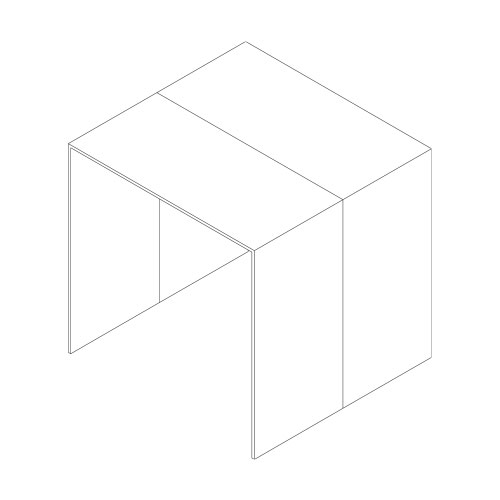

Double Module

Double Module

Height: 94" (2387mm)

Length: 96 ½" (2451mm)

Width: 92" (2336mm)

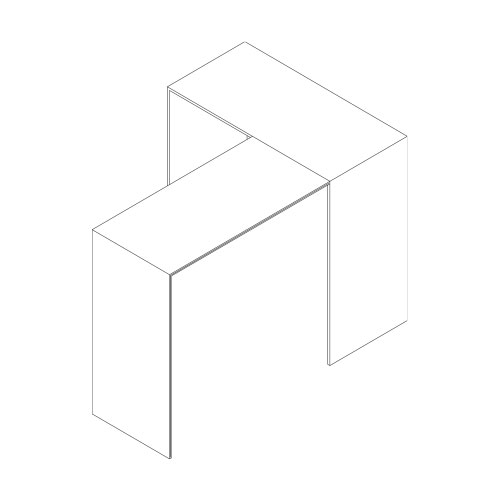

L SHAPE MODULE

L SHAPE MODULE

Height: 94" (2387mm)

Length: 141 ¼" (3587mm)

Width: 46" (1168mm)

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

½” (12mm)

documentation

f
Specifications
1
DIMENSIONS
Downloads

COMPOSITION

100% pet (min 50% recycled content)

FEATURES

  • Available in 30 standard color combinations.
  • 3 layers of 3/8″ (9mm) or 1/2″ (12mm) thickness

ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.80, SAA: 0.80, ASTM C423, 12mm)

FIRE TESTING

North America:

  • ASTM E-84 Class A
  • CAN/ULC S102-10

 Europe and UK:
EN13501-1: 2007

SUSPENDED OFFICE
CONFIGURATION WIDTH LENGTH HEIGHT
Single Module 46″ (1168mm) 96 ½” (2451mm) 94″ (2388mm)
Double Module 92″ (2337mm) 96 ½” (2451mm) 94″ (2388mm)
L Module 141 ¼ ” (3588mm) 96 ½” (2451mm) 94″ (2388mm)

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Suspended Office Brochure.

To get the complete set of dimensions please download Suspended Office Brochure.
