walls

Tac Panels

View product

Tac Panels can be installed on various wall surfaces with double sided EzoTape (pre-installed)

specs

DOWNLOADS

ORDER COLOR SAMPLE

When used in the classrooms, Tac panels enhance speech intelligibility making every classroom a better place to learn.

SEE MODELS

order a sample

Key Features

Fully customizable by shape and size and supports the application of printed corporate designs.

TAC PANEL EDGE FINISHES

Beveled Edge

see color available

Straight Edge

see color available

Chamfered Edge

see color available

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

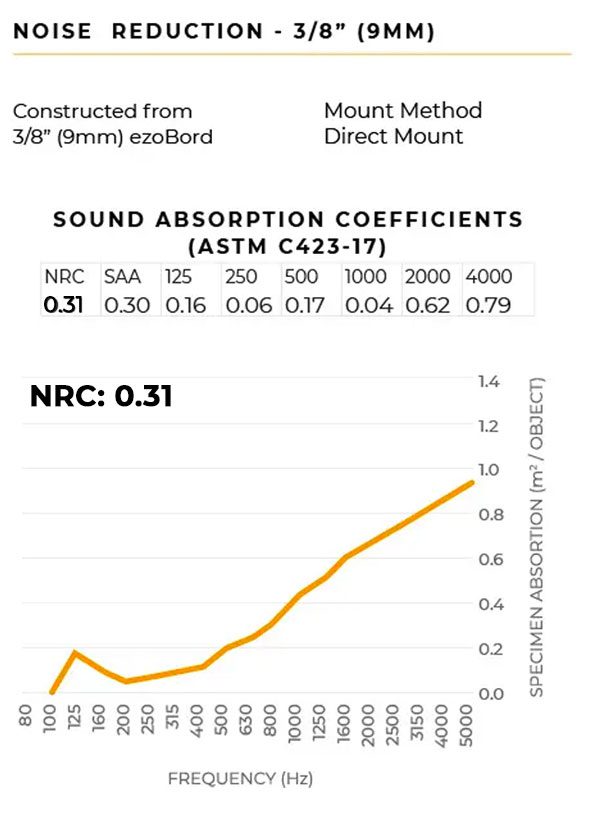

3/8” (9mm)

Direct

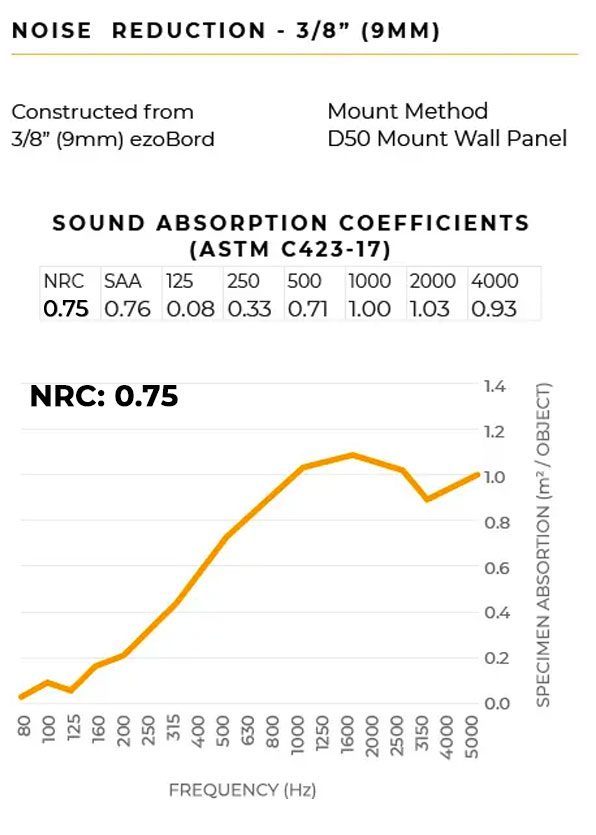

3/8” (9mm)

D50

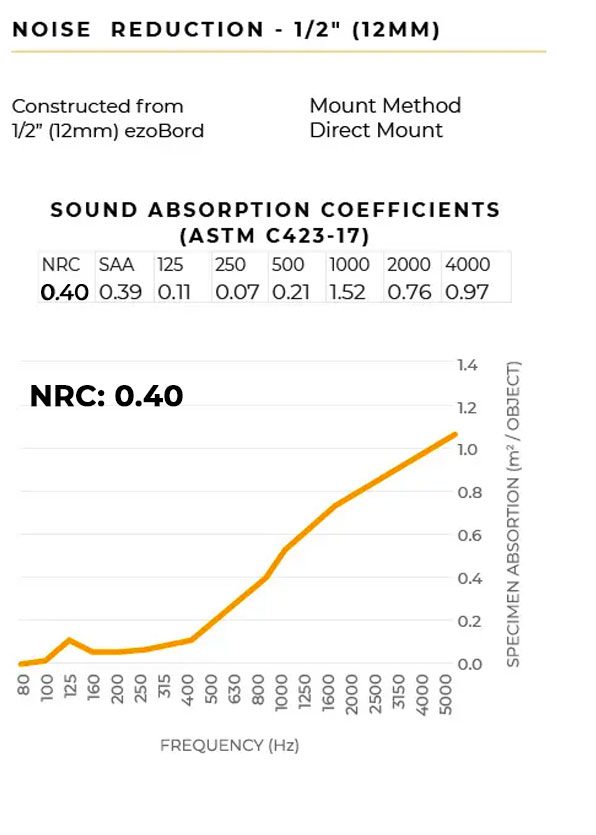

½” (12mm)

Direct

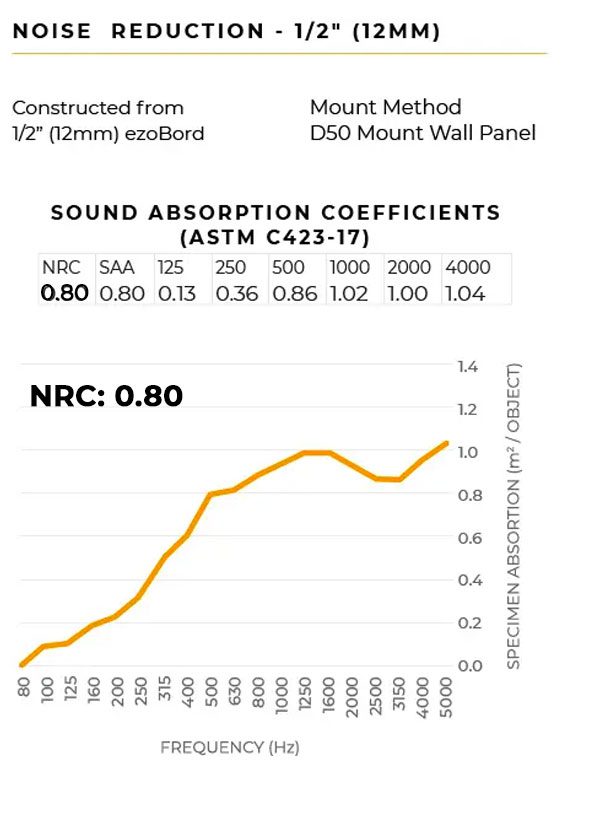

½” (12mm)

D50

documentation

Specifications

Dimensions



Customizable parameters



Downloads

Specifications

COMPOSITION

100% pet (min. 50% recycled content)

FEATURES

Available in 30 standard color combinations.
Easy and unobtrusive mounting
Fully tackable surface

ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.75, SAA: 0.58, ASTM C423, 9mm)
(NRC: 0.80, SAA: 0.80, ASTM C423, 12mm)

FIRE TESTING

North America:

ASTM E-84 Class A
CAN/ULC S102-10

Europe and UK:
EN13501-1: 2007

TAC PANELS
WIDTH	HEIGHT	THICKNESS
21″ (533mm)	21″ (533mm)	3/8″ (9mm)	1/2″ (12mm)
42″ (1067mm)	42″ (1067mm)	3/8″ (9mm)	1/2″ (12mm)
42″ (1067mm)	90″ (2286mm)	3/8″ (9mm)	1/2″ (12mm)

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Tac Panels Brochure.

To get the complete set of dimensions please download Tac Panels Brochure.

Customizable Parameters

Geometric Properties: Width and length
Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
Color: Available options below
Edge: Beveled, Straight, Chamfered

Specific product files

Download

Specific product design files

tac panels -CAD- design files 492.92 KB 414 downloads

...

Download

Installation Instructions

V Notch, Tack Board & Panels Installation 1.71 MB 1143 downloads

...

Download

ezo Tape Installation

1 file(s) 570.60 KB

Download

AVAILABLE COLORS
