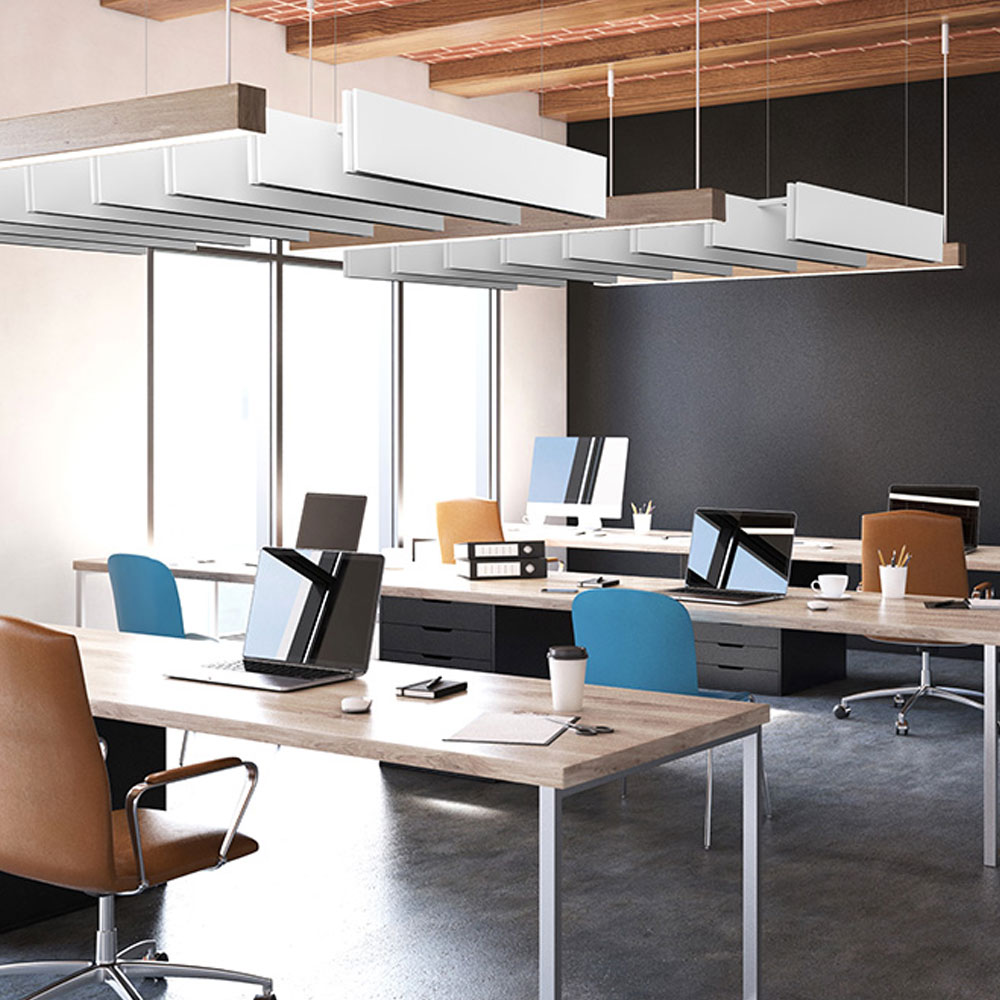

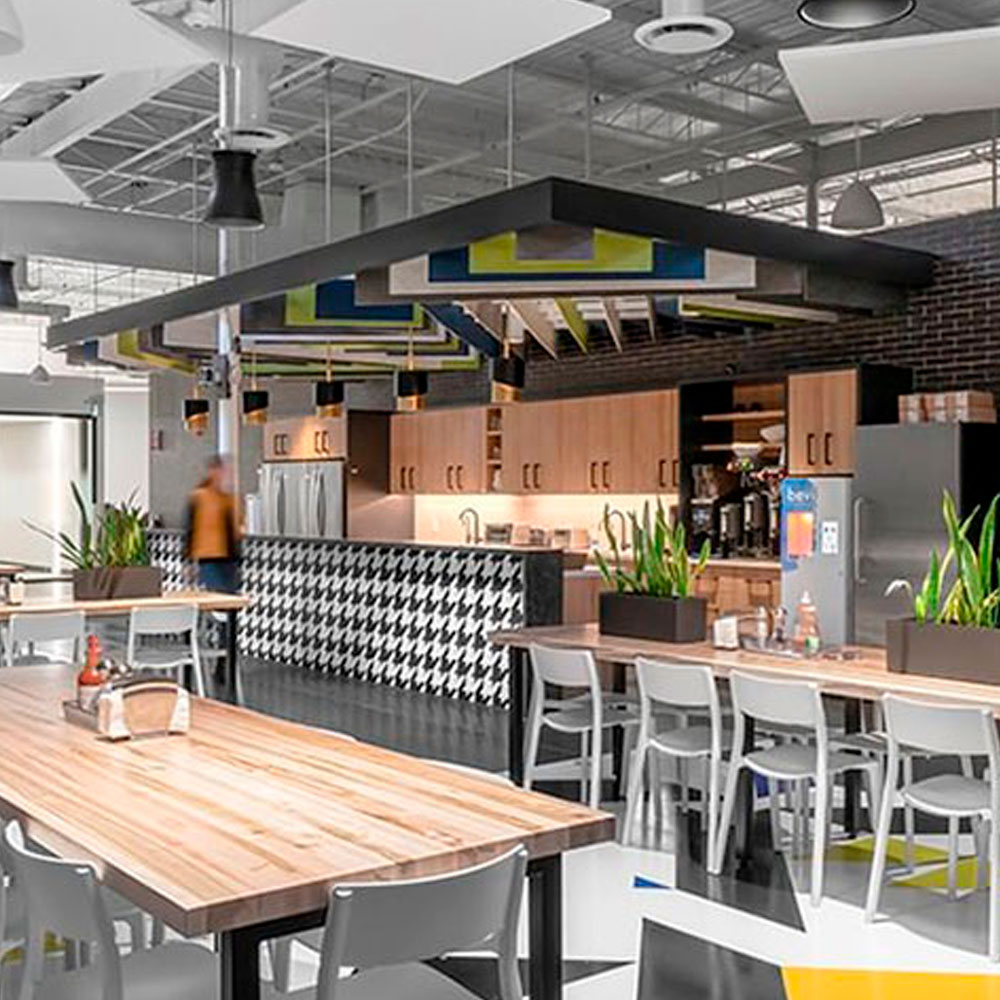

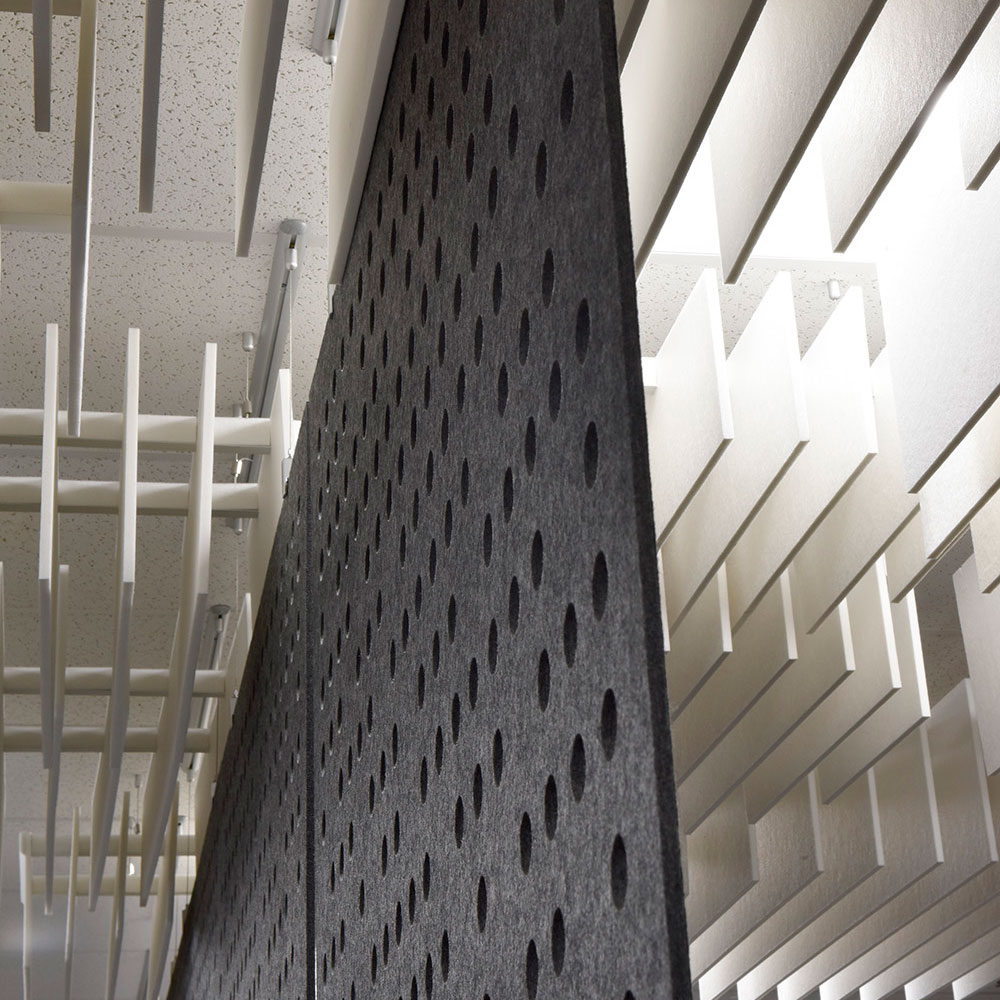

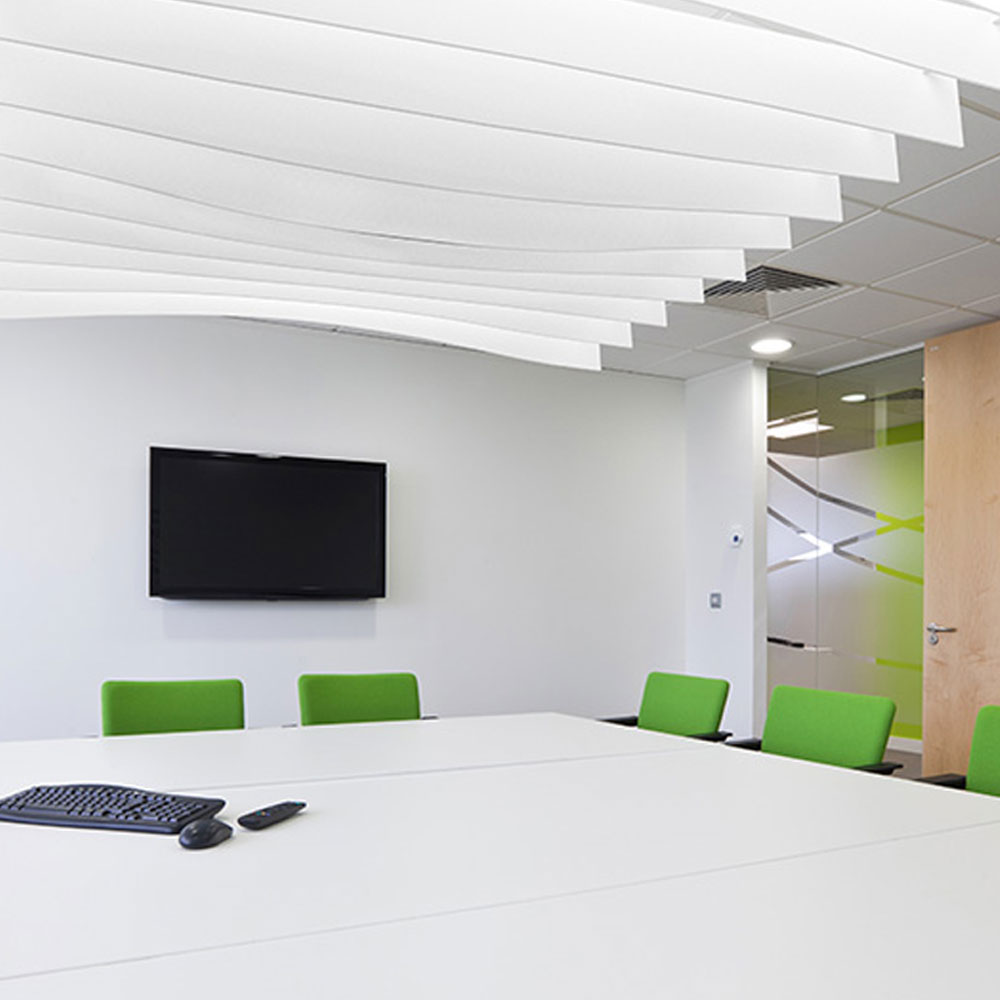

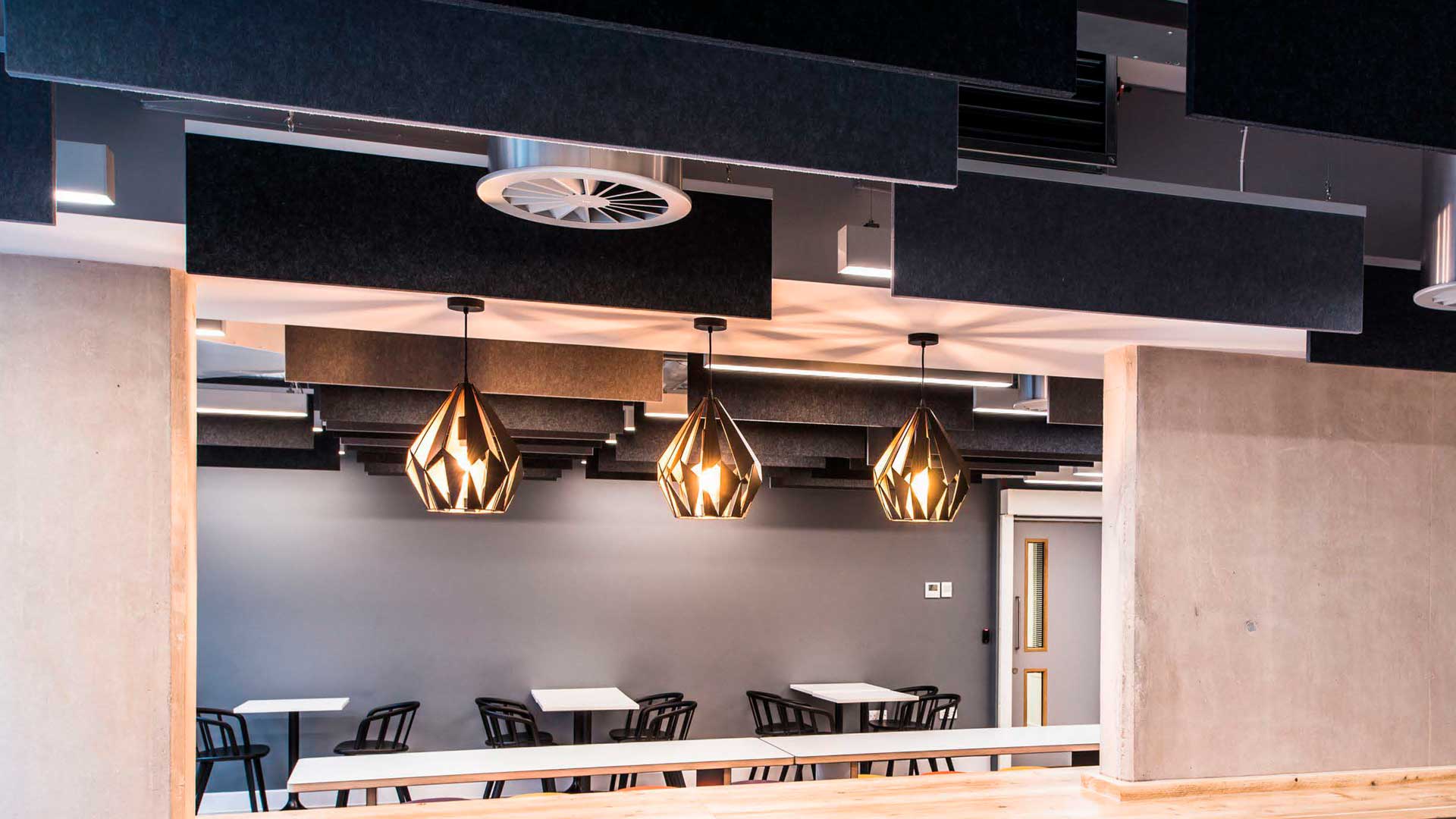

Providing a 3-dimensional vibrant ceiling and absorbing unwanted noise, Baffle Cloud is an easy to install acoustical solution available in various styles and forms.

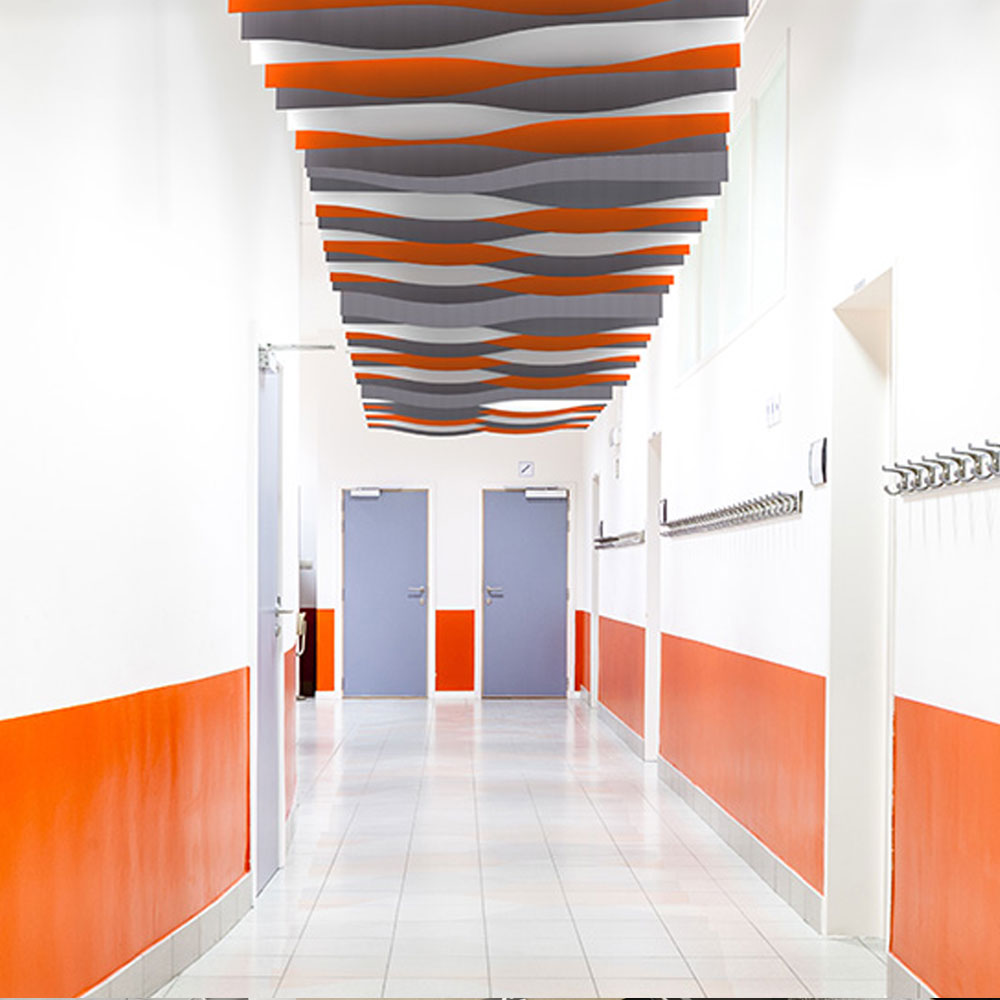

Baffle Cloud ensures absorption control while adding rhythmically consistent visual variations to monotone spaces.

Key Features

Baffle Cloud is comprised of EzoBord slab arrays which follow standard or customizable forms. Simple assembly flow and installation steps makes Baffle Cloud a convenient and effective solution for both localized (partial) and full ceiling applications.



BAFFLE SYSTEMS

Aalto

Luna Round

Luna Round



Luna Square

Luna Square



Vesi

Veldi

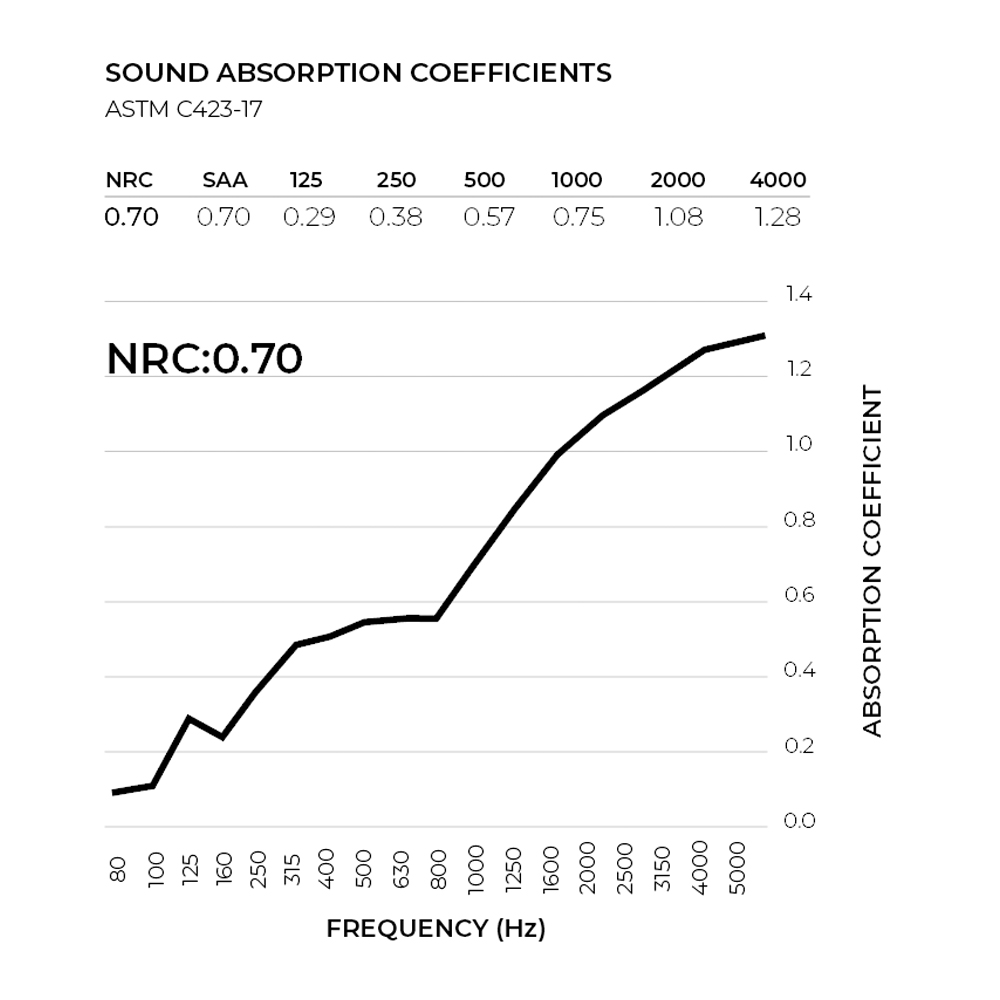

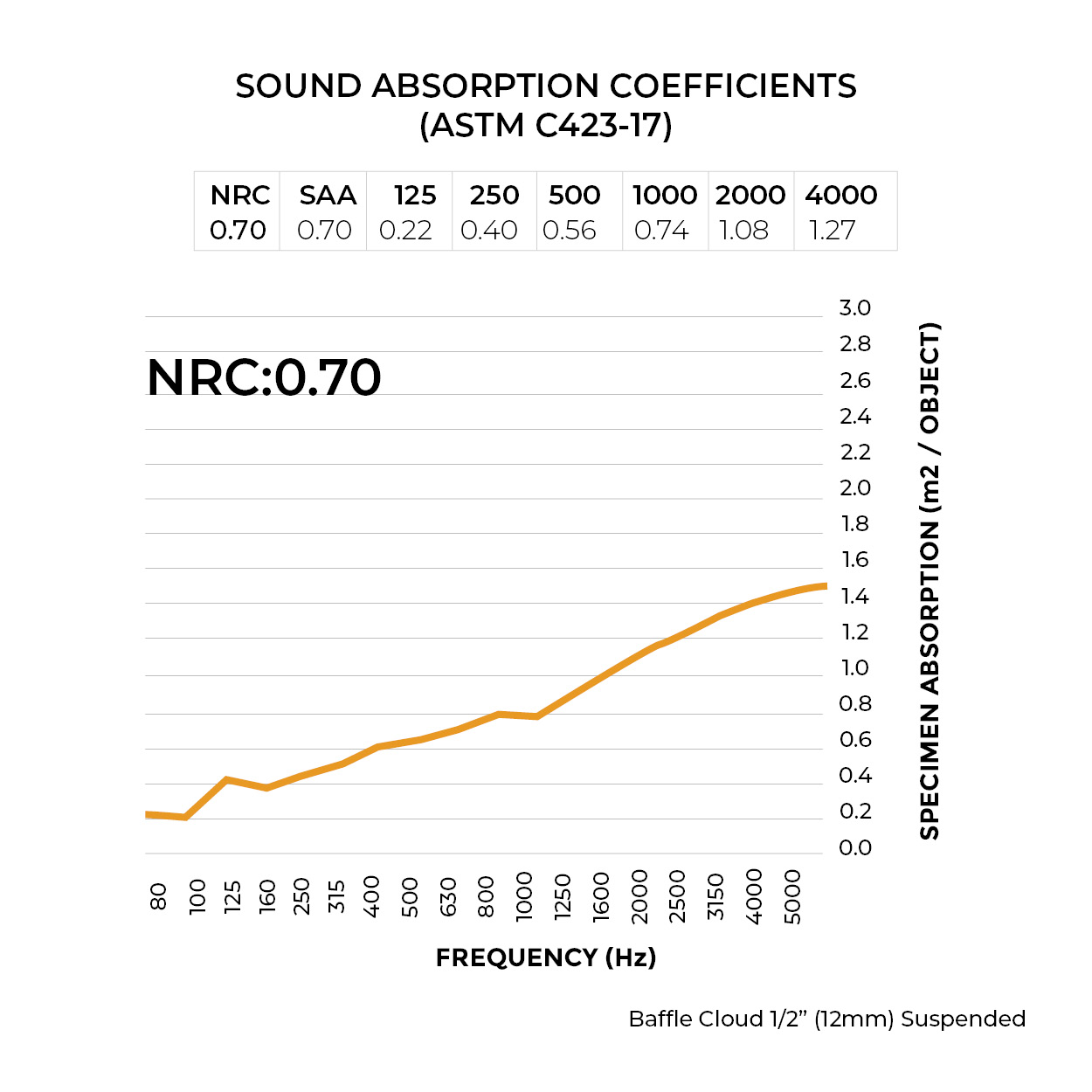

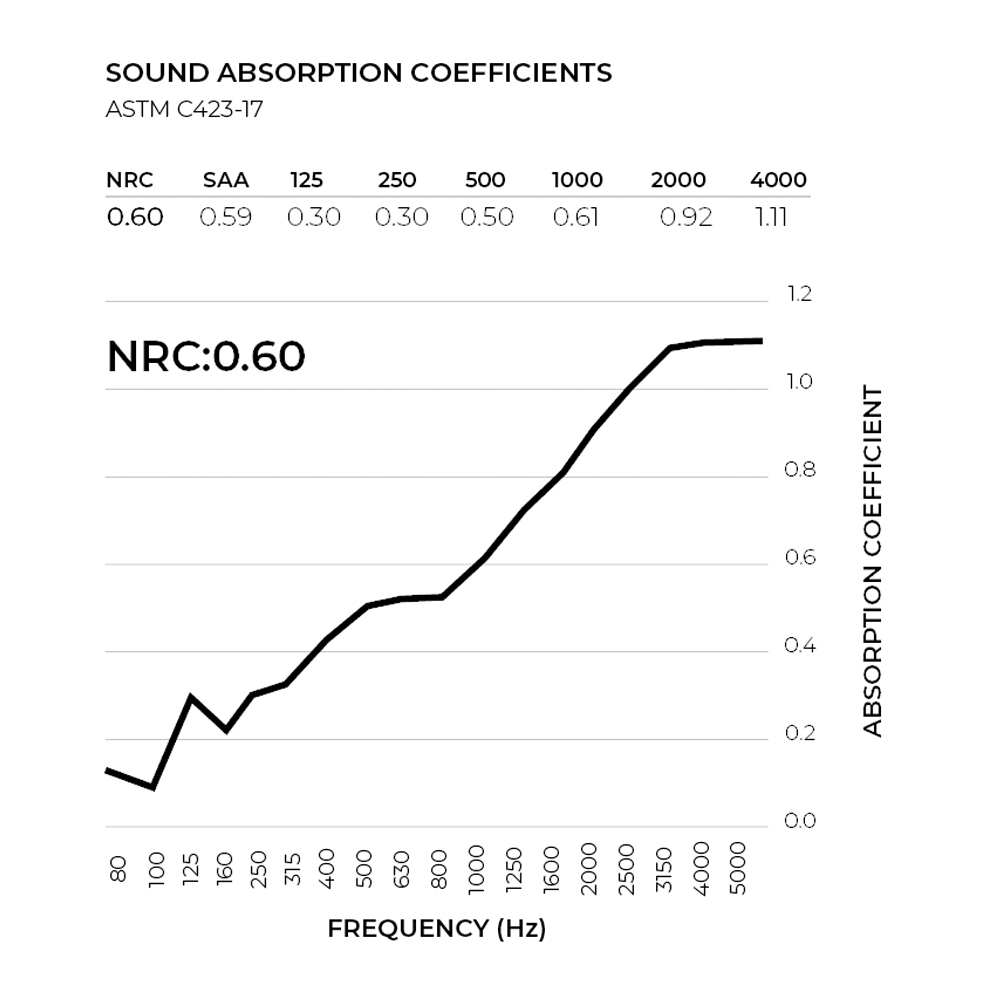

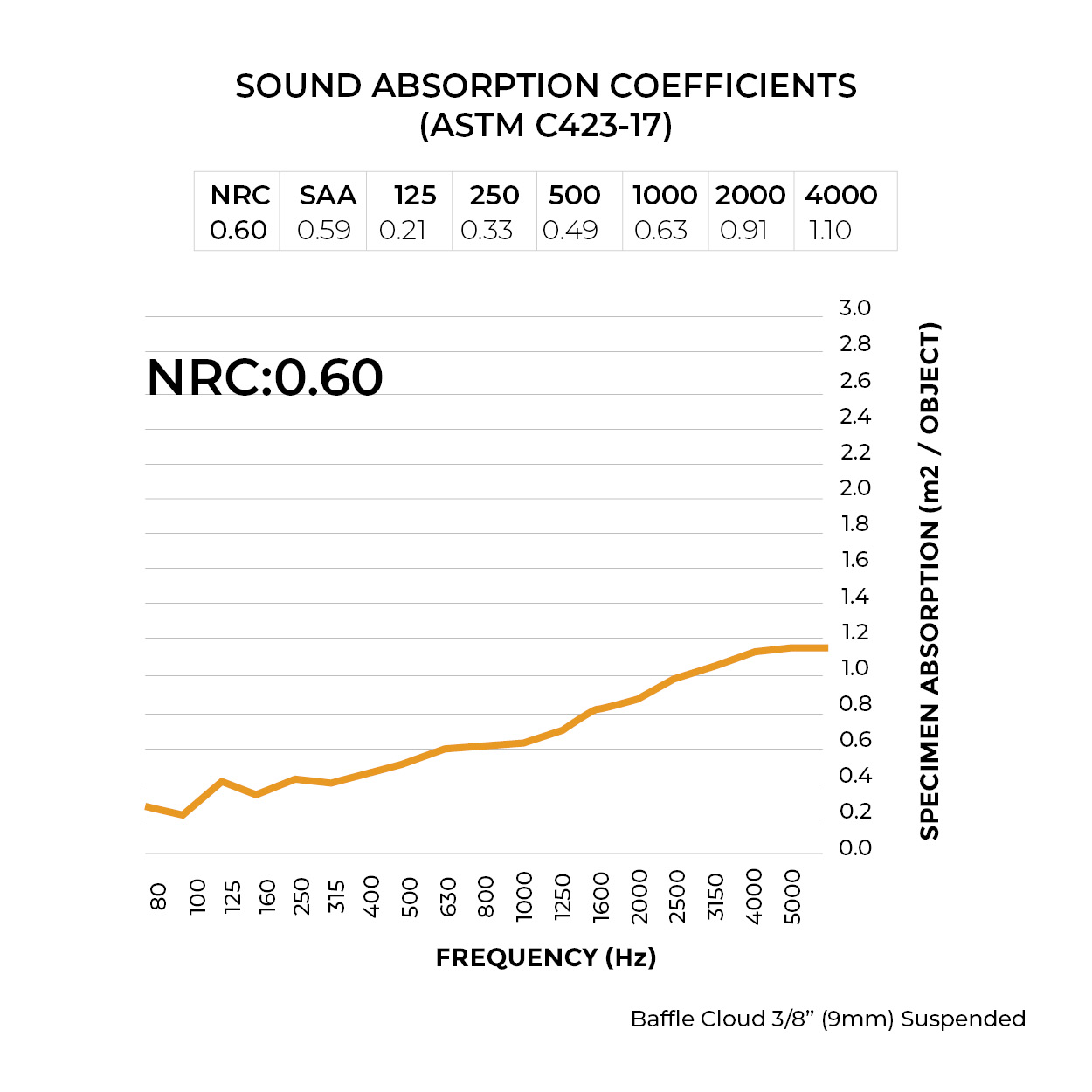

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

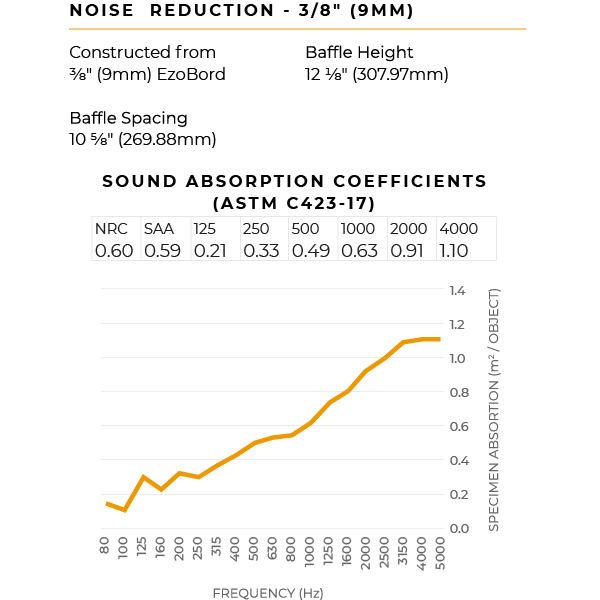

3/8” (9mm)

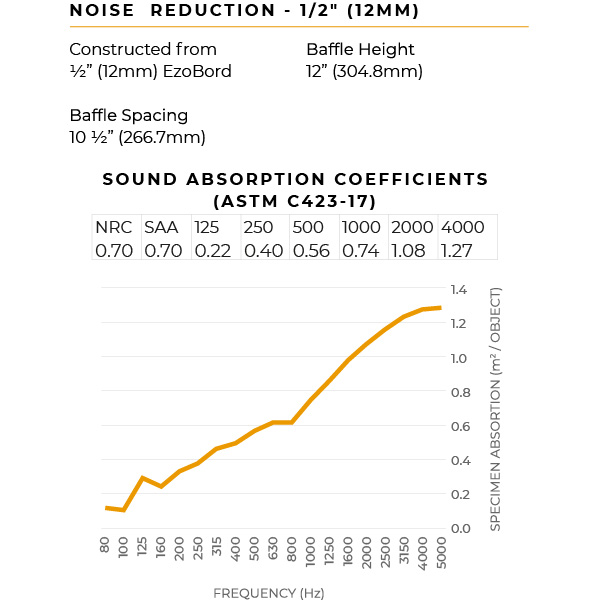

1/2” (12mm)

documentation

f
Specifications
1
Dimensions
Downloads
Customizable parameters

Features

T-Bar Compatibility allows fast and easy installation

Allows lighting, airflow and sprinkler distribution

Composition

100% pet (min. 50% recycled content).

Acoustics

Superior sound absorption characteristics (NRC: 0.70, SAA: 0.70, ASTM C423, 12mm material thickness)

Fire Testing

North America:

  • ASTM E-84 Class A*
  • CAN ULC S102-10

Europe and UK:

  • EN13501-1: 2007
AALTO | LUNA (ROUND & SQUARE) | VESI | VELDI
LENGTH       WIDTH      HEIGHT     THICKNESS
47″ (1192mm) 47″ (1192mm) 7 ¾” (197mm) 3/8″ (9mm)
47″ (1192mm) 47″ (1192mm)  11½” (292mm) 3/8″ (9mm)
47″ (1192mm) 47″ (1192mm) 7 ¾” (197mm) 1/2″ (12mm)
47″ (1192mm) 47″ (1192mm) 11½” (292mm) 1/2″ (12mm)
95″ (2413mm) 95″ (2413mm) 7 ¾” (197mm) 3/8″ (9mm)
95″ (2413mm) 95″ (2413mm) 11½” (292mm) 3/8″ (9mm)
95″ (2413mm) 95″ (2413mm) 7 ¾” (197mm) 1/2″ (12mm)
95″ (2413mm) 95″ (2413mm) 11½” (292mm) 1/2″ (12mm)

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Baffle Clouds Brochure.

Icon

Aalto Baffle Cloud Brochure 1.36 MB 100 downloads

...
Icon

Vesi Baffle Cloud Brochure 1.42 MB 52 downloads

...
Icon

Luna Baffle Cloud Brochure 1.60 MB 75 downloads

...

To get the complete set of dimensions please download Baffle Clouds Brochure.

Icon

Aalto Baffle Cloud Brochure 1.36 MB 100 downloads

...
Icon

Vesi Baffle Cloud Brochure 1.42 MB 52 downloads

...
Icon

Luna Baffle Cloud Brochure 1.60 MB 75 downloads

...

Specific product files

Icon

Aalto Baffle Cloud Brochure 1.36 MB 100 downloads

...

Icon

Vesi Baffle Cloud Brochure 1.42 MB 52 downloads

...

Icon

Luna Baffle Cloud Brochure 1.60 MB 75 downloads

...

Specific product design files

Icon

Baffle Cloud – Aalto – CAD 361.37 KB 68 downloads

...

Icon

Baffle Cloud – Aalto – Revit 4.26 MB 38 downloads

...

Icon

Baffle Cloud – Luna Round – Revit 337.18 KB 40 downloads

...

Icon

Baffle Cloud – Luna Square – CAD 216.16 KB 40 downloads

...

Icon

Baffle Cloud – Veldi – CAD 426.98 KB 44 downloads

...

Icon

Baffle Cloud – Veldi – Revit 17.99 MB 40 downloads

...

Icon

Baffle Cloud – Vesi – CAD 649.06 KB 37 downloads

...

Icon

Baffle Cloud – Vesi – Revit 3.50 MB 37 downloads

...

Installation Instructions

Icon

Baffle Cloud Installation 1.94 MB 116 downloads

...

Customizable Parameters



  • Geometric Properties:Length, width and layer quantity
  • Material Thickness:3/8″ (9mm) or 1/2″ (12mm) sheets can be layered to form a specific thickness
  • Color: Each layer can be manufactured with different color. Available options below
  • Pattern and Cut: Custom patterns and cut shapes are available
  • Digital Print: Custom graphics and textures can be printed

Contact our design team for custom applications.

AVAILABLE COLORS
