Balsa Acoustic Slat Wood Wall Panels

balsa — acoustic slat wood wall panels

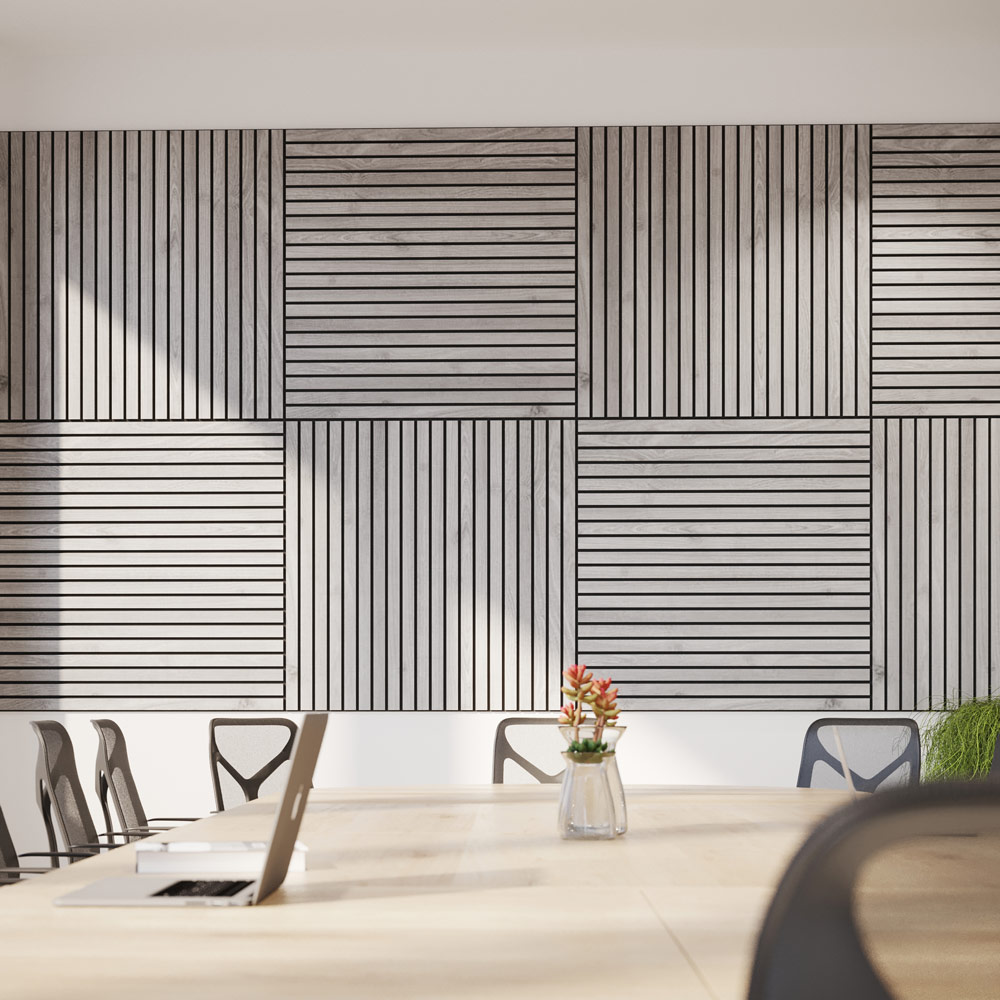

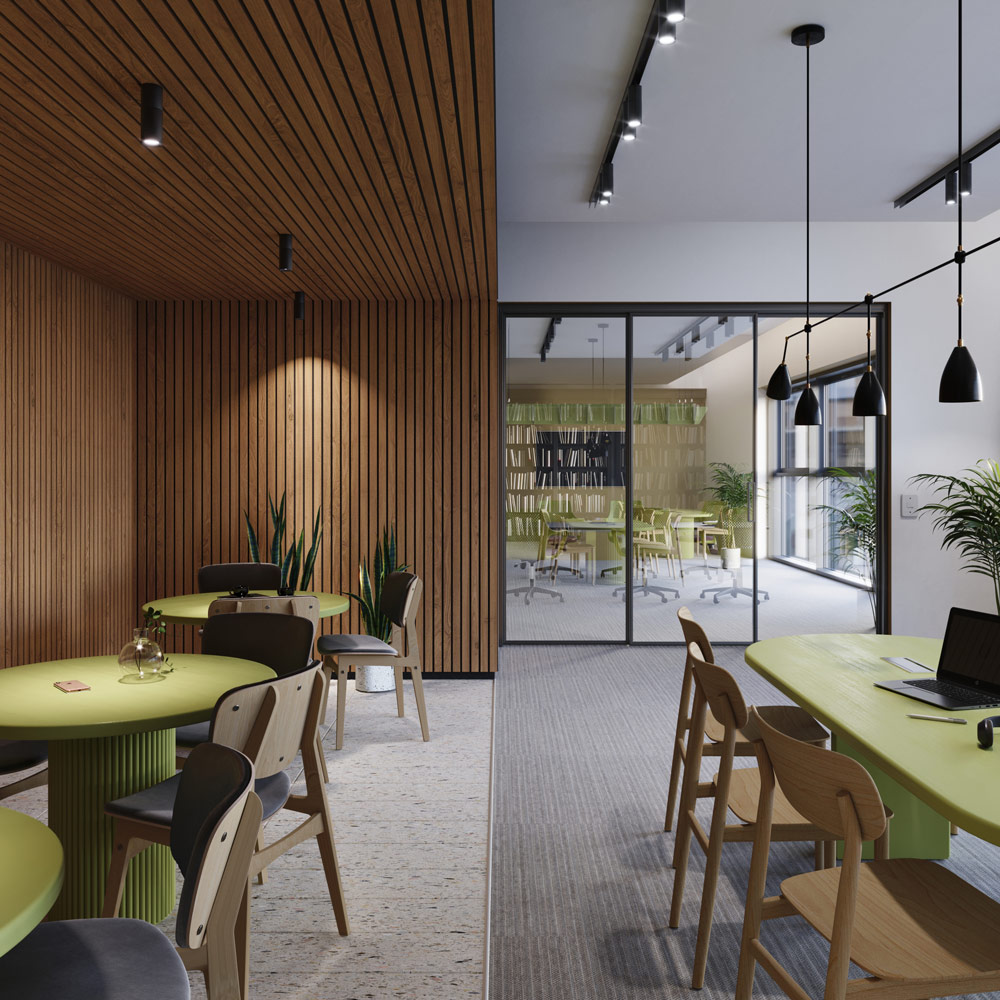

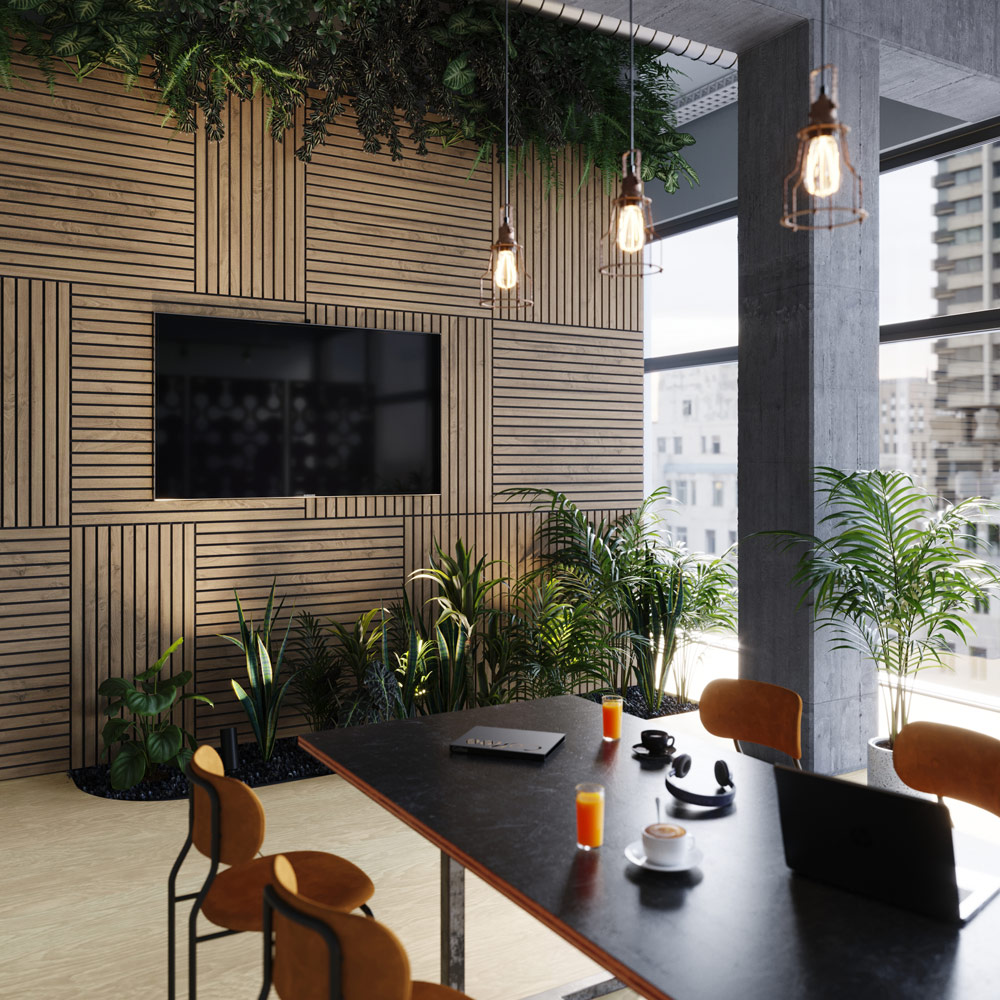

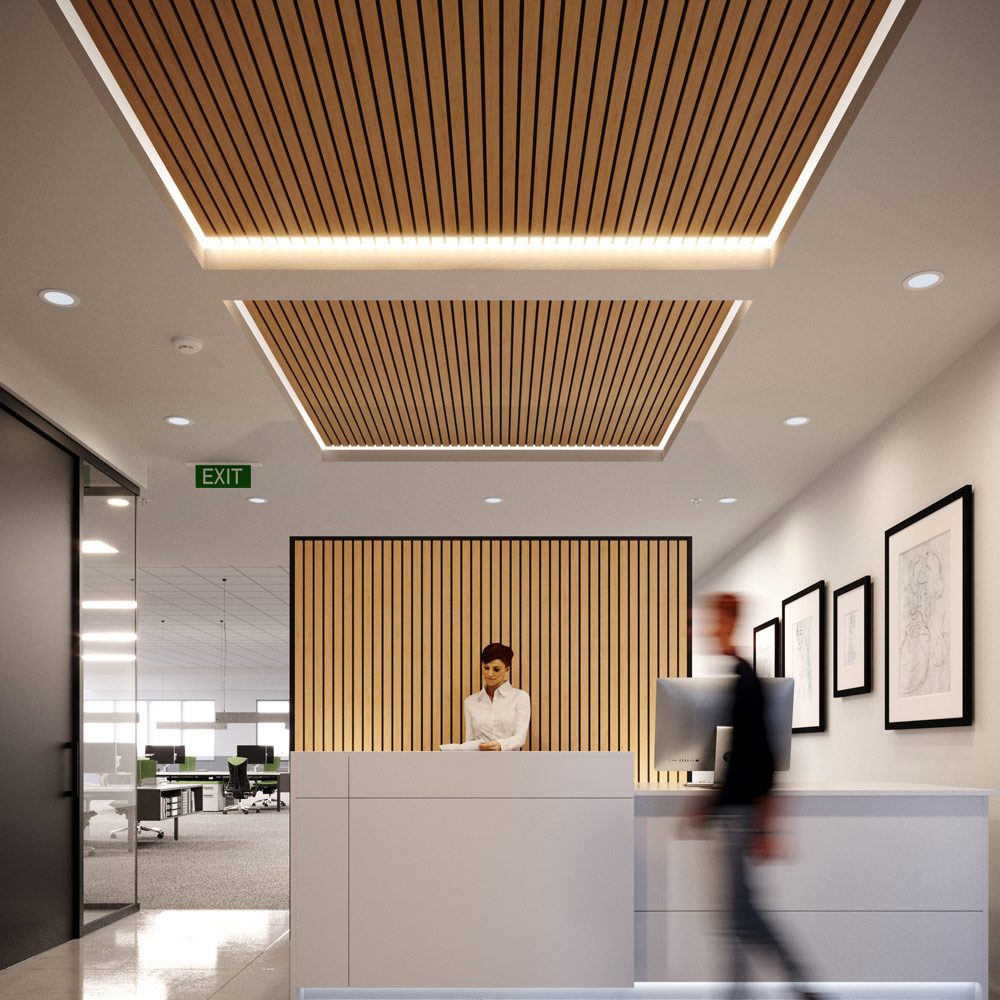

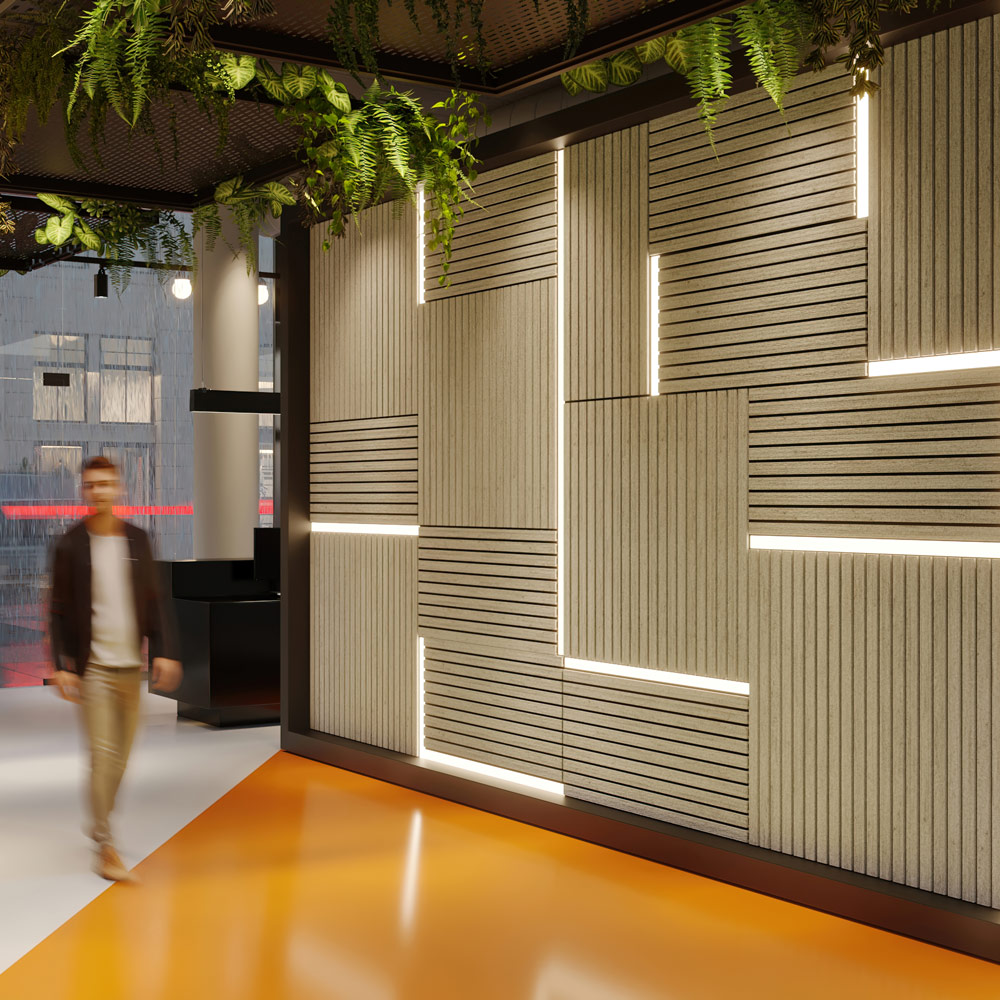

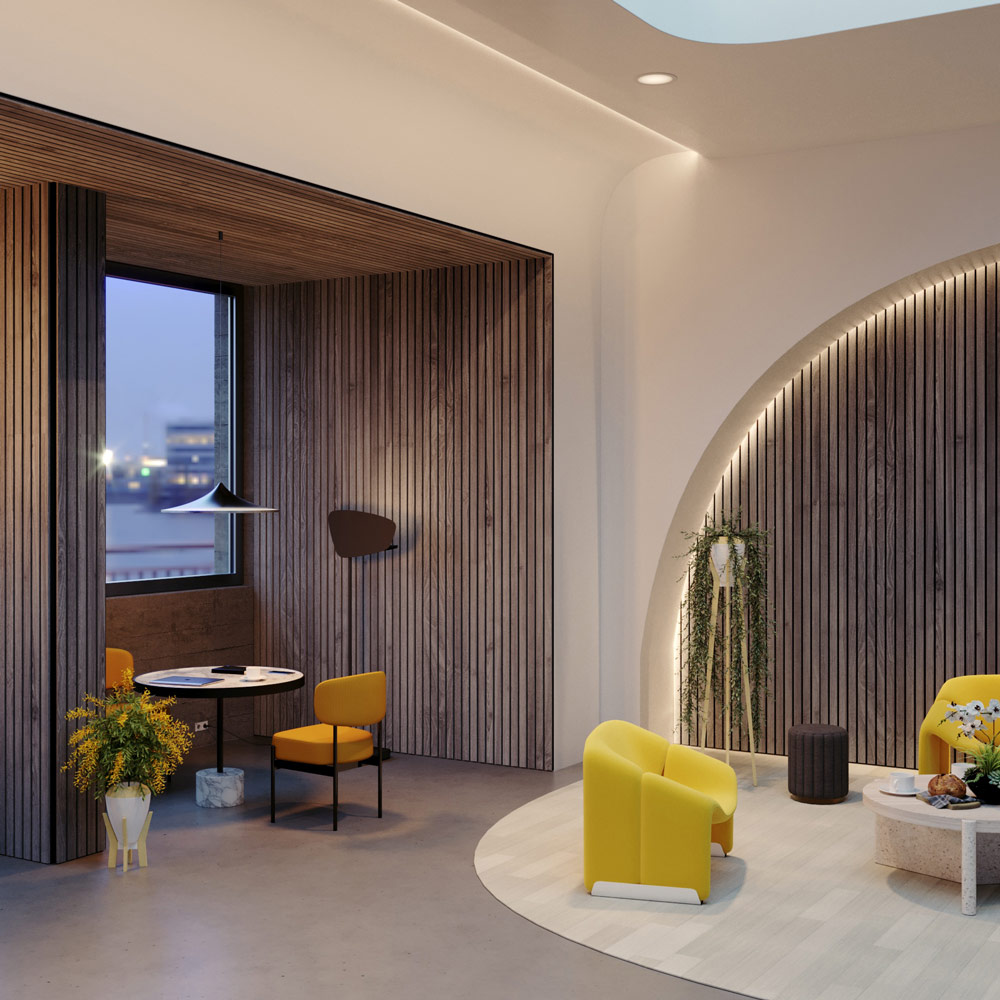

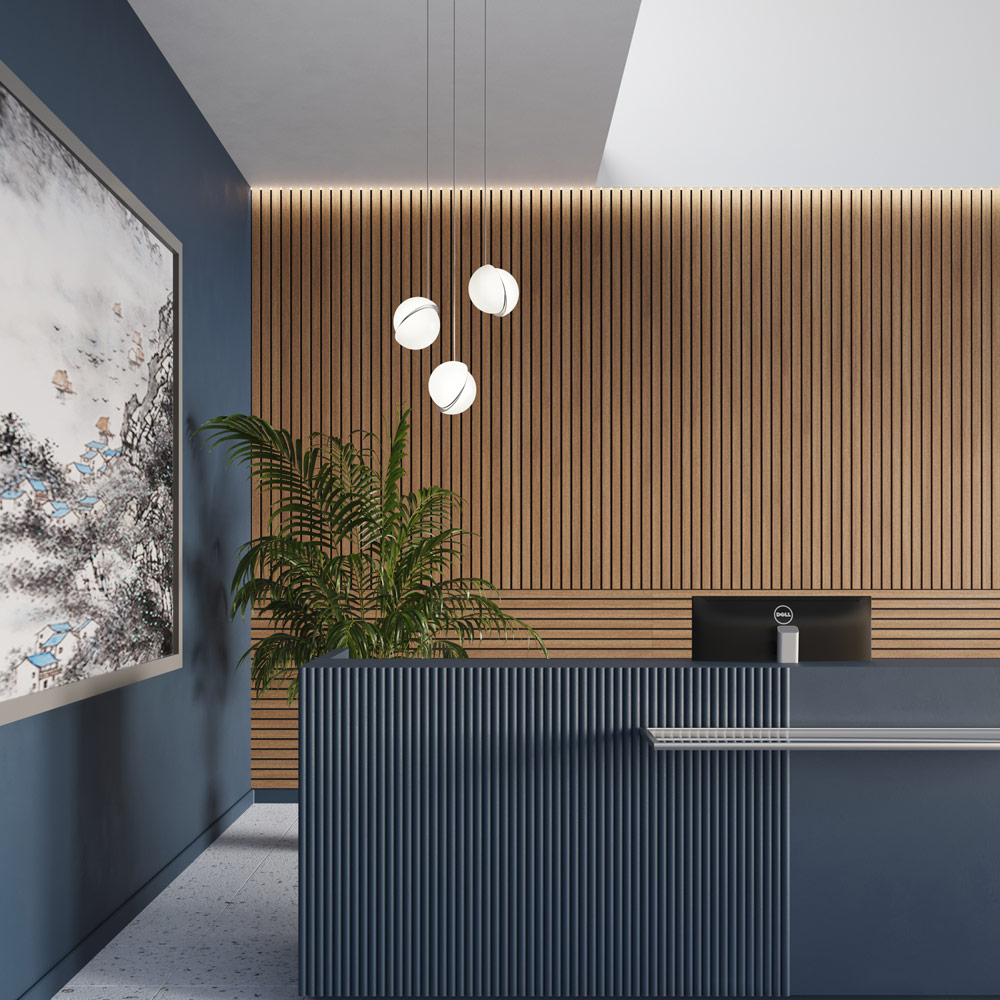

Balsa is a design-forward acoustic wall panel with slat wood panels that create a warm, calming environment. Drawing on nature, it enhances well-being, focus, and productivity. Available in woodgrain colors, Balsa suits entranceways or feature walls. Lightweight and easy to install, Balsa Raw prints elegant wood finishes on EzoBord, while Balsa Premium offers a detailed wood-vein look and feel.

view in showroom

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

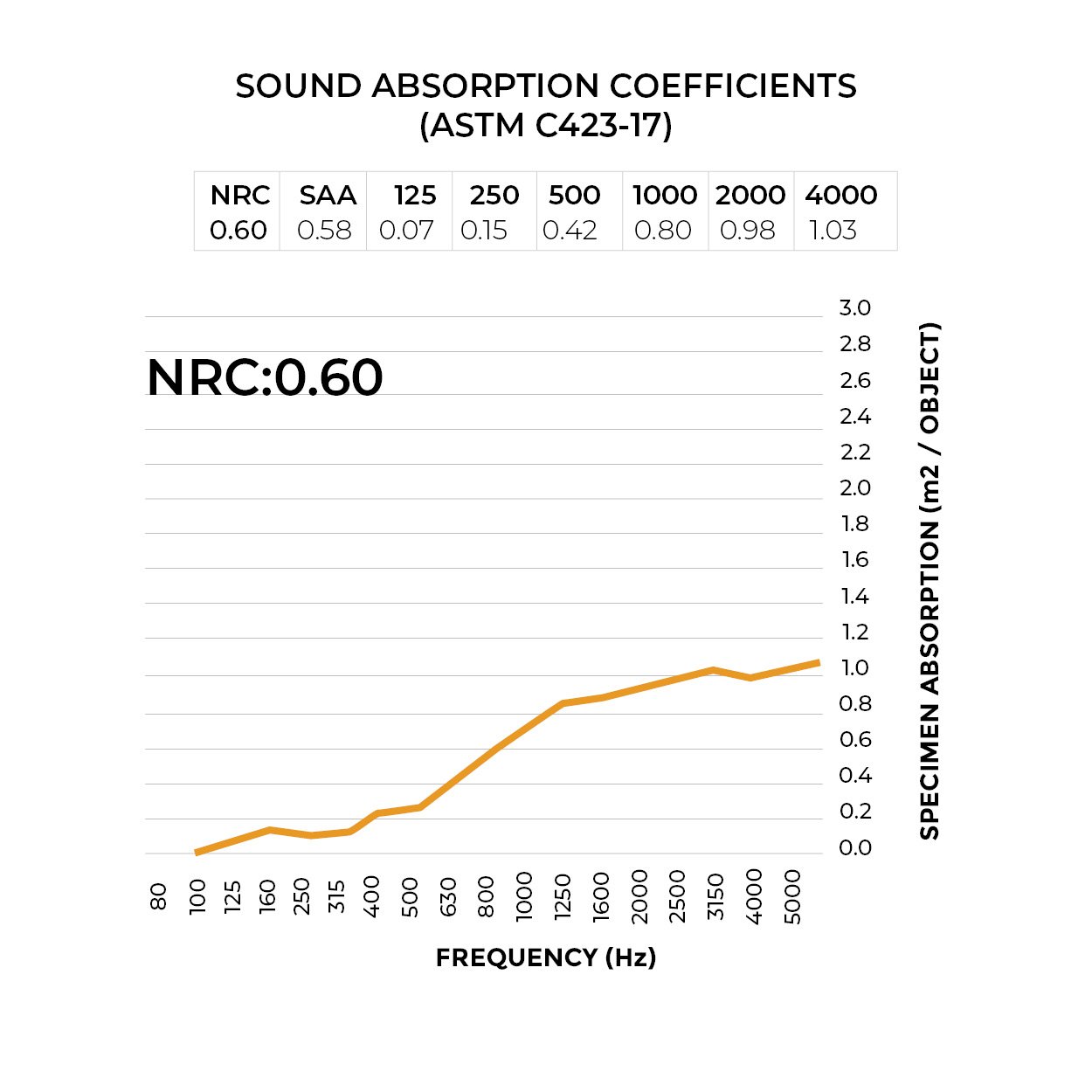

3/4" (18mm)

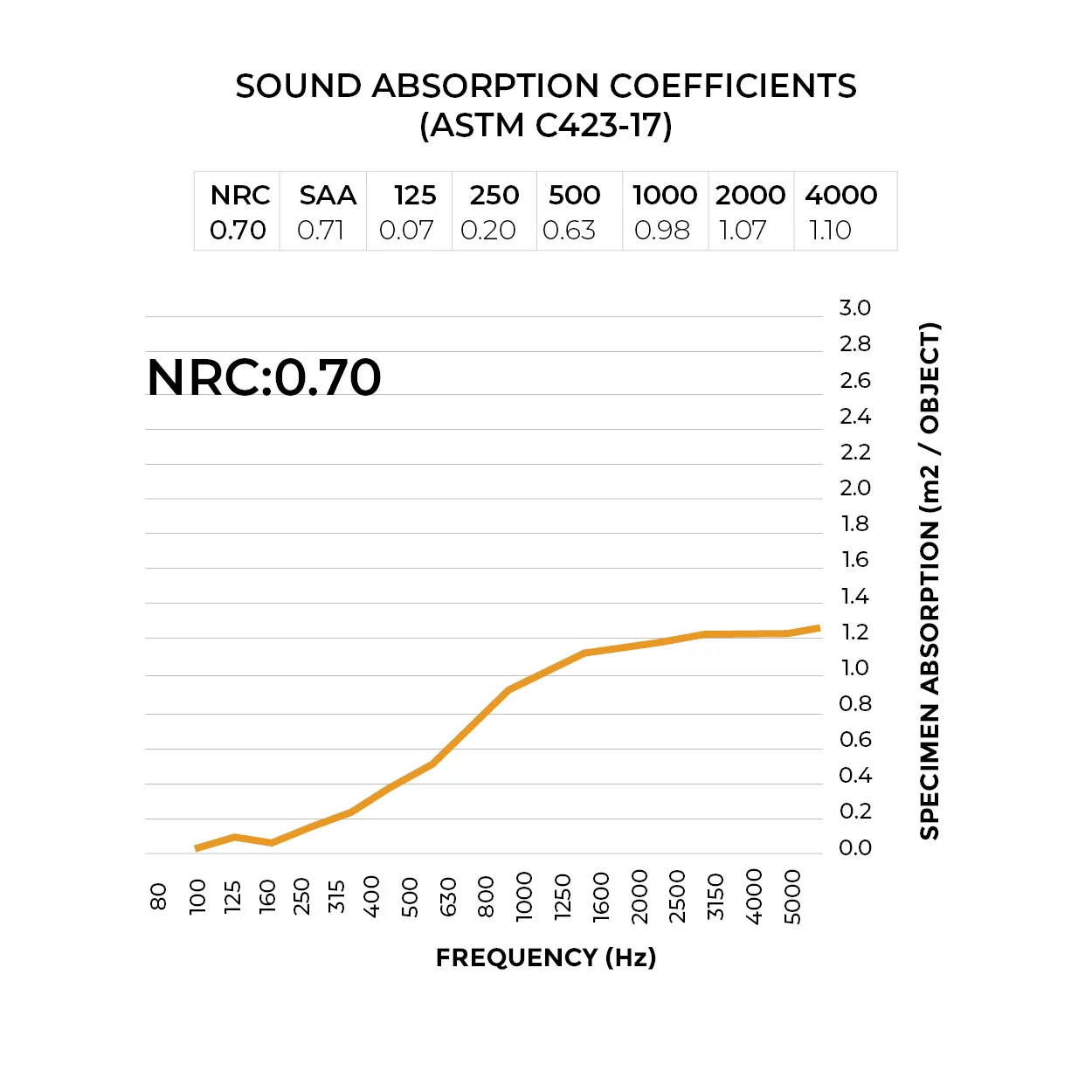

1" (24mm)

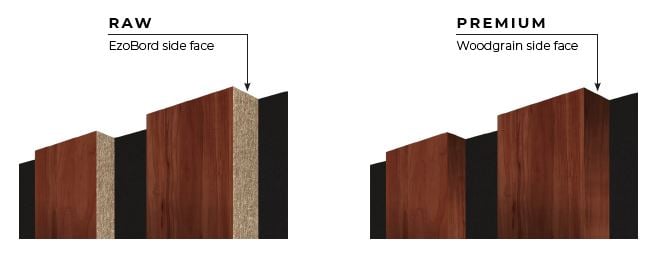

SIDE FACE FINISH

specifications

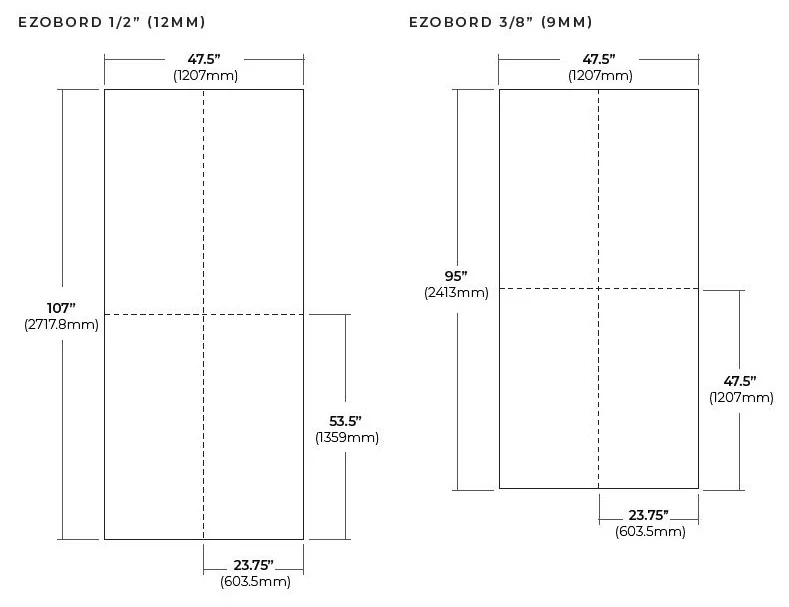

BACKER DIMENSIONS

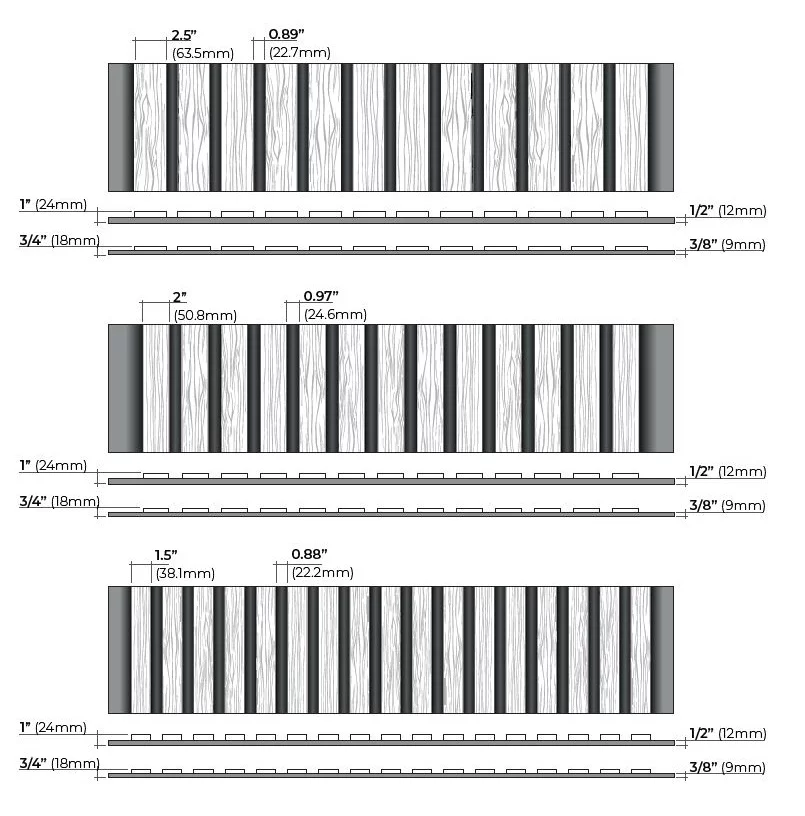

SLATS DIMENSION AND CONFIGURATIONS

BACKER DIMENSIONS

SLATS DIMENSION AND CONFIGURATIONS

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Brochure
Installation Instructions

Acoustics

Sound Absorption Test (ASTM C423-17) – Ezo on Ezo 3/4″ (18mm) – No Air Gap*
Sound Absorption Test (ASTM C423-17) – Ezo on Ezo 1″ (24mm) – No Air Gap*

  *Balsa NRC data is represented by “Ezo on Ezo” test results
due to comparable
material and design characteristics.



Fire Test Data

Surface Burning Characteristics (ASTM E84) EzoBord 3/8″ (9mm)
Surface Burning Characteristics (CAN-ULC S102) EzoBord 3/8″ (9mm)
Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) EzoBord 3/8″ (9mm)
Surface Burning Characteristics (ASTM E84) EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S102) EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet
Declare Label
VOC Testing

Drawing Files

DWG 2D
DWG 3D
IFC
SKP
HARDWARE

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING

North America:
ASTM E-84 Class A
CAN ULC S102-10

Europe and UK:
EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.

Recommended Hardware

*Not applicable

Available colors

Woodgrain

Slat Woodgrain Prints: EzoBord 3/8” (9MM) & 1/2” (12MM)
*GREY OAK – CHERRY MATE – WALNUT – ASH – YELLOW OAK – MARMAR MAPLE – BIRCH SAND
Only available in Premium side face Finish (Inquire for additional backer sheet colors.)

View Material

3D-Wood-Block-FMZ502051_47x94_02
3D-Wood-Block-FMZ502051_47x94_02
Time-Will-Tell-KHA42413_47x94_02
Wood-Jetty-TIM50704_47x94_02
APPLE-W-AP-05_03
ASH-W-AS-06_03
BIRCH-SAND-W-BS-10_03
CHERRY-MATE-W-CM-03_03
DARK-OAK-W-DO-07_03
GREY-OAK-W-GO-08_03
DRIFTWOOD EZP-WGP-DW01<br />
MARMAR-MAPLE-W-MM-04_03
WALNUT-W-WA-01_03
WENGUE-W-WE-02_03
YELLOW-OAK-W-YO-09
