carve
Carve Your Own Space
Carve

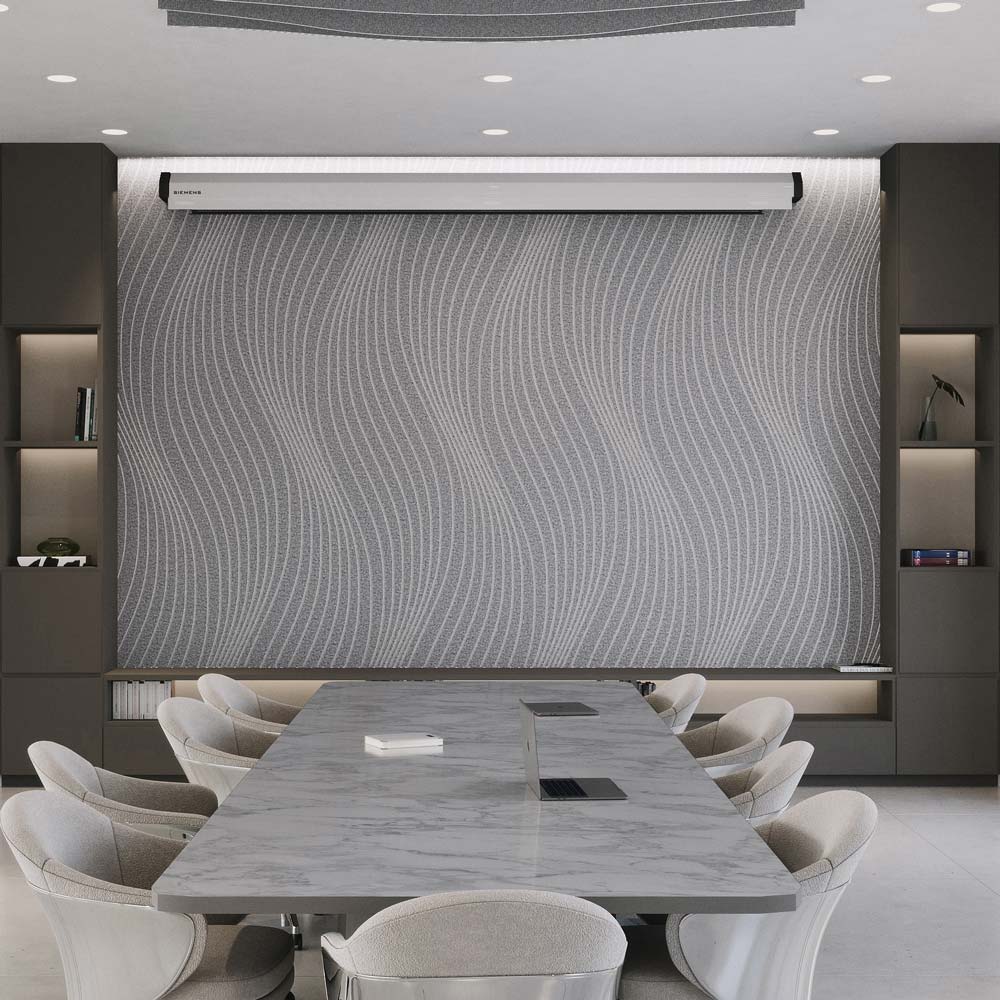

Carve acoustic v-notch panel patterns add visual depth to EzoBord sheets and bring harmony and control to acoustically demanding spaces. Carve expands Ezobord’s acoustic panel patterns by adding curvilinear bespoke connectable patterns to create unique designs in almost unlimited combinations.
Easy to install in such a way that patterns are continued, Carve supports full surface applications.

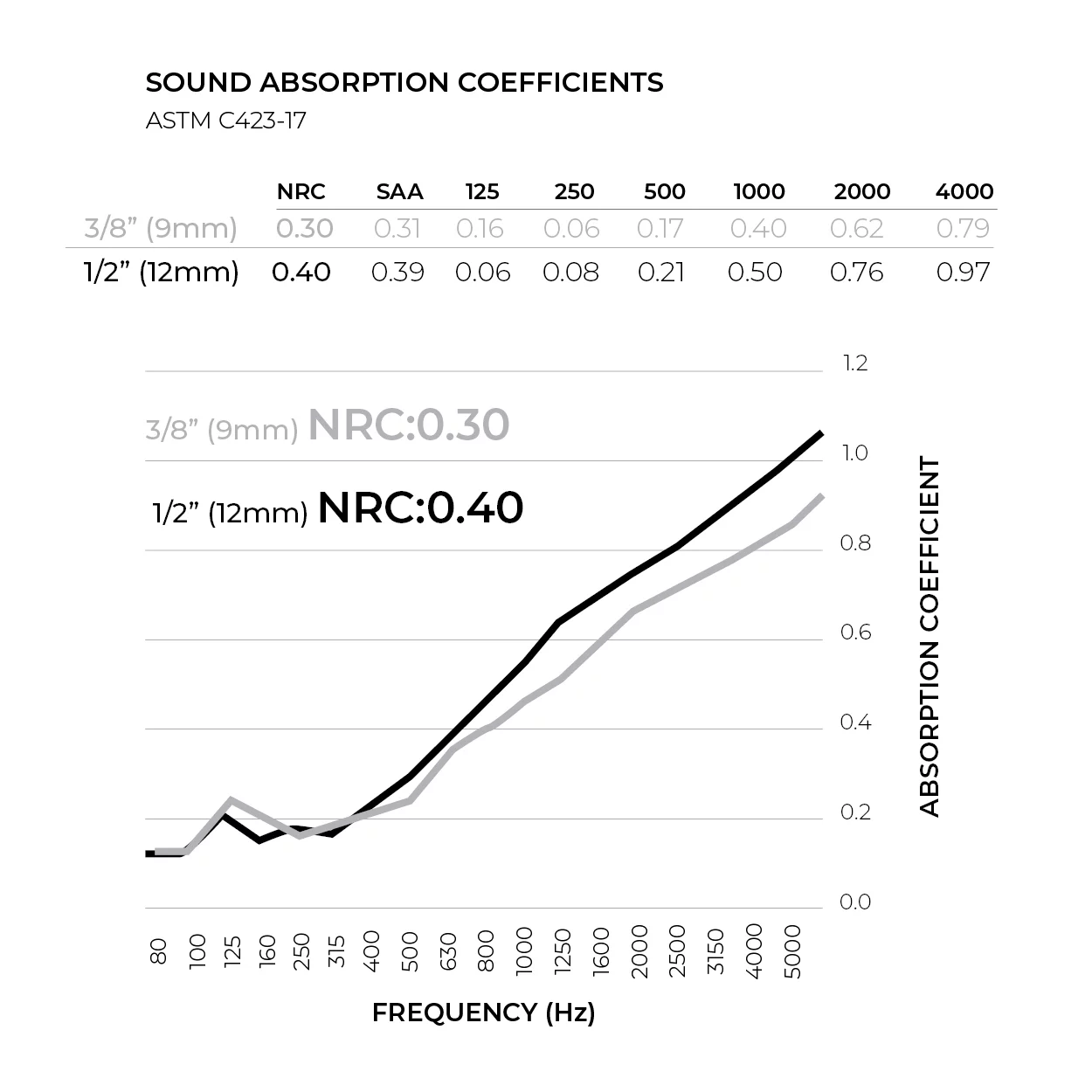

Sound absorption performance
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
Carve Patterns
Tier A
Basket Weave
Herringbone
Picket Wide
Plank Wide
Picket
Plank

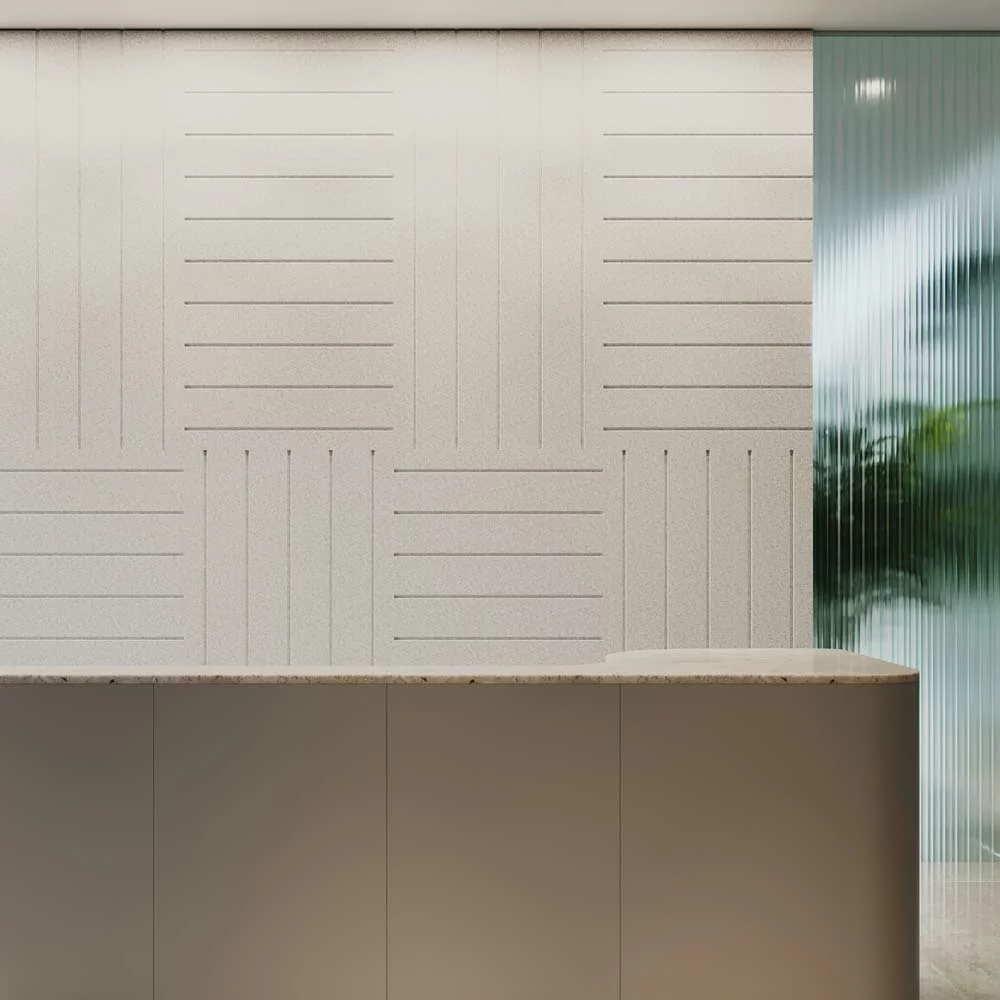

Pararllax

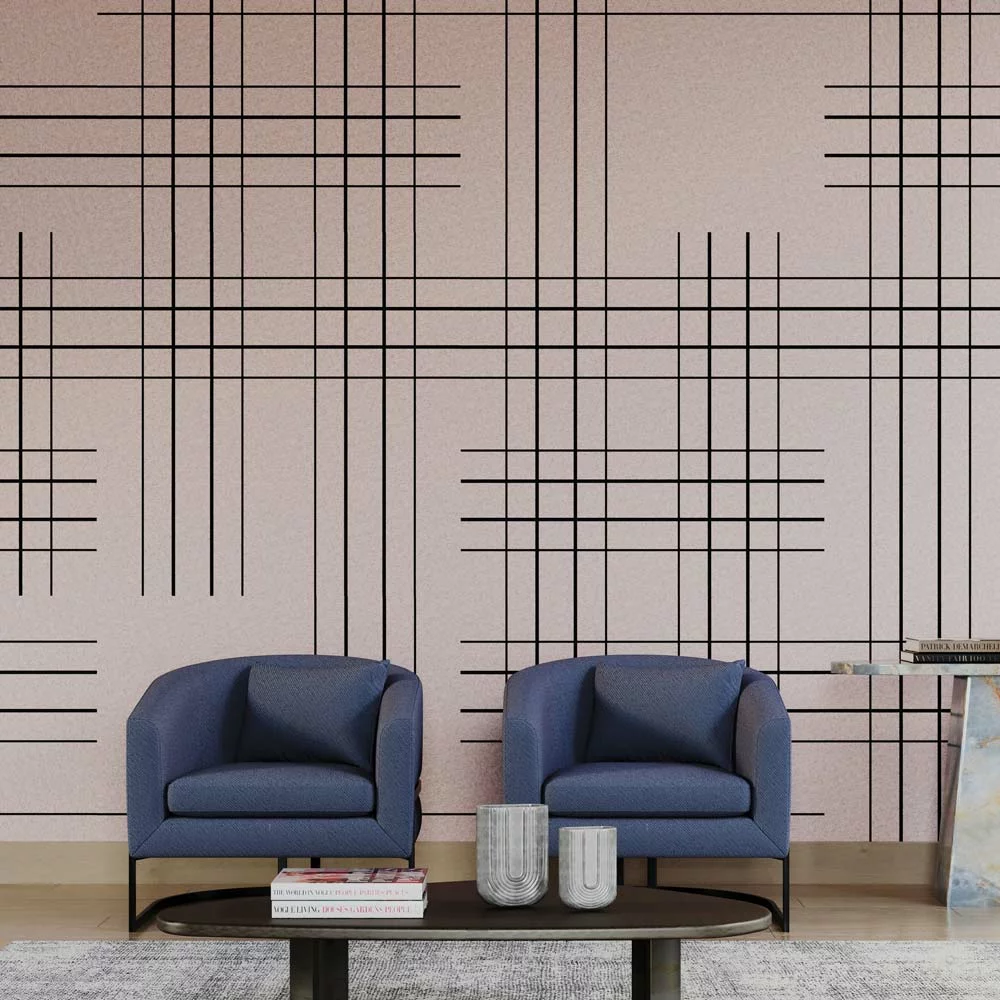

Scotch
Tier B
Brick Large
Diamond Large
Hexagon Large
Oblique
Ribbon
Triangle Large
delta

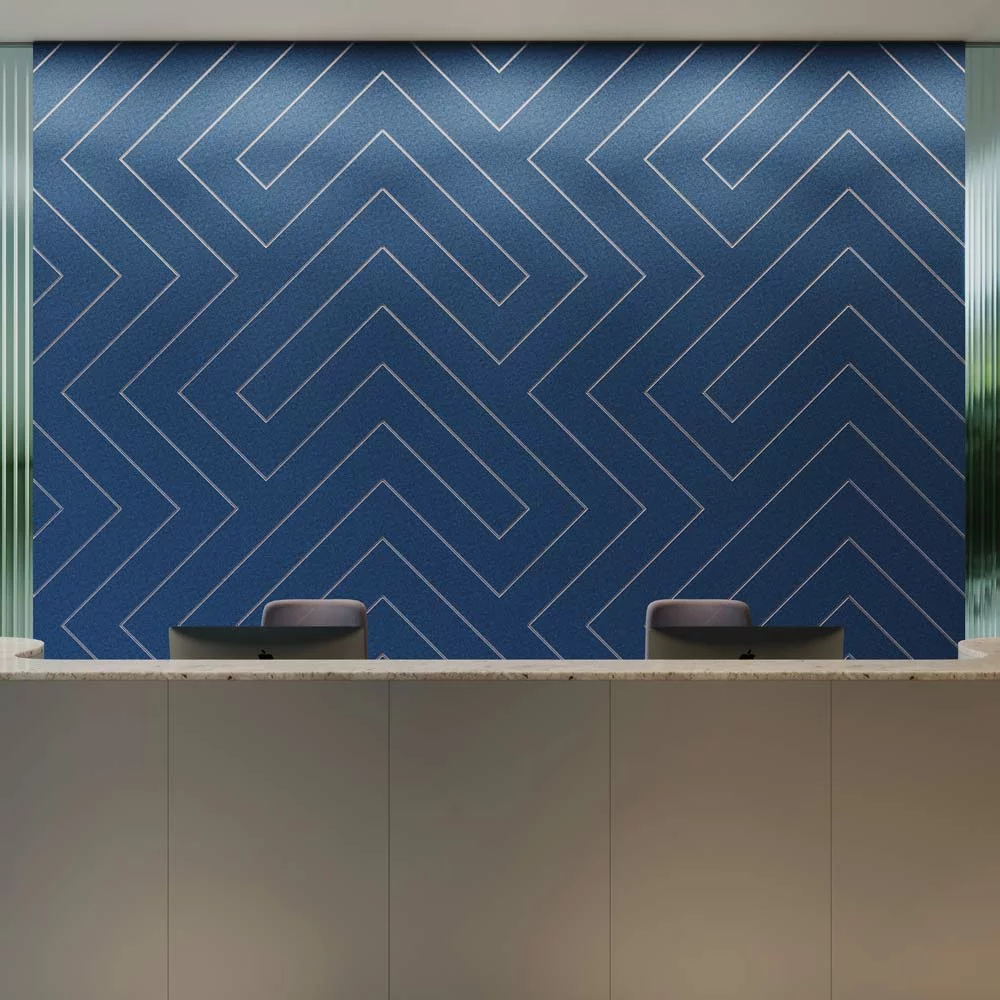

Askew
Maze
Slanted
Tier C
Brick
Diamond
Triangle
curl

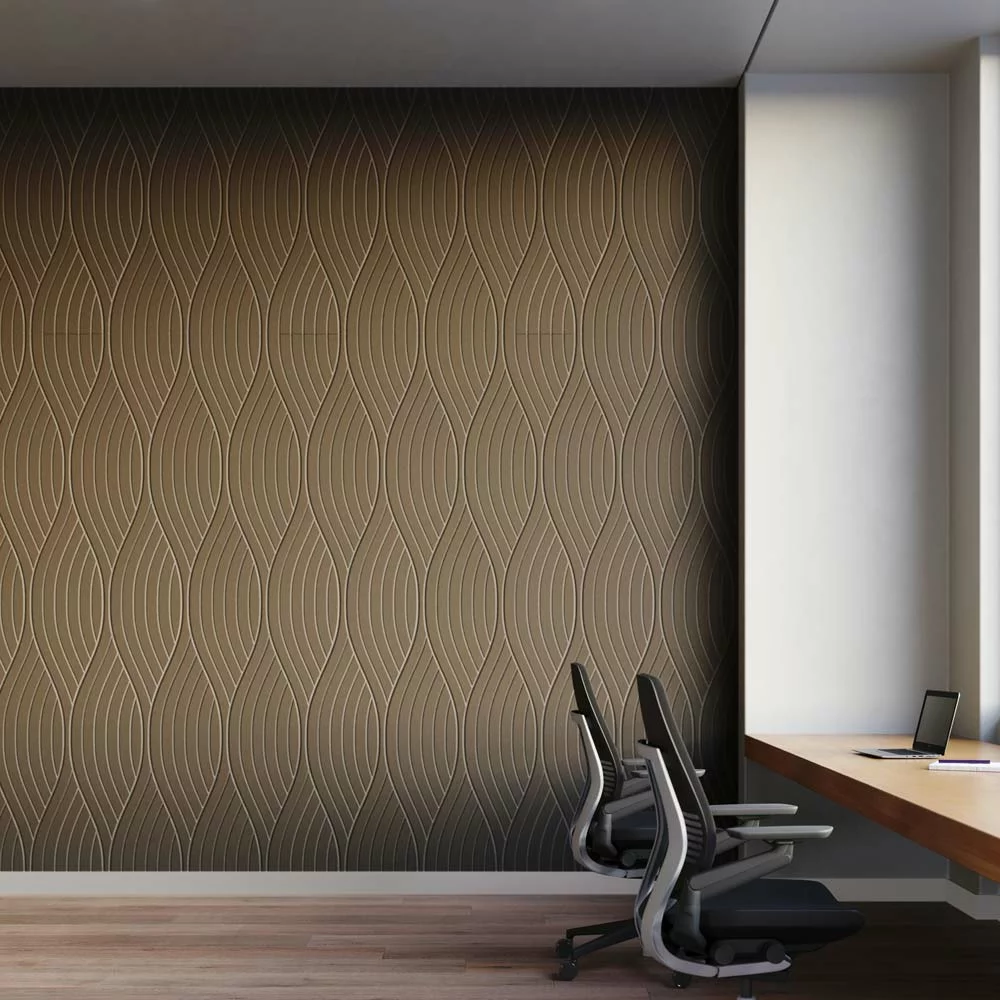

ripple
stream
Tier D
Vibe
Echo
Brasilia
Slope
Pulse
Urban
disco
pop
*Illustrations are for representation purposes only and subject to modification.
custom
acoustic
solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.
Documentation
Downloads
Product
| Brochure | |
| Installation Instructions |
Acoustics
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – No Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 38” (9mm) – 50mm Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – No Air Gap | |
| Sound Absorption Test Data (ASTM C423-17) – EzoBord 12” (12mm) – 50mm Air Gap |
Fire Test Data
| Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm) | |
| Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm) | |
| Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| IFC | |
| SKP | |
| HARDWARE |
Specifications
COMPOSITION
100% pet (min. %50 recycled content)
PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007
ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.
GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
Recommended Hardware
DST020
Ezotape
DST015
Ezotape
DST010
Ezotape
STO-25 – STO-50
RCF-285
Non Adhesive, Dual Lock Fastener
Available colors
EzoBord 1/2″ (12mm)
< Scroll to select more colors >
Madison Collection
SURFACE FINISH: EZOFELT GR 2 | BASE MATERIAL: EZOBORD 3/8″ (9mm)
< Scroll to select more colors >

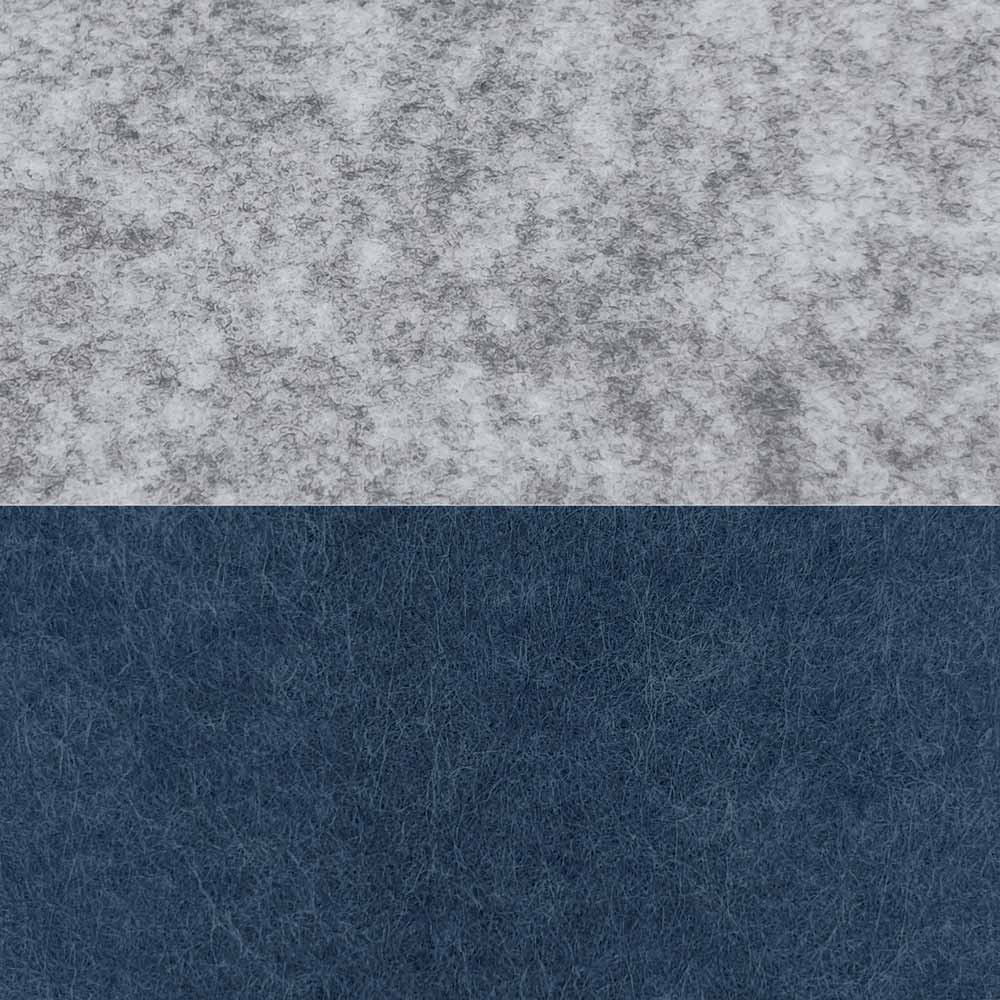

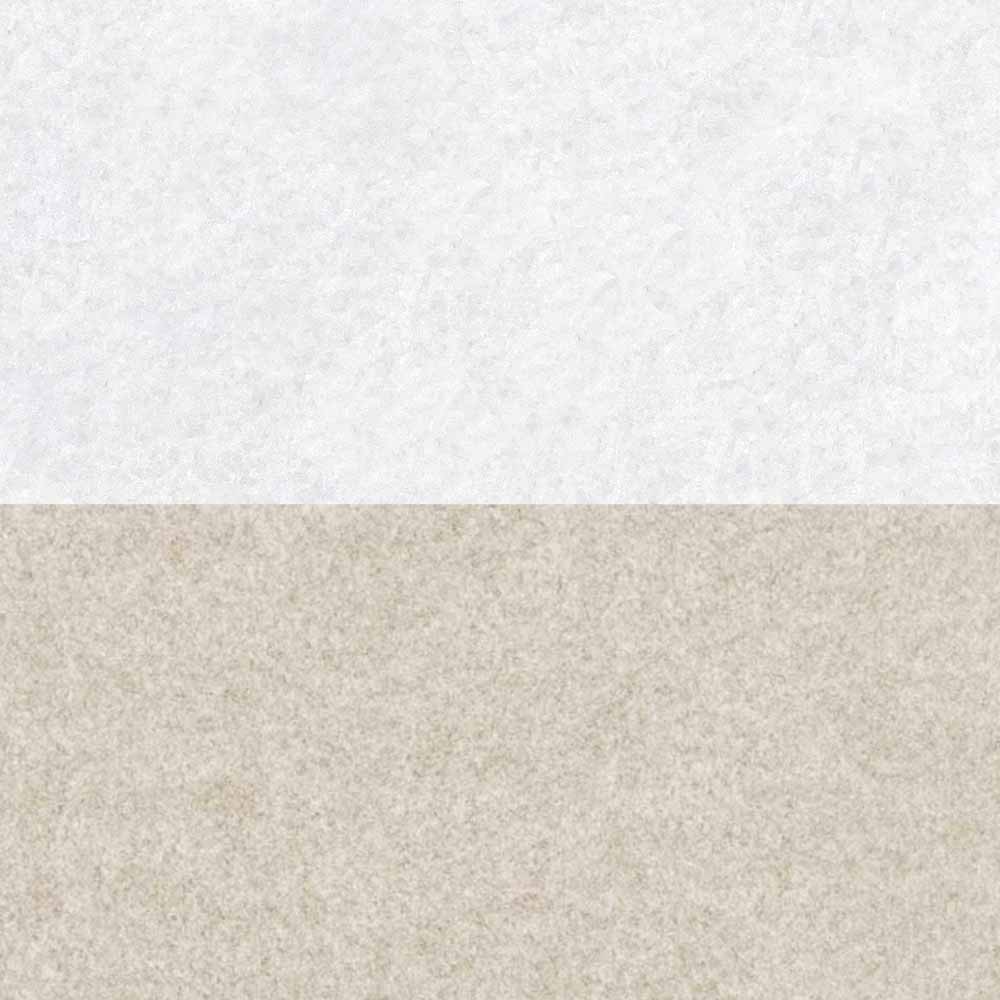

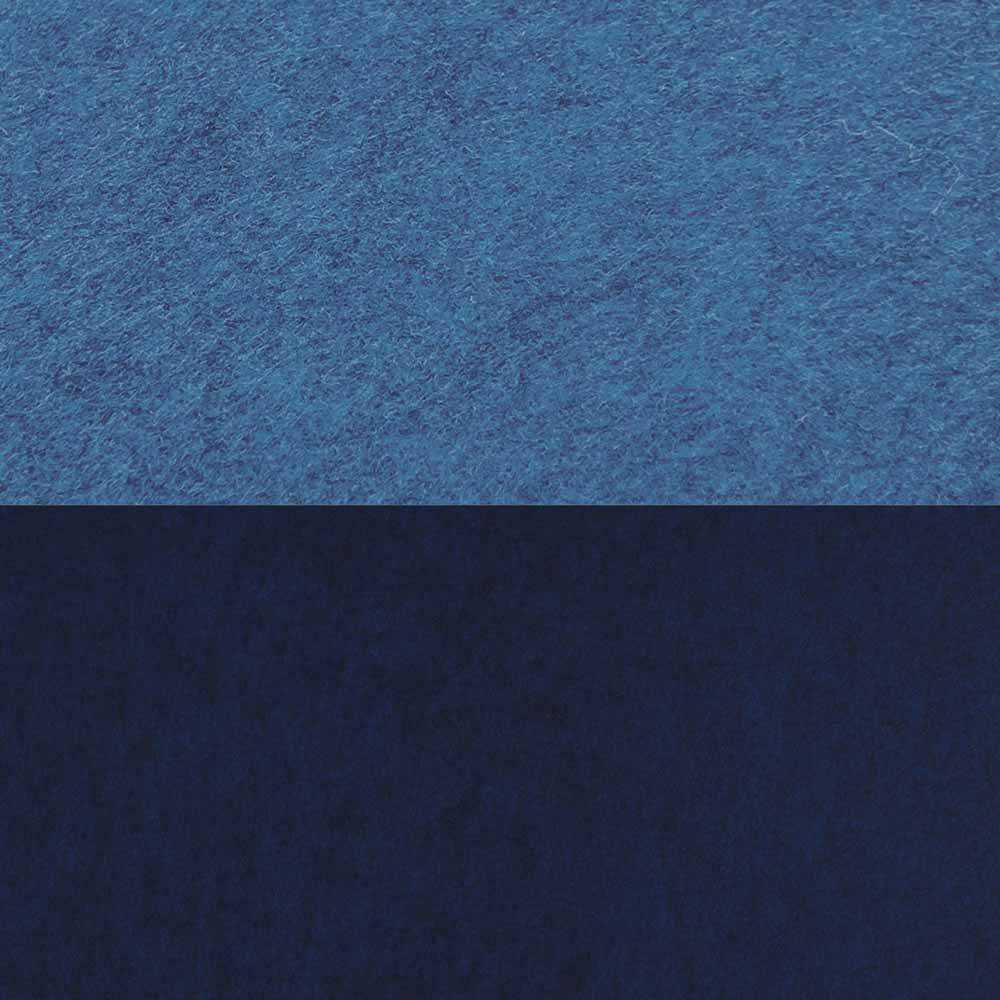

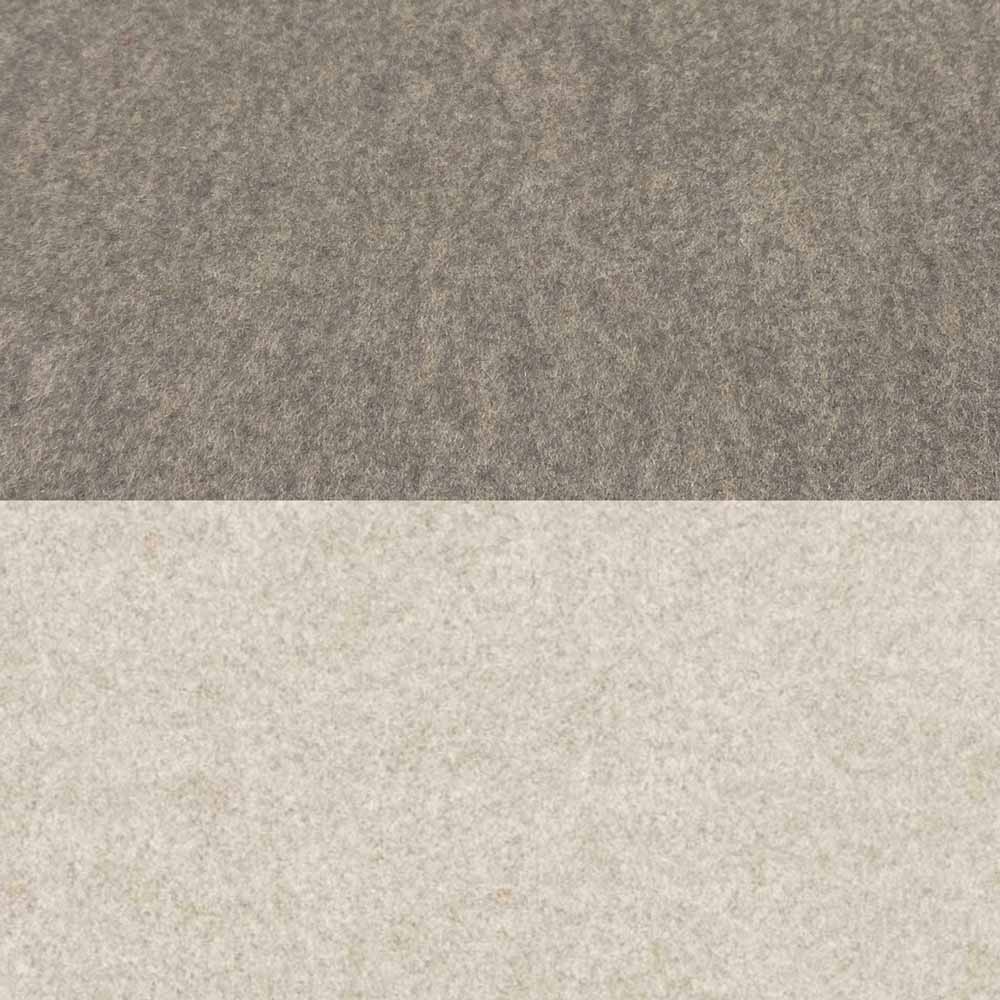

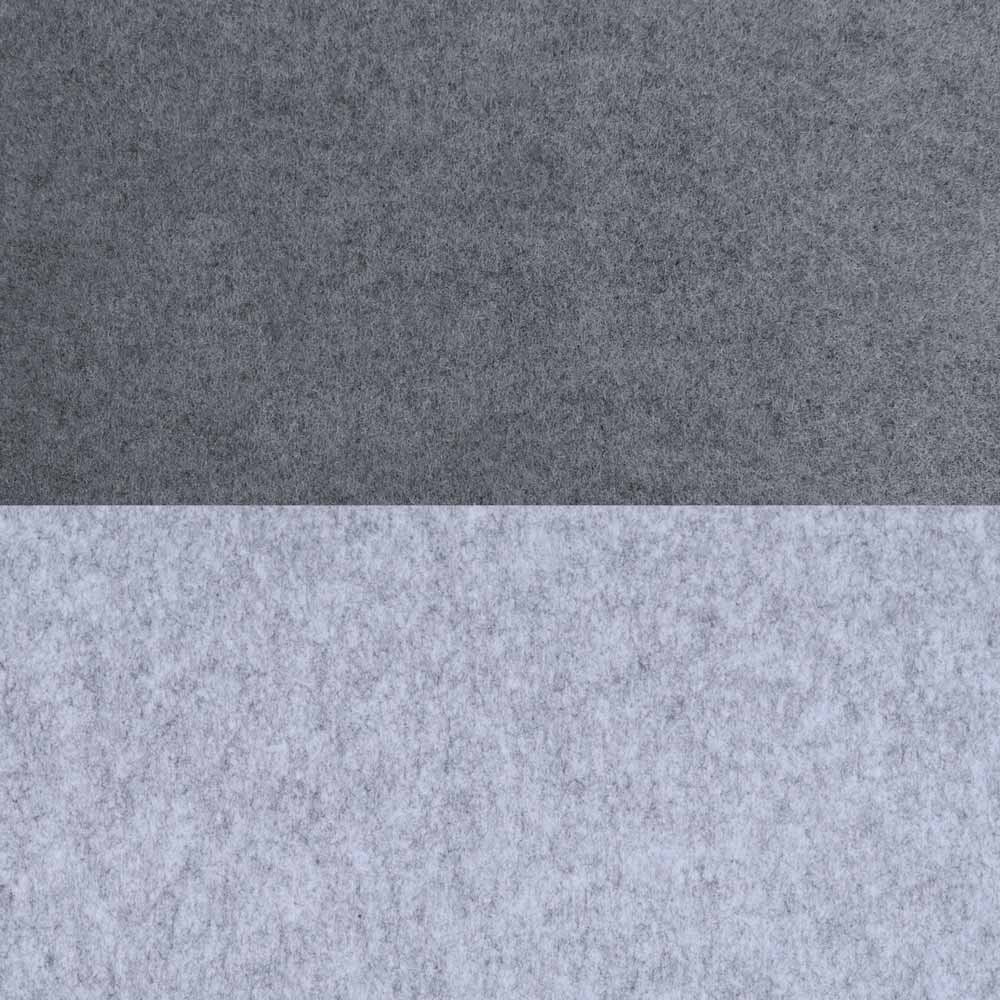

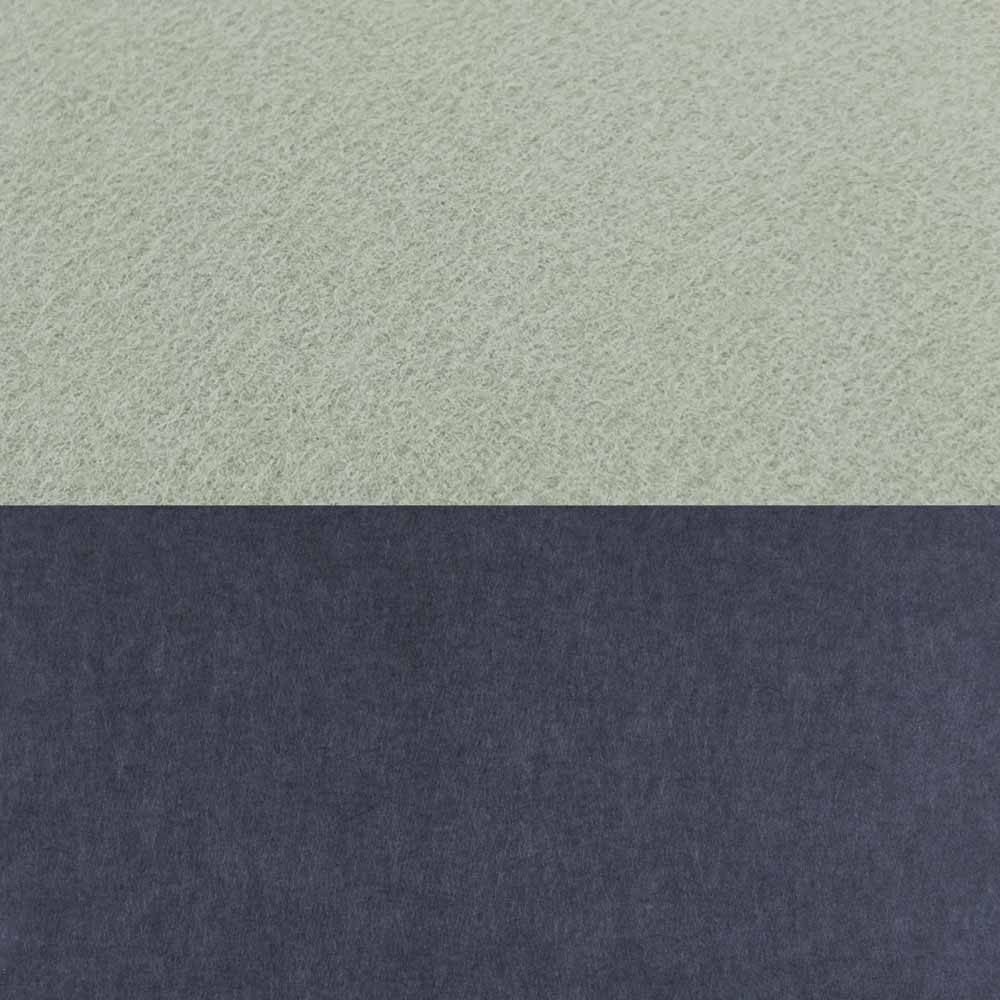

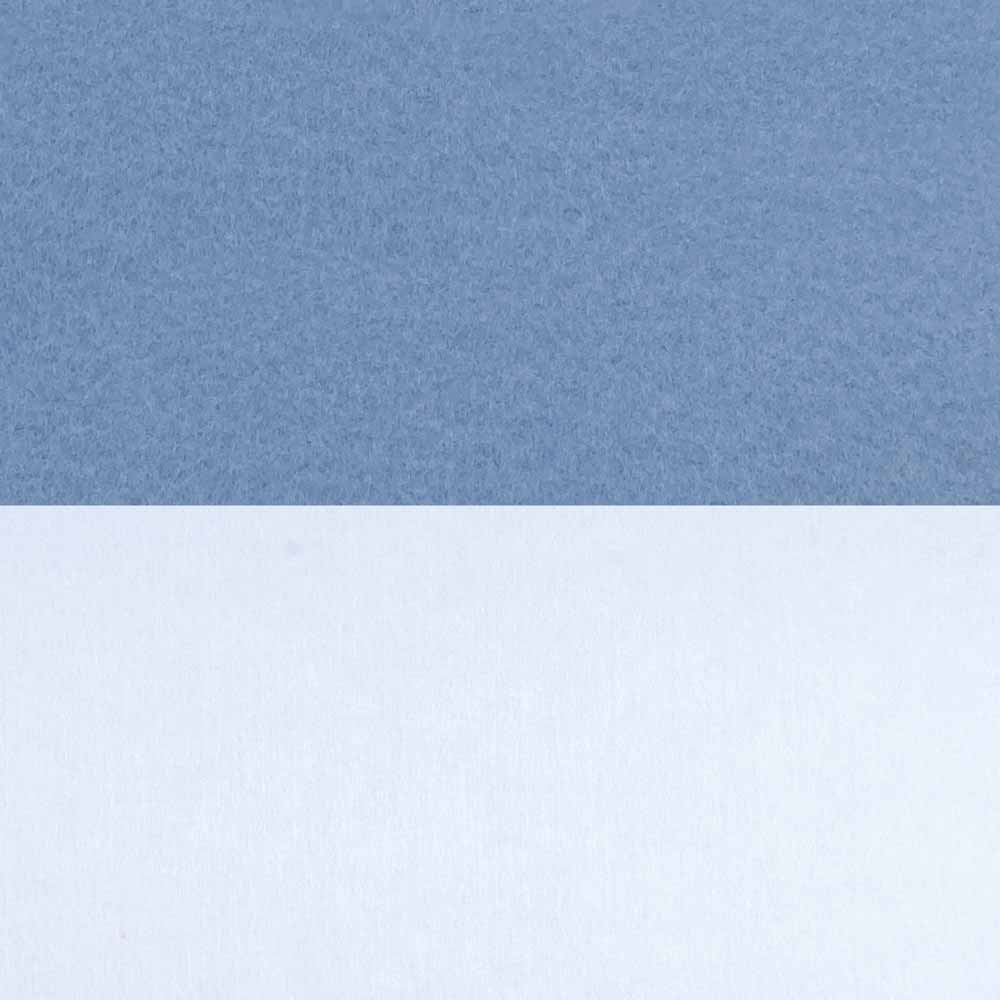

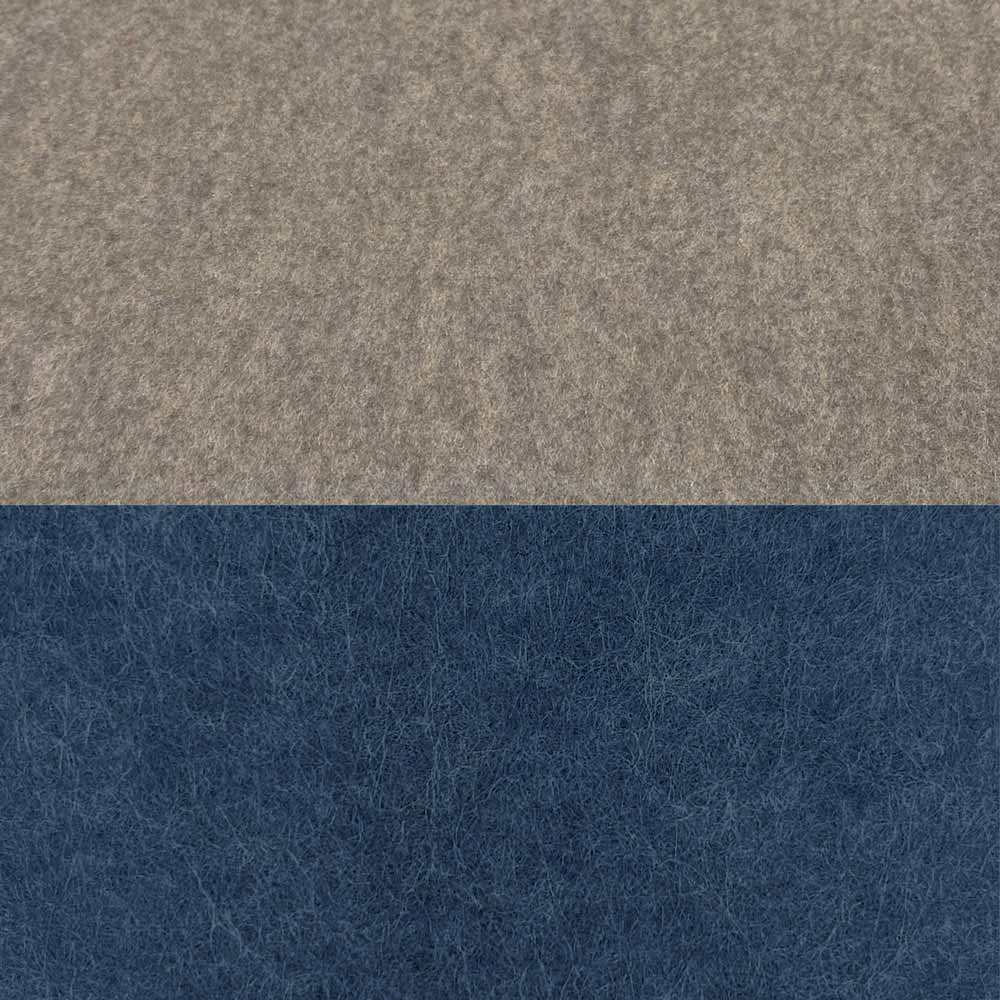

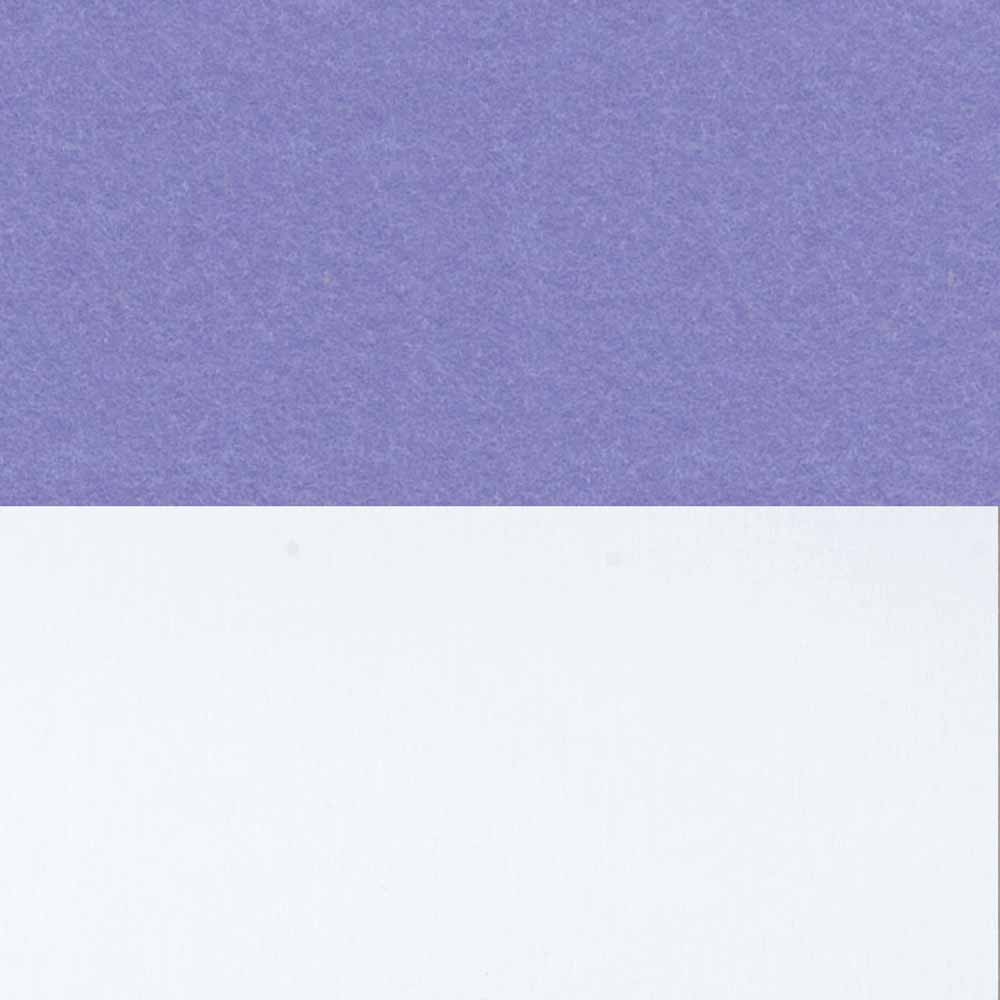

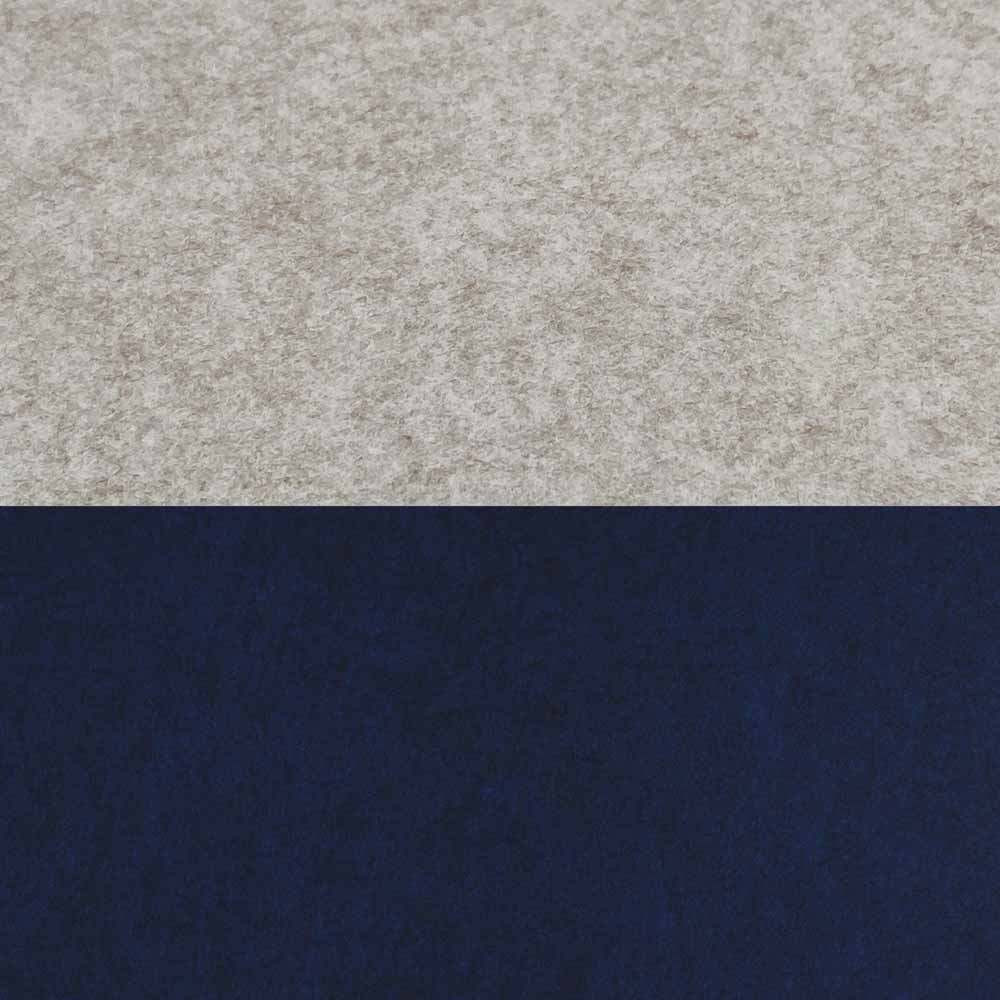

Color combinations
< Scroll to select more colors >
