Ceiling Baffles
Acoustic Ceiling Baffles
Ceiling Baffles in the workplace
Ceiling Baffles reduce echo and ambient sound
Acoustic Ceiling Baffles in a meeting room

acoustic ceiling baffles

Acoustic ceiling baffles are high-efficiency acoustic ceiling panels that reduce ambient sound and deliver comfort in spaces.

With endless potential for customization, including color, shape, size, and thickness our Ceiling Baffles add design and function to architectural work requiring high acoustical performance.

Sound absorption performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

3/8" (9MM)

50mm Air Gap

1/2" (12MM)

50mm Air Gap

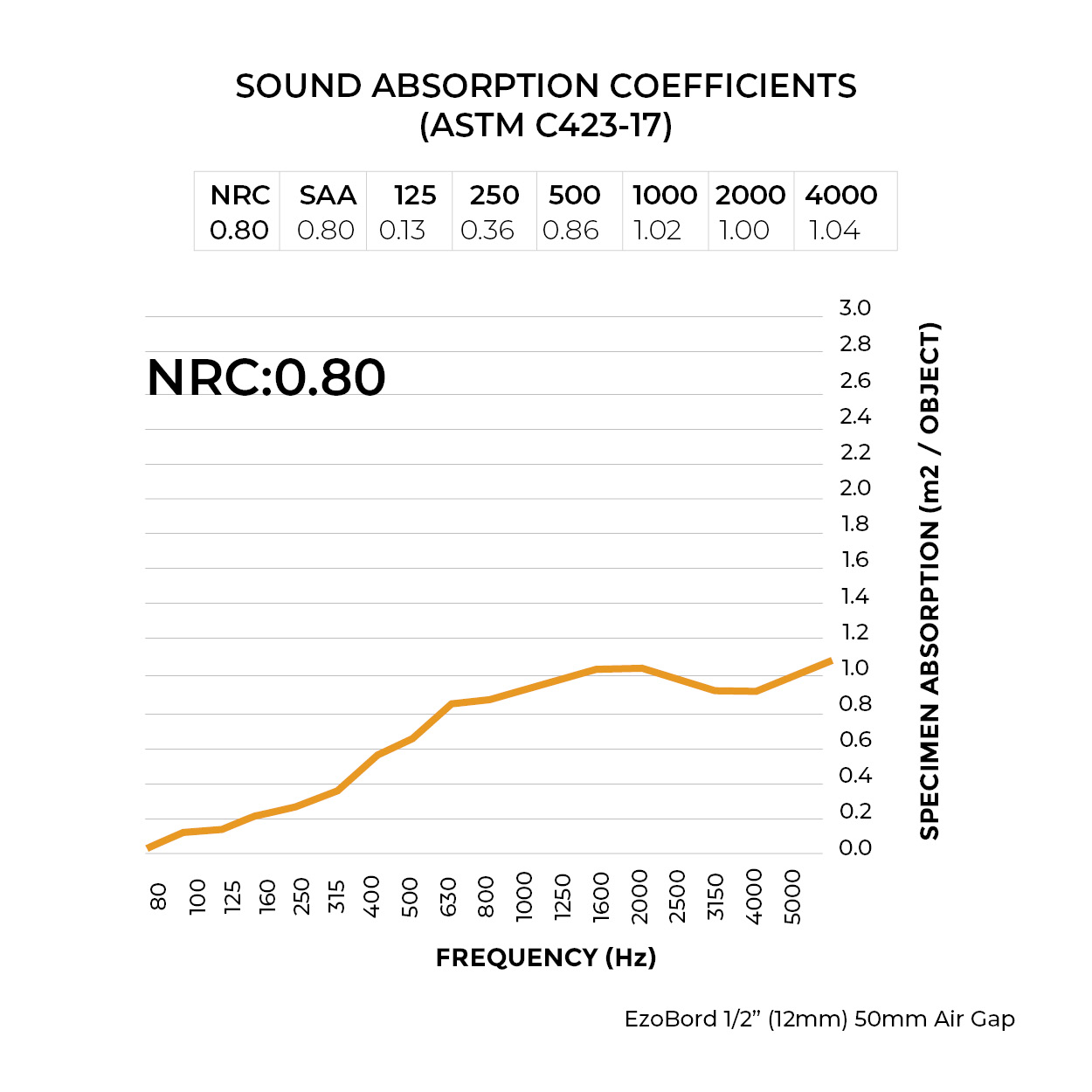

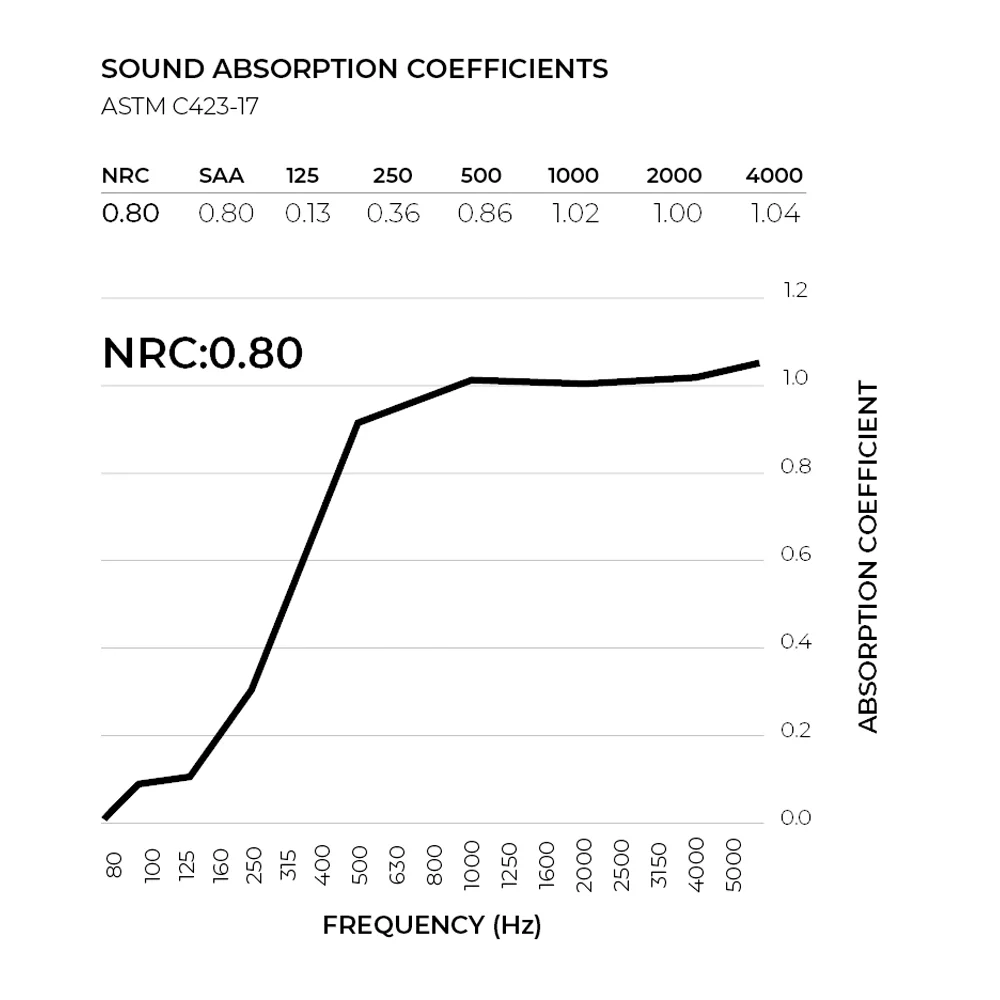

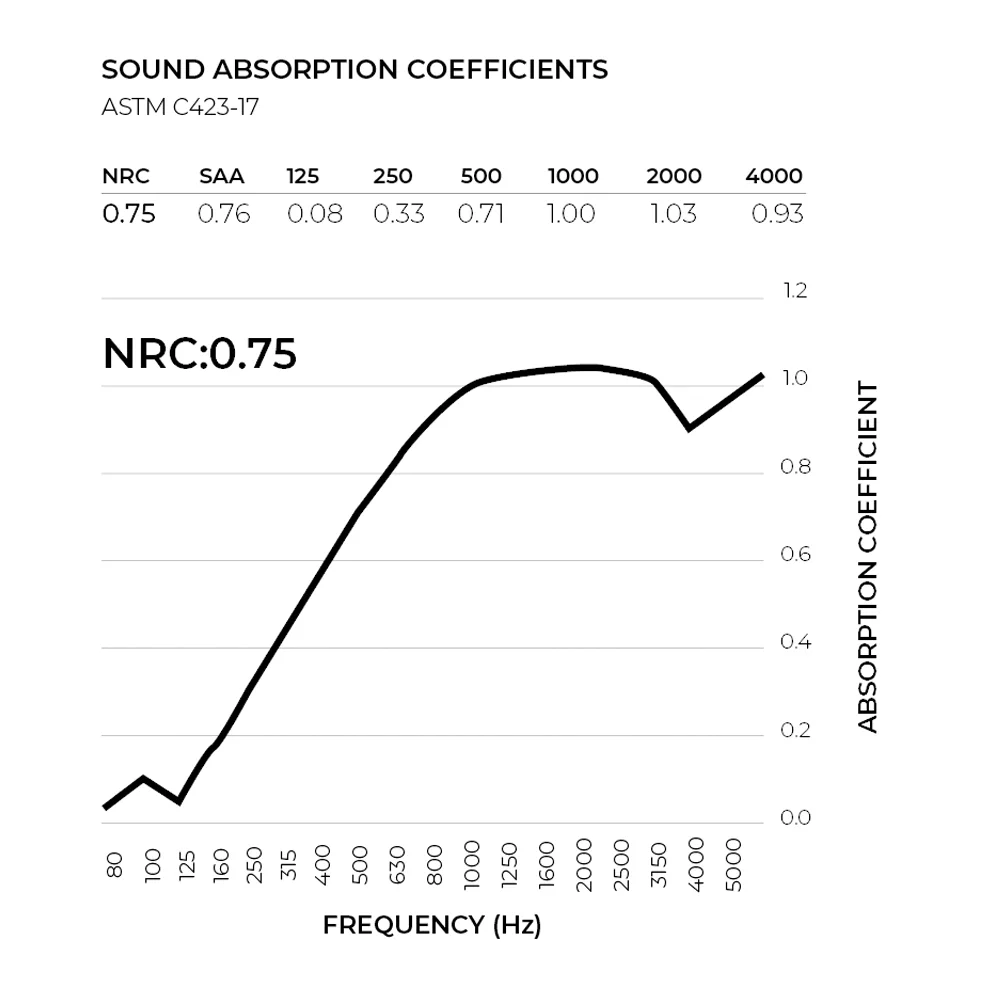

Sound Absorption Coefficient Chart

Our Ceiling Baffle Systems

Filleted Ceiling Baffle

Filleted

Rectangle Ceiling Baffle

Rectangle

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Brochure
Installation Instructions

Acoustics

Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – With 50mm Air Gap
Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – With 50mm Air Gap

Fire Test Data

Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm)
Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet
Declare Label
VOC Testing

Drawing Files

DWG 2D
DWG 3D
IFC
SKP
HARDWARE

Specifications

Custom geometries can be manufactured

T-Bar Compatibility allows fast and easy installation

Each slab can be manufactured with different color. Available options below

Larger spans can be achieved with invisible joints. Contact our design team for custom applications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation-friendly.

Recommended Hardware

Available colors

EzoBord 3/8″ (9mm)

View Material

Vanilla Cream (VC97)
Sunset Pink (SP99)
Vintage Claret VC29
Soft Lavander SL30
Deep Purple DP30
Midnight Navy MN12
Royal Blue B08
Evening Blue (EB50)
Aegean Blue (AB32)
Highland Green HG31
Moss Green MG10
Sunny Days SD18
Tiger Orange TO24
Ruby Red RR25
Classic White CW04
Polar Ice PI14
Light Beige LB01
Urban Sage US27
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Ebony Slate ES07
Charcoal Gray CG06
Pure Black PB09

< Scroll to select more colors >

EzoBord 1/2″ (12mm)

Vanilla Cream (VC97)
Sunset Pink (SP99)
Vintage Claret VC29
Soft Lavander SL30
Grape Vine GV36
Midnight Navy MN12
Royal Blue B08
Evening Blue (EB50)
Aegean Blue (AB32)
Highland Green HG31
Moss Green MG10
Sunny Days SD18
Brick Red BR34
Tree Bark TB35
Bold Gray BG07
Classic White CW04
Polar Ice PI14
Light Beige LB01
Urban Sage US27
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Charcoal Gray CG06
Pure Black PB09

< Scroll to select more colors >

Virtual Sample Library

(Click on the box to enter fullscreen mode)

Looking for Expert Advice?
