Modular Desk Divider System is a great way to absorb sound, add privacy, color and style in any open plan work space.
EzoBord Desk Screens add seated privacy, acoustic absorption, style/color, and great tackability to any open plan office. Modesty Screens and Modesty Panels can be added to most table desks.
Modular Desk Divider System enhance speech intelligibility making every office space a better place to work in.
MODULAR DESK DIVIDERS SYSTEM MODELS
Circle
Circle
Square
Square
Elliptical
Elliptical
RETURN SCREEN (round)
RETURN SCREEN (round)
Rectangle
Rectangle
STUDY CARREL MODELS

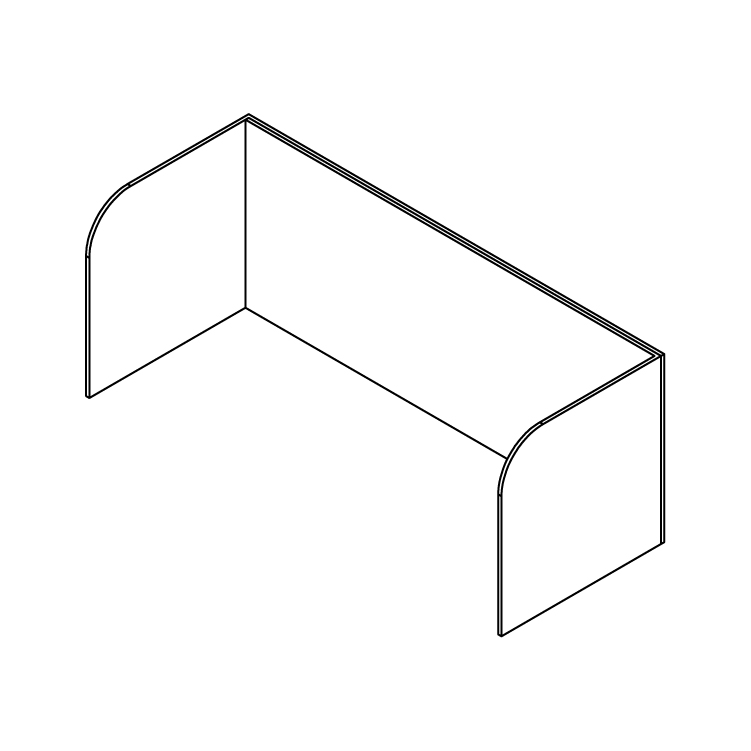

Round
Round

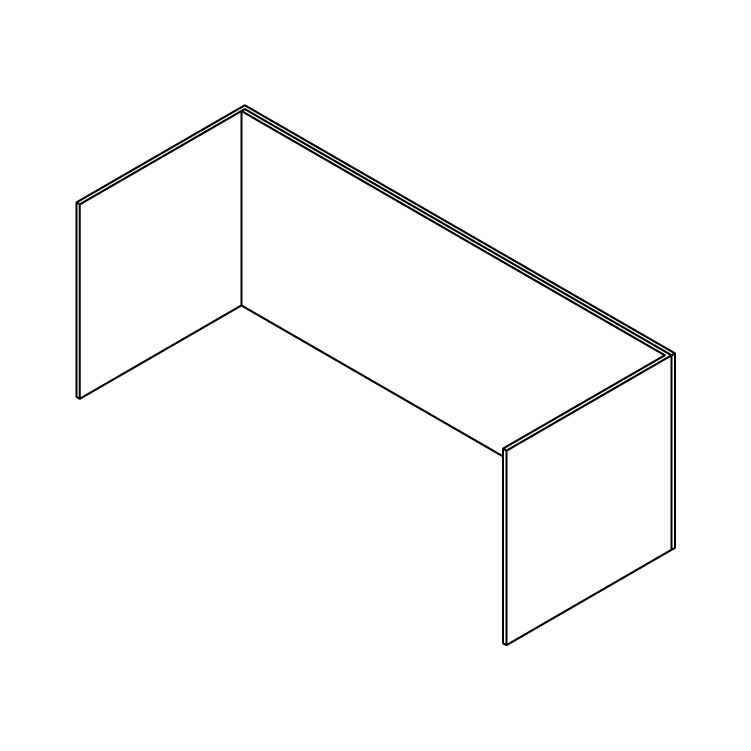

Square
SQUARE
MODESTY PANEL MODELS

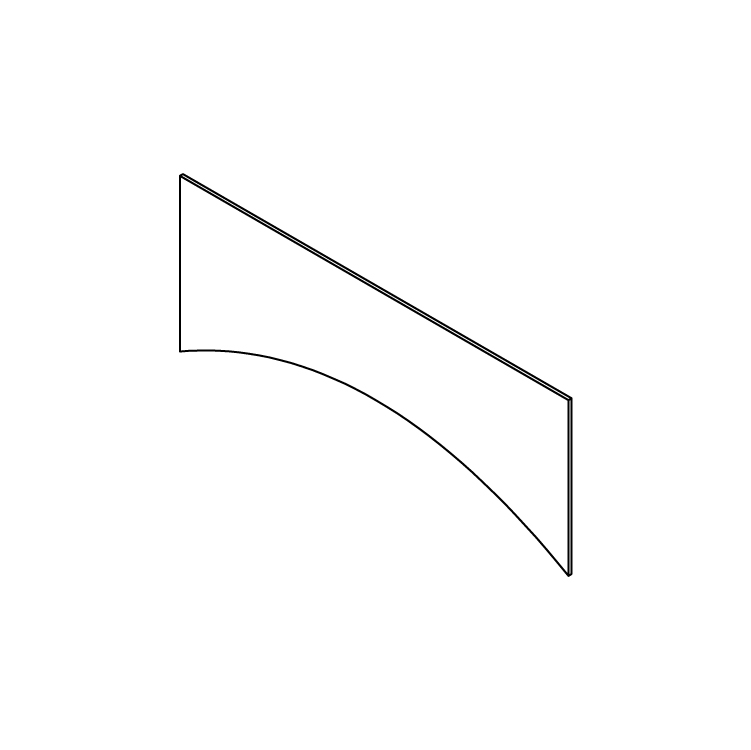

CRESCENT
CRESCENT

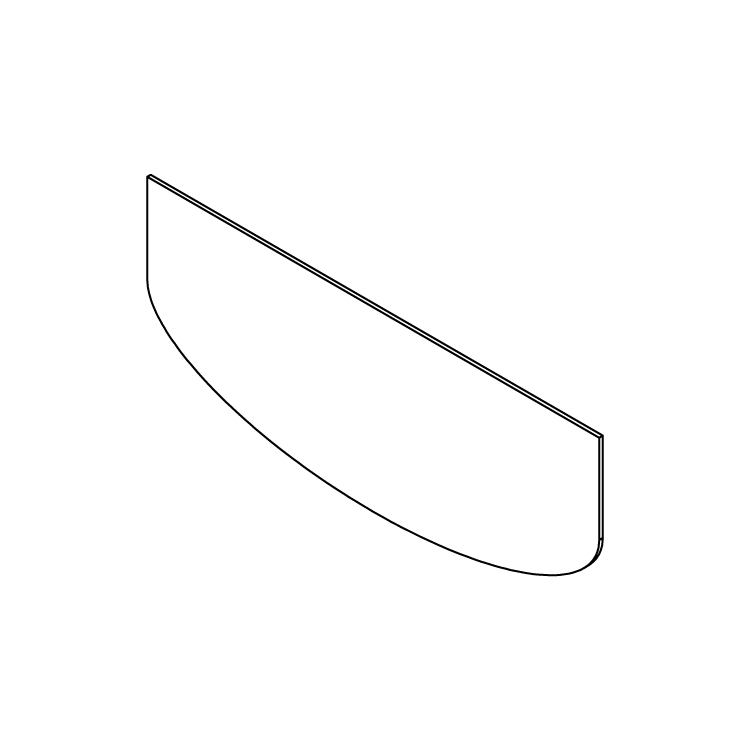

Elliptical
ELLIPTICAL
RECTANGULAR
RECTANGULAR
3/8" (9mm)
½” (12mm)
Specifications
DIMENSIONS
Downloads
100% pet (min. 50% recycled content)
FEATURES
- Available in 30 standard color combinations.
- Easy and unobtrusive mounting
- Fully tackable surface
ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.75, SAA: 0.58, ASTM C423, 9mm)
(NRC: 0.80, SAA: 0.80, ASTM C423, 12mm)
FIRE TESTING
North America:
- ASTM E-84 Class A
- CAN/ULC S102-10
Europe and UK:
EN13501-1: 2007
| DESK SCREENS – STRAIGHT | CAMEL BACK | ELLIPTICAL | SQUARE HOLES | CIRCULAR HOLES | |||
| WIDTH | LENGTH | THICKNESS | LAYERS |
| 48″ (1219mm) | 12″ (305mm) | 3/4″ (18mm) | 2 |
| 54″ (1372mm) | 12″ (305mm) | 3/4″ (18mm) | 2 |
| 60″ (1524mm) | 12″ (305mm) | 3/4″ (18mm) | 2 |
| 66″ (1676mm) | 12″ (305mm) | 3/4″ (18mm) | 2 |
| 72″ (1829mm) | 12″ (305mm) | 3/4″ (18mm) | 2 |
| 48″ (1219mm) | 16″ (406mm) | 3/4″ (18mm) | 2 |
| 54″ (1372mm) | 16″ (406mm) | 3/4″ (18mm) | 2 |
| 60″ (1524mm) | 16″ (406mm) | 3/4″ (18mm) | 2 |
| 66″ (1676mm) | 16″ (406mm) | 3/4″ (18mm) | 2 |
| 72″ (1829mm) | 16″ (406mm) | 3/4″ (18mm) | 2 |
| STUDY CARRELS – ROUND EDGES | SQUARE EDGES | ||||
| WIDTH | LENGTH | DEPTH | SIDE THICKNESS | BACK THICKNESS |
| 48″ (1219mm) | 24″ (610mm) | 24″ (610mm) | 3/8″ (9mm) | 3/4″ (18mm) |
| 60″ (1524mm) | 24″ (610mm) | 24″ (610mm) | 3/8″ (9mm) | 3/4″ (18mm) |
| 72″ (1829mm) | 24″ (610mm) | 24″ (610mm) | 3/8″ (9mm) | 3/4″ (18mm) |
| RETURN SCREEN – QUARTER ROUND | ||
| WIDTH | LENGTH | THICKNESS |
| 24″ (610mm) | 24″ (610mm) | 3/4″ (18mm) |
| 30″ (762mm) | 24″ (610mm) | 3/4″ (18mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Desk Screen System Brochure.
To get the complete set of dimensions please download Desk Screen System Brochure.
Specific product files
Specific product design files
Installation Instructions
Available Colors
EzoBord 1/2" (12mm)
Desert Sand
Sunny Days
Tree Bark
Brick Red
Grape Vine
Polar Ice
Royal Blue
Moss Green
Classic White
Silver Gray
Elephant Gray
Bold Gray
Charcoal Gray
Pure Black
Vanilla Cream
Sunset Pink
Aegean Blue
Evening Blue
EzoPrint
Marmar Maple
Yellow Oak
Birch Sand
Cherry Mate
Ash
Walnut
Apple
Wengue
Gray Oak
Dark Oak
