Ezo on Ezo adds a selection of stylish patterns on a second layer of EzoBord to provide elegance and premium acoustical comfort. Combining depth, dimension and color, Ezo on Ezo can tone in with any color palette and style.

EZO ON EZO GIVES YOU STYLE, DEPTH AND SOUND ABSORPTION WHILE ADDING VISUAL APPEAL THEREBY ENHANCING THE SENSE OF WELL-BEING IN YOUR WORKSPACE.

Summit Assinboine

Summit Assinboine

Summit Assinboine

Key Features

As easy as hanging a picture, ezo on ezo can be installed on any wall in any residential or commercial space to improve the acoustical quality while maintaining visual integrity.

Models

Tier A

Bamboo

Bubble

Galaxy

Leaf

Slotted

Slotted



Staggered

Staggered



Tier B

Arches

Circle

Clover

Herringbone

Herringbone



Hexagon

Hexagon



Lattice

Lattice



Lazer

MEDITERRANEAN

MEDITERRANEAN



PIXELATED CIRCLES

PIXELATED CIRCLES



Pixelated squares

Pixelated squares



Rectangular undulation

Rectangular Undulation



Reed

Small Triangle

Small Triangle



SQUARES

SQUARES



STAR AND KNOT

STAR AND KNOT



STRING

TILT

TRAPEZOID

TRAPEZOID

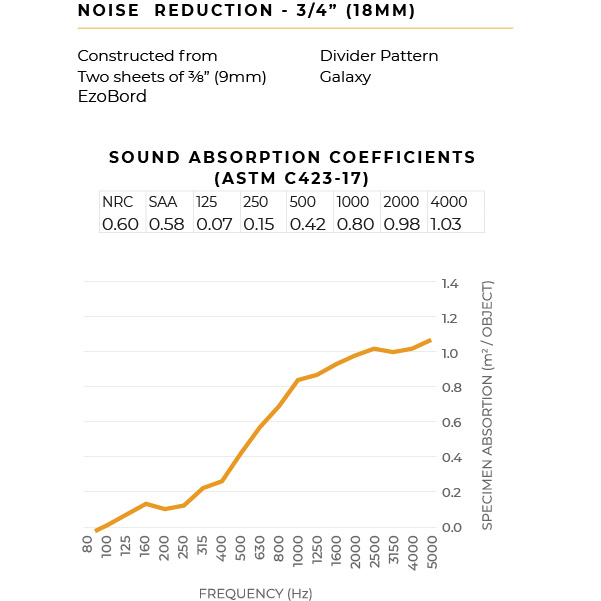

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

3/4"(18mm)

documentation

f
Specifications
1
DIMENSIONS
Customizable parameters
Downloads

Specifications

COMPOSITION

100% pet (min. 50% recycled content)

FEATURES

  • Available in 30 standard color combinations.
  • Consists of two layers of EzoBord.
  • Fully tackable surface

 ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.60, SAA: 0.58, ASTM C423, 18mm material thickness)

FIRE TESTING

North America:

  • ASTM E-84 Class A
  • CAN/ULC S102-10

Europe and UK:
EN13501-1: 2007

EZO ON EZO
   WIDTH      HEIGHT     THICKNESS
47.5″ (1207mm) 95″ (2413mm) 3/4″ (18mm)*

*Ezo on Ezo comprised of two (2) EzoBord Sheets 3/8″ (9mm)


Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Ezo on Ezo Brochure.

Customizable Parameters



  • Geometric Properties:  Width and height
  • Color: Each 9mm layer can be manufactured with different color. Available options below
  • Pattern: Custom patterns available

Contact our design team for custom applications.

Specific product files

Icon

Ezo on Ezo Brochure 1.75 MB 107 downloads

...



Specific installation files

Icon

Ezo on Ezo Installation 2.59 MB 83 downloads

...



Specific product design files

Icon

Ezo on Ezo – Tilt – Revit 0.17 KB 18 downloads

...
Icon

Ezo on Ezo – Tilt – 3D – CAD 143.67 KB 12 downloads

...
Icon

Ezo on Ezo – Tilt – 2D – CAD 25.72 KB 10 downloads

...
Icon

Ezo on Ezo – String – Revit 16.01 MB 12 downloads

...
Icon

Ezo on Ezo – Staggered – Revit 13.49 MB 12 downloads

...
Icon

Ezo on Ezo – Squares – Revit 18.01 MB 10 downloads

...
Icon

Ezo on Ezo – Squares – 3D – CAD 336.06 KB 10 downloads

...
Icon

Ezo on Ezo – Slotted – Revit 10.99 MB 13 downloads

...
Icon

Ezo on Ezo – Slotted – 3D – CAD 210.83 KB 10 downloads

...
Icon

Ezo on Ezo – Reed – Revit 11.28 MB 13 downloads

...
Icon

Ezo on Ezo – Leaf – Revit 23.79 MB 11 downloads

...
Icon

Ezo on Ezo – Leaf – 3D – CAD 488.15 KB 11 downloads

...
Icon

Ezo on Ezo – Leaf – 2D – CAD 2.55 MB 11 downloads

...
Icon

Ezo on Ezo – Lazer – Revit 29.23 MB 9 downloads

...
Icon

Ezo on Ezo – Lazer – 2D – CAD 43.97 KB 13 downloads

...
Icon

Ezo on Ezo – Lattice – Revit 17.95 MB 39 downloads

...
Icon

Ezo on Ezo – Lattice – 3D – CAD 313.05 KB 10 downloads

...
Icon

Ezo on Ezo – Kafes – Revit 17.95 MB 38 downloads

...
Icon

Ezo on Ezo – Hexagonal – Revit 8.92 MB 39 downloads

...
Icon

Ezo on Ezo – Galaxy – Revit 13.70 MB 37 downloads

...
Icon

Ezo on Ezo – Circles – Revit 0.22 KB 14 downloads

...
Icon

Ezo on Ezo – Bubble – Revit 6.93 MB 39 downloads

...
Icon

Ezo on Ezo – Bamboo – Revit 20.16 MB 39 downloads

...
Icon

Ezo on Ezo – Bamboo – 3D – CAD 279.69 KB 11 downloads

...
Icon

Ezo on Ezo – Bamboo – 2D – CAD 488.88 KB 14 downloads

...



AVAILABLE COLORS
