Full Sheet Clouds provide a simplistic solution for acoustical control. Ease of assembly and installation make it the right choice for an immediate, yet an effective remedy for noise. Full Sheet Clouds can be customized with integrated geometric shapes and a wide variety of colors.

Architects and designers choose Full Sheet Clouds for the treatment of excess reverberation in the mid to high frequency ranges.

Full Sheet Clouds

Full Sheet Clouds

Key Features

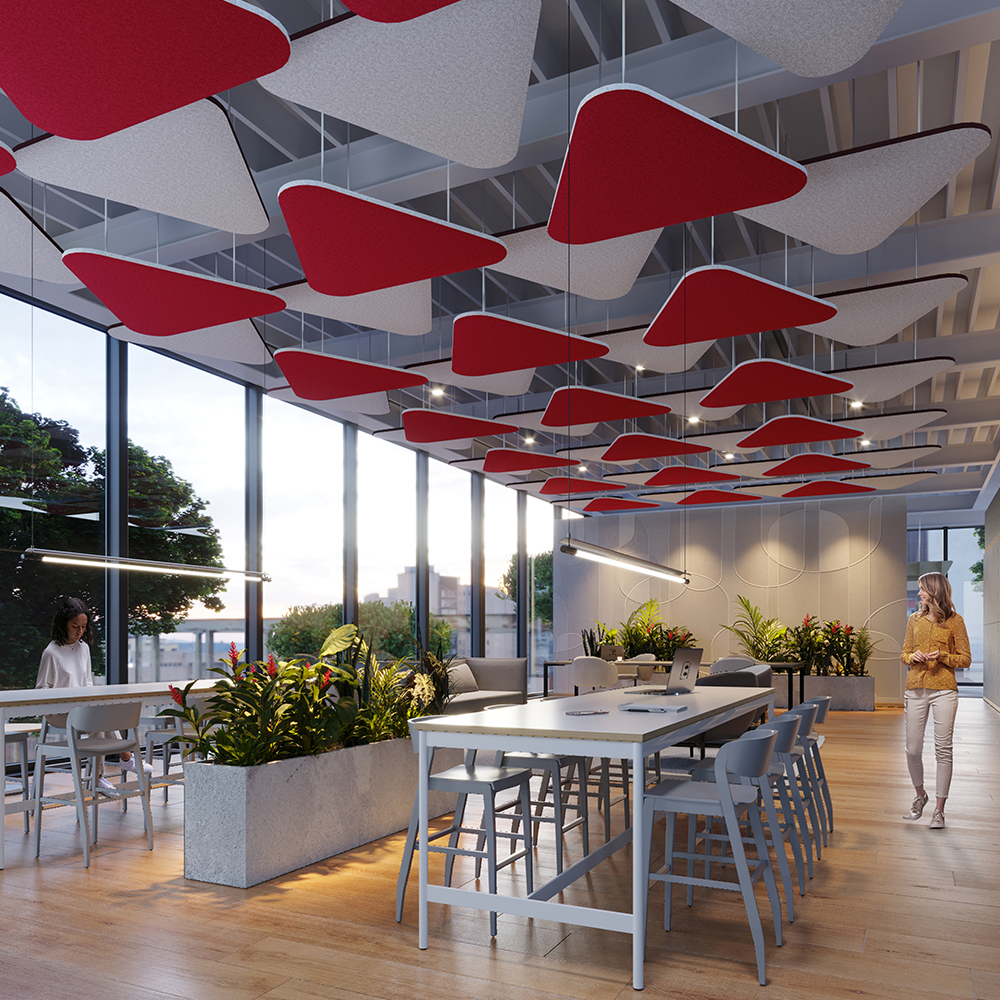

Placed above workstations, meeting tables and collaboration areas, Full Sheet Clouds provide noise mitigation benefits to the immediate area.



Full sheet cloud models

CIRCLE

BAMBOO

ORBIT

CHEVRON

CHEVRON

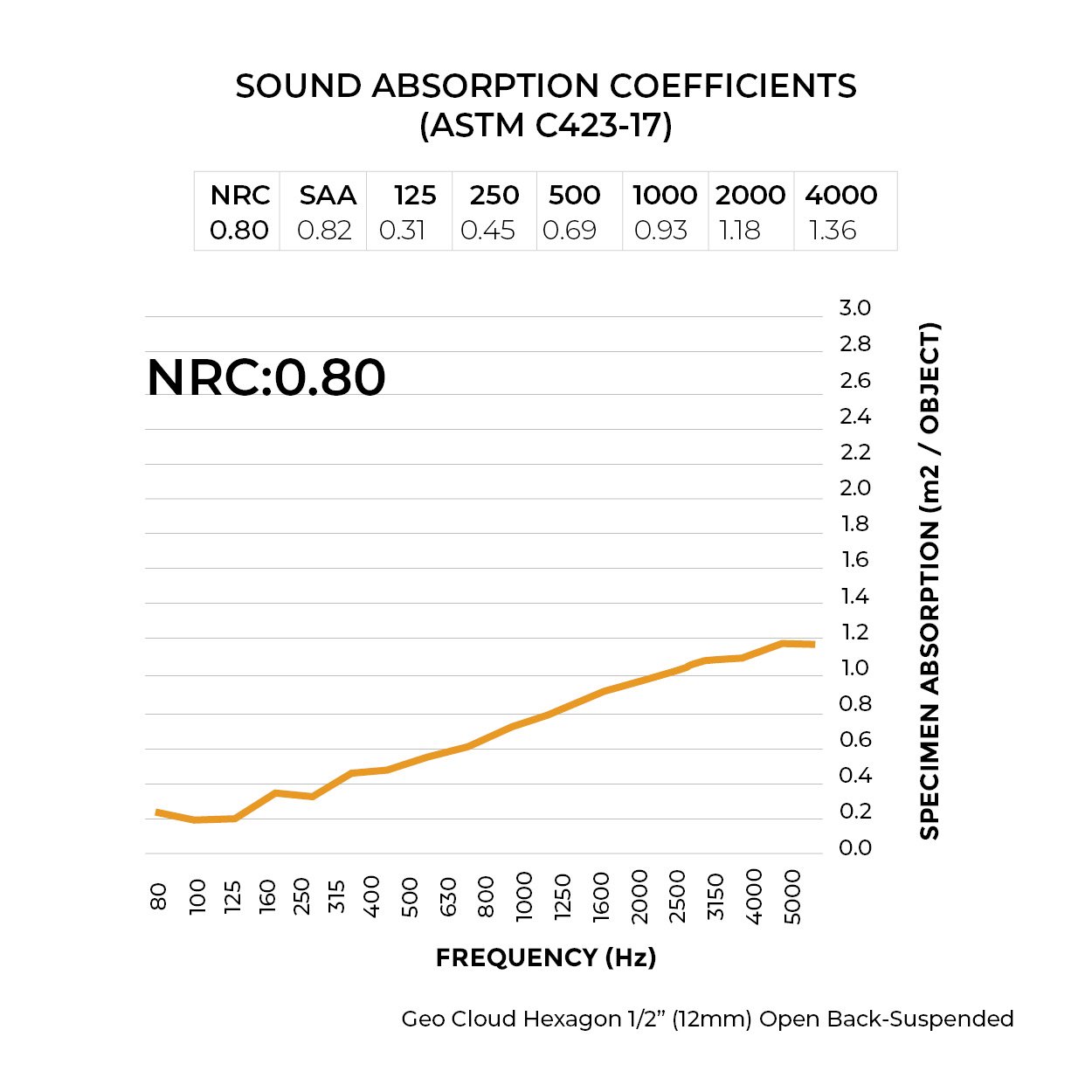

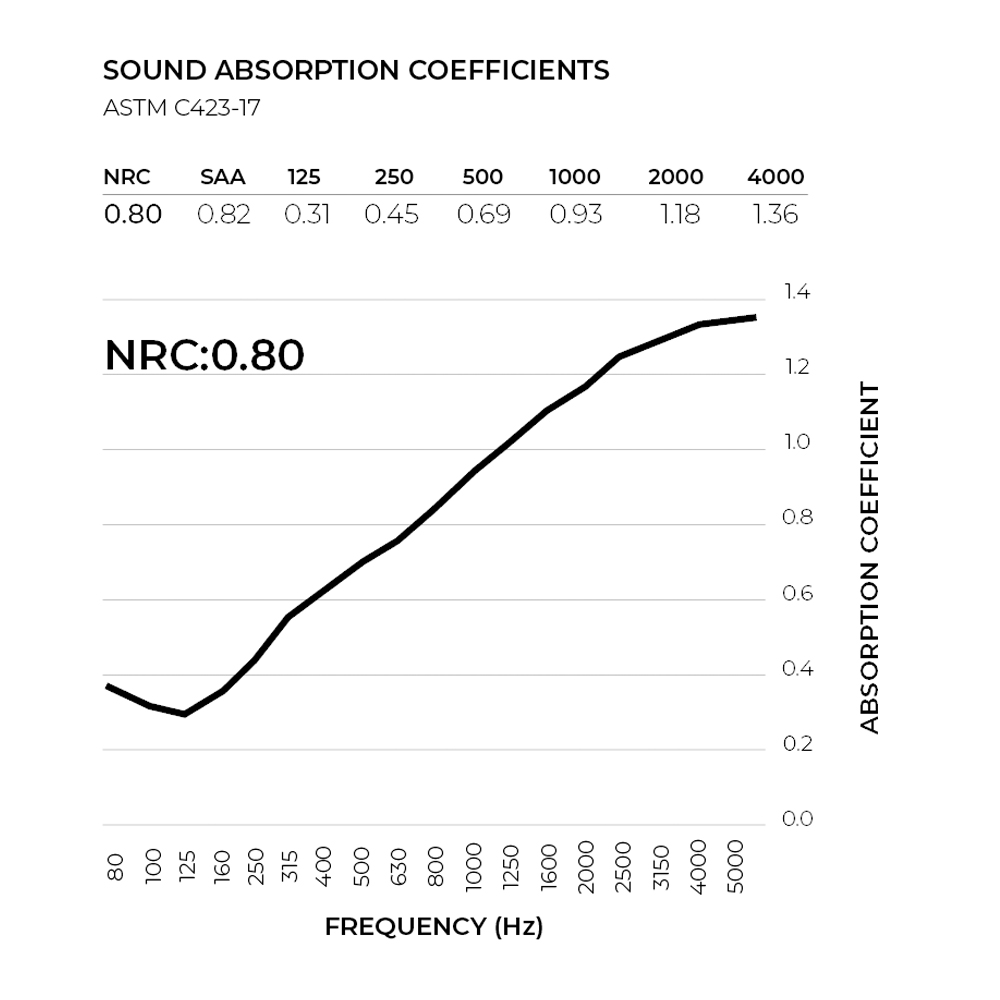

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

1/2 129mm)

FULL SHEET CLOUD

f
Specifications
1
Dimensions
Customizable parameters
Downloads

FEATURES

Available in 15 standard colors

Size 4′ x 8′ (1219mm x 2438mm)
1″ (24mm)  thick

COMPOSITION
100% pet (min. 50% recycled content).

ACOUSTICS
Superior sound absorption characteristics (NRC: 0.75, SAA: 0.76, ASTM C423,(9mm) Type D50 mounting)

FIRE TESTING

North America:

  • ASTM E-84 Class A
  • CAN ULC S102-10

Europe and UK:

  • EN13501-1: 2007
FULL SHEET CLOUDS
LENGTH       WIDTH      THICKNESS
48″ (1219mm) 96″ (2438mm) 1″ (24mm) *

*Comprised of two (2) 1/2 (12mm) EzoBord sheets

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Full Sheet Cloud Brochure.

Icon

Full Sheet Cloud Brochure 1.39 MB 107 downloads

...

To get the complete set of dimensions please download Ceiling Baffles Brochure.

Icon

Full Sheet Cloud Brochure 1.39 MB 107 downloads

...

Customizable Parameters



  • Geometric Properties: Length,  width and shape
  • Color: Available options below
  • Pattern: Custom patterns are available
  • Digital Print: Custom graphics and textures can be printed

Specific product files

Icon

Full Sheet Cloud Brochure 1.39 MB 107 downloads

...





Specific product design files

Icon

Full Sheet Cloud - Bamboo - Revit 4.53 MB 15 downloads

...
Icon

Full-Sheet-Cloud-circle-Revit 1.50 MB 11 downloads

...
Icon

Full Sheet Cloud-Orbit-Revit 2.14 MB 12 downloads

...
Icon

Full Sheet Cloud- Solid - Revit 1.90 MB 11 downloads

...



Installation files

see all instalation
