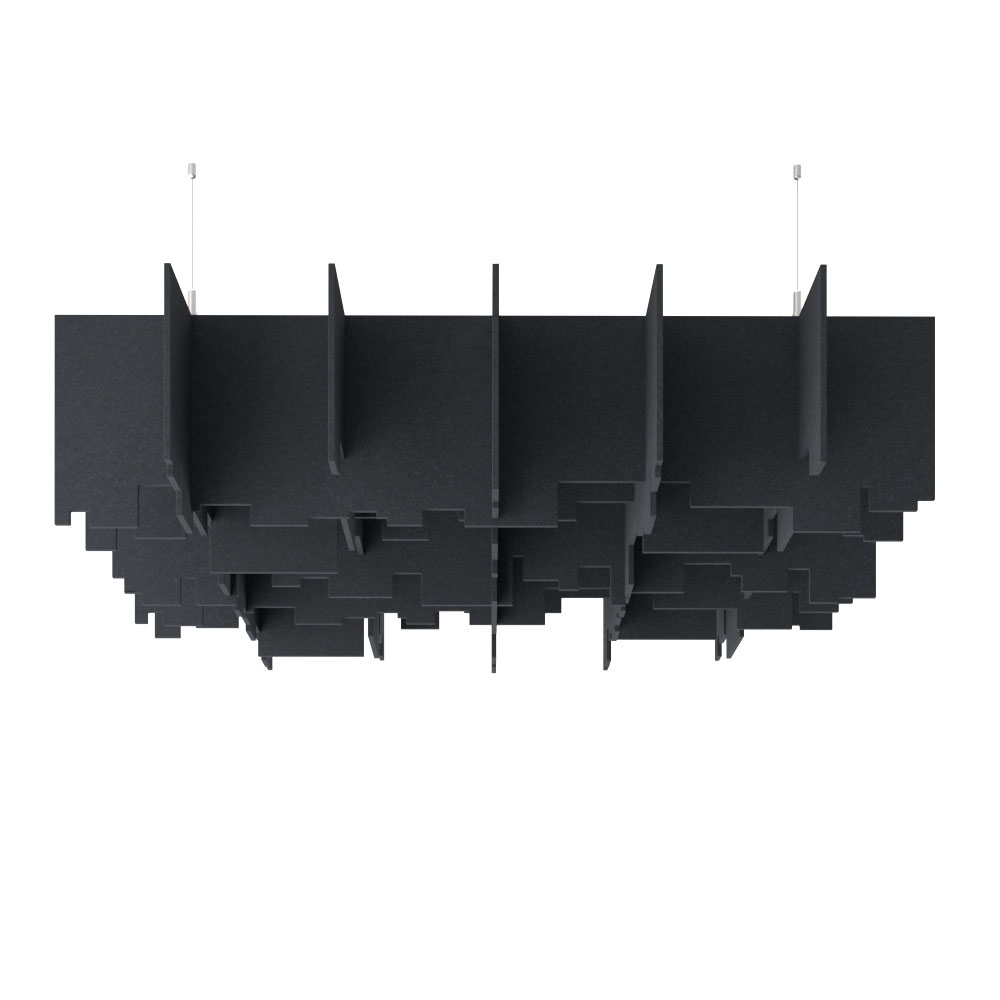

grid canopy
Grid Canopy is an acoustic ceiling panel that decreases reverberation, increases speech intelligibility, and contributes to visual aspects of architectural spaces.

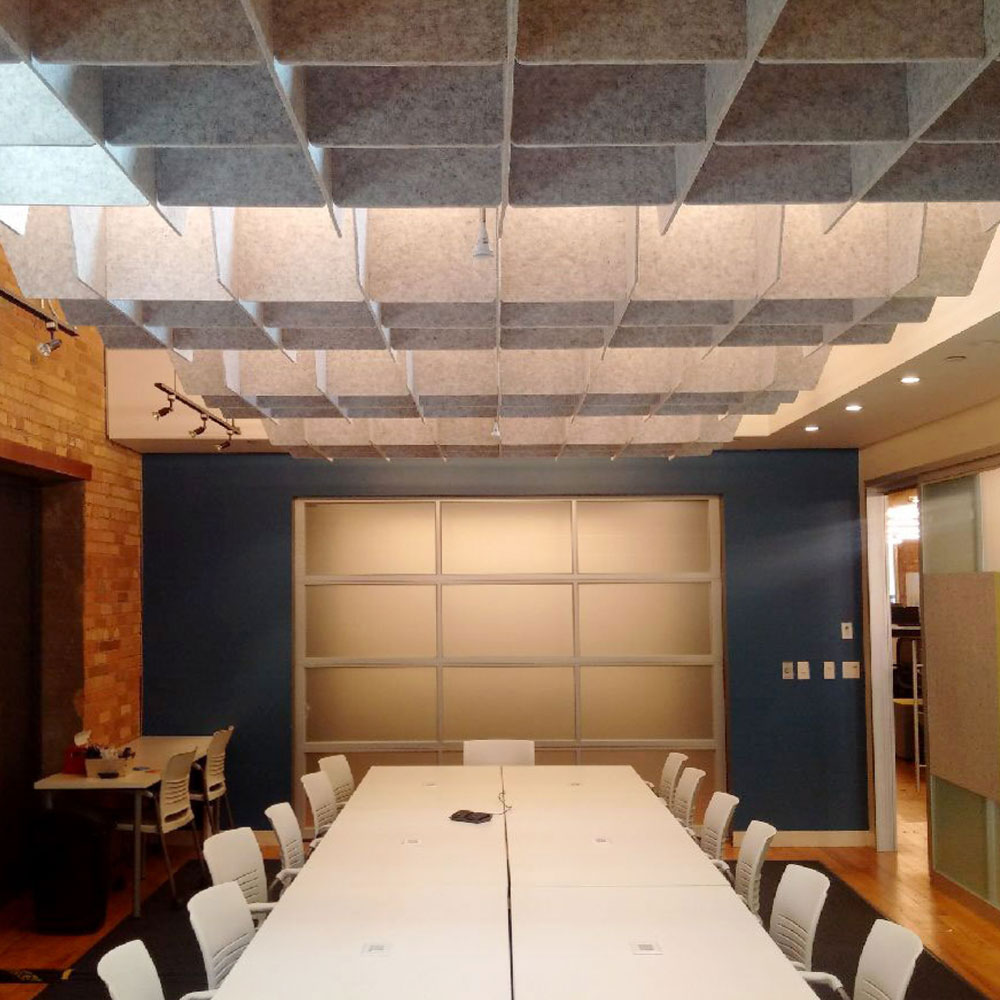

Grid Canopy brings an entirely new level of aesthetics to room acoustics. Hang a Grid Canopy in any space to control excess reverberation.

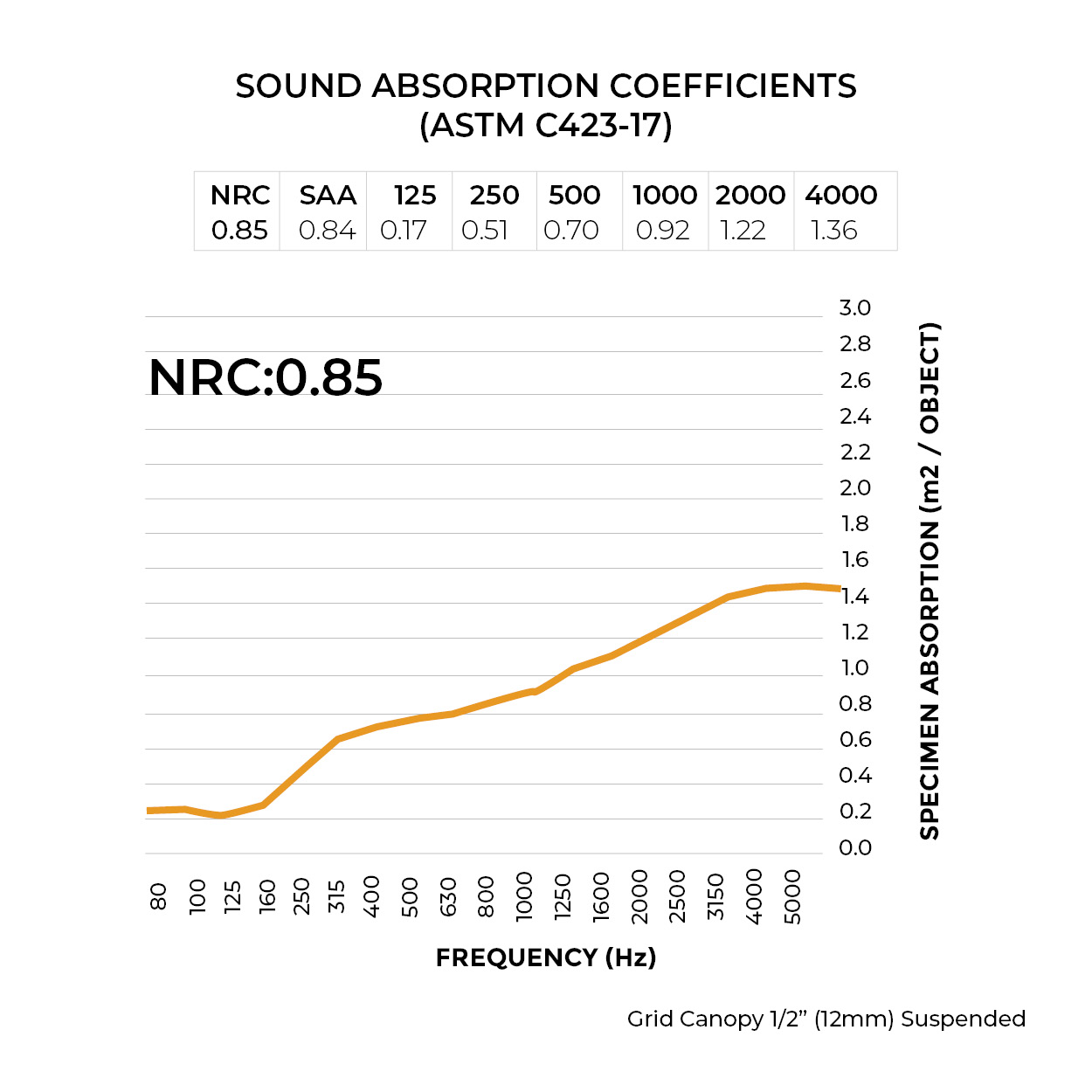

Sound absorption performance
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

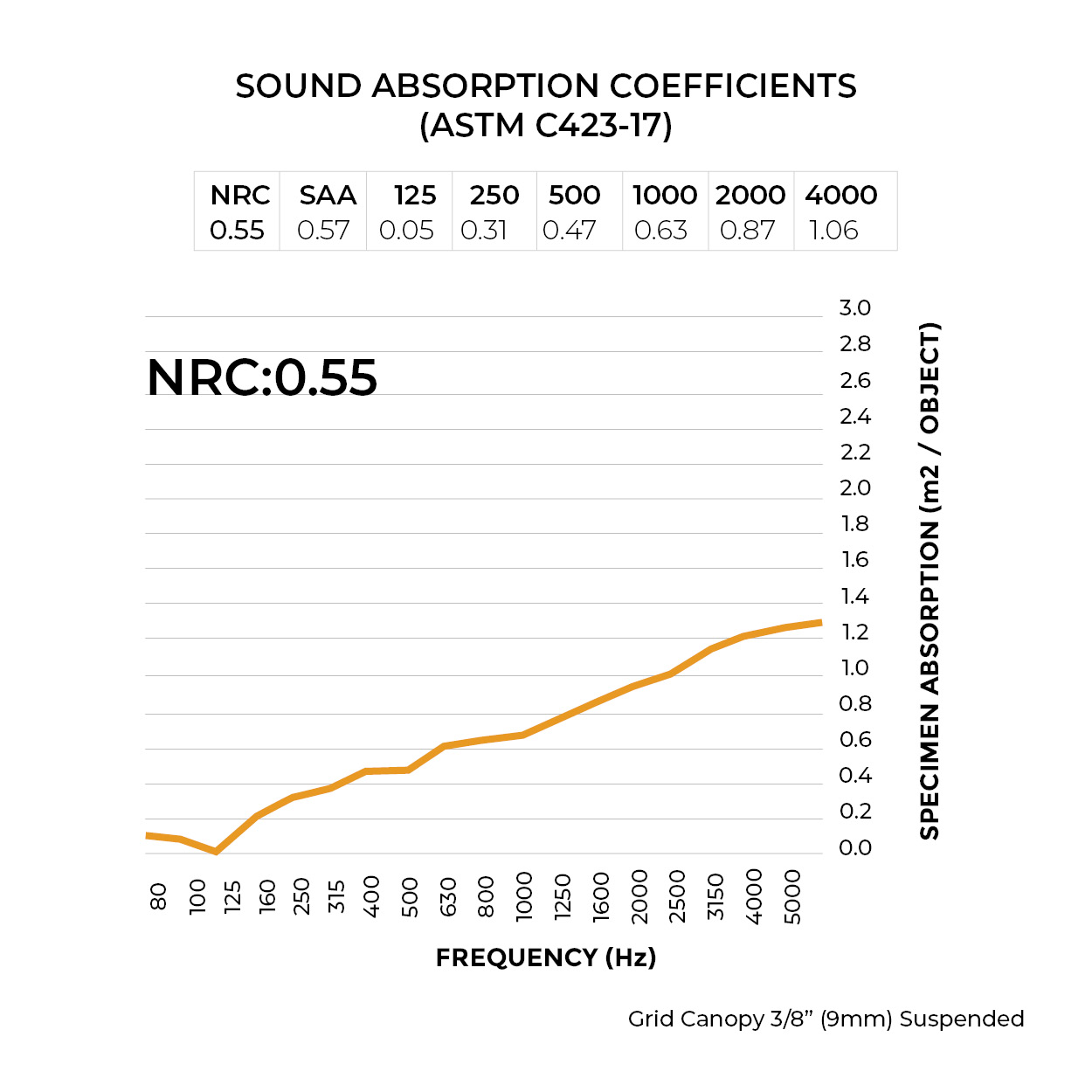

3/8" (9mm)

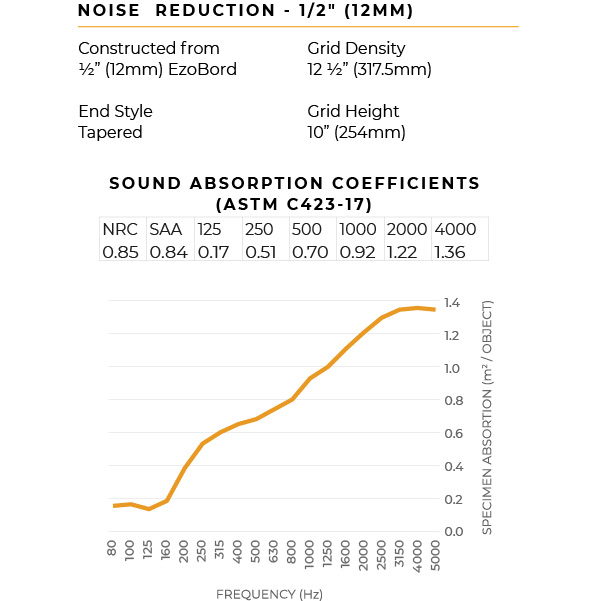

1/2" (12mm)

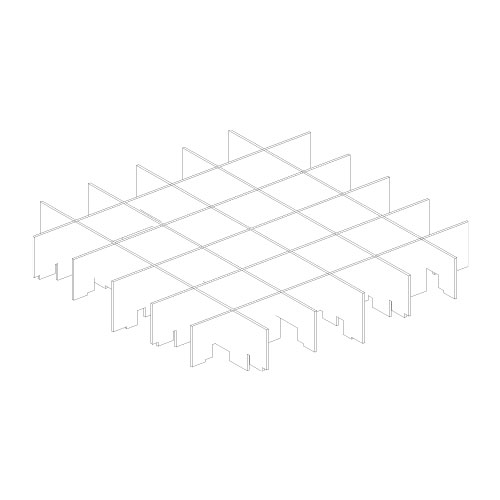

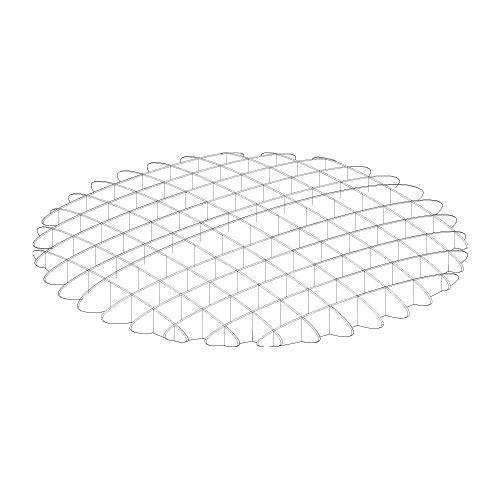

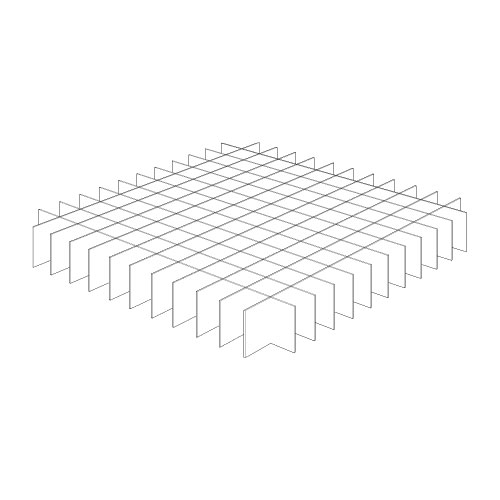

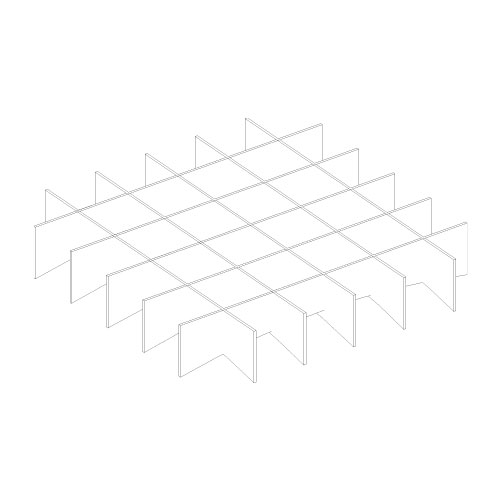

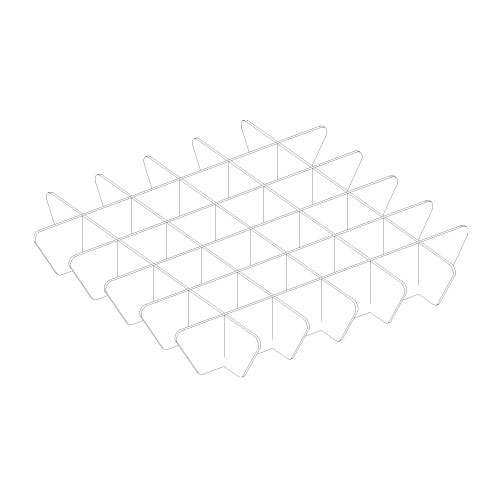

grid canopy MODELS
custom
acoustic
solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.
Documentation
Downloads
Product
| Brochure | |
| Installation Instructions |
Acoustics
| Sound Absorption Test Data (ASTM C423-17)-Grid Canopy 3/8” (9mm)-Suspended | |
| Sound Absorption Test Data (ASTM C423-17)-Grid Canopy 1/2” (12mm)-Suspended |
Fire Test Data
| Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm) | |
| Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm) | |
| Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| IFC | |
| SKP | |
| HARDWARE |
Specifications
70% open cell structure, allows lighting, airflow, and sprinkler distribution
Custom geometries can be manufactured
T-Bar Compatibility allows fast and easy installation
Each slab can be manufactured with different color. Available options below
Larger spans can be achieved with invisible joints. Contact our design team for custom applications
COMPOSITION
100% pet (min. %50 recycled content)
PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007
ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.
GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
Recommended Hardware
CF6-01
Upper Suspension Housing
CBG-C
Clamp for Ezobord
CVS
Clamp for Ezobord
Available colors
EzoBord 1/2″ (12mm)
