Kubica
Kubica is the revolutionary ceiling tile solution by EzoBord, engineered to redefine acoustic performance in any space. Crafted to perfection, Kubica is designed to elevate both functionality and aesthetics, offering a seamless blend of innovation and style.
With a selection of depths and configuration options, Kubica allows you to tailor your acoustic solution to meet your specific needs. Whether you’re aiming for optimal sound absorption or striking visual impact, Kubica delivers.
Engineered to fit seamlessly into standard T-bar 15/16″ ceiling grids with a nominal size of 2’x2′, Kubica makes installation a breeze, ensuring a hassle-free experience for contractors and designers alike.

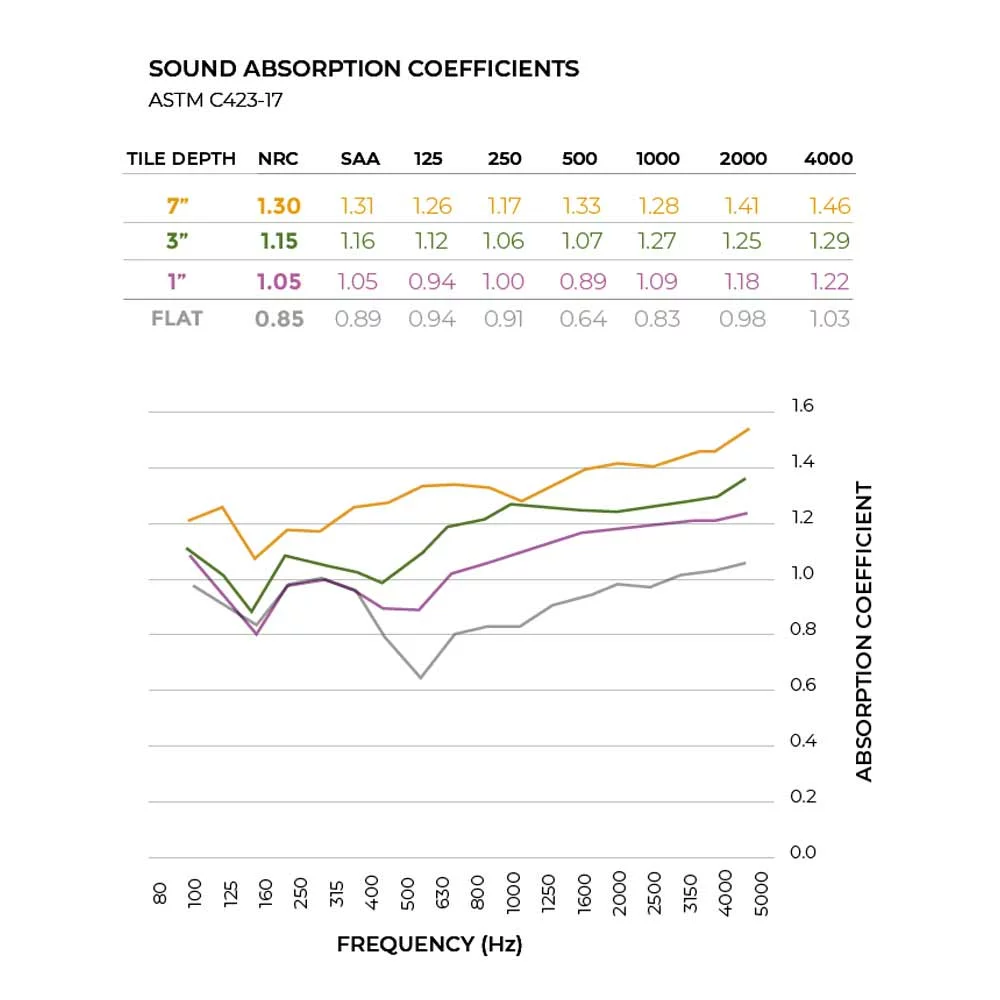

Sound absorption performance
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
kubica MODELS
custom
acoustic
solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.
Documentation
Downloads
Product
| Brochure | |
| Installation Instructions |
Acoustics
| Sound Absorption Test Data (ASTM C423-23) – KUBICA Flat A24-009r1 | |
| Sound Absorption Test Data (ASTM C423-23) – KUBICA 1inch A24-008r01 | |
| Sound Absorption Test Data (ASTM C423-23) – KUBICA 2inch A24-007r01 | |
| Sound Absorption Test Data (ASTM C423-23) – KUBICA 3inch A24-006r01 | |
| Sound Absorption Test Data (ASTM C423-23) – KUBICA 7inch A24-005r01 |
Fire Test Data
| Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm) | |
| Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm) |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| IFC | |
| SKP |
Specifications
COMPOSITION
9mm EzoBord, 100% PET acoustic ceiling tile (min 50% recycled content)* with optional EzoLayer felt or EzoPrint finishes.
PRODUCT VARIANCES

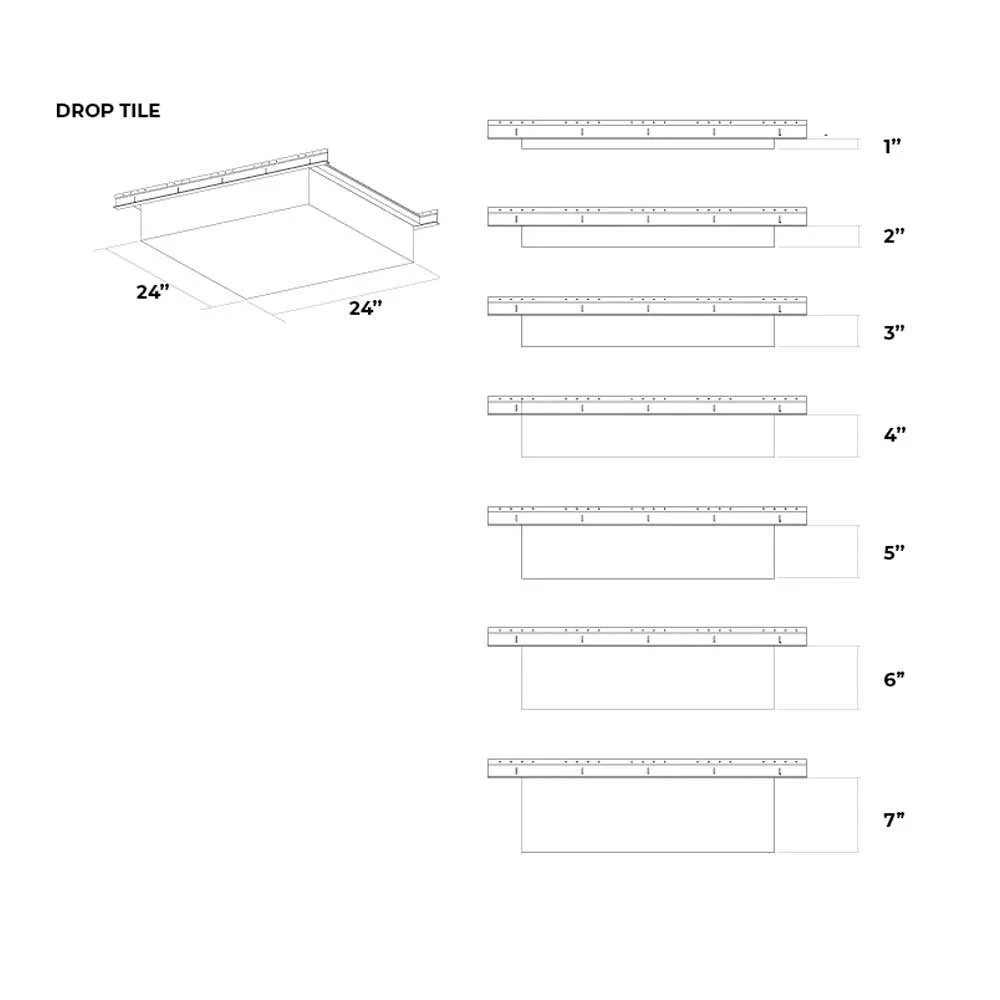

Nominal tile dimensions of 24” x 24” with variable depths ranging from 0 to 7”. Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
WEIGHT
Average tile weight varies with tile drop depth from 1 lb per tile for flat tiles to 5 lb per tile for 7” depth.

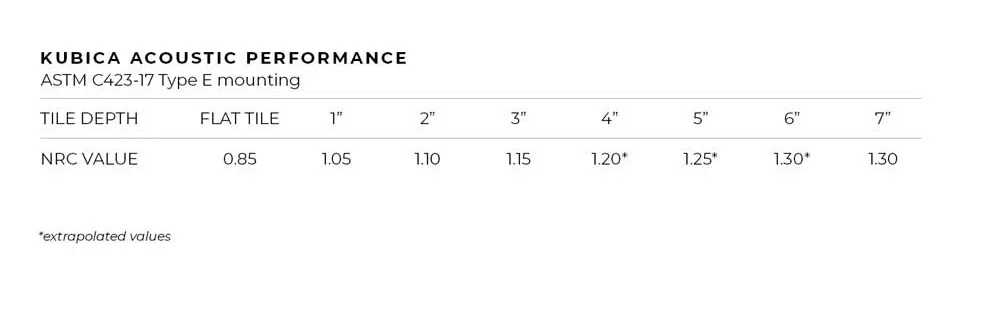

ACOUSTICS
Noise Reduction Coefficient: 0.9 to 1.3 in accordance with ASTM C423 Type “E”.
FIRE TESTING
- ASTM E-84
- CAN ULC S102-10
- EN13501-1: 2007
ENVIRONMENT
This product is made from 100% polyester fiber with minimum 50% recycled content and contributes to LEED MR Credit and BREEAM Health and Wellbeing Materials points due to recycled content, acoustic performance, and low VOC emitting materials. Other specifications include:
- Low VOC, CDPH v1.2 compliant
- Reach Compliant
- Declare – Red List Free
- Health Product Declaration
- Zero waste manufacturing initiative
Available colors
EzoBord 1/2″ (12mm)
< Scroll to select more colors >
EzoFelt Grade 2
< Scroll to select more colors >
Virtual Sample Library
(Click on the box to enter fullscreen mode)
