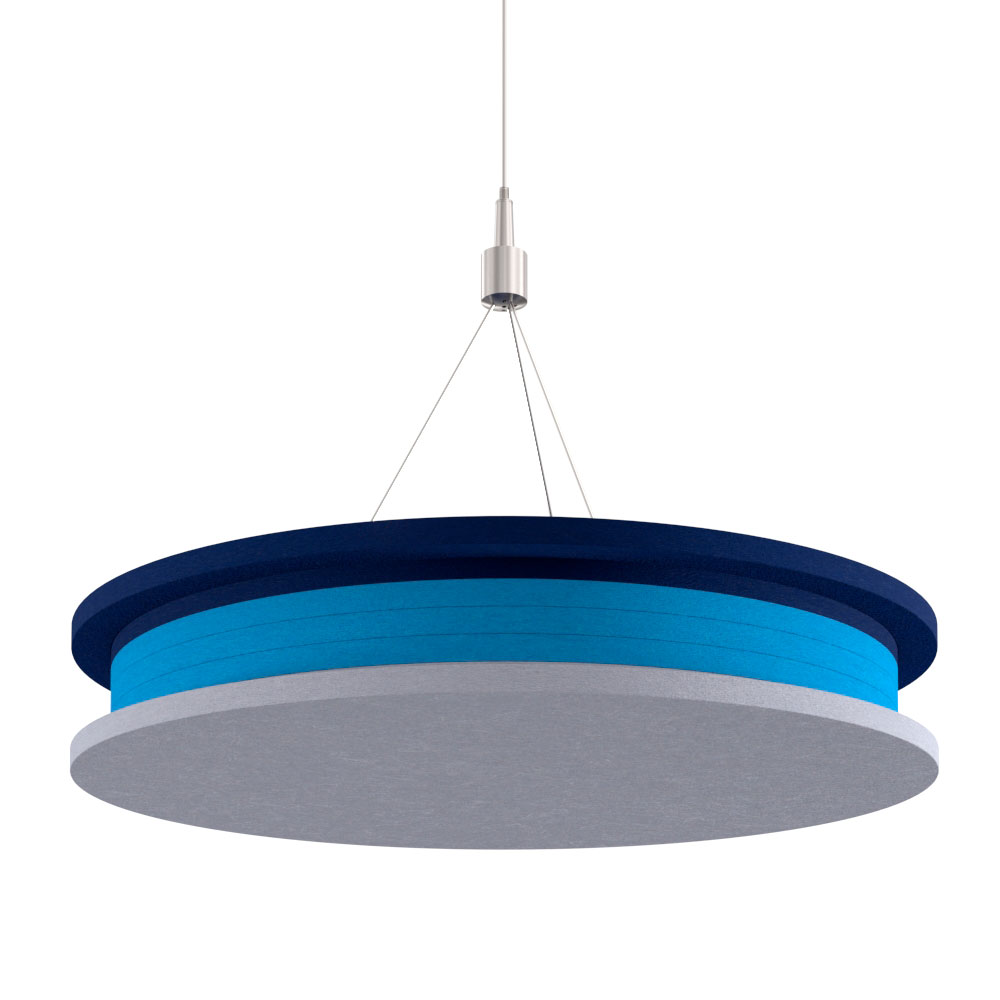

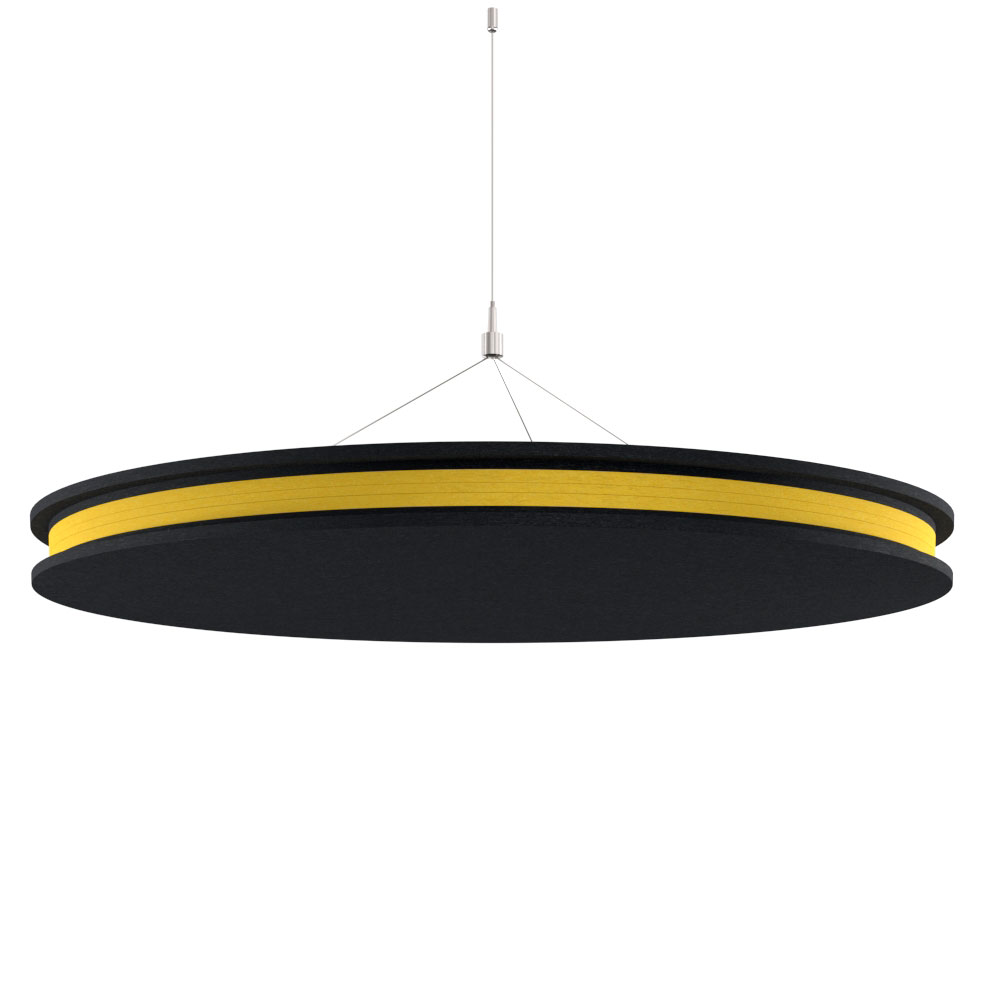

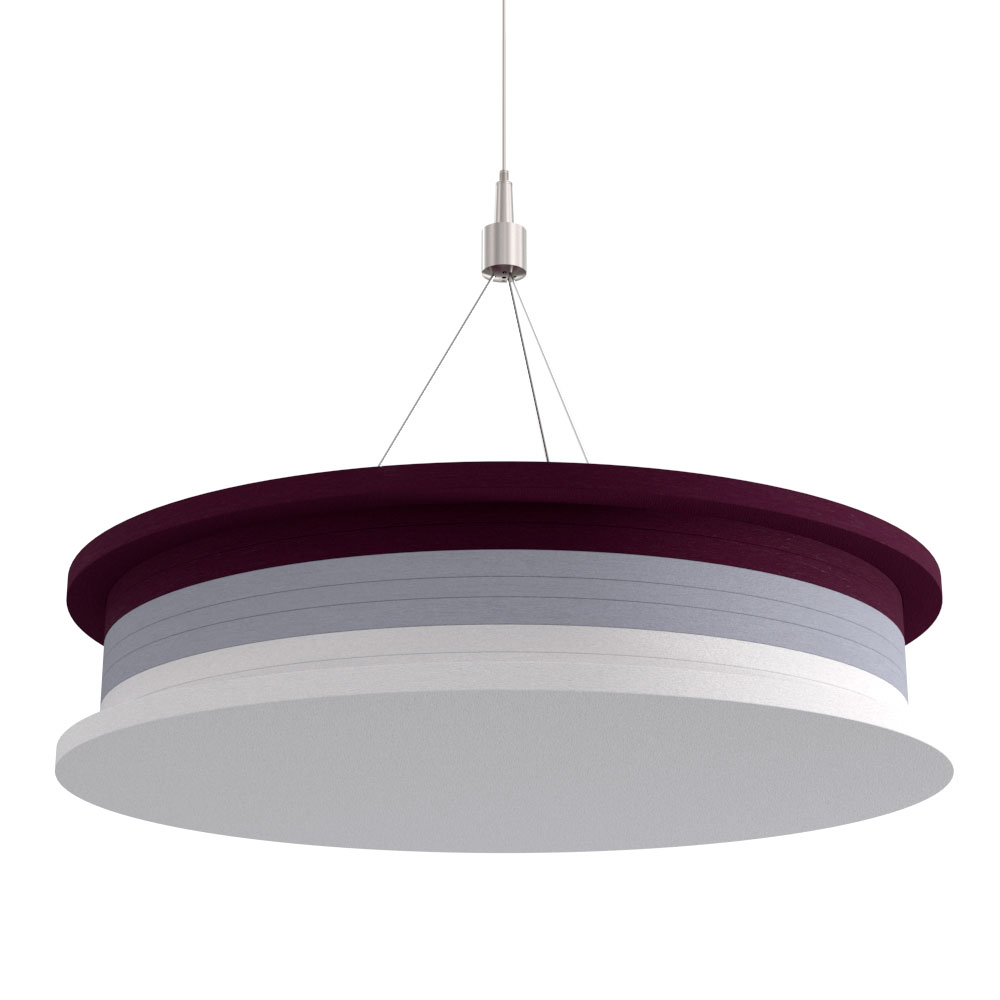

MACARON Acoustic Pendant
Macaron is EzoBord’s take on a delicious visual treat! As the patisserie counterpart, Macaron is layered with different EzoBord colors to create unique versions of the product.
This variety of color within the Macaron universe allows the product to coexist, integrate and enhance every space where is installed. At the same time, Macaron provides high-quality acoustic performance and the possibility of integration with a light fixture.

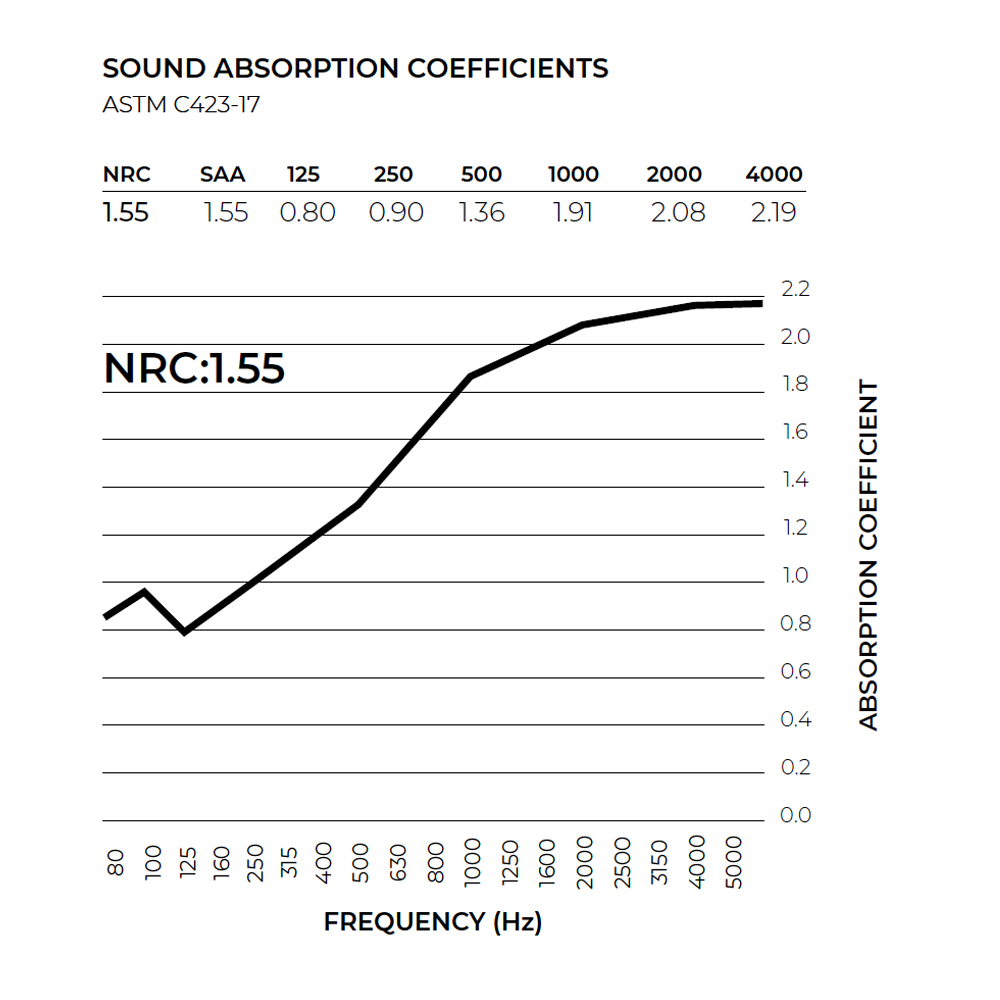

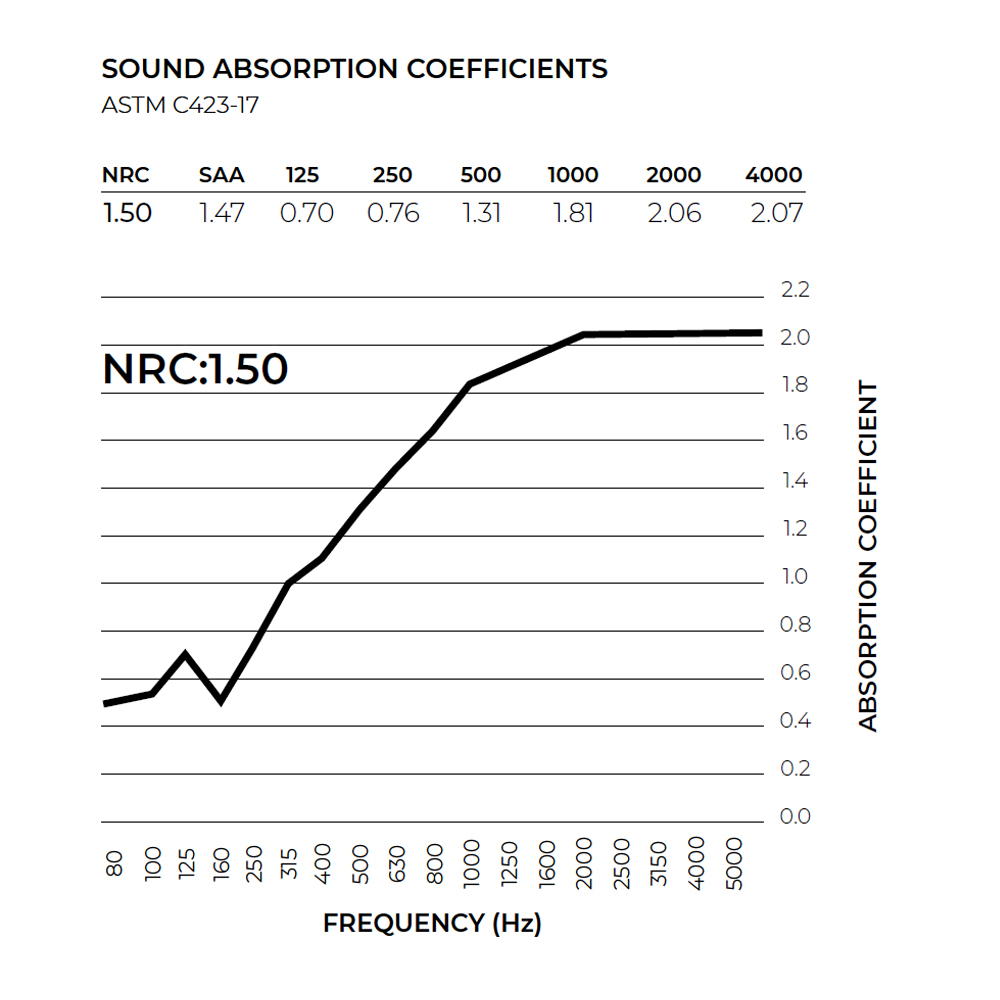

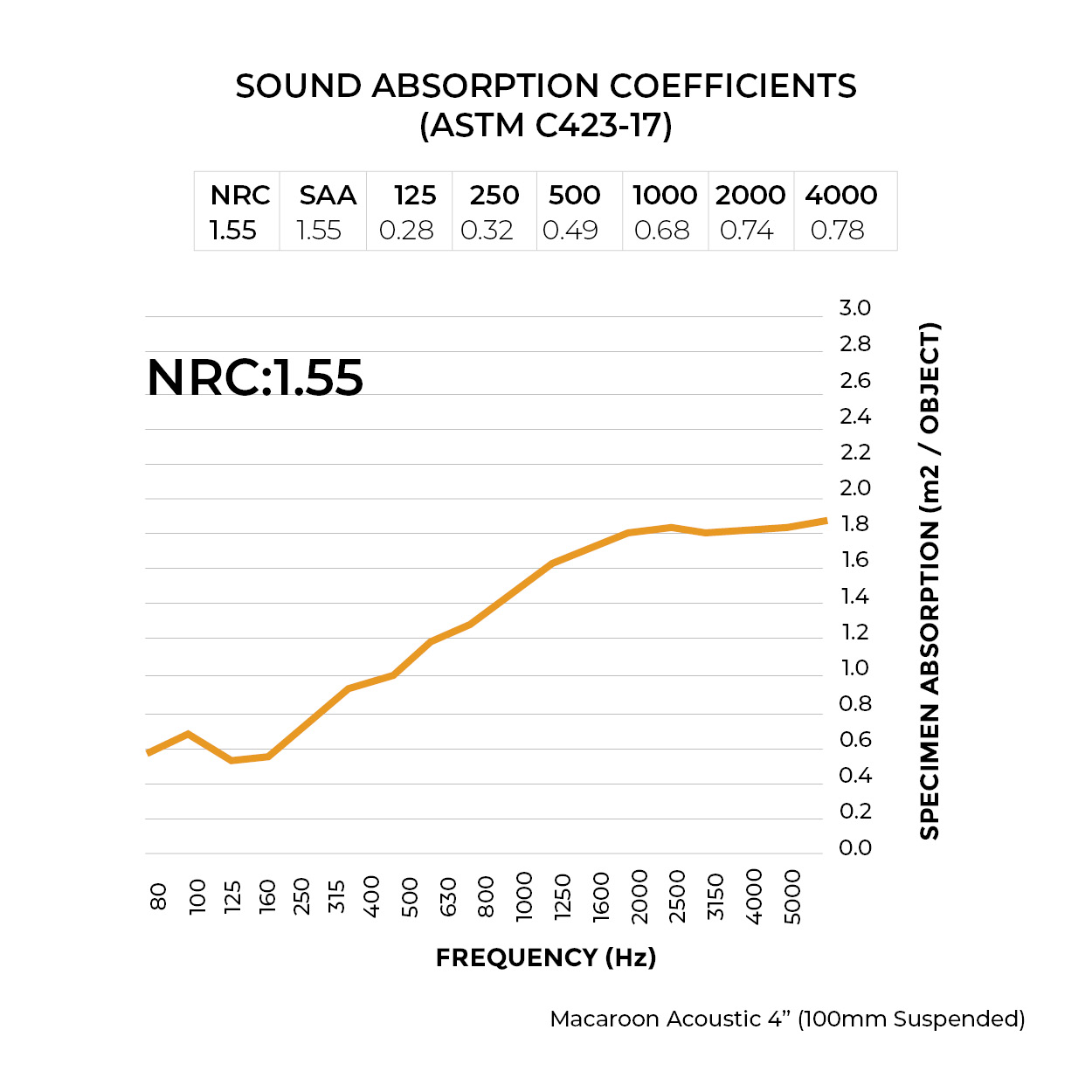

Sound absorption performance
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
3.00" (75MM)
4.00" (100MM)
specifications
custom
acoustic
solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.
Documentation
Downloads
Product
| Brochure | |
| Installation Instructions |
Acoustics
| Sound Absorption Test Data (ASTM C423-17) – 3” (75mm) – Suspended | |
| Sound Absorption Test Data (ASTM C423-17) – 4” (100mm) – Suspended |
Fire Test Data
| Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm) | |
| Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm) | |
| Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| IFC | |
| SKP | |
| HARDWARE |
Specifications
COMPOSITION
100% pet (min. %50 recycled content)
PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007
ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.
GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
Recommended Hardware
CF6-01
Upper Suspension Housing
CG7250
Looping Cable Gripper
GR 1/3-20
3 Way Cable Suspension Coupler
T-BAR Track
Hat Track
Available colors
EzoBord 1/2″ (12mm)
