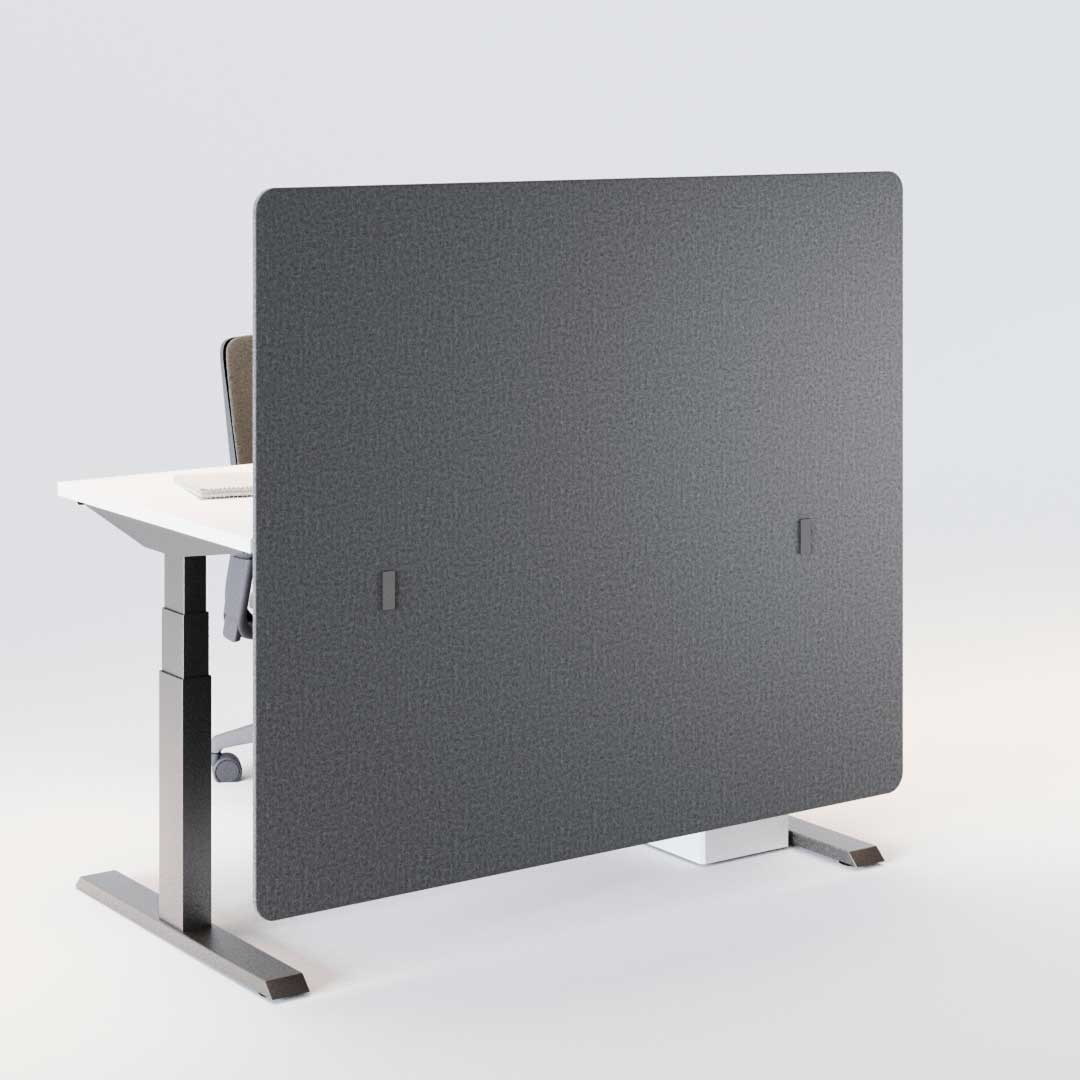

Modesty Acoustic Privacy Screen
EzoBord acoustic privacy screens are a must for office soundproofing. They absorb sound, add privacy, color, and style to any open-plan workspace. The Modesty Screen enhances speech intelligibility making every office space a better place to work.
Our acoustic privacy screen is a welcome addition to any open-plan office and is totally customizable for size, shape, hole pattern, and color.
It is also available in single or double layers to accommodate any budget or design.
Sound absorption performance
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
modesty screen MODELS

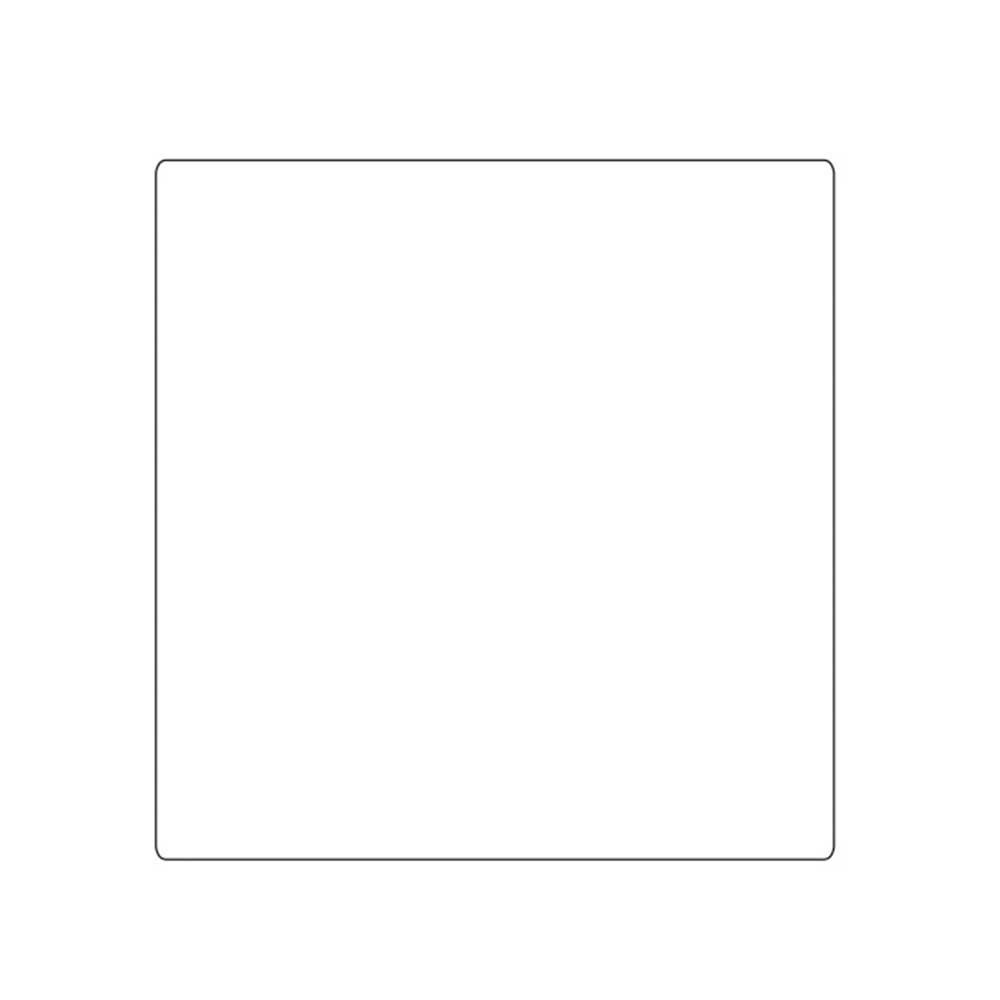

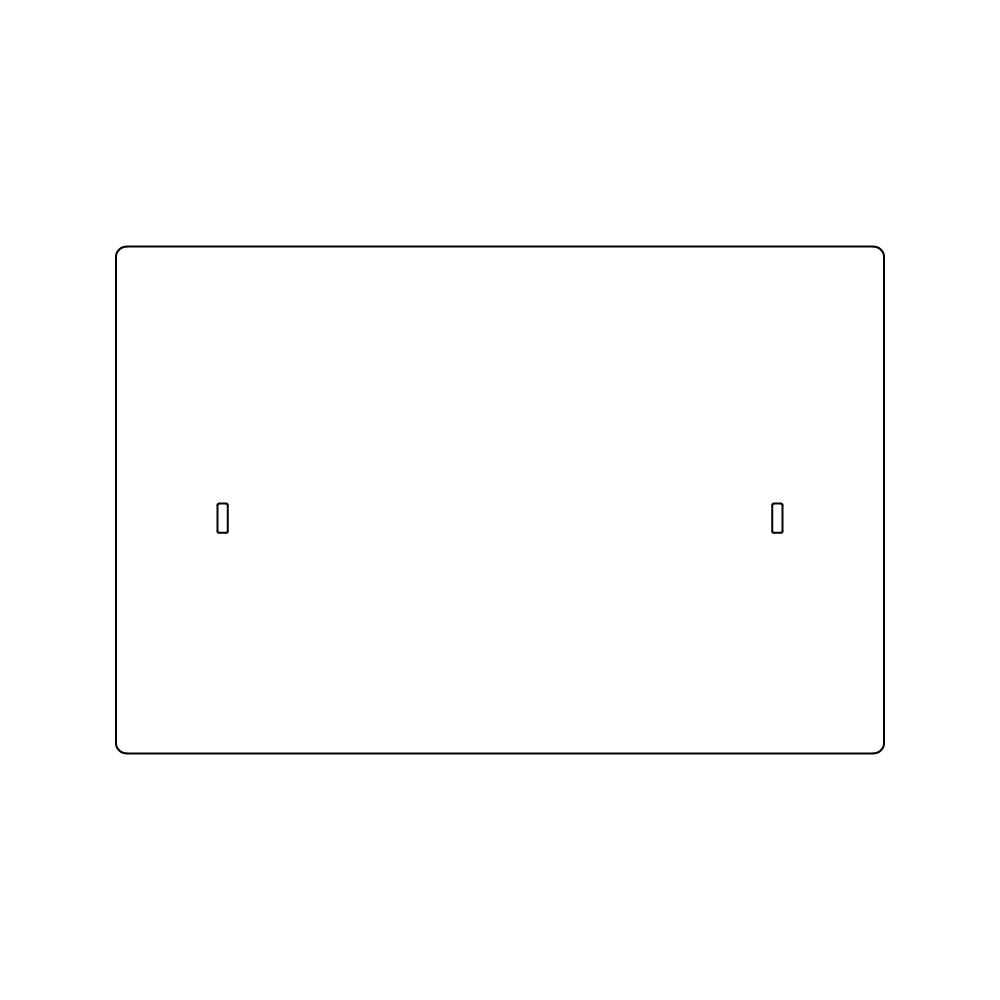

rectangular

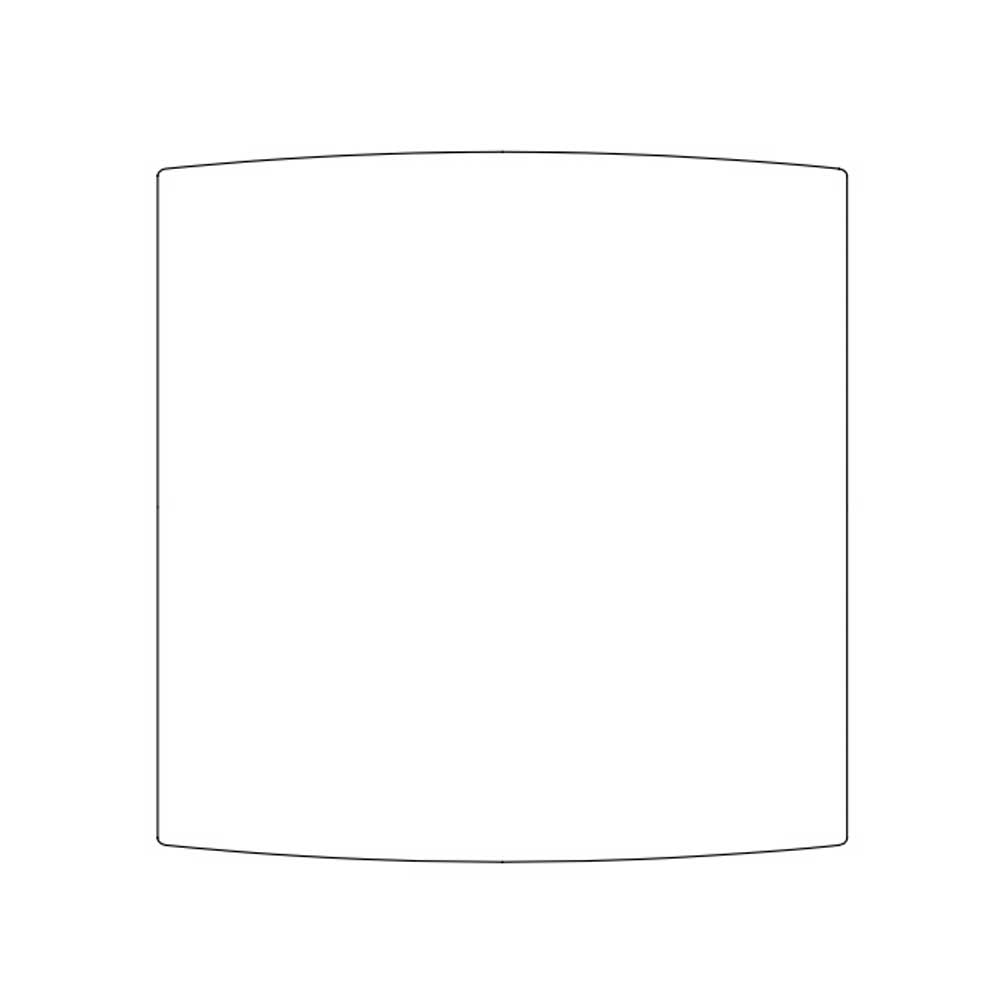

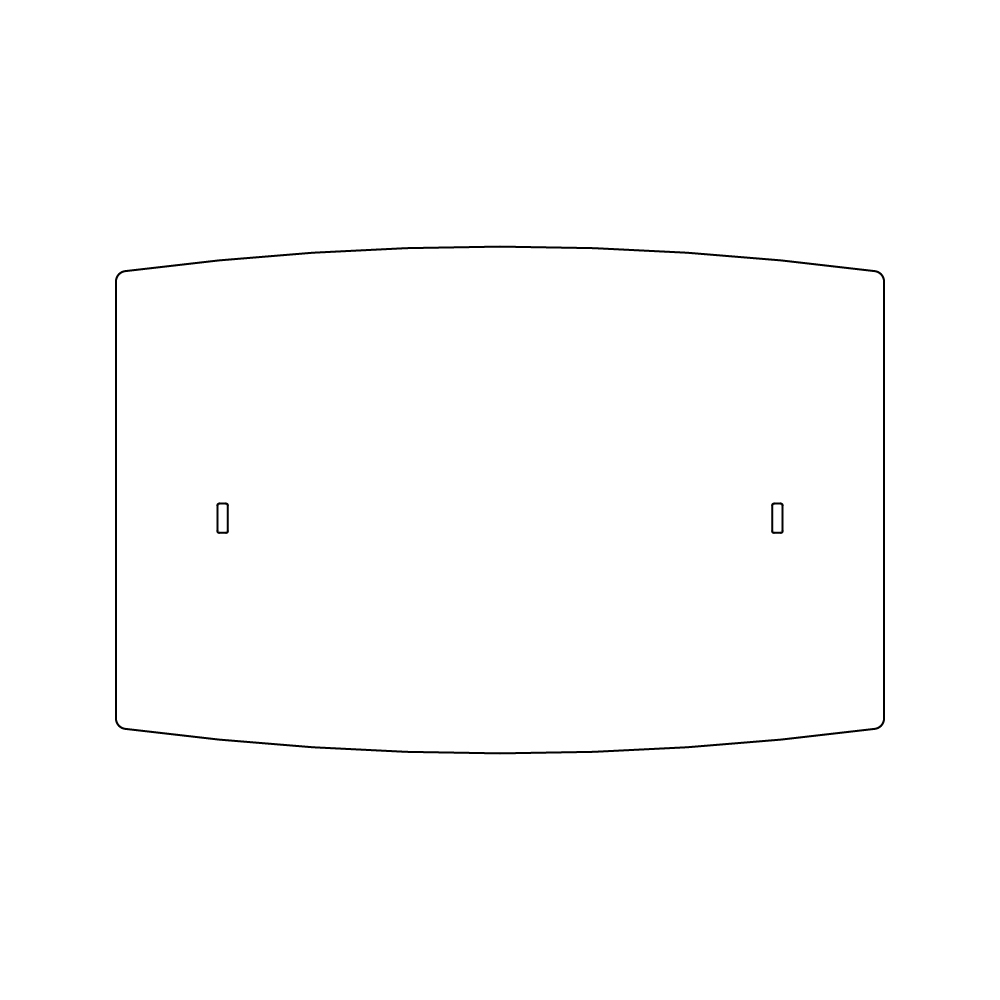

eliptical
Crescent
(Custom shapes also available)
dimensions
PANEL WIDTHS: 48″ (1206mm), 60″ (584mm), 72″(1829mm)
PANEL HEIGHT: 48″ (1206mm)
PANEL THICKNESS: 1/2″ (12mm)
(All dimensions indicated are nominal)
(Custom sizes available upon request)
custom
acoustic
solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.
Documentation
Downloads
Product
| Brochure | |
| Installation Instructions |
Acoustics
| Sound Absorption Test Data (ASTM C423-17) – EzoBord ½” (12mm) – J Mount |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| SKP | |
| HARDWARE |
Specifications
100% pet (min. %50 recycled content)
PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
FIRE TESTING
North America:ASTM E-84 Class ACAN ULC S102-10
Europe and UK:EN13501-1: 2007
ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.
GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
Recommended Hardware
PJ-17 Brackets
Available colors
EzoBord 1/2″ (12mm)
