Rail Acoustic Baffles

rail acoustic baffles

Rail Acoustic Baffles are a great solution to control spaces with high indexes of reverberation.

Rail Baffle shape optimizes the NRC performance of every room. This product can be used in hospitality and office spaces.

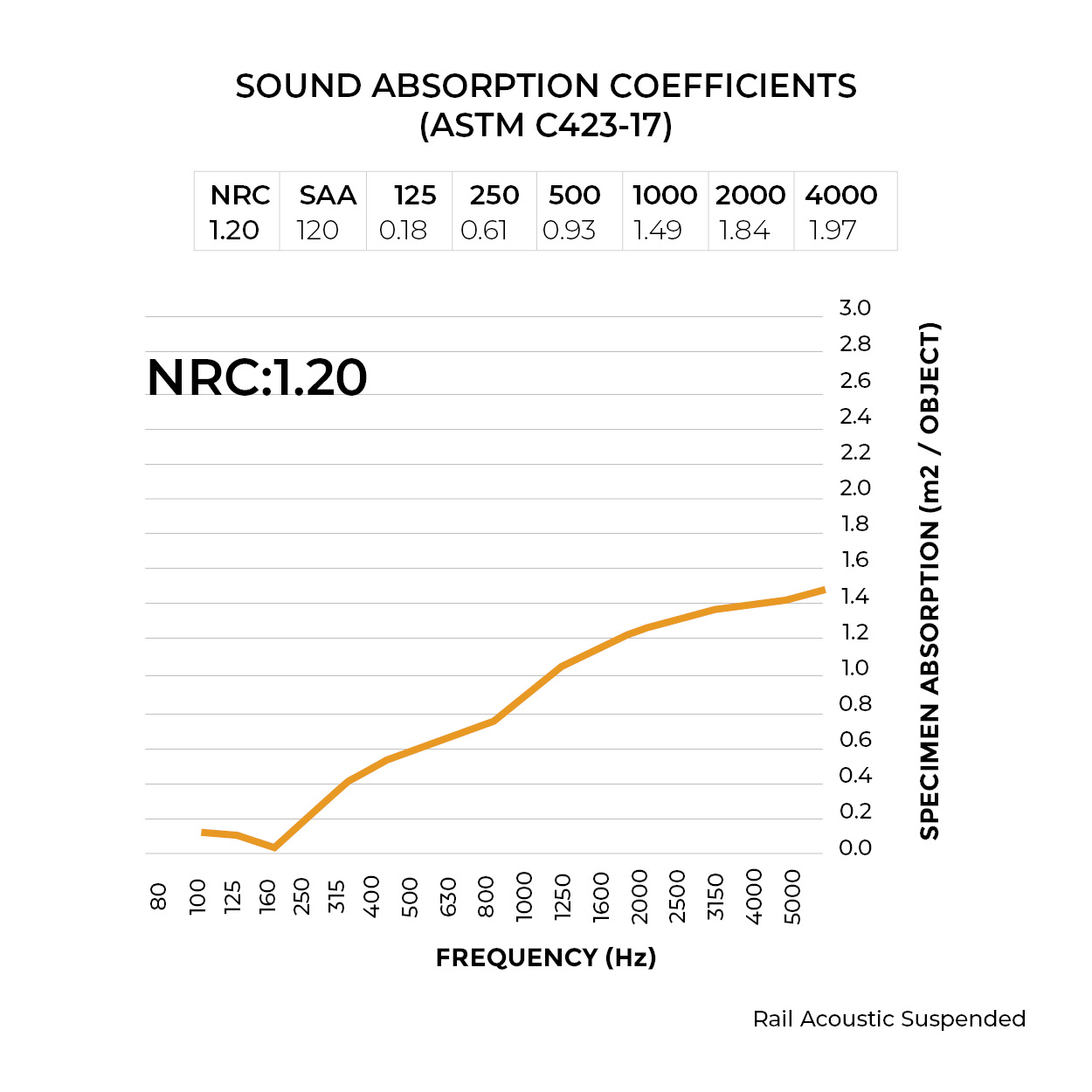

Sound absorption performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

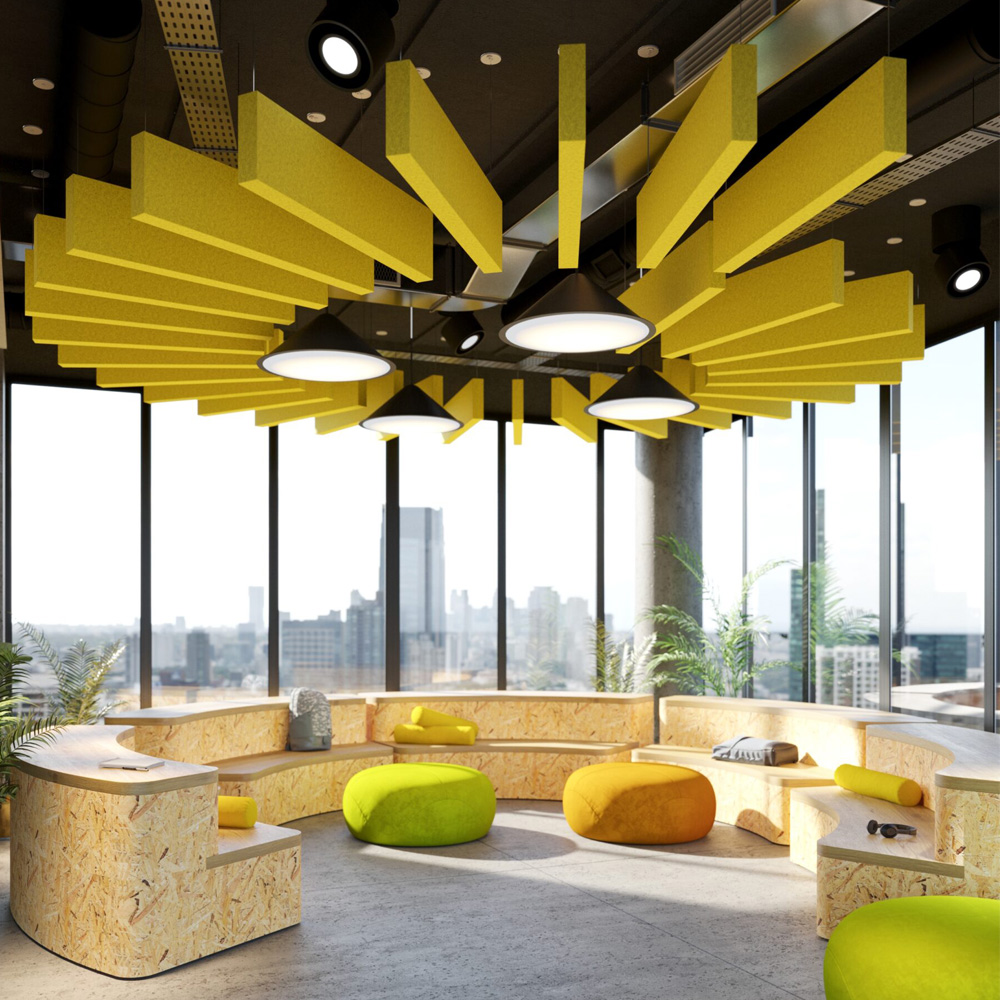

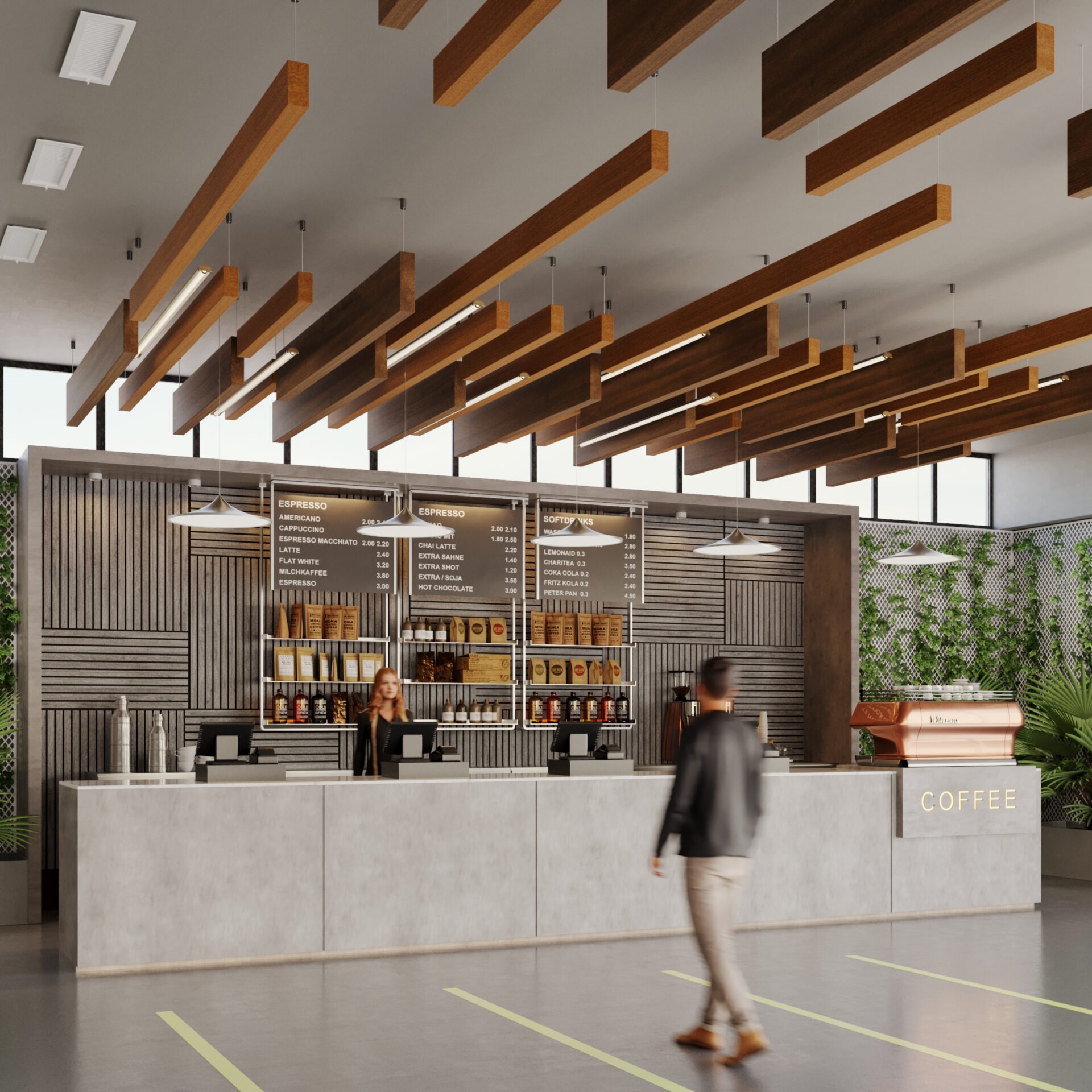

Rail installation ideas

YAMNUSKA

CROSS

T-SHAPE

ALIGNED

CORNER

SQUARE

RECTANGULAR

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Brochure
Installation Instructions

Acoustics

Sound Absorption Test Data (ASTM C423-17) – Rail Direct/Indirect -Suspended (9mm)
Sound Absorption Test Data (ASTM C423-17) – Rail Acoustic -Suspended (12mm)

Fire Test Data

Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm)
Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet
Declare Label
VOC Testing

Drawing Files

DWG 2D
DWG 3D
IFC
SKP
HARDWARE

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING
North America:ASTM E-84 Class A
CAN ULC S102-10
Europe and UK:EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.

Recommended Hardware

Available colors

EzoBord 1/2″ (12mm)

Vanilla Cream (VC97)
Sunset Pink (SP99)
Vintage Claret VC29
Soft Lavender SL30
Grape Vine GV36
Midnight Navy MN12
Royal Blue RB08
Evening Blue (EB50)
Aegean Blue (AB32)
Highland Green HG31
Moss Green MG10
Sunny Days SD18
Brick Red BR34
Tree Bark TB35
Bold Gray BG07
Classic White CW04
Polar Ice PI14
Light Beige LB01
Urban Sage US27
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Charcoal Gray CG06
Pure Black PB09
