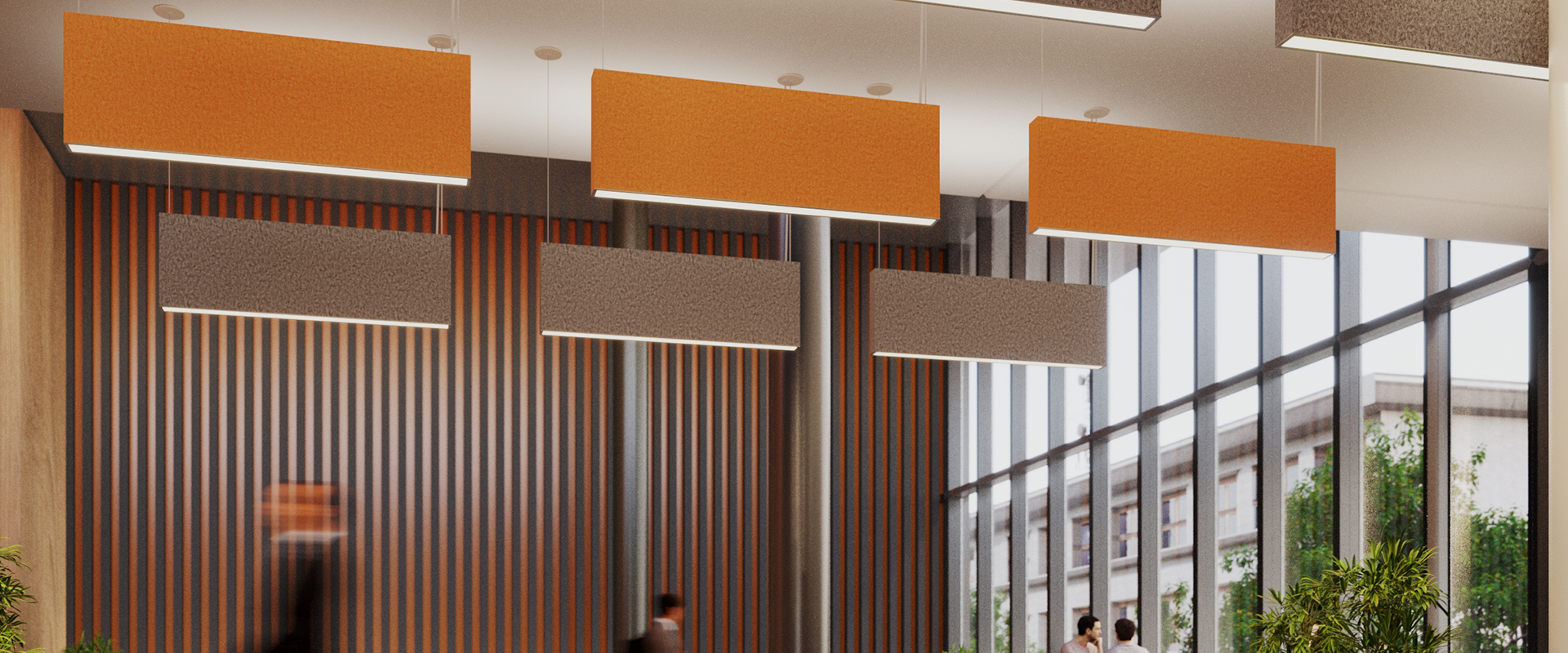

Rail Direct/Indirect represents the latest in lighting baffles, now with an ability to illuminate both the ceiling above as well as the work surface below. Like its sister Rail products, Rail Direct/Indirect delivers both the benefits of lighting and the acoustical integrity that defines EzoBord, which mitigates high-end noise levels and reverberation. It also has the added ability to be hung and displayed at an angle. Aesthetically, Rail Direct/Indirect delivers choice in design allowing for a selection of cladding material finishes, including wood print.
Rail lit can be specified in various lengths
Ranging from 4′ (1219.2mm) to 8′ (2438.4mm) Three heights 8″ (203.2mm),12″ (304.8mm) and 16″(406.4mm) giving you the possibility to create unique baffle arrays.
Key Features
Perfect for any environment, from personal office space to an atrium, Rail Direct/Indirect amps up design and functionality while proving that two lights can indeed be better than one!
Rail Lit Installation Ideas
Cross
Cross
t-shape
t-shape
Aligned
Aligned
Corner
Corner
Square
Square
Rectangular
Rectangular
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Specifications
Drivers
Our partner, Metalumen offers 0-10V dimming as a standard on our entire LED product offering. Dimming range is 1%-100%. Power factor is > 90%. Class 2 rating. Drivers are integral.
Housing
Rigid extruded aluminum body, 2.0mm (0.08″) nominal wall thickness. Aluminum end caps.
Optical System
Metalumen luminaries are designed to utilize leading edge LED technology combined with luminary optimized reflectors and our custom diffusers, resulting in industry leading optical performance.
Lumen Maintenance
Minimum 50,000h with TM-21 lumen maintenance of 85% @ 25°C ambient temperature (calculated based on IESNA LM-80-08 LED test data). L70: ≥60,000hrs.
Electrical
Factory pre-wired with easy wire quick connect sections.
Finish
Satin aluminum, white and black are standard finishes. For custom finish, contact factory.
Weight
0.95 kg/300mm [ 2.1 lb/ft ]
Mounting
Aircraft cable yoke complete with a Quick-Grip field adjustable suspension system. Threaded rod for t-bar and Unistrut metal framing system.
Photometric Data
| Optics Up | Batwing |
| Optics Down | Meta Blanc |
| IES File | RM2DU-ACL-35K-4-BWMB-150 |
| Lumens | 1500/ft |
| Wattage | 14.7/ft |
| Efficacy | 102 LPW |
| RAIL DIRECT/INDIRECT |
|||
| LENGTH | HEIGHT | ||
| 4′ (1219.2 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 5′ (1524 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 6′ (1828.8 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 7′ (2133.6 mm | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
| 8′ (2438.4 mm) | 8″ (203.2mm) | 12″ (304.8mm) | 16″ (406.4mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Rail Direct/Indirect Brochure.
To get the complete set of dimensions please download Rail Direct/Indirect Brochure
Specific product files
Installation Instructions
Customizable Parameters
- Geometric Properties: Length, width and layer quantity
- Material Thickness: 3/8″ (9mm)
- Digital Print: Custom graphics and textures can be printed
Contact our design team for custom applications.
AVAILABLE COLORS
Pure Black
PBO9
Charcoal Gray
CG06
Ebony Slate
ES07
Dark Gray
DG34
Silver Gray
SG04
Classic White
CW04
Light Beige
LB01
Desert Sand
DS10
Sunny Days
SD18
Tiger Orange
TO24
Ruby Red
RR28
Deep Purple
DP30
Midnight Navy
MN12
Polar Ice
PI14
Green Apple
GA41
Apple
W-AP-05
Ash
W-AS-06
Birch Sand
W-BS-10
Cherry Mate
W-CM-03
Dark Oak
W-DO-07
Gray Oak
W-GO-08
Marmar Maple
W-MM-04
Walnut
W-WA-01
Wengue
W-WE-02
Yellow Oak
W-YO-09
