Rubik
Make Sound Your Centerpiece
Rubik is a modular acoustic frame and tile system that invites designers to shape bold, dimensional wallscapes with ease. Divided into 3D and 2D tiles, this system allows for a wide range of design outcomes – unlocking limitless visual and spatial configurations.
Designed for flexibility and fast installation, Rubik balances architectural expression with functional acoustic performance. An integrated air gap enhances sound absorption, making it a high-performing solution for spaces where acoustics matter. No tools, no constraints – just a dynamic, sculptural system that adapts to your vision.
With its highly customisable layout options and wide range of finishes, Rubik is ideal for commercial, educational, hospitality, and cultural environments – anywhere design and performance go hand in hand.
Sound absorption performance
Rubik is a top performing product for sounds absorption. With the combination of acoustic material and air gap, this system has maximized sound control.
RUBIK Applications
How it works
RUBIK 3D

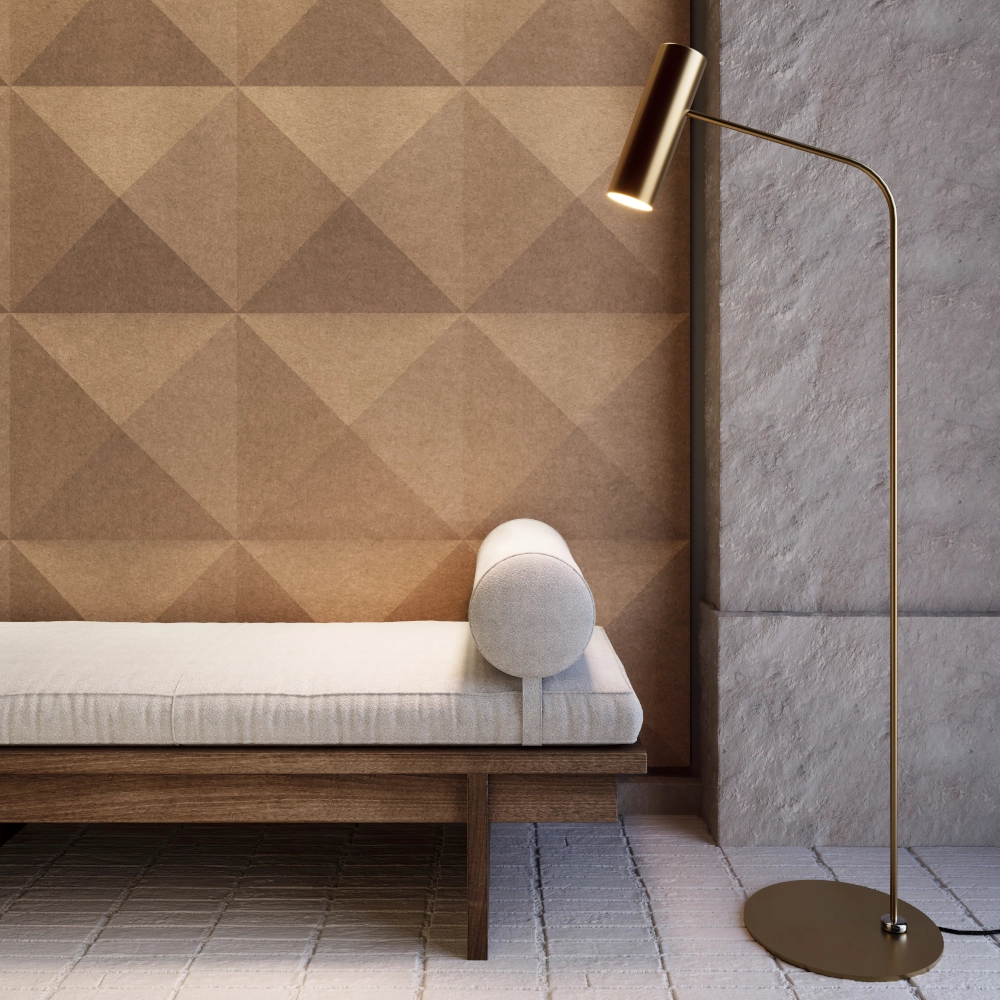

Volumetric Premium Tiles
Slope and Ridge Tiles
Mix & Match Combinations
How it works
RUBIK 2D
Rubik is perfect for print!
What sets Rubik apart is its extensive print and finish capabilities: from wood, stone, and marble textures to full-color matching, logo integration, and custom artwork. Whether you’re looking to incorporate branding, visual storytelling, or material simulation, Rubik offers unmatched creative freedom.
Rubik’s flat tiles open up new possibilities for transforming acoustic surfaces into large-scale murals, graphic wall coverings, and custom art pieces. The modular grid frame system can be scaled both horizontally and vertically, allowing for seamless expansions across walls of any size. Whether designing with a series of small, repeatable tiles or specifying full-sheet panels for a bold, continuous statement, Rubik provides the flexibility to bring any visual concept to life. With high-resolution printing capabilities and precise material control, it’s an ideal solution for integrating pattern, branding, or visual texture into acoustically functional surfaces.
Standard Flat Tiles
Whiteboard Tiles
Custom acoustic solutions
We offer custom acoustic solutions made with sustainable materials in local production facilities.
Choose EzoBord as your new creative partner.
Documentation
Product
| Brochure | |
| Vertical Channel Cut Sheets | |
| Installation Instructions |
Acoustics
| Sound Absorption Test(ASTM C423-7) Rubik 0,5in Tile Depth | |
| Sound Absorption Test(ASTM C423-7) Rubik 1,5in Tile Depth |
Fire Test Data
| Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (CAN-ULC S102.2) – EzoBord 3/8″ (9mm) | |
| Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm) | |
| Surface Burning Characteristics (CAN-ULC S10.2) – EzoBord 1/2″ (12mm) | |
| FIRE CLASSIFICATION (BS EN 13501-1) – EZOBORD 1/2” (12MM) |
Environment
| Environmental Product Declaration (EPD) |
|
| Health Product Declaration (HPD) |
|
| Material Safety Data Sheet | |
| Declare Label | |
| VOC Testing |
Drawing Files
| DWG 2D |
|
| DWG 3D | |
| IFC | |
| SKP |
Specifications
Composition
9mm EzoBord, 100% PET acoustic ceiling tile (min 50%
recycled content)* with optional EzoLayer felt or EzoPrint
finishes
Product Variances
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.
Cleaning
Remove dust and dirt with gentle vacuuming (no brush) or light application of compressed air. Care should be taken not to rub or abrade the surface. Warm distilled water may be used to remove stains. If necessary, a color safe cleaning solution may be used. If using a cleaner be sure to test in an inconspicuous location first. Do not use bleach or solvent based cleaners.
Fire Testing
North America:
- ASTM E-84 Class A
- CAN ULC S102-10
Europe and UK:
- EN13501-1: 2007
Environment
This product is made from 100% polyester fiber with minimum 50% recycled content and contributes to LEED MR Credit and BREEAM Health and Wellbeing Materials points due to recycled content, acoustic performance, and low VOC emitting materials. Other specifications include:
- Low VOC, CDPH v1.2 compliant
- Reach Compliant
- Declare – Red List Free
- Health Product Declaration
- Zero waste manufacturing initiative
- General
USGBC LEED V4 CREDITS
While individual products do not ‘earn’ LEED credits, EzoBord can contribute to the following LEED v4 Credits. Please refer to the USGBC LEED credit guides for detailed requirements.
- EQc9 for enhancing acoustic performance
- MRc3 BPDO for sourcing of raw materials for recycled contribution
- EQc6 interior lighting for surface reflectance (lighter color options)
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
