The performance of acoustic panels depends on material and geometry. Summit proves that bringing the right combination of materials and design-work can lead to astonishing improvements in acoustic performance.

The performance of acoustic panels depends on material and geometry.

With an incredible acoustic performance of NRC 1.30, the Summit system is transforming the acoustical panel market by perfectly balancing high performance acoustics with design.

Summit three sister

Summit Assinboine

Summit Sulphur

Key Features

Where Geometry meets Peak Performance!

Summit shapes were designed to reflect North American mountain ranges. They can be customized with a wide selection of different colors and woodgrain finishes.

SUMMIT MODELS

SULPHUR

SULPHUR

Sulphur Mountain, named for the two sulphurous hot springs found on its lower slopes, will amaze you with
awe-inspiring 360-degree views of six mountain ranges, the Bow Valley, and the town of Banff.

THREE SISTERS

THREE SISTERS

They are referred to individually as Big Sister, Middle Sister and Little Sister, the name refers to a story of Ĩ-ktomnĩ, the old man or trickster, who would promise ‘three sisters’ in marriage whenever he was in trouble.

Castle

Castle

The mountain’s castellated, or castle-like, appearance is a result of erosive processes acting at different rates on the peak’s alternating layers of softer shale and harder limestone, dolomite and quartzite

ASSINIBOINE

ASSINIBOINE

Is a pyramidal peak mountain located on the Great Divide, on the British Columbia/Alberta border in Canada. At 3,618 m, it is the highest peak in the Southern Continental Ranges of the Canadian Rockies.

CROWSNEST

CROWSNEST

This one is a scenic mountain in the southern Rockies. It can be seen from Alberta Highway 3 west of the town of Coleman in the Crowsnest Pass

YAMNUSKA

YAMNUSKA

Yamnuska translates to “wall of stone” and is derived from the Stoney Nakoda word Iyamnathka that describes steep cliffs or “the flat faced mountain.”

Product details

assinboine

sulphur

crowsnet

three sisters

castle

yamunska

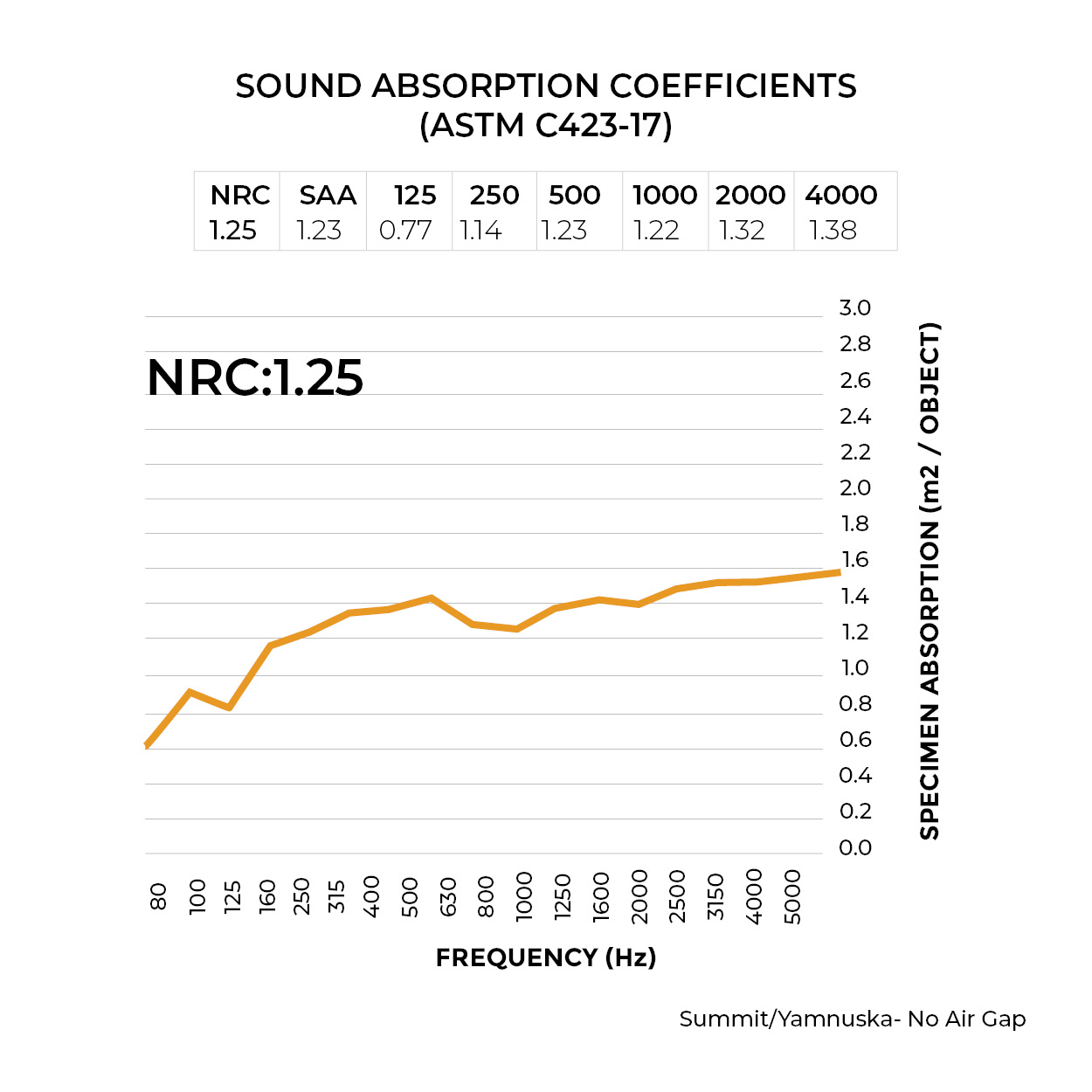

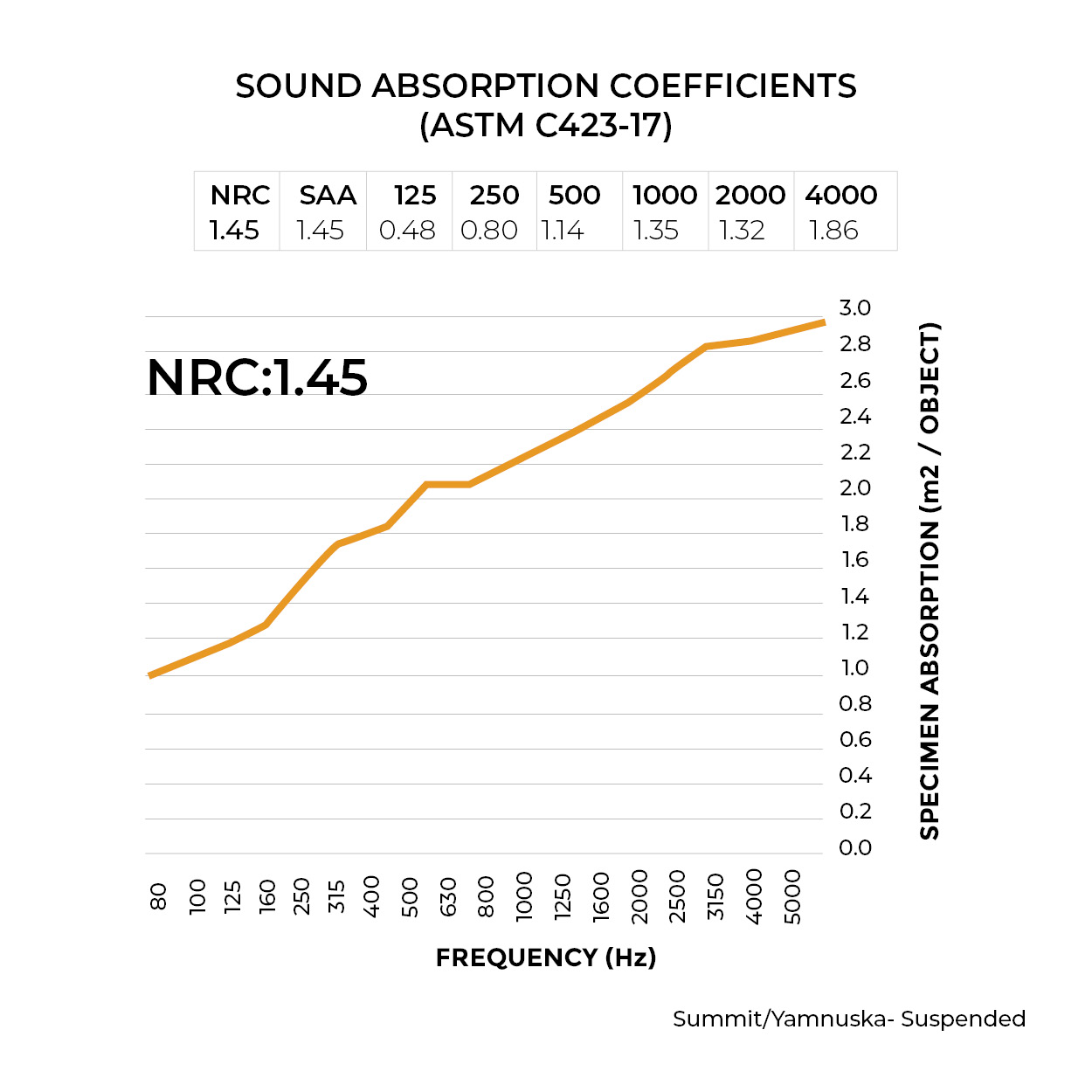

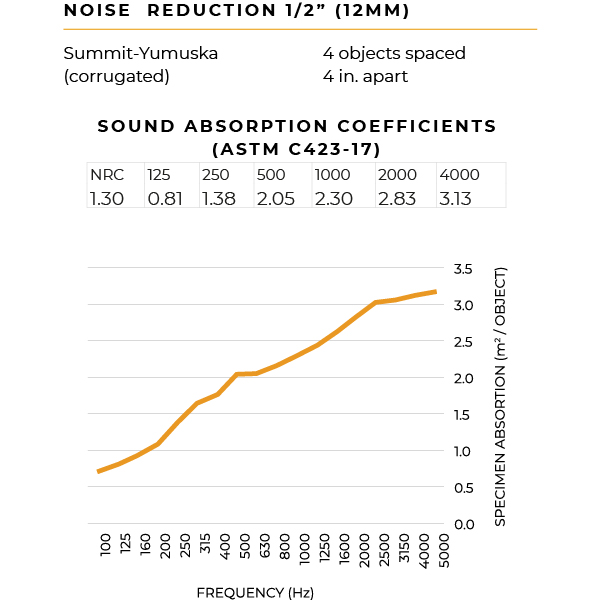

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

1/2” (12mm)

documentation

f
Specifications
Downloads
1
DIMENSIONS

COMPOSITION

100% pet (min. 50% recycled content)

FEATURES

  • Available in 15 standard color combinations and 10 print wood grain finishes

ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.40, SAA: 0.80, ASTM C423, 12mm)

FIRE TESTING

North America:

  • ASTM E-84 Class A
  • CAN/ULC S102-10

Europe and UK:
EN13501-1: 2007



Specific product files

Icon

Summit Brochure 9.79 MB 45 downloads

...



Installation Instructions

Icon

SUMMIT INSTALLATION 688.57 KB 41 downloads

...
SUMMIT
LENGTH       WIDTH      HEIGHT
95.94” (2436 mm) 23.5”(596mm) 9” (228mm)

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Summit Brochure.

To get the complete set of dimensions please download Summit Brochure.

AVAILABLE COLORS
