ezolayers

custom acoustic panels

EzoLayers is a new revolution in color and acoustical material pairing the high-performance acoustics of EzoCore or  EzoBord with the beauty and soft touch of our EzoFelt acoustic felt layers.

EzoLayers create unlimited color and texture combinations for all your projects. All materials are made here in North America using recycled North American raw materials.

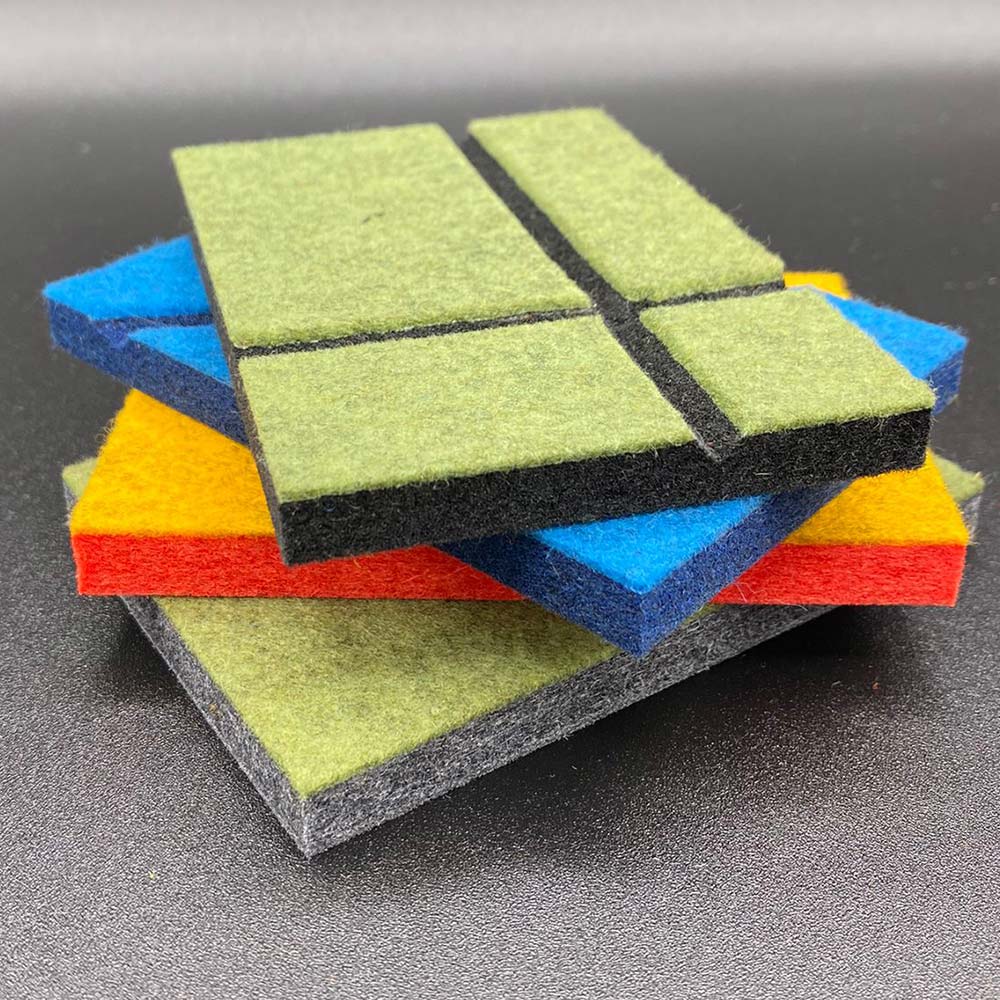

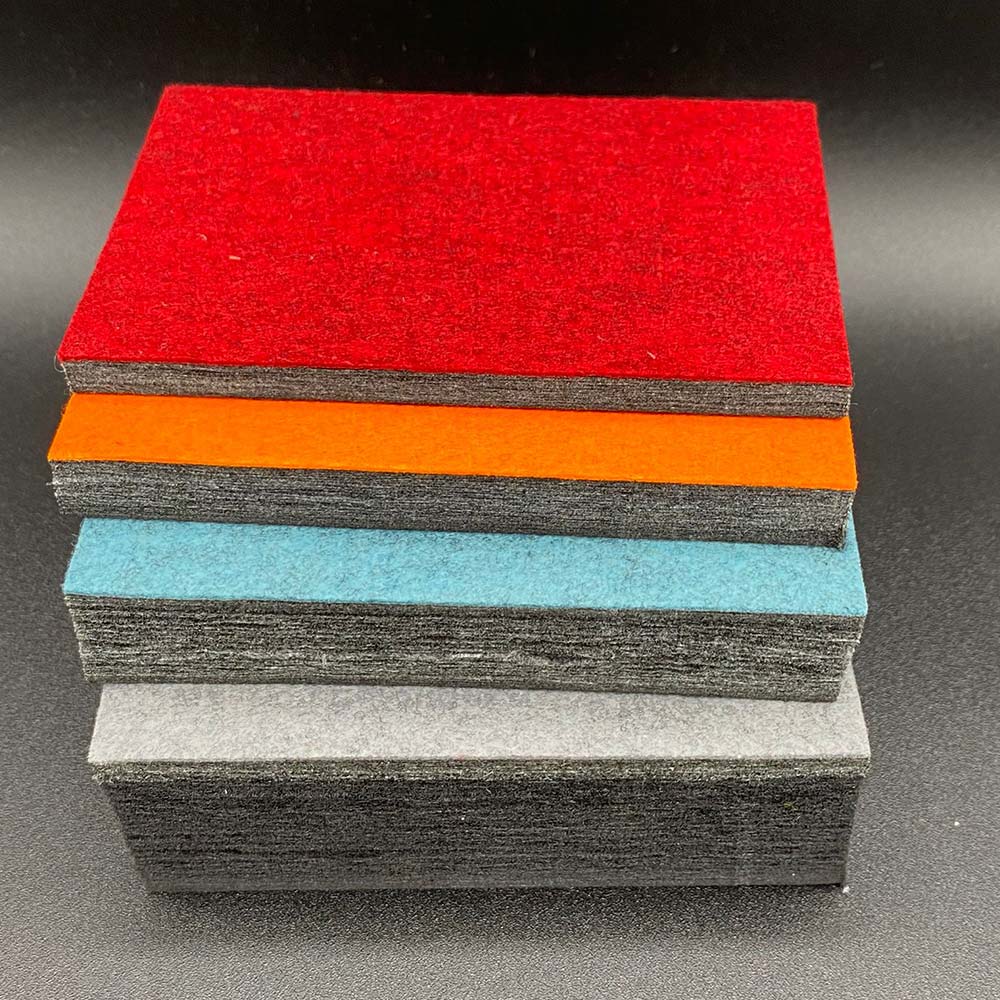

EzoFelt + EzoBord = EzoLayers

EzoFelt + EzoCore = EzoLayers

Acoustic Ceiling Baffles
Acoustic Ceiling Baffles
Acoustic Ceiling Baffles
Acoustic Ceiling Baffles

EZOlayers SPECIFICATIONS

EZOCORE or EZOBORD (BASE MATERIAL) + EZOFELT (SURFACE MATERIAL) = EZOLAYERS

Dimensions Thickness
48” (1219mm) x 108” (2743mm) 0.295”(7.5mm) (+/- 0.08” 2mm)
48” (1219mm) x 108” (2743mm) 0.531” (13.5mm) (+/- 0.08” 2mm)
48” (1219mm) x 108” (2743mm) 0.984” (25mm) (+/- 0.08” 2mm)
48” (1219mm) x 108” (2743mm) 1.968” (50mm) (+/- 0.08” 2mm)

ACOUSTICS

EzoLayers NRC
0.295″ (7.5mm) 0.35
0.531″ (13.5mm) 0.50
0.984″ (25mm) 0.80
1.968″ (50mm) 1.05

FIRE TESTING

ASTM E-84 Class A
CAN/ULC S102
EN 13501-1: 2007

ENVIRONMENT

Up to 60% +/- recycled PET, 100%
recyclable, formaldehyde free

LAYER MATERIAL (EZOFELT)

Grade 1 Grade 2
Weight 270 g/m2 approx. 200 g/m2 approx.
Width 72” (183cm) 78” (200cm)
Thickness 0.100“ (2.5mm) 0.068“ (1.75mm)*
Composition 100% PET recycled fiber 100% PET recycled fiber
Fire Rating ASTM E-84 Class A
CAN/ULC-S102
EN 13501-1: 2007
ASTM E-84 Class A
CAN/ULC-S102
EN 13501-1: 2007
Color Fastness to Light EN ISO 105B02:5-7
Abrasion Resistance iso12947-2 /ac>50.000 RUBS
Environment 100% Recyclable   Low VOC 100% Recyclable   Low VOC
Grade 1
Weight 270 g/m2 approx.
Width 72” (183cm)
Thickness 0.100“ (2.5mm)
Composition 100% PET recycled fiber
Fire Rating ASTM E-84 Class A
CAN/ULC-S102
EN 13501-1: 2007
Color Fastness to Light
Abrasion Resistance
Environment 100% Recyclable   Low VOC
Grade 2
Weight 200 g/m2 approx.
Width 78” (200cm)
Thickness 0.068“ (1.75mm)*
Composition 100% PET recycled fiber
Fire Rating ASTM E-84 Class A
CAN/ULC-S102
EN 13501-1: 2007
Color Fastness to Light EN ISO 105B02:5-7
Abrasion Resistance iso12947-2 /ac>50.000 RUBS
Environment 100% Recyclable   Low VOC

nOTE

Variation in color/tone may occur from print batch to print batch.Pre approval sample is required prior to production of order. Inquire with customer service for details.

Documentation

Downloads

Acoustics

Sound Absorption Test Data (ASTM C423-17)-EzoLayers 5-16” (7.5mm) No Air Gap
Sound Absorption Test Data (ASTM C423-17)-EzoLayers 1-2” (13.5mm)No Air Gap
Sound Absorption Test Data (ASTM C423-17)-EzoLayers 1” (25mm) No Air Gap
Sound Absorption Test Data (ASTM C423-17)-EzoLayers 2” (50mm) No Air Gap

Fire Test Data

Surface Burning Test (E84) EzoBord 3/8″ (9mm)
Surface Burning Test CAN-ULC S102.2 EzoBord 3/8″ (9mm)
EN 13501 1 2007 Classification or EzoBord 3/8″ (9mm)
Surface Burning Test (E84) EzoBord 1/2″ (12mm)
Surface Burning Test (CAN-ULC S10.2) EzoBord 1/2″ (12mm)
EN 13501 1 2007 classification for EzoBord 1/2″ (12mm) FR
Surface Burning Characteristics (ASTM E84) – EzoLayers 1″ (25mm)
Surface Burning Characteristics (ASTM E84) – EzoLayers 2″ (50mm)

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING

North America:

ASTM E-84 Class A
CAN ULC S102-10

Europe and UK:
EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.
