Geo Clouds provide on the spot sound absorption while staying minimalist, coherent, yet noticeable.
Available in both standard and custom shape options, Geo Clouds help define any architectural space.
Key Features
Geo Clouds can be combined with Geo Tiles for a continuous flow from ceilings to walls.
Geo Clouds can also be inclined using appropriate installation methods.
Models
Circle
Circle
Small: Diameter 31” (787mm)
Medium: Diameter 41" (1041.4mm)
Height: 2" (48mm)
Thickness: 3/8" (9mm) & 1/2" (12mm)
Diamond
Diamond
Hexagon
Hexagon
Square
Square
Triangle
Triangle
Trapezoid
Trapezoid
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Specifications
- Available in 30 standard colors
- 2″ (51mm) thick border for standard Geo Clouds, 1″ (25mm) thick border for Circle Geo Clouds

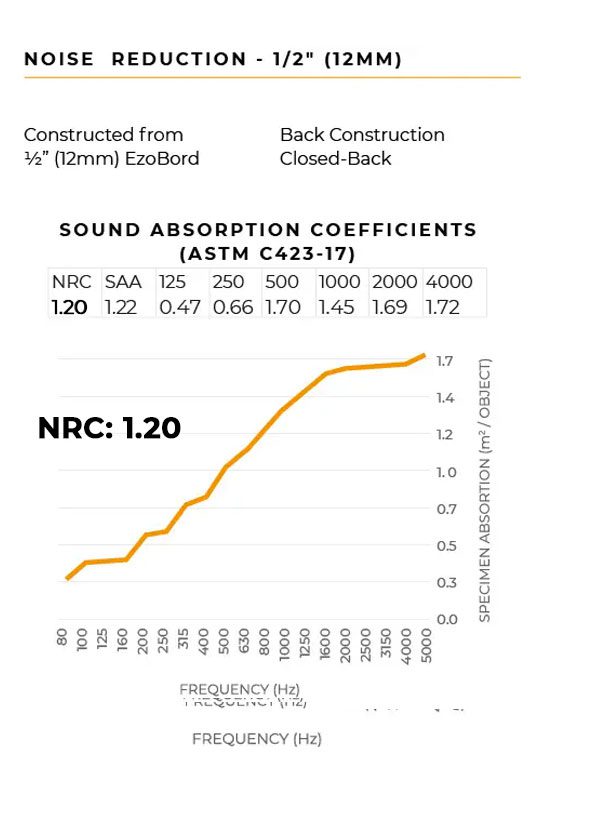

- Superior sound absorption characteristics (Apparent NRC: 1.20, SAA: 1.22, ASTM C423, 12mm material thickness, closed-back design)
- Made from 100% polyester, approximately 50% of which are recycled water bottles
- Manufactured without use of formaldehydes, adhesives or other bonding agents
- No volatile organic compounds (VOCs)
- Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant

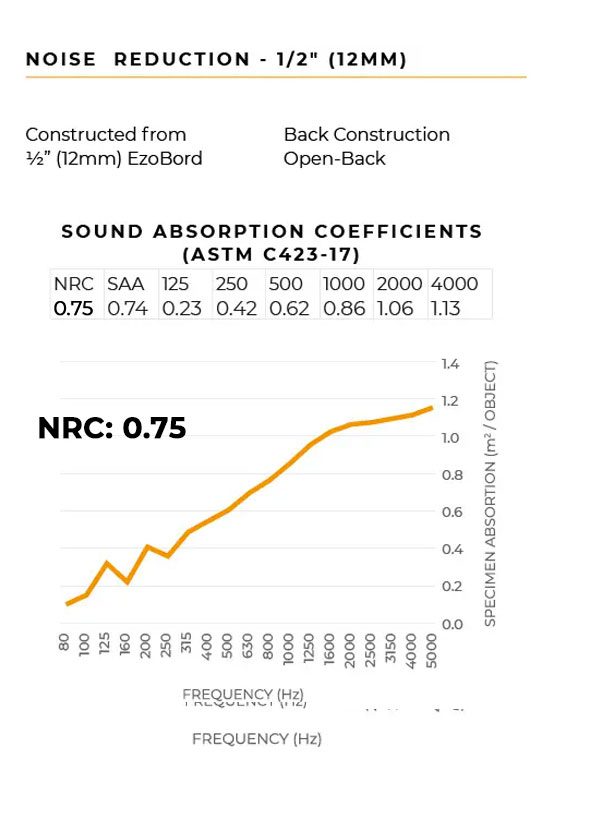

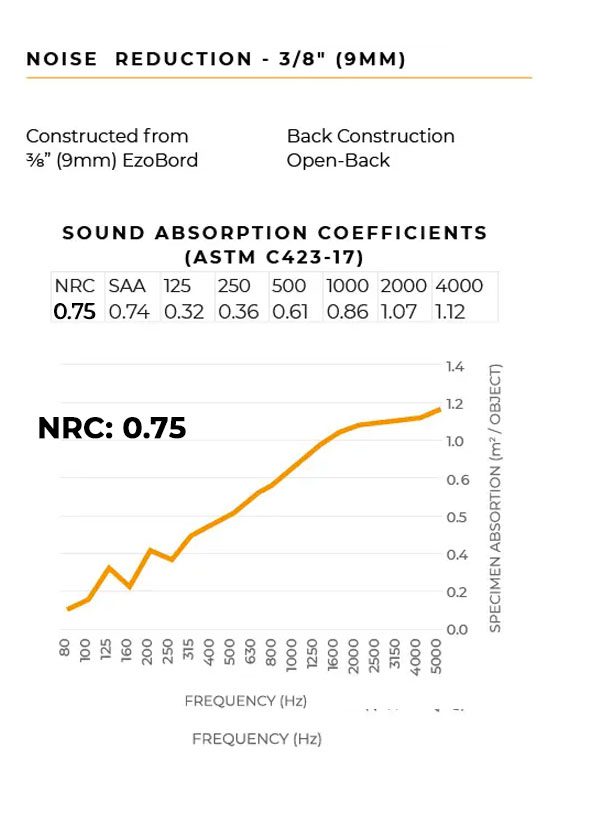

Geo Cloud – Open-Back and Closed-Back
| CIRCLE | ||
| DIAMETER | HEIGHT | |
| 30” (762mm) | 1” (25mm) | |
| 41” (1041mm) | 1” (25mm) | |
| SQUARE | ||
| LENGTH | WIDTH | HEIGHT |
| 31” (787mm) | 31” (787mm) | 2” (51mm |
| 41” (1041mm) | 41” (1041mm) | 2” (51mm |
| DIAMOND | ||
| LENGTH | WIDTH | HEIGHT |
| 13 ½” (343mm | 31” (787mm) | 2” (51mm) |
| 20 ½” (521mm) | 41” (1041mm) | 2” (51mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Geo Clouds Brochure.
To get the complete set of dimensions please download Geo Clouds Brochure.
Specific product files
Specific product design files
Installation Instructions
Customizable Parameters
- Geometric Properties: Length, height, width and shape
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Available options below
- Digital Print: Custom graphics and textures can be printed on surfaces
COLORS
Light Beige
LB01
Desert Sand
DS10
Sunny Days
SD18
Tiger Orange
TO24
Ruby Red
RR28
Deep Purple
DP30
Polar Ice
PI14
Midnight Navy
MN12
Green Apple
GA41
Classic White
CW04
Silver Gray
2-400ML
Dark Gray
DG34
Ebony Slate
ES07
Charcoal Gray
CG06
Pure Black
PB09
Tree Bark
TB35
Brick Red
BR34
Grape Vine
GV36
Ocean Blue
OB14
Royal Blue
RB08
Moss Green
MG10
Elephant Gray
EG11
Bold Gray
BG07
