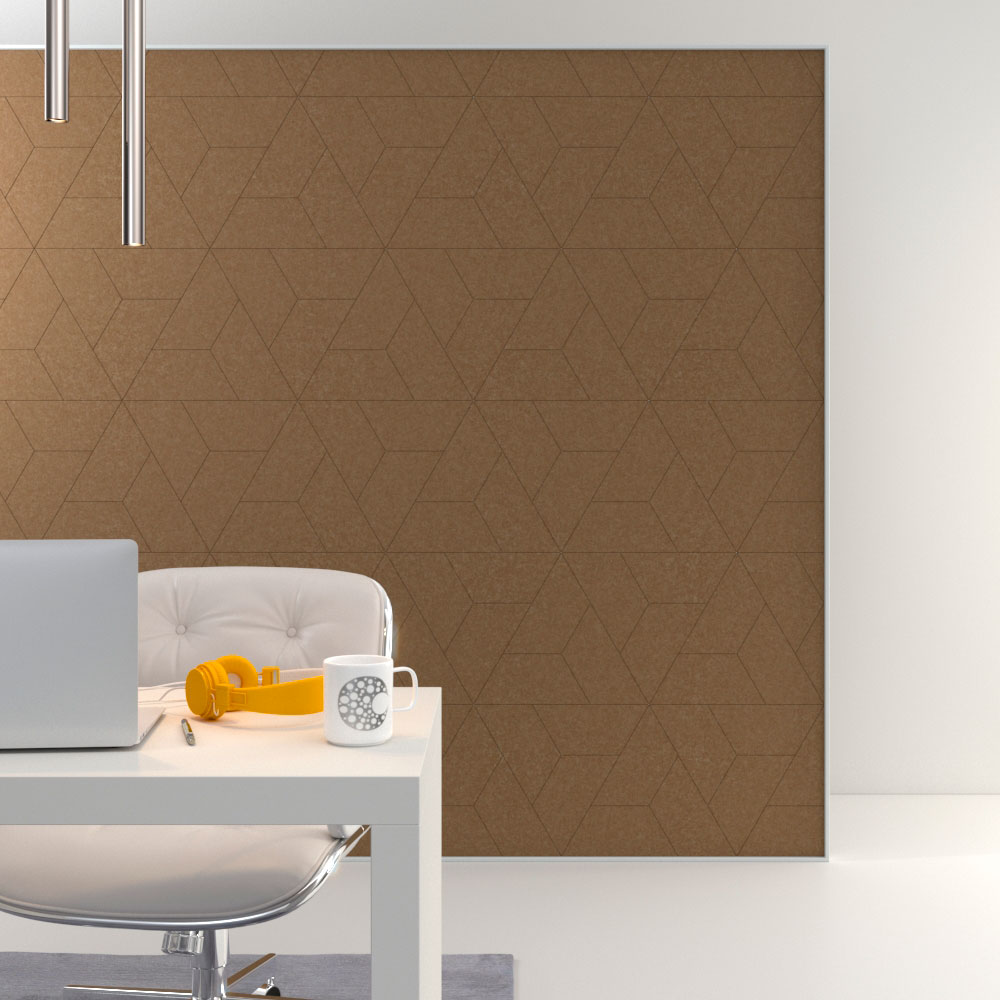

Geo Tiles can be applied to any wall made of any material to control excess reverberation. Availability of shape, size and color variations, provide endless possibilities for designers looking for visually appealing tessellations and original compositions.

Geo Tiles allow for endless patterning and are offered in a wide range of colors to be applied in any combination imaginable.

Isoceles Geo Tile

Chevron GeoTile

Fan Geotile

Diamond Geo Tile

Key Features

Geo Tiles are super light weight and easy to install with optional pressure sensitive EzoTape on virtually any surface.

GEO TILE Models

Enhanced V-Notch Geo Tiles

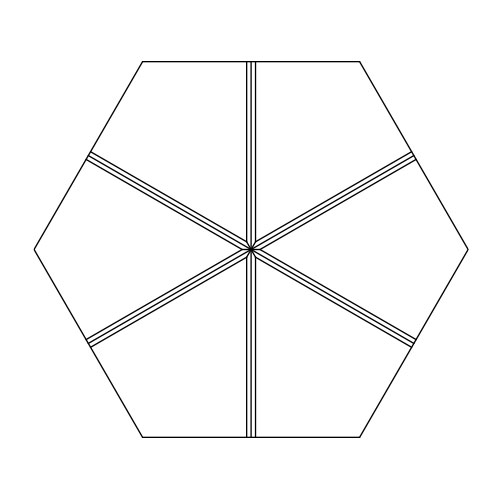

Hexagon union

Hexagon union

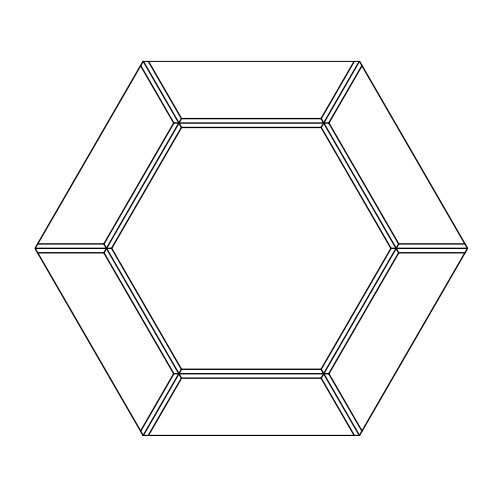

Hexagon inception

Hexagon inception

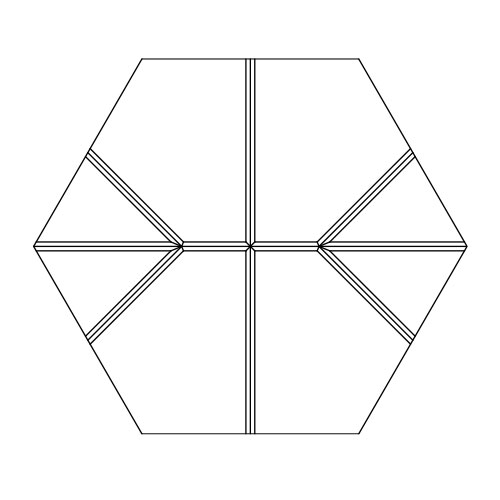

hexagon snowfall

hexagon snowfall

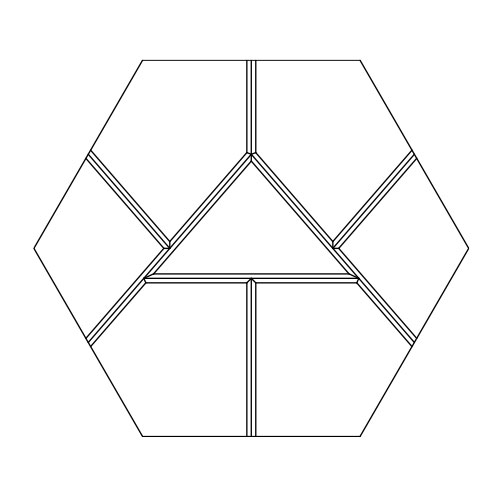

hexagon Arrow

Hexagon Arrow

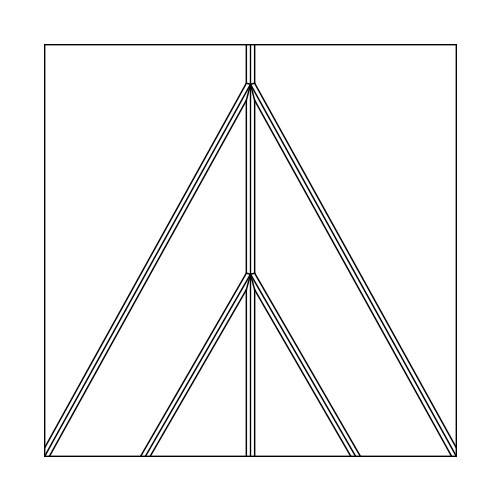

Square Rise

Square Rise



square target

square target

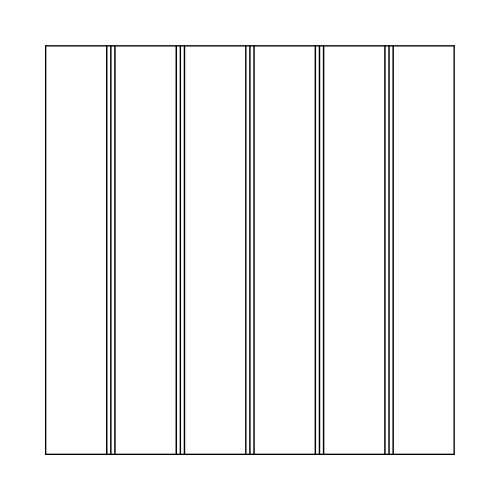

square picket

square picket

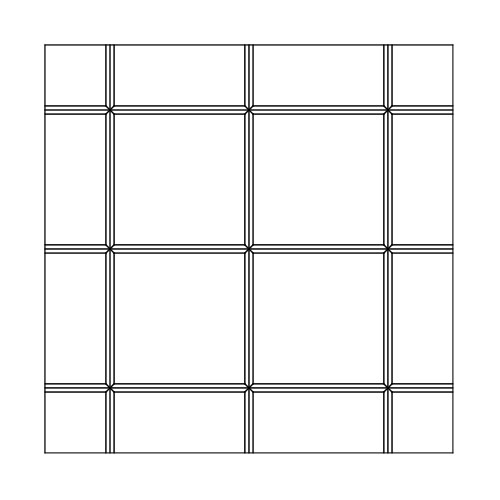

square plaid

square plaid



Square stitch

Square stitch



square cross

square cross

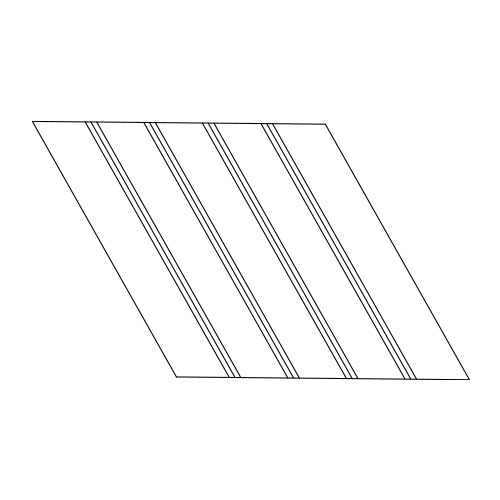

diamond strike

diamond strike



Standard Shapes

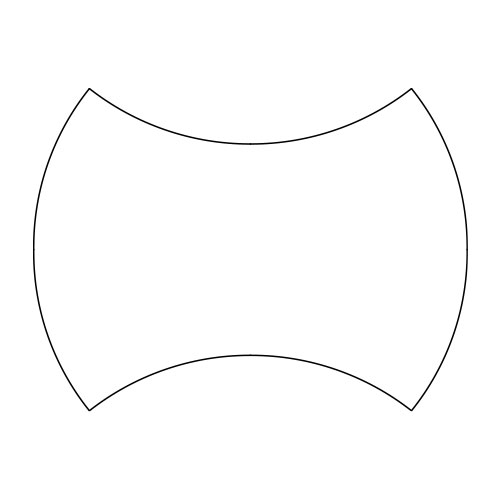

bowtie

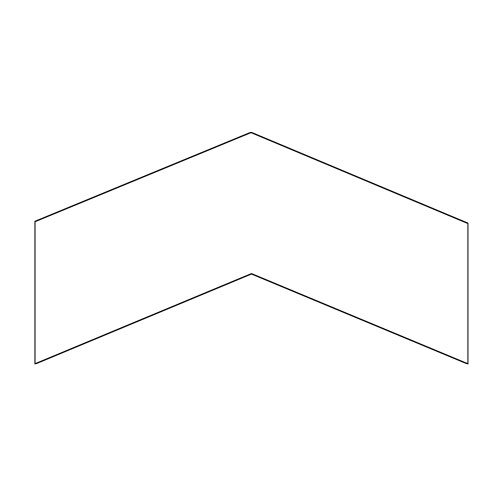

chevron

chevron

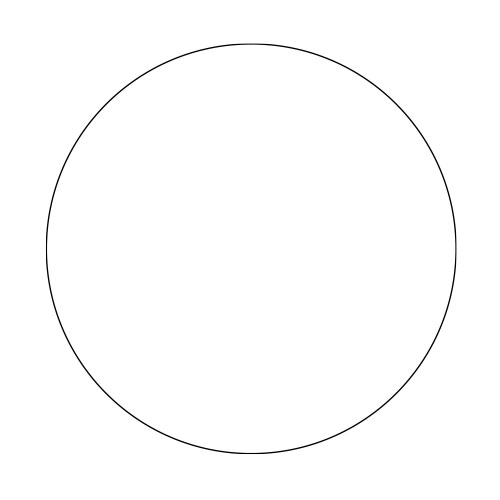

circle

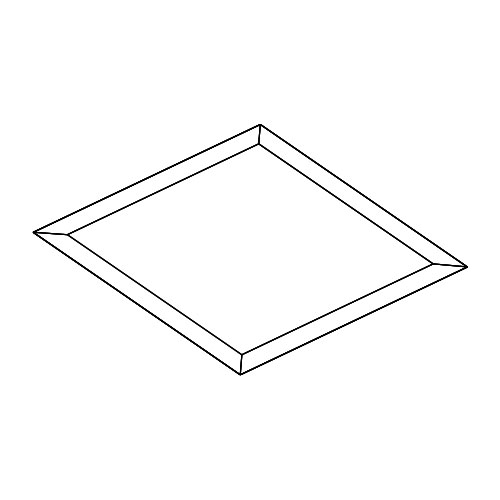

diamond

diamond

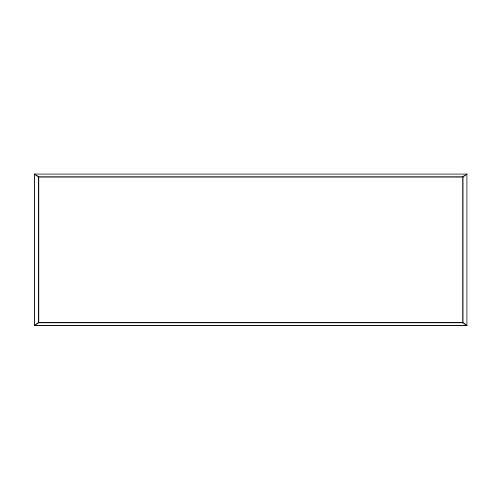

strip

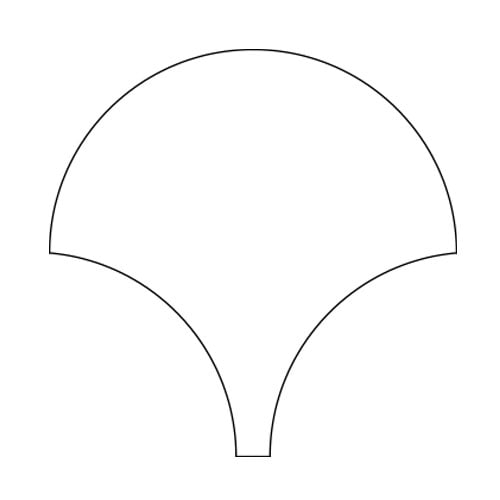

fan

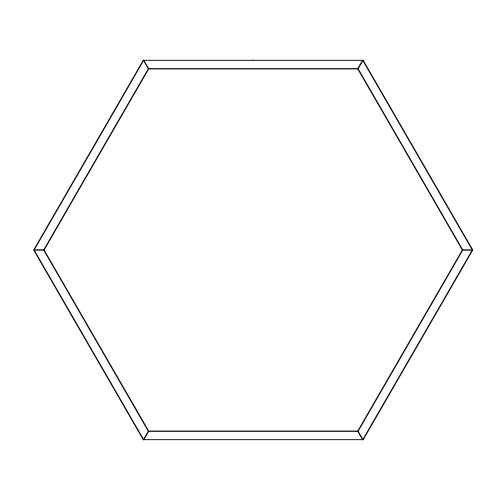

hexagon

hexagon

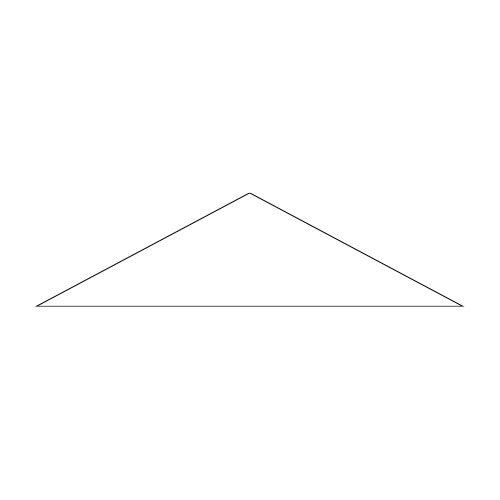

isoceles

isoceles

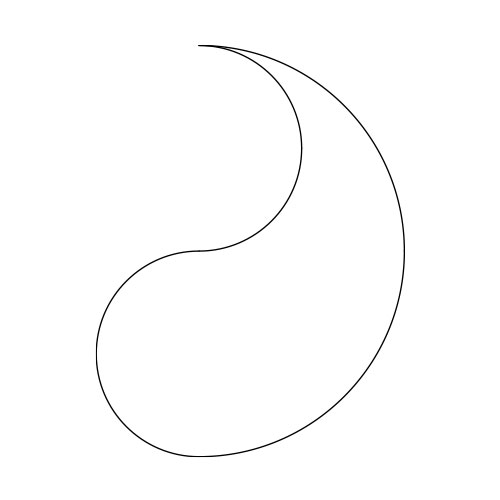

paisley

paisley

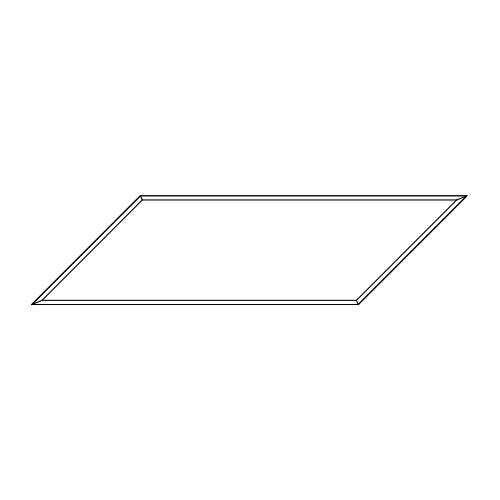

paralellogram

paralellogram

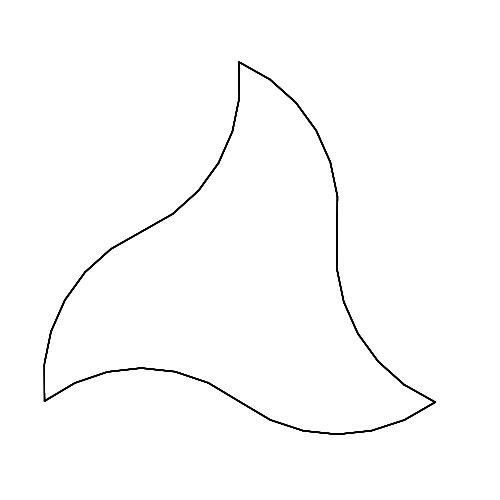

propeller

propeller



puzzle

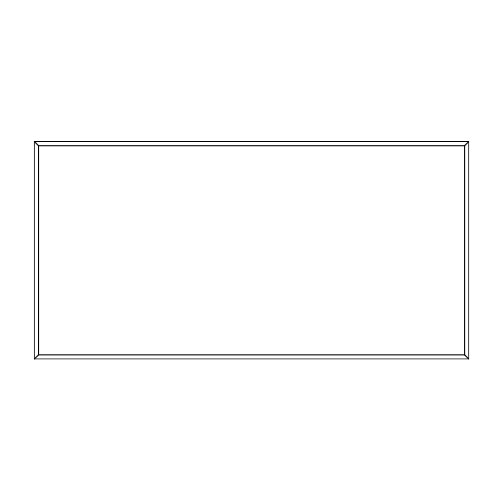

rectangle

rectangle



square

trapezoid

trapezoid



chevron

chevron

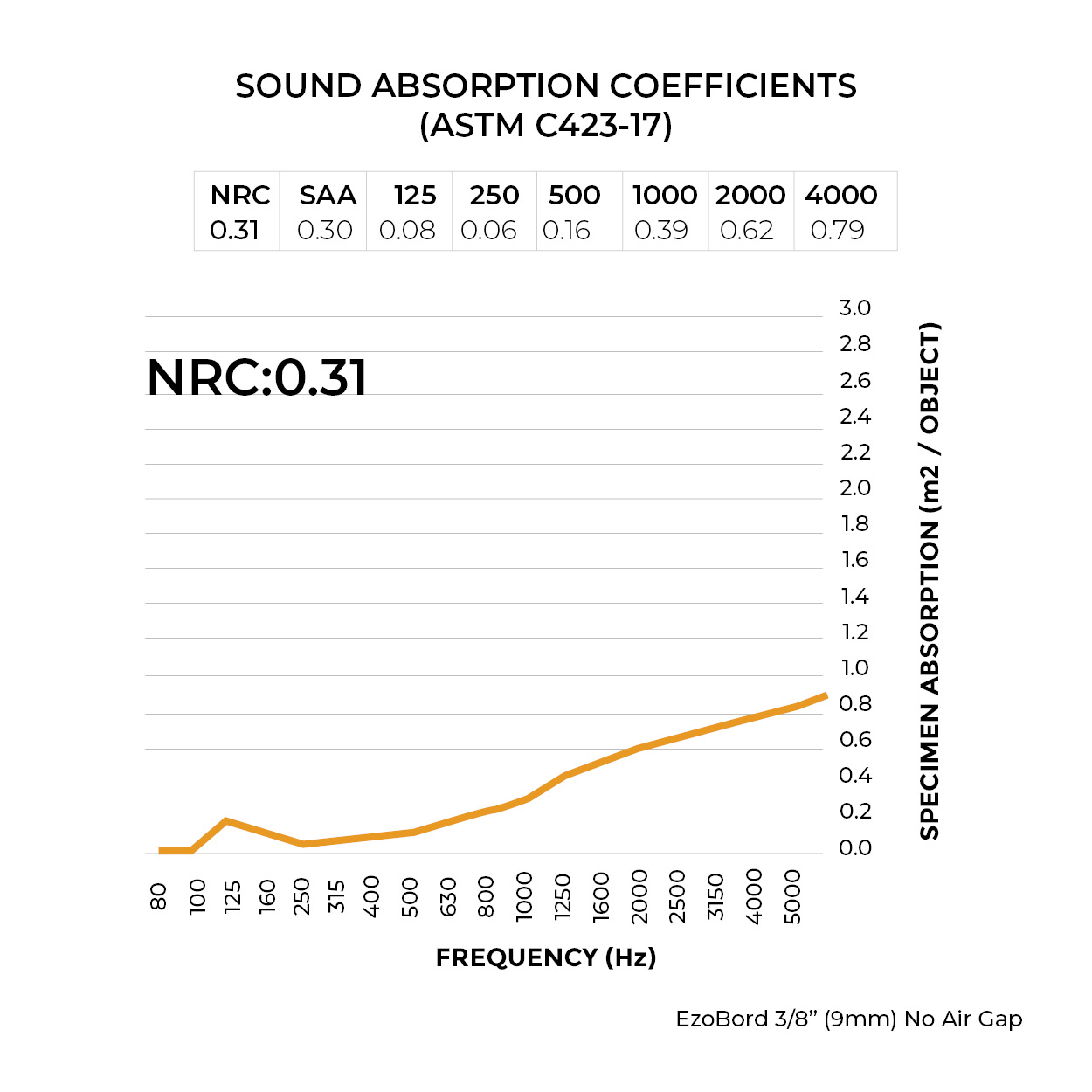

Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

3/8” (9mm)
1/2” (12mm)

documentation

f
Specifications
1
Dimensions
Downloads
Customizable parameters

Specifications

COMPOSITION

100% pet (min. 50% recycled content)

FEATURES

  • Available in 30 standard color combinations.
  • Easy and unobtrusive mounting
  • Fully tackable surface

 ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.75, SAA: 0.58, ASTM C423, 9mm material thickness)

FIRE TESTING

North America:

  • ASTM E-84 Class A
  • CAN/ULC S102-10

Europe and UK:
EN13501-1: 2007

GEO TILES- STANDARD-ENHANCED
STYLE    WIDTH      HEIGHT     THICKNESS
Bow Tie 6″ (152mm) 4.4″ (112mm) 3/8″ (9mm)
Chevron 12″ (304.8mm) 6.55″ (166.37mm) 3/8″ (9mm)
Triangle 6″ (152mm) 5.2″ (132mm) 3/8″ (9mm)
Circle 6″ (152mm) 6″ (152mm) 3/8″ (9mm)
Rectangle 23.5″ (597mm) 11.5″ (292mm) 3/8″ (9mm)
Paisley 9″ (229mm) 12″ (305mm) 3/8″ (9mm)
Hexagon Union 24″ (610mm) 20.78″ (528mm) 3/8″ (9mm)
Hexagon Inception 24″ (610mm) 20.78″ (528mm) 3/8″ (9mm)
Hexagon Snowfall 24″ (610mm) 20.78″ (528mm) 3/8″ (9mm)
Hexagon Arrow 24″ (610mm) 20.78″ (528mm) 3/8″ (9mm)
Square Rise 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Square Target 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Square Picket 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Square Plaid 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Square Stitch 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Square Cross 23″ (584mm) 23″ (584mm) 3/8″ (9mm)
Diamond Strike 24″ (610mm) 13.86″ (352mm) 3/8″ (9mm)

Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Geo Tiles Brochure.



To get the complete set of dimensions please download Geo Tiles Brochure.

Icon

Curv Ceiling Baffles Brochure 1.44 MB 555 downloads

...

Specific product files

Icon

Enhanced Geo Tiles Brochure 1.18 MB 337 downloads

...

Product models design files

Icon

Geo Tiles models design files 308.26 KB 125 downloads

...

Installation Instructions

Icon

Geo Tile Installation 1.65 MB 149 downloads

...
Icon

Geo Tile Stand Off Installation 567.94 KB 113 downloads

...
Icon

ezo Tape Installation 570.60 KB 299 downloads

...

Customizable Parameters



  • Geometric Properties: Dimensions and shape
  • Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
  • Color: Available options below


AVAILABLE COLORS
