Geo Clouds provide on the spot sound absorption while staying minimalist, coherent, yet noticeable.

Available in both standard and custom shape options, Geo Clouds help define any architectural space.

Hexagon Geo Cloud

Green Hexagon Geo Clouds

Circle Geo Cloud

Square Geo Clouds

Key Features

Geo Clouds can be combined with Geo Tiles for a continuous flow from ceilings to walls.

Geo Clouds can also be inclined using appropriate installation methods.



Models

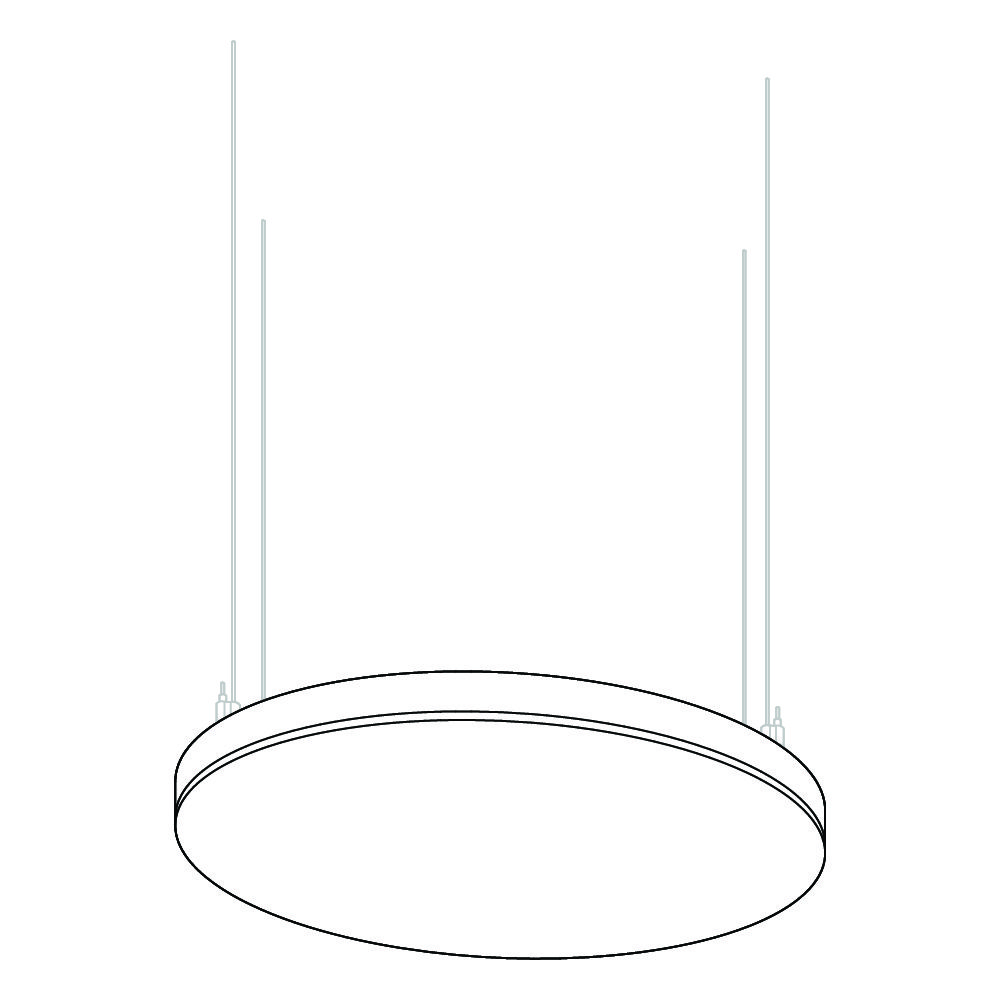

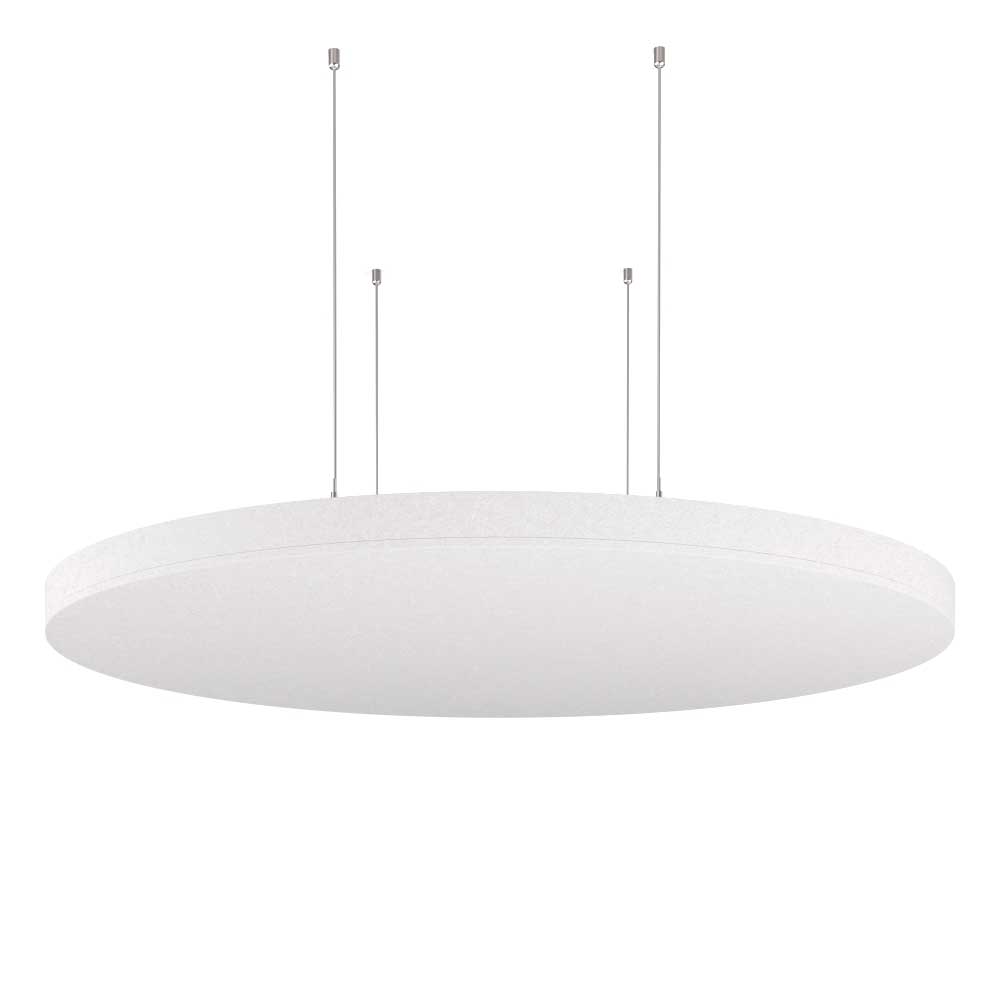

Circle

Circle

Small: Diameter 31” (787mm)
Medium: Diameter 41" (1041.4mm)
Height: 2" (48mm)
Thickness: 3/8" (9mm) & 1/2" (12mm)

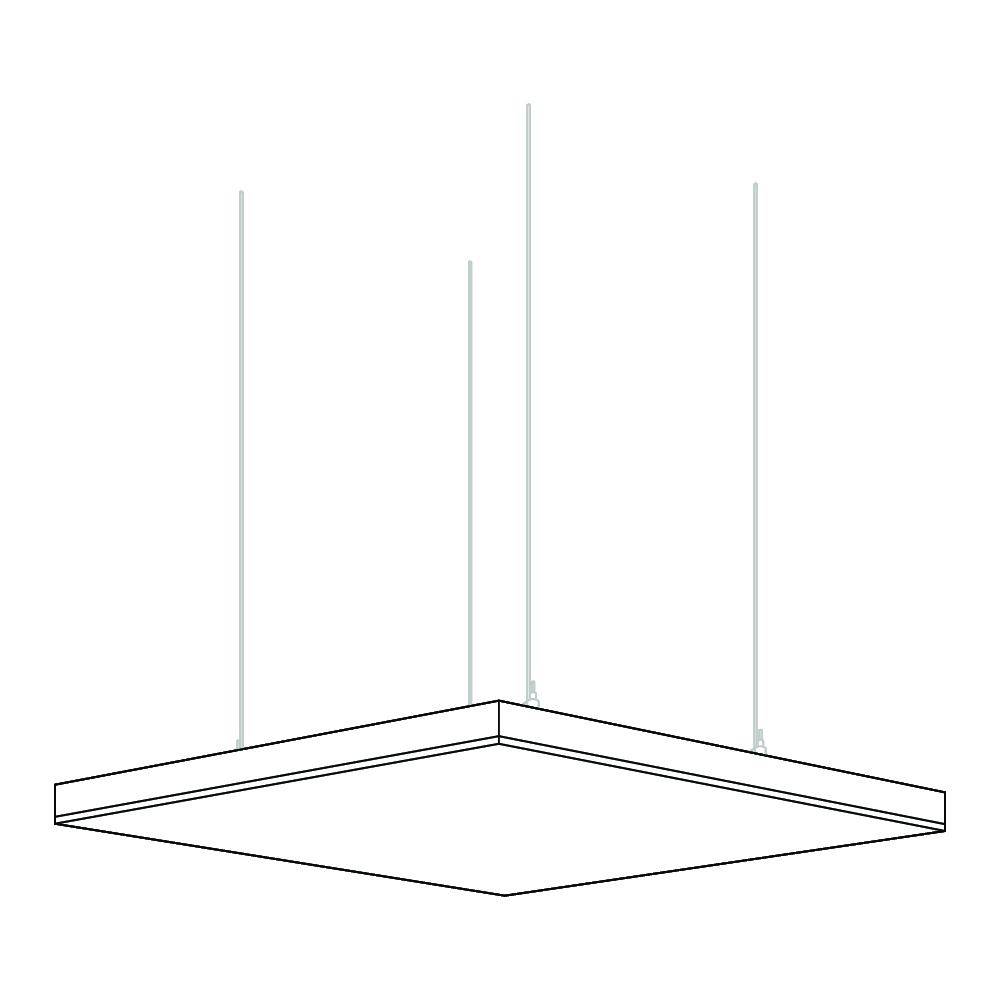

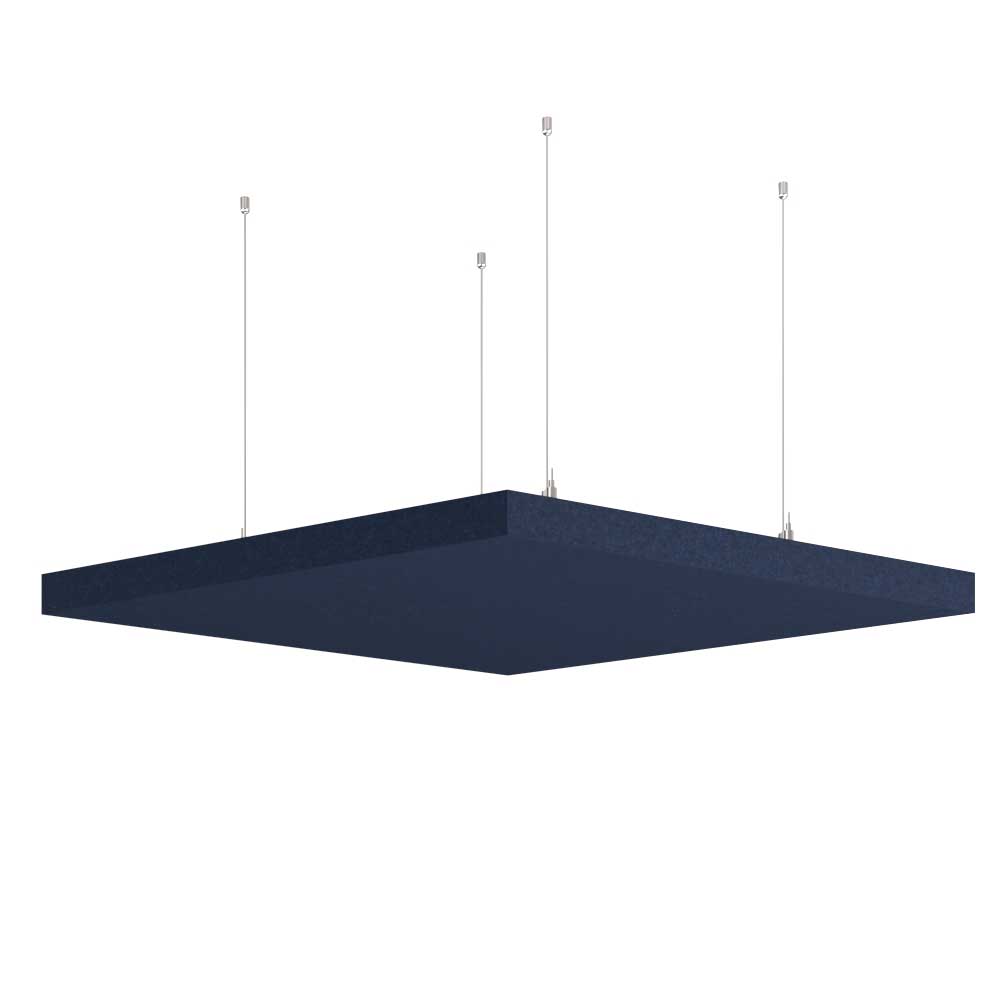

Diamond

Diamond

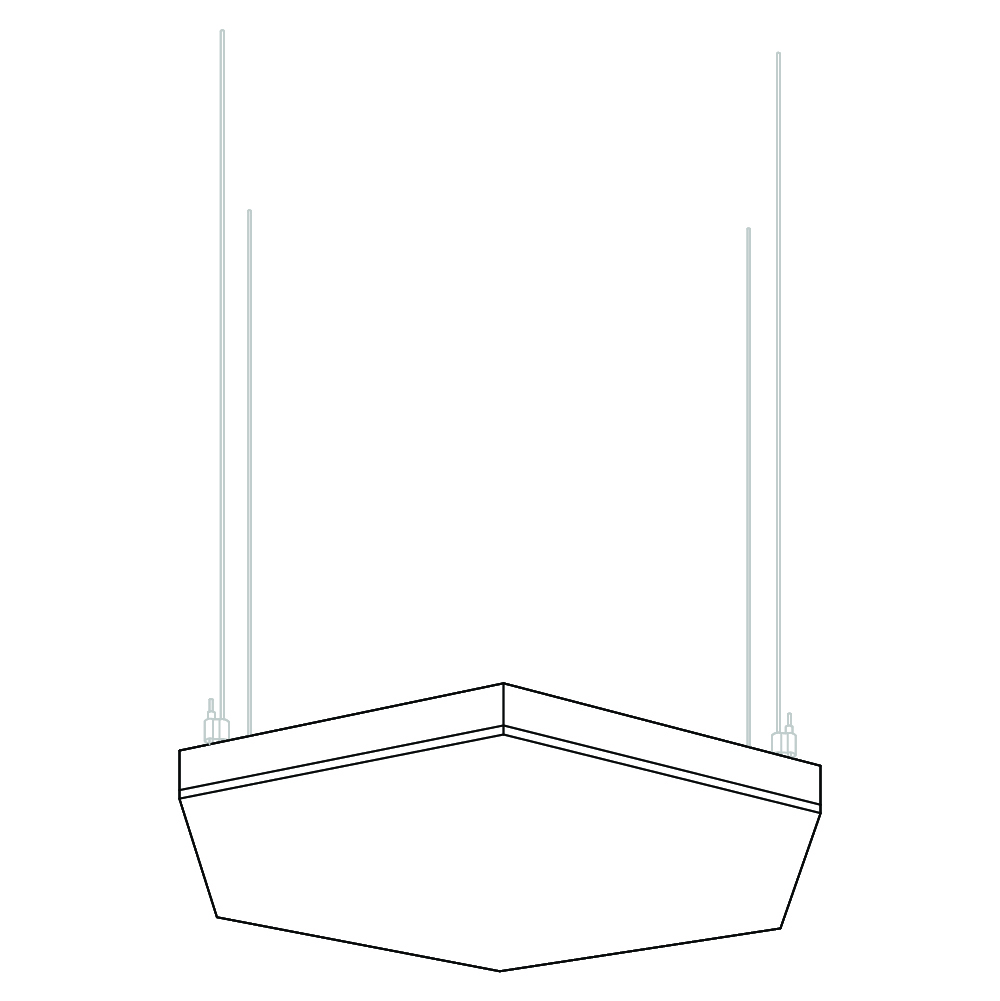

Hexagon

Hexagon

Hexagon

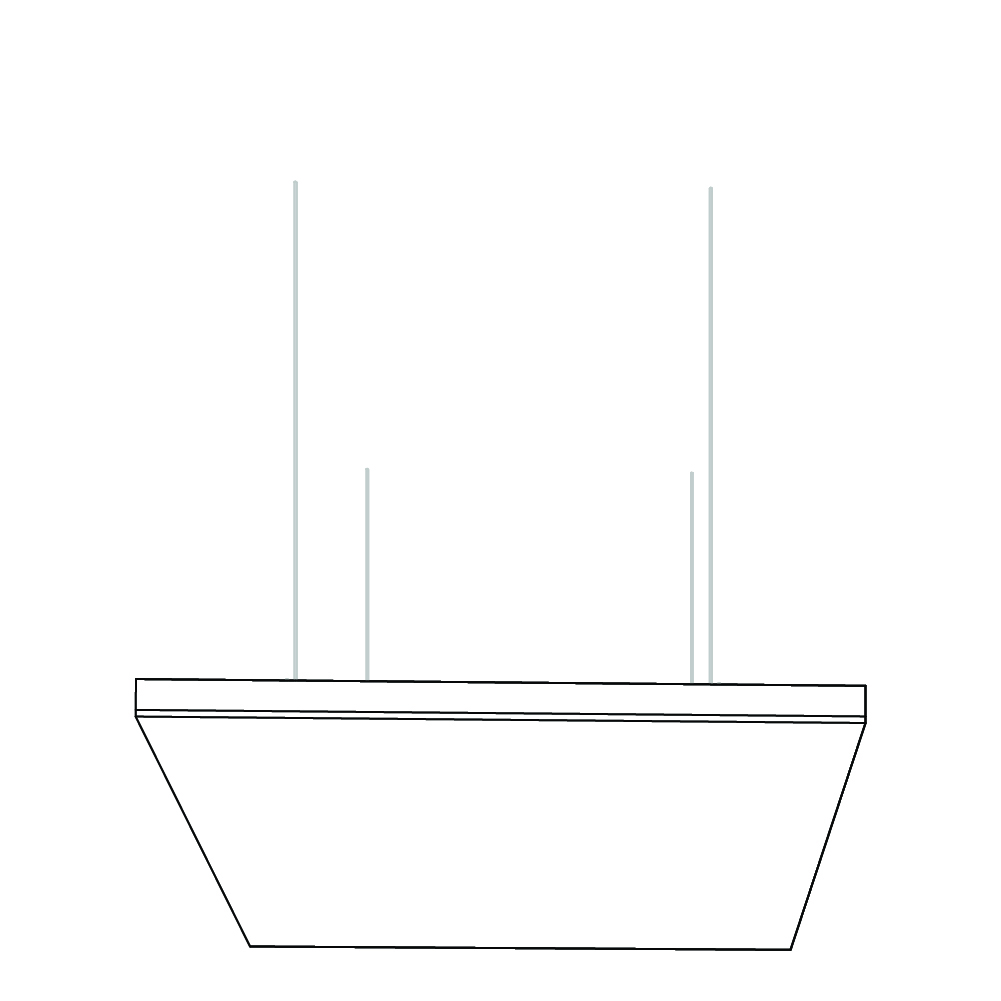

Square

Triangle

Triangle

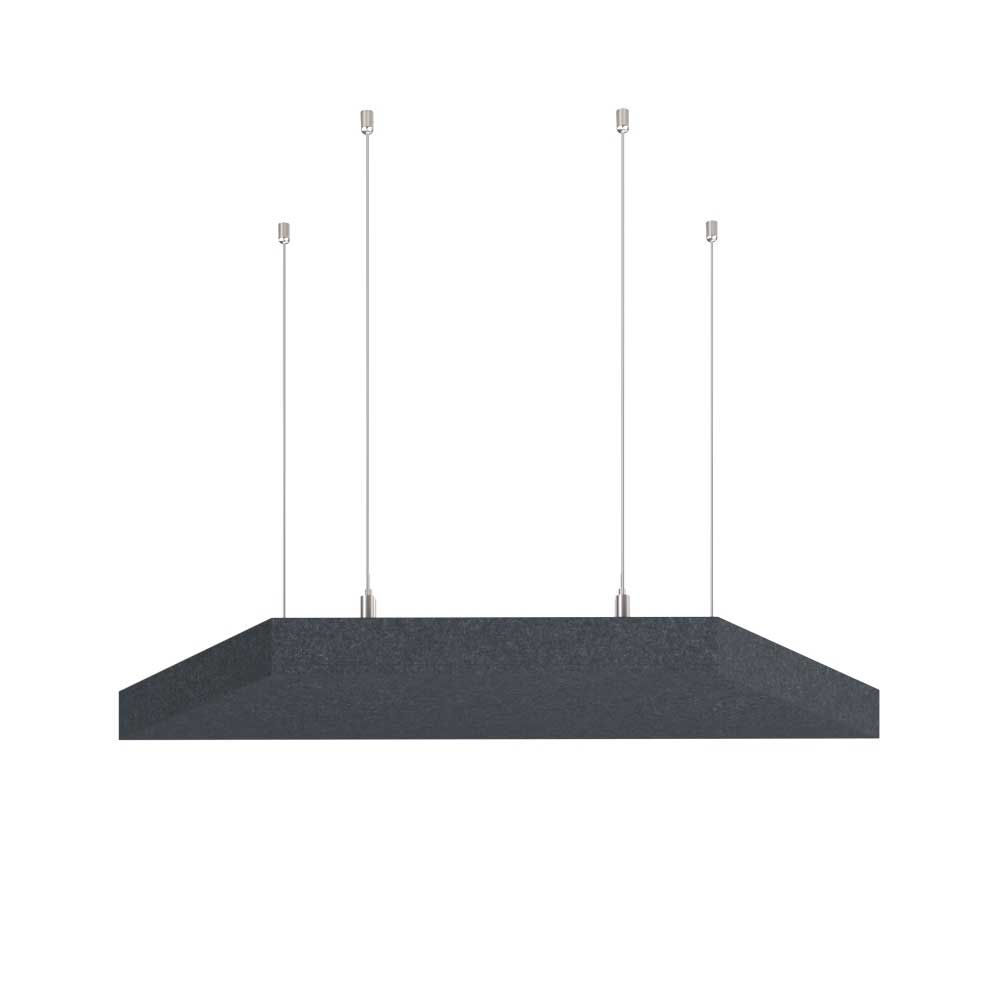

Trapezoid

Trapezoid



Sound Absorption Performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

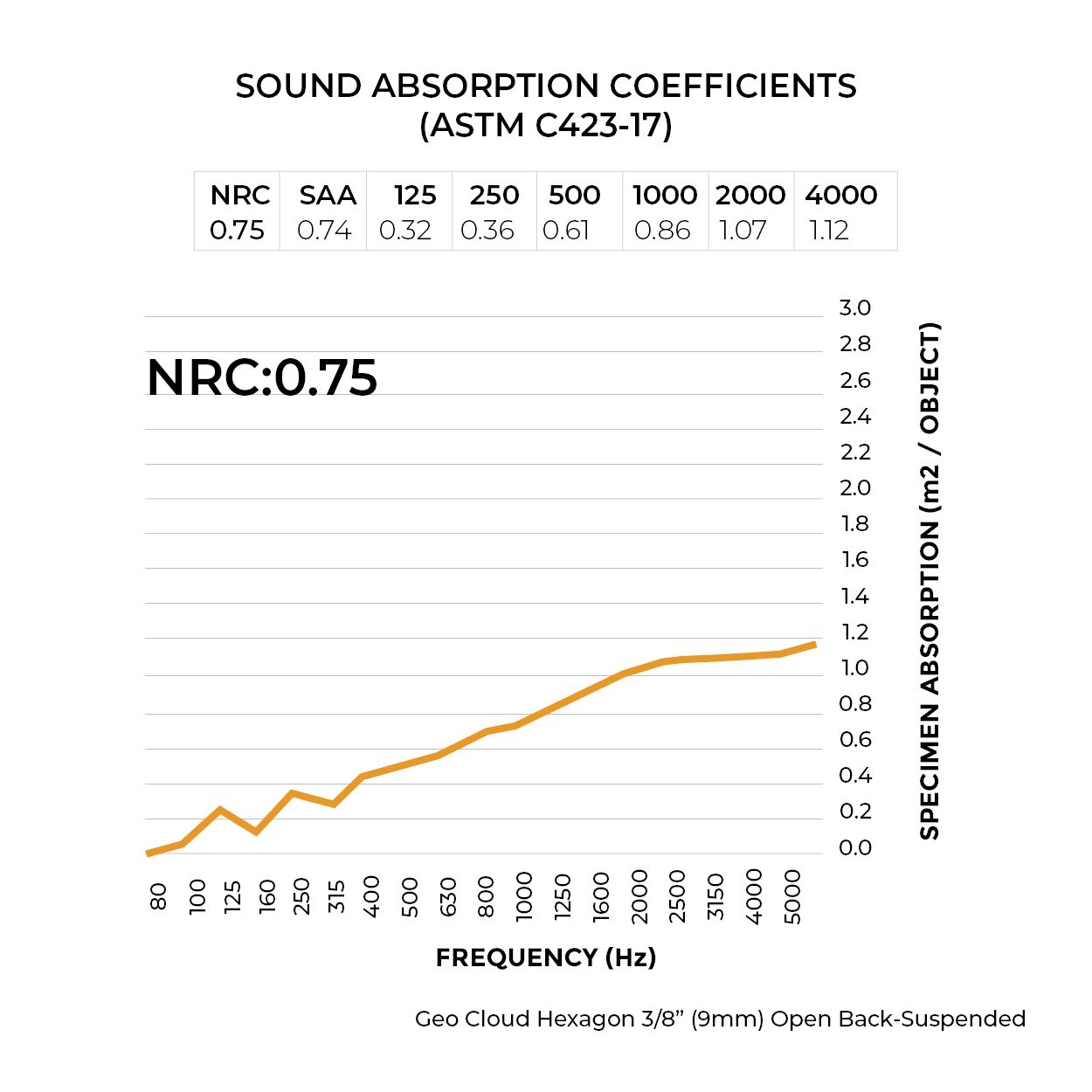

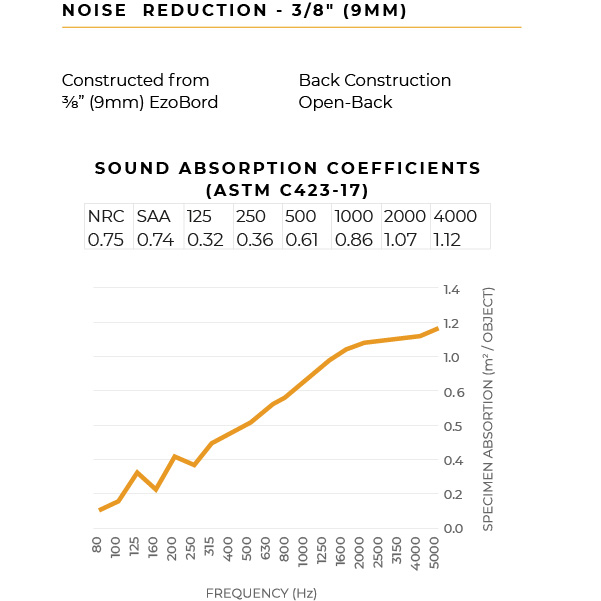

3/8” (9mm)
Open-Back

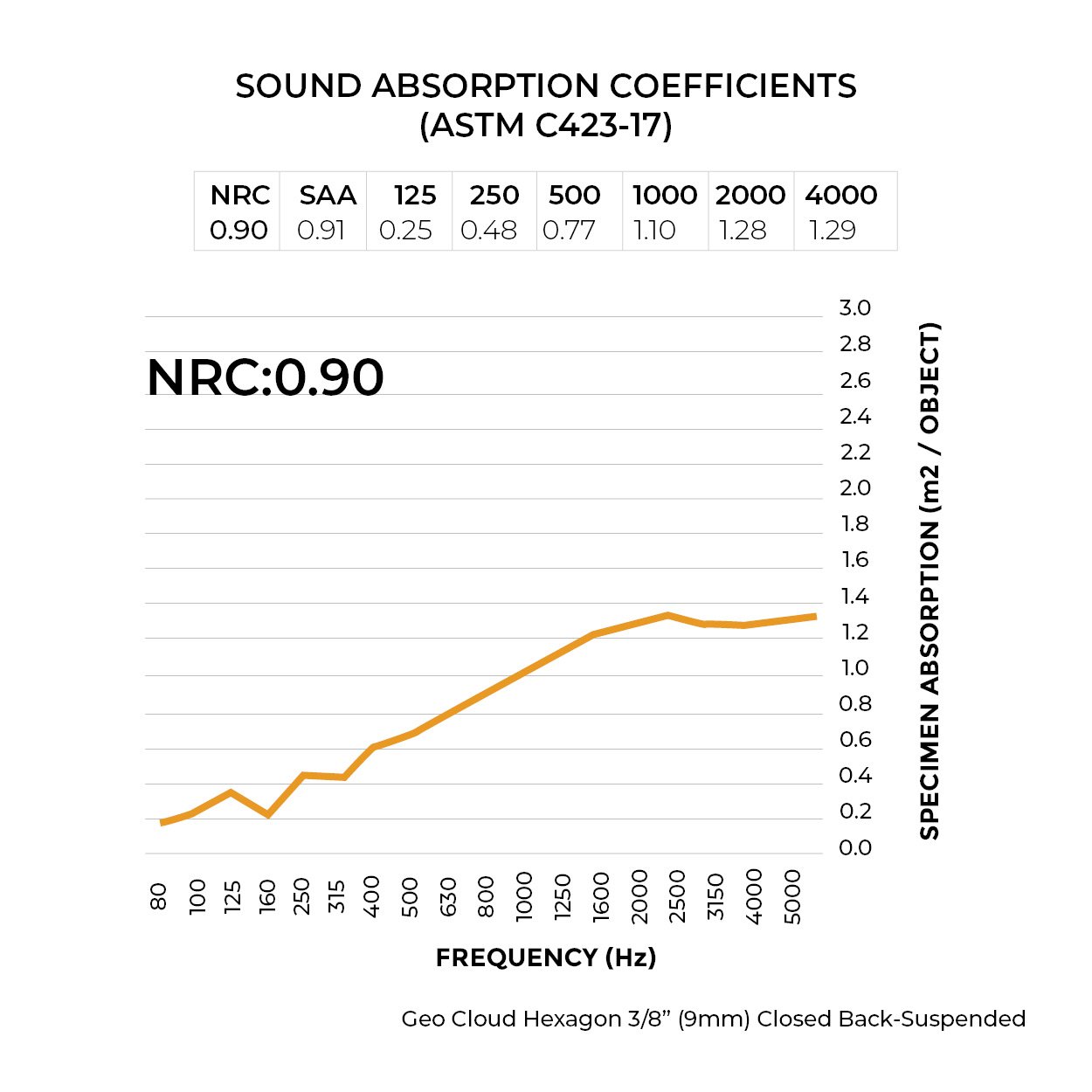

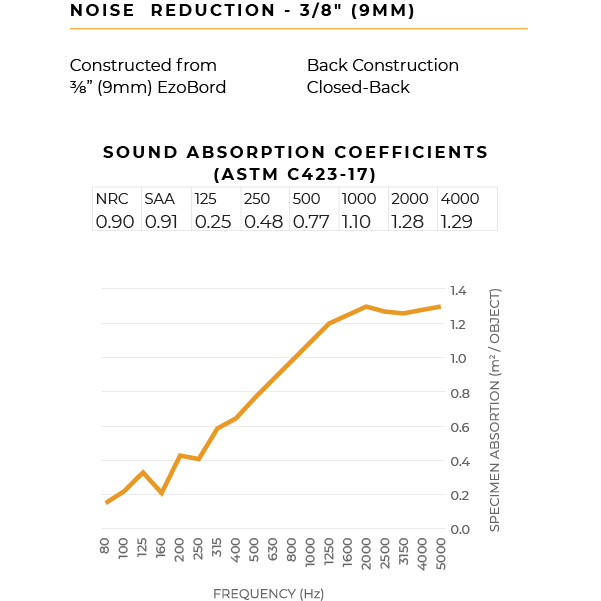

3/8” (9mm)
Closed-Back

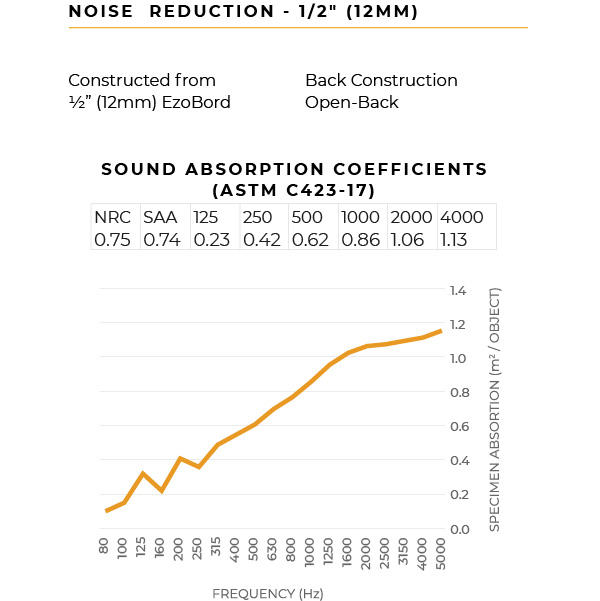

1/2” (12mm)
Open-Back

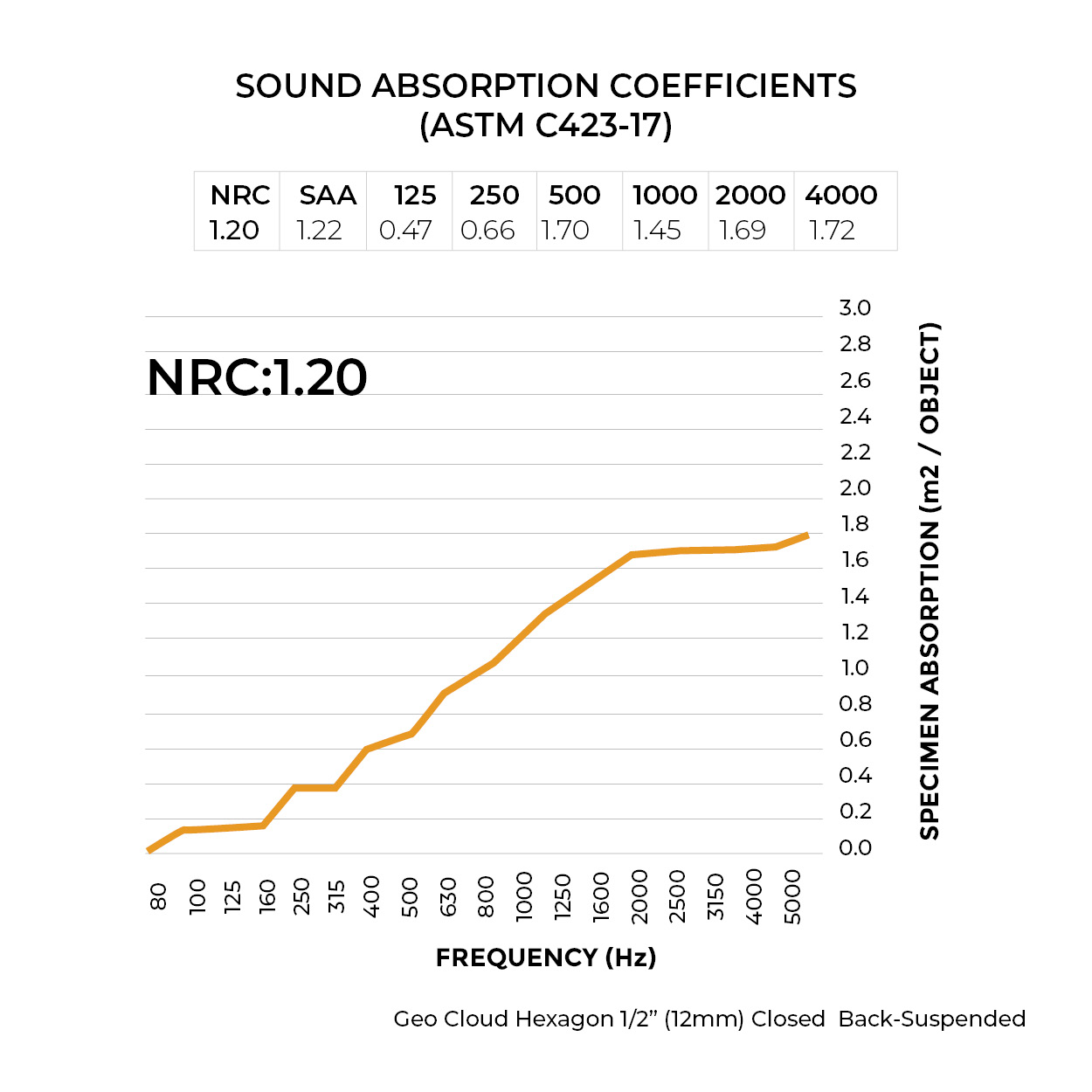

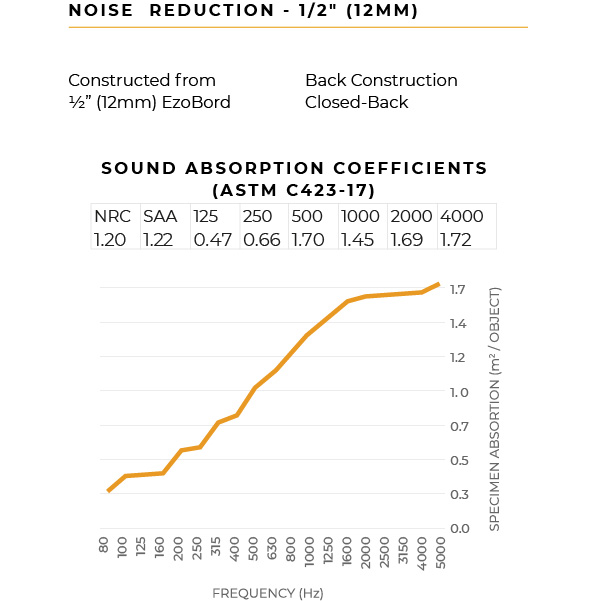

1/2” (12mm)
Closed-Back

documentation

f
Specifications
1
Dimensions
Downloads
Customizable parameters

Specifications



  • Available in 30 standard colors
  • 2″ (51mm) thick border for standard Geo Clouds, 1″ (25mm) thick border for Circle Geo Clouds
  • Superior sound absorption characteristics (Apparent NRC: 1.20, SAA: 1.22, ASTM C423, 12mm material thickness, closed-back design)
  • Made from 100% polyester, approximately 50% of which are recycled water bottles
  • Manufactured without use of formaldehydes, adhesives or other bonding agents
  • No volatile organic compounds (VOCs)
  • Flame spread and smoke development test data available: ASTM E84 (Class A or Class 1) CAN/ULC S102 (FSR:20, SDC:325), EN ISO 13501-1 (b-s1, d0). EN ISO 11925-2 and EN 13823 compliant
Geo Cloud – Open-Back and Closed-Back
CIRCLE
DIAMETER HEIGHT
30” (762mm)   1” (25mm)
41” (1041mm)   1” (25mm)

SQUARE
LENGTH       WIDTH      HEIGHT
31” (787mm) 31” (787mm)  2” (51mm
41” (1041mm) 41” (1041mm)  2” (51mm

DIAMOND
LENGTH       WIDTH      HEIGHT
13 ½” (343mm 31” (787mm) 2” (51mm)
20 ½” (521mm) 41” (1041mm) 2” (51mm)


Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.

This is a portion of the complete set of dimensions, to get the full list, please download Geo Clouds Brochure.

Icon

Geo Cloud Brochure 1.89 MB 332 downloads

...

To get the complete set of dimensions please download Geo Clouds Brochure.

Icon

Geo Cloud Brochure 1.89 MB 332 downloads

...

Specific product files

Icon

Geo Cloud Brochure 1.89 MB 332 downloads

...

Specific product design files

Icon

Geo Cloud models design files revit 14.87 MB 33 downloads

...
Icon

Geo Cloud – Circle – 3D – CAD 154.50 KB 28 downloads

...
Icon

Geo Cloud – Square – 3D – CAD 172.82 KB 22 downloads

...



Installation Instructions

Icon

Geo Cloud Installation 1.90 MB 103 downloads

...

Icon

Circle Geo Cloud Installation 1.85 MB 106 downloads

...

Customizable Parameters



  • Geometric Properties: Length, height, width and shape
  • Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
  • Color: Available options below
  • Digital Print: Custom graphics and textures can be printed on surfaces

COLORS
