tac panels acoustic pinboards

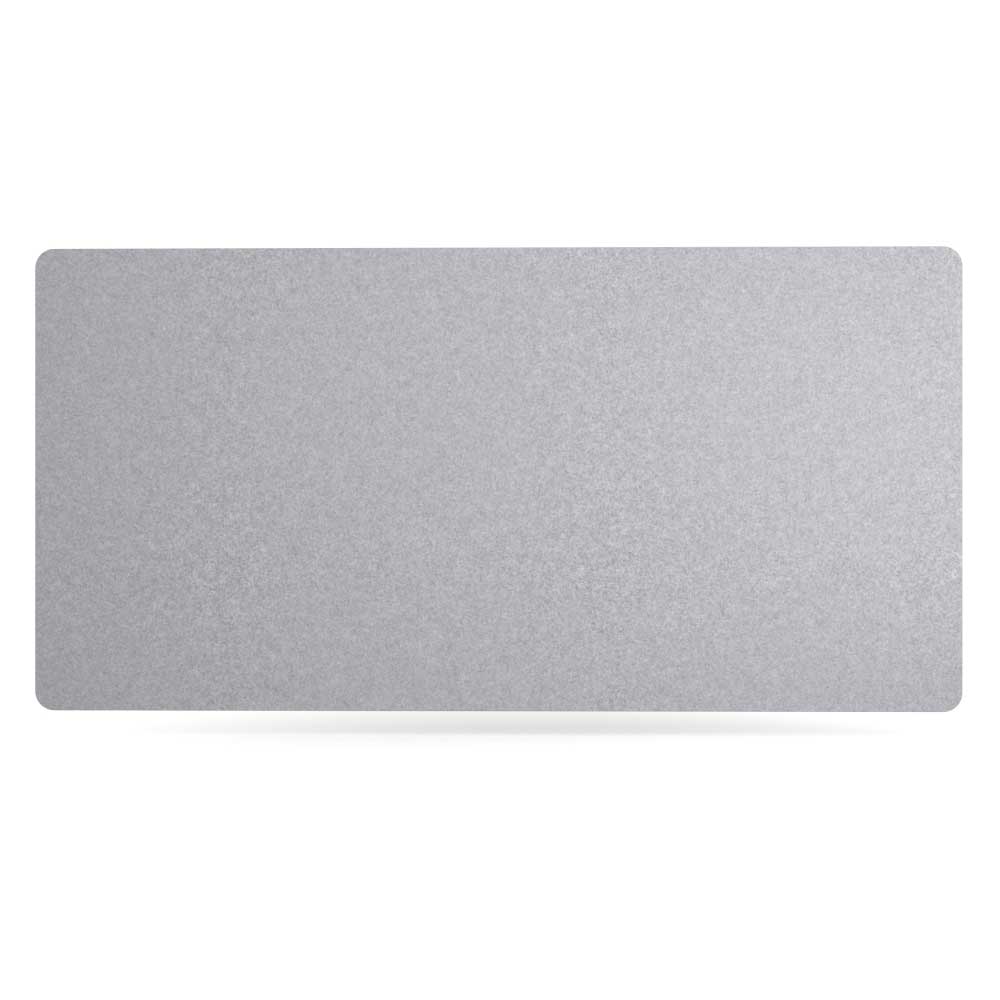

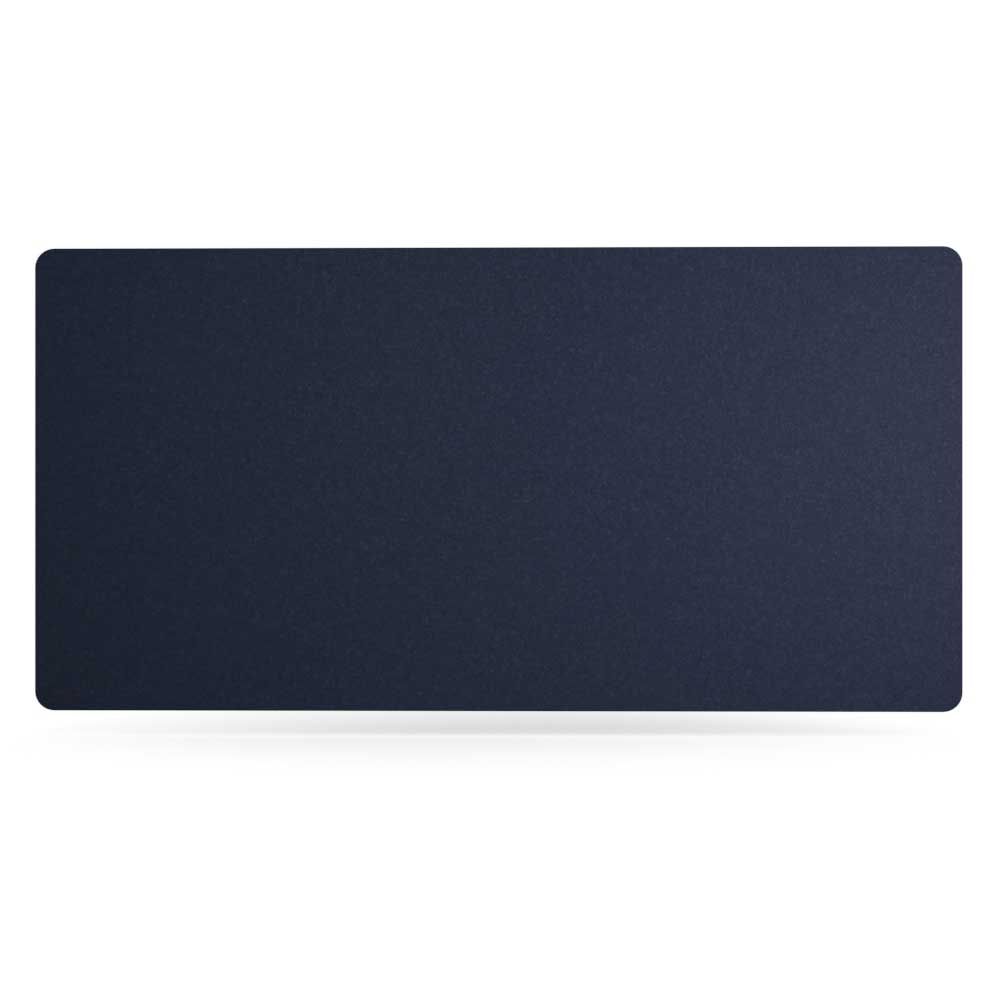

Ezobord Tac Panels are decorative acoustic wall panels that function as a acoustic pinboards while reducing ambient sound and reverberation.

Fully customizable by shape and size, and compatible with corporate designs, Ezobord Tac Panels can be installed on almost any wall surface with double-sided EzoTape.

When used in the classrooms, Tac Panels enhance speech intelligibility making every classroom a better place to learn.

Sound absorption performance

Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.

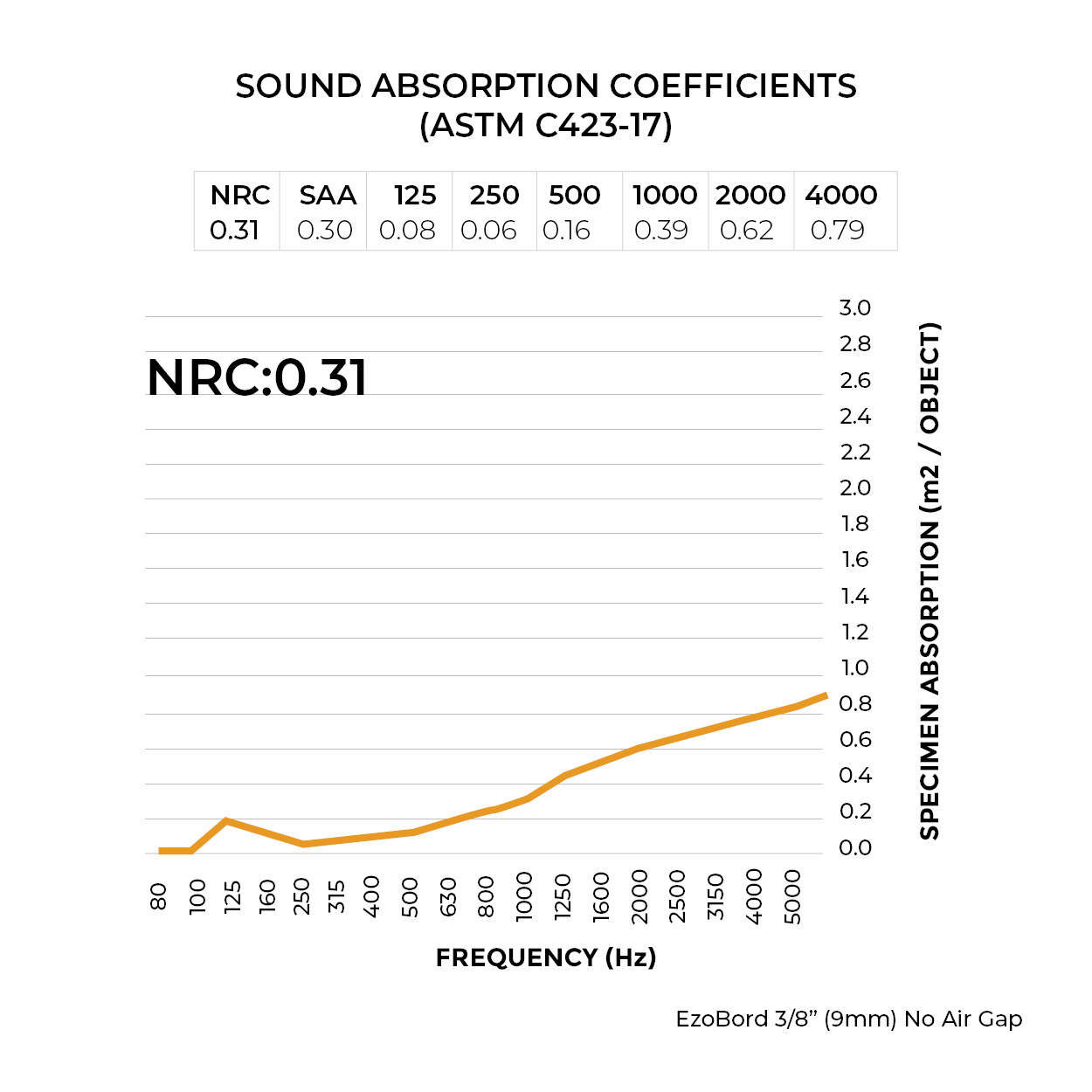

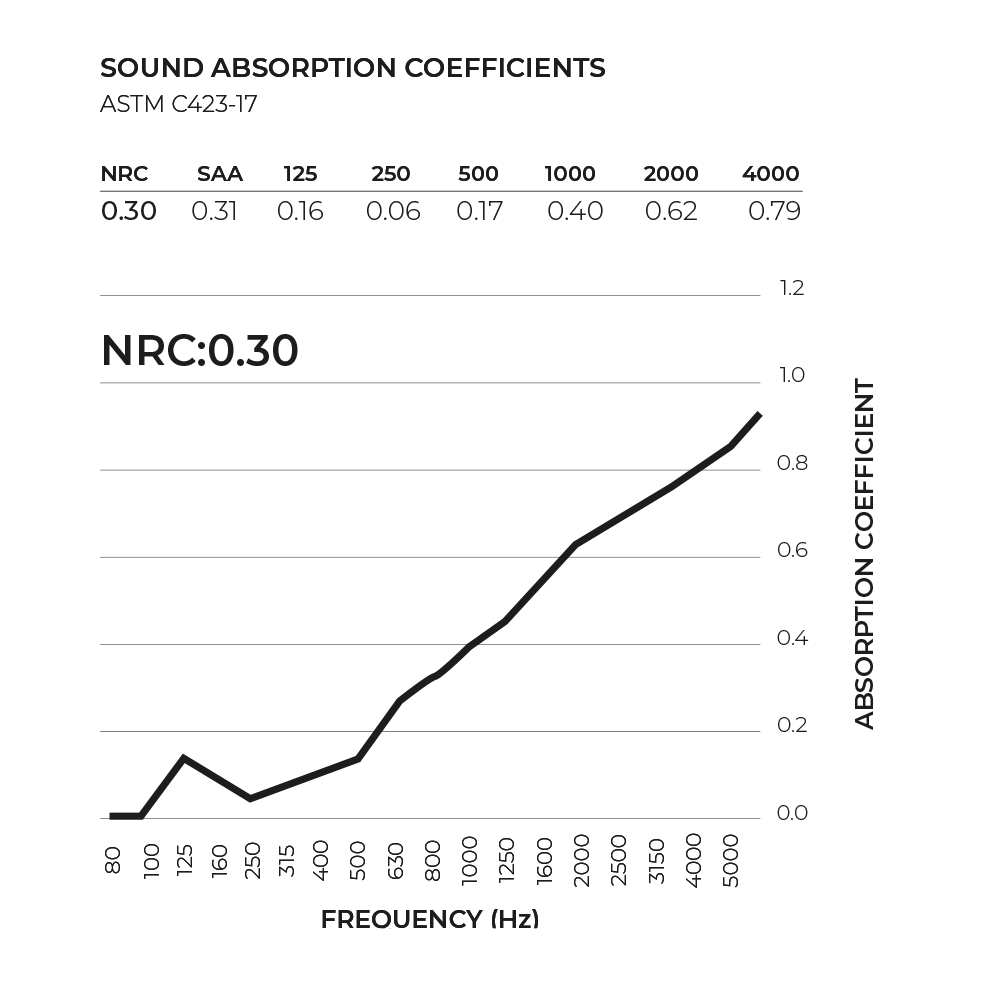

3/8" (9mm)
No Air Gap

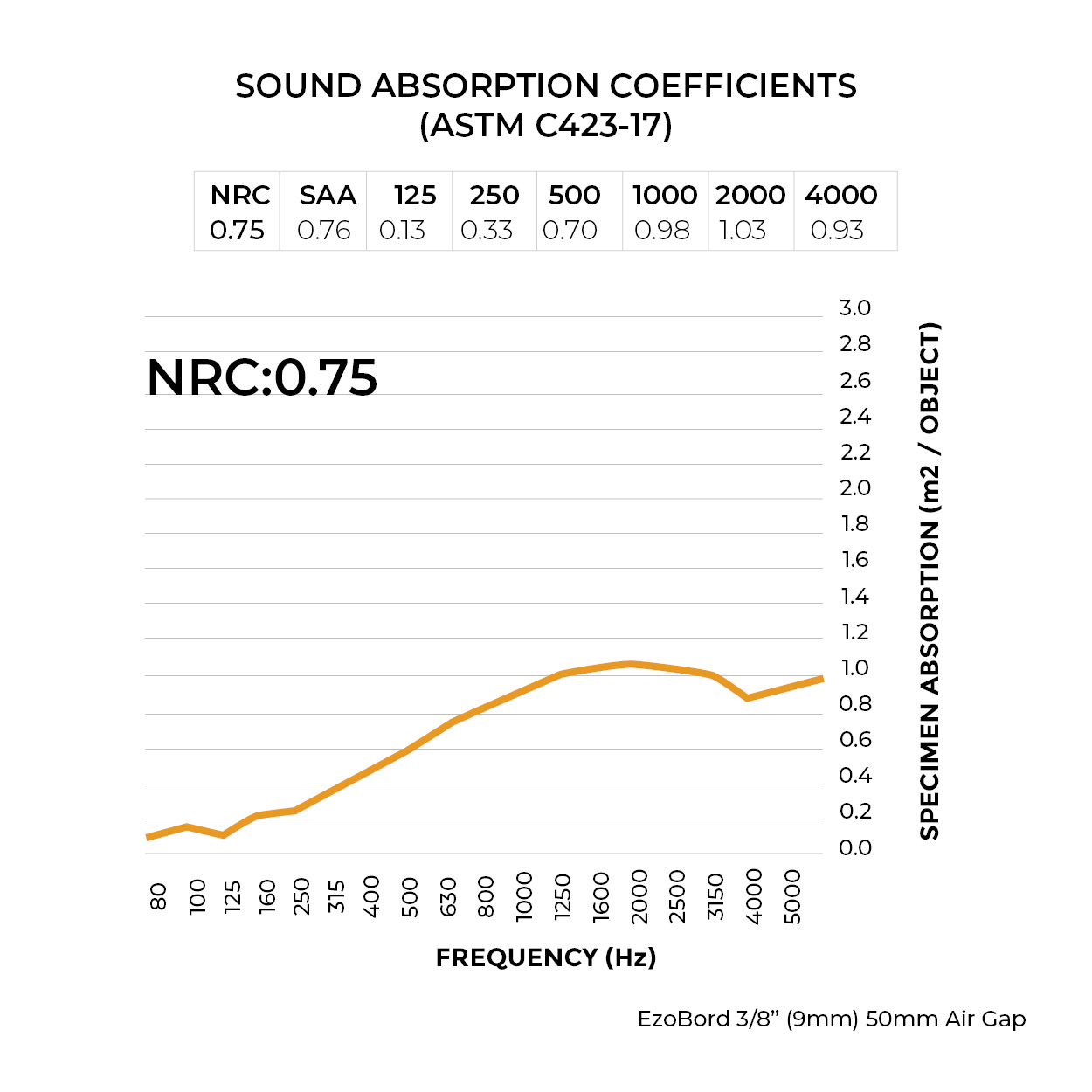

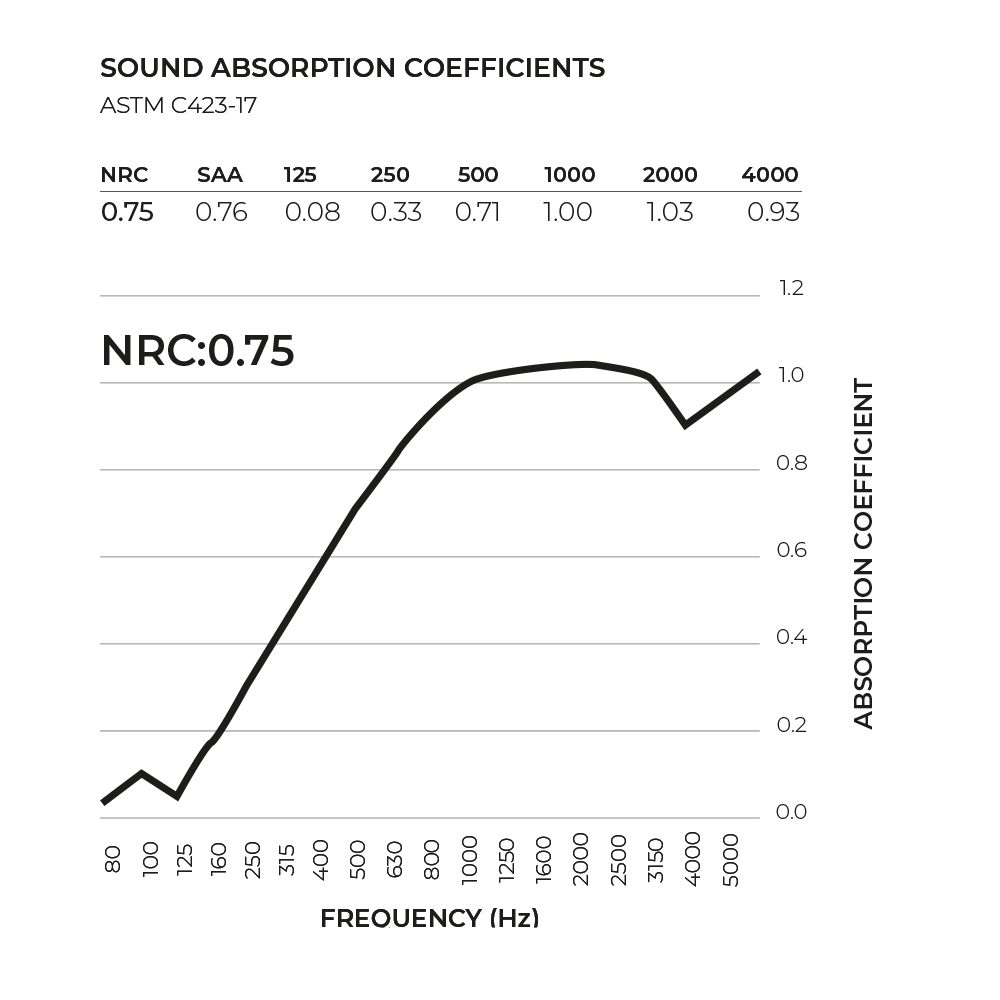

3/8" (9mm)
50mm Air Gap

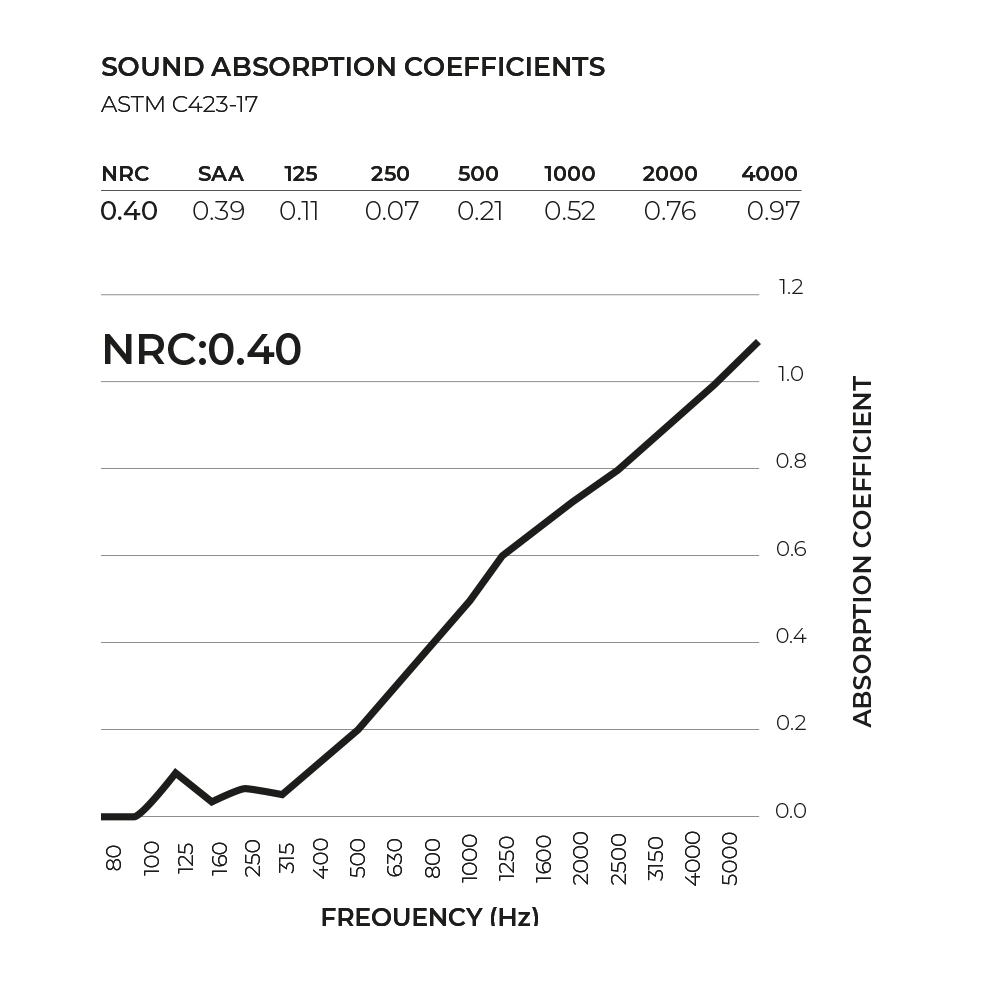

1/2" (12mm)
No Air Gap

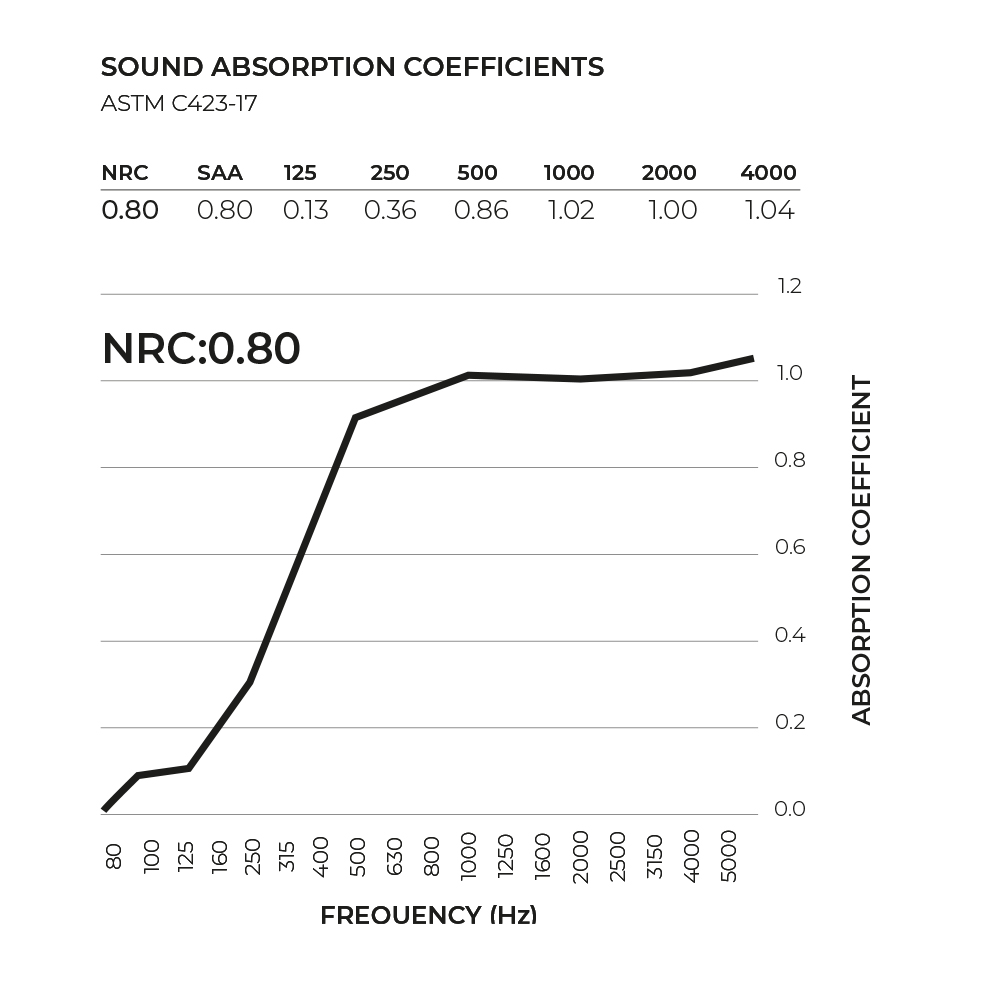

1/2" (12mm)
50 mm Air Gap
Sound Absorption Coefficient Chart
Sound Absorption Coefficient Chart
Sound Absorption Coefficient Chart
Sound Absorption Coefficient Chart

tac panel edge finishes

beveled edge

STRAIGHT EDGE

custom
acoustic
solutions

We offer custom acoustic solutions made with sustainable materials in local production facilities. Choose EzoBord as your new creative partner.

Documentation

Downloads

Product

Brochure
Installation Instructions

Acoustics

Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – No Air Gap
Sound Absorption Test Data (ASTM C423-17) – EzoBord 3/8” (9mm) – With 50mm Air Gap
Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – No Air Gap
Sound Absorption Test Data (ASTM C423-17) – EzoBord 1/2” (12mm) – With 50mm Air Gap

Fire Test Data

Surface Burning Characteristics (ASTM E84) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 3/8″ (9mm)
Classification of Reaction to Fire Performance (EN 13501 1:2007+A1: 2009) – EzoBord 3/8″ (9mm)
Surface Burning Characteristics (ASTM E84) – EzoBord 1/2″ (12mm)
Surface Burning Characteristics (CAN-ULC S102) – EzoBord 1/2″ (12mm)
Classification of Reaction to Fire Performance (EN 13501-1 2007) – EzoBord 1/2″ (12mm) – with FR Treatment

Environment

Environmental Product Declaration (EPD)
Health Product Declaration (HPD)
Material Safety Data Sheet
Declare Label
VOC Testing

Drawing Files

DWG 2D
DWG 3D
IFC
SKP
HARDWARE

Specifications

COMPOSITION
100% pet (min. %50 recycled content)

PRODUCT VARIANCES
Variation in fiber mix and colour may occur. All products will be supplied within commercial tolerances.

FIRE TESTING
North America:ASTM E-84 Class ACAN ULC S102-10
Europe and UK:EN13501-1: 2007

ENVIRONMENT
Made of polyester fiber, min. 50% of which comes from recycled water bottles which contributes to LEED MR Credit and BREEAM Health and Wellbeing, Materials points due to recycled content, acoustic performance, and low emitting materials. No VOC’s: CDPH v1.2 and REACH SVHC Compliant.

GENERAL
Tackable, impact resistant, bacteria resistant, moisture resistant, installation friendly.

Recommended Hardware

Available colors

EzoBord 3/8″ (9mm)

View Material

Vanilla Cream (VC97)
Sunset Pink (SP99)
Deep Purple DP30
Midnight Navy MN12
Evening Blue (EB50)
Aegean Blue (AB32)
Sunny Days SD18
Tiger Orange TO24
Ruby Red RR25
Classic White CW04
Polar Ice PI14
Light Beige LB01
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Ebony Slate ES07
Charcoal Gray CG06
Pure Black PB09

< Scroll to select more colors >

EzoBord 1/2″ (12mm)

Vanilla Cream (VC97)
Sunset Pink (SP99)
Grape Vine GV36
Midnight Navy MN12
Royal Blue B08
Evening Blue (EB50)
Aegean Blue (AB32)
Moss Green MG10
Sunny Days SD18
Brick Red BR34
Tree Bark TB35
Bold Gray BG07
Classic White CW04
Polar Ice PI14
Light Beige LB01
Desert Sand DS10
Silver Gray SG04
Elephant Gray EG11
Dark Gray DG34
Charcoal Gray CG06
Pure Black PB09

< Scroll to select more colors >

Virtual Sample Library
