Geo Tiles allow for endless patterning and are offered in a wide range of colors to be applied in any combination imaginable.
Key Features

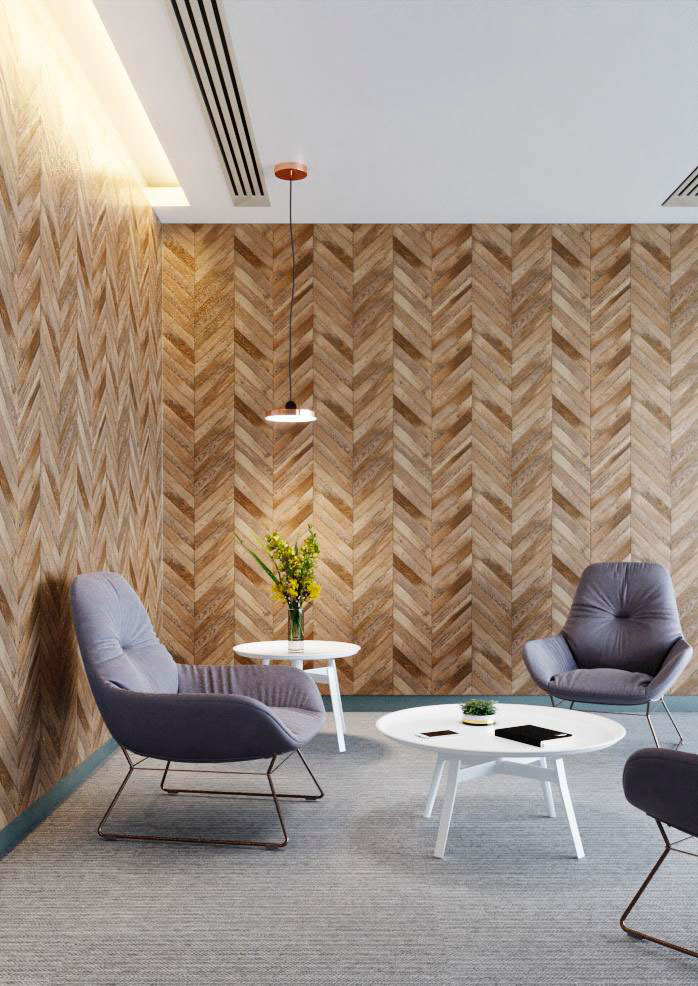

Geo Tiles are super light weight and easy to install with optional pressure sensitive EzoTape on virtually any surface.
GEO TILE Models
Enhanced V-Notch Geo Tiles
Hexagon union
Hexagon union
Hexagon inception
Hexagon inception
hexagon snowfall
hexagon snowfall
hexagon Arrow
Hexagon Arrow
Square Rise
Square Rise
square target
square target
square picket
square picket
square plaid
square plaid
Square stitch
Square stitch

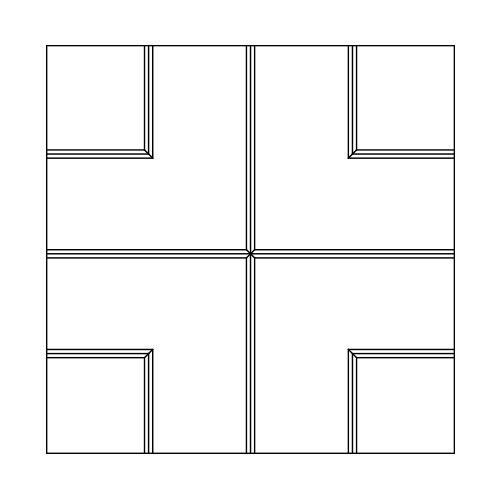

square cross
square cross
diamond strike
diamond strike
Standard Shapes
bowtie
bowtie
chevron
chevron
circle
circle
diamond
diamond
strip
strip
fan
fan
hexagon
hexagon
isoceles
isoceles
paisley
paisley
paralellogram
paralellogram
propeller
propeller
puzzle
puzzle
rectangle
rectangle
square
square
trapezoid
trapezoid
chevron
chevron
Sound absorption performance depends on mounting/installation conditions, material thickness, pattern & style.
documentation
Specifications
COMPOSITION
100% pet (min. 50% recycled content)
FEATURES
- Available in 30 standard color combinations.
- Easy and unobtrusive mounting
- Fully tackable surface

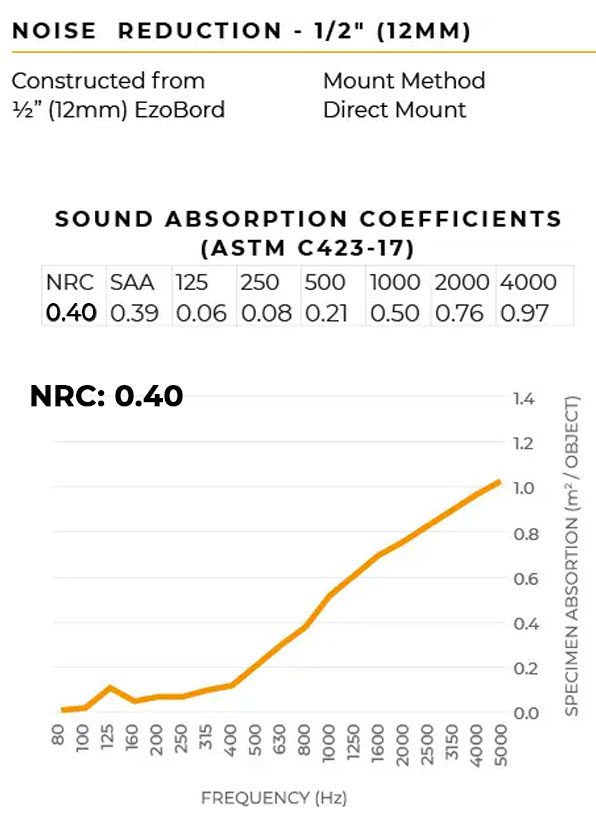

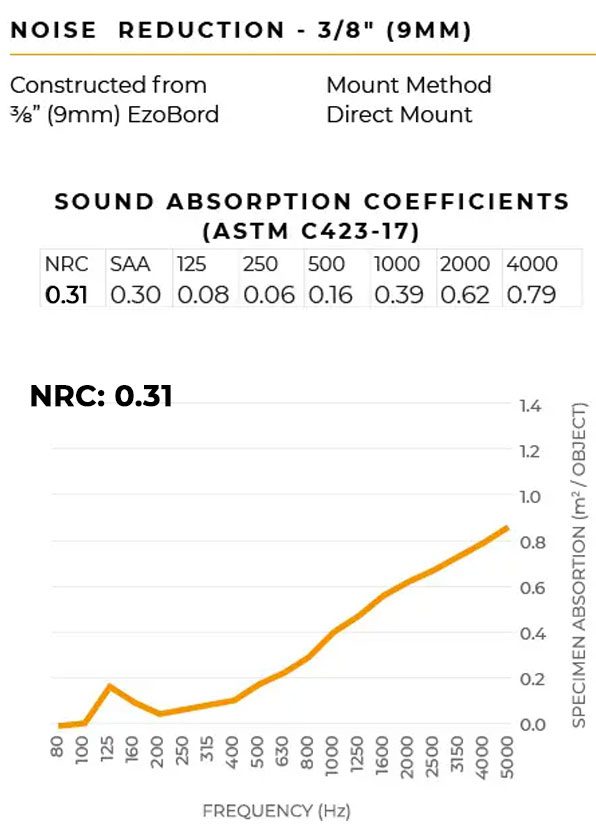

ACOUSTICS
Superior sound absorption characteristics
(NRC: 0.75, SAA: 0.58, ASTM C423, 9mm material thickness)
FIRE TESTING
North America:
- ASTM E-84 Class A
- CAN/ULC S102-10
Europe and UK:
EN13501-1: 2007
| GEO TILES- STANDARD-ENHANCED | |||
| STYLE | WIDTH | HEIGHT | THICKNESS |
| Bow Tie | 6″ (152mm) | 4.4″ (112mm) | 3/8″ (9mm) |
| Chevron | 12″ (304.8mm) | 6.55″ (166.37mm) | 3/8″ (9mm) |
| Triangle | 6″ (152mm) | 5.2″ (132mm) | 3/8″ (9mm) |
| Circle | 6″ (152mm) | 6″ (152mm) | 3/8″ (9mm) |
| Rectangle | 23.5″ (597mm) | 11.5″ (292mm) | 3/8″ (9mm) |
| Paisley | 9″ (229mm) | 12″ (305mm) | 3/8″ (9mm) |
| Hexagon Union | 24″ (610mm) | 20.78″ (528mm) | 3/8″ (9mm) |
| Hexagon Inception | 24″ (610mm) | 20.78″ (528mm) | 3/8″ (9mm) |
| Hexagon Snowfall | 24″ (610mm) | 20.78″ (528mm) | 3/8″ (9mm) |
| Hexagon Arrow | 24″ (610mm) | 20.78″ (528mm) | 3/8″ (9mm) |
| Square Rise | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Square Target | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Square Picket | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Square Plaid | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Square Stitch | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Square Cross | 23″ (584mm) | 23″ (584mm) | 3/8″ (9mm) |
| Diamond Strike | 24″ (610mm) | 13.86″ (352mm) | 3/8″ (9mm) |
Please note that all dimensions are nominal, supplier reserves the right to adjust sizing without prior notification.
This is a portion of the complete set of dimensions, to get the full list, please download Geo Tiles Brochure.
To get the complete set of dimensions please download Geo Tiles Brochure.
Specific product files
Product models design files
Installation Instructions
Customizable Parameters
- Geometric Properties: Dimensions and shape
- Material Thickness: 3/8″ (9mm) or 1/2″ (12mm)
- Color: Available options below
AVAILABLE COLORS
Light Beige
LB01
Desert Sand
DS10
Sunny Days
SD18
Tiger Orange
TO24
Ruby Red
RR28
Deep Purple
DP30
Polar Ice
PI14
Midnight Navy
MN12
Green Apple
GA41
Classic White
CW04
Silver Gray
2-400ML
Dark Gray
DG34
Ebony Slate
ES07
Charcoal Gray
CG06
Pure Black
PB09
Tree Bark
TB35
Brick Red
BR34
Grape Vine
GV36
Ocean Blue
OB14
Royal Blue
RB08
Moss Green
MG10
Elephant Gray
EG11
Bold Gray
BG07
